CMT Stack Dado Set DADO PRO, Ø15.87 mm
Available from 23.09.2026
€249.00
% Regular price: €287.75 (13.47% saved)

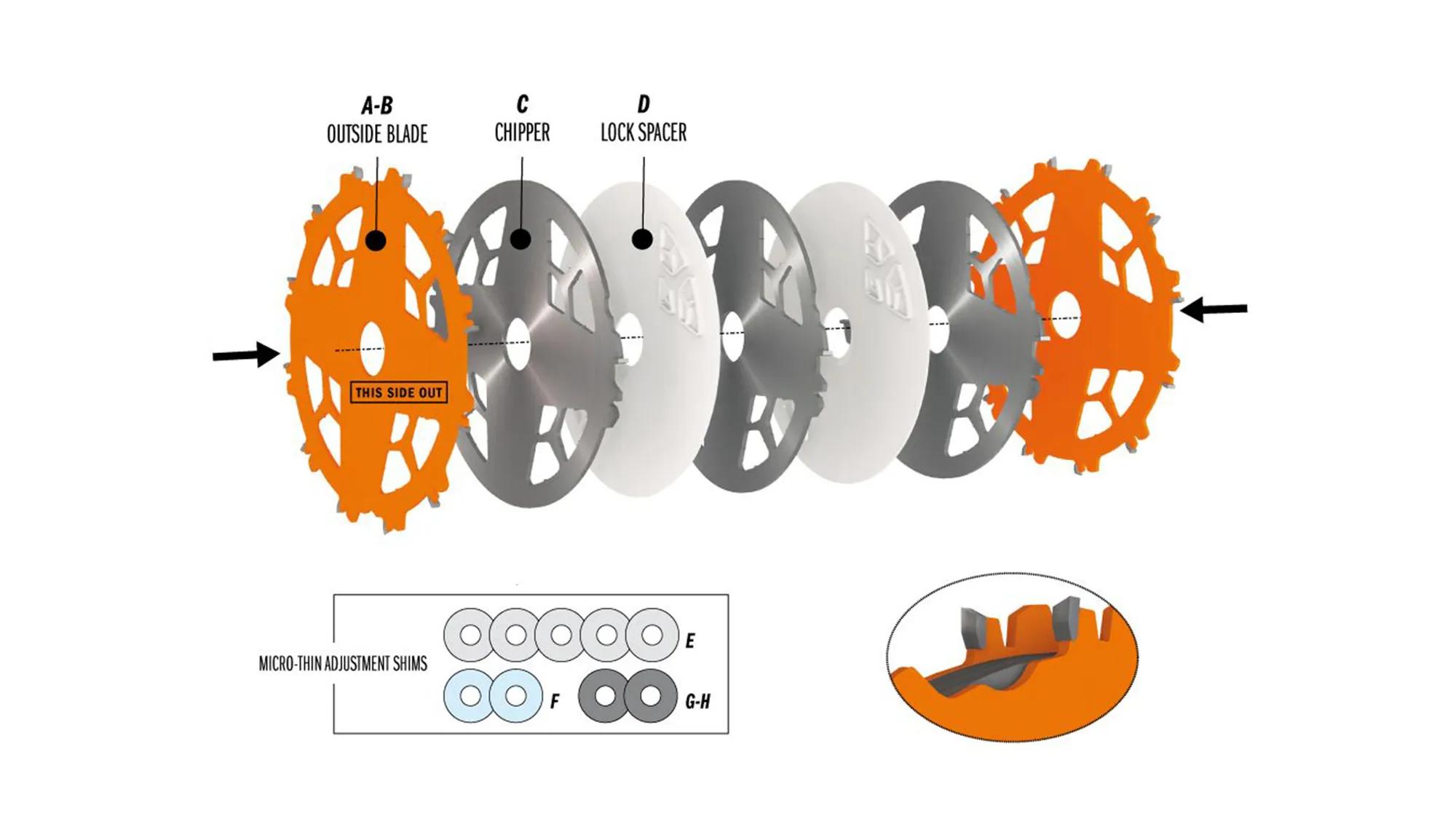

- 1x Left outer blade 203 mm
- 1x Right outer blade 203 mm
- 3x Inner chippers 3.14 mm
- 3x Shim with lock
- 6x Spacer rings 0.1 mm
- 2x Spacer rings 0.2 mm
- 1x Magnetic spacer ring 0.3 mm
- 1x Magnetic spacer ring 0.5 mm
- 1x Instruction manual
IGM nástroje a stroje s.r.o.
Ke Kopanině 560 25267 Tuchoměřice Czech Republic
[email protected]
https://igmtools.de/
CMT Stack Dado Set DADO PRO, Bore Ø: 15.87 mm
For producing flat-bottomed grooves and clean cuts with virtually no burr, suitable for solid wood, laminate, MDF and veneer
Technical data
-
Diameter
203 mm
-
Number of teeth
12
-
Bore Ø
15.87 mm (5/8")
-
Cutting width
6.2 - 20 mm
-
Hook angle
-12°
Features & benefits
- The Orange Shield Coating layer provides exceptional heat dissipation, prevents material adhesion, and protects the blade against corrosion.
- The set includes spacer rings (plastic and magnetic) and a set of shims with locks, allowing width adjustments in 1 mm increments.
- The Dado set complies with UNI EN847 standards – the individual blades never come into mutual contact thanks to the unique design.
- You can adjust the exact groove width for all configurations using spacer rings (0.1 – 0.5 mm), which you place between the blades and shim with the locks.
- Suitable for solid wood, laminate, MDF, and veneered wood.
Predecessor item
For the production of grooves with a flat base | D 203 x 6,2-20mm | d15,87 mm | Z12 HW | Suitable for the Laguna Fusion and the DeWalt 7492-QS table saws
