Edge sanding machine Holzprofi Maker KSM2600

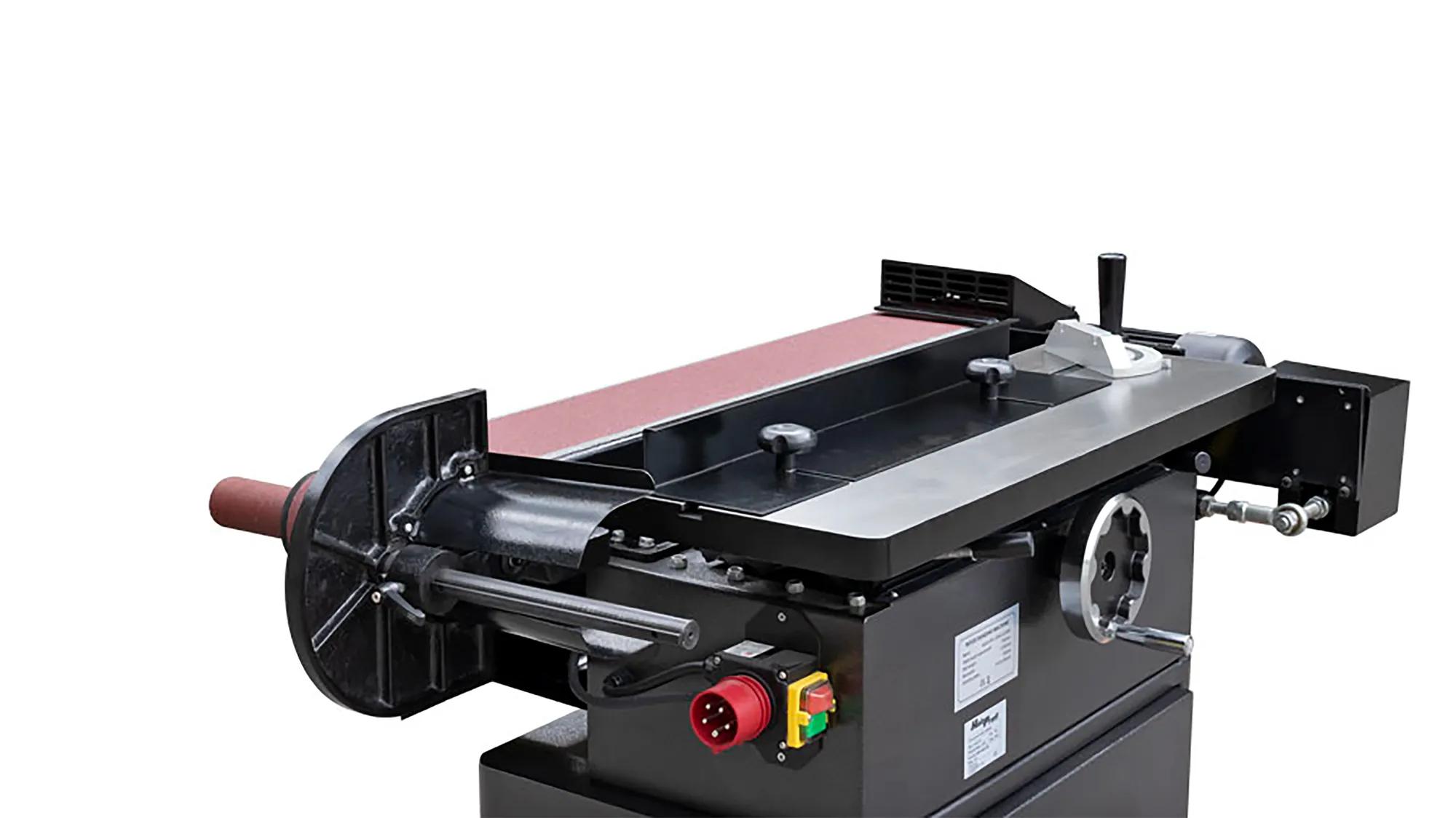

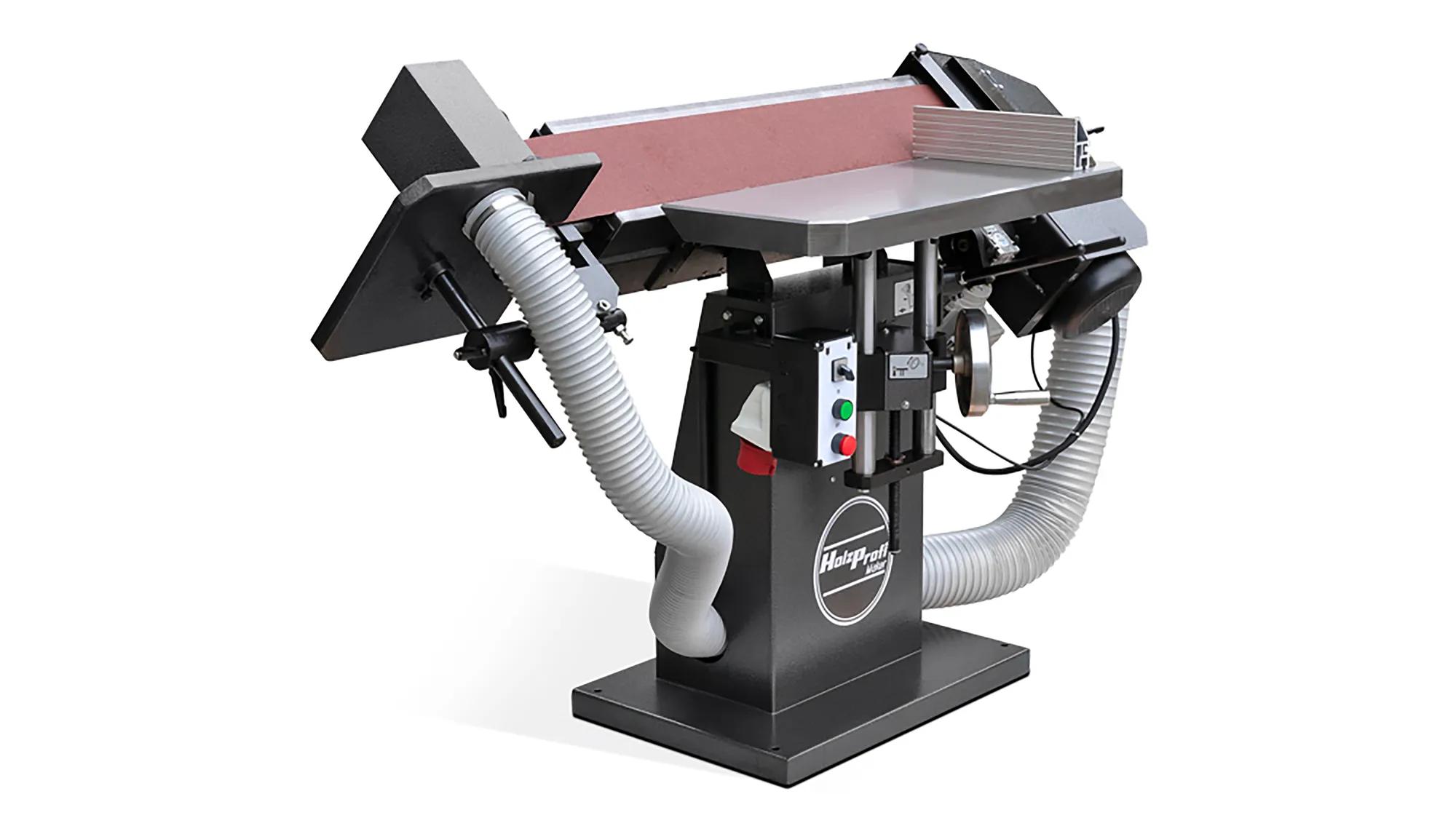

The KSM2600 edge sanding machine from Holzprofi Maker is a powerful and versatile machine that is ideal for precise sanding work in professional workshops.
Technical data
- Table size: 750 x 300 mm
- Table height adjustment: 200 mm
- Belt length: 2,600 mm
- Belt width: 150 mm
- Belt speed: 20 m/s
- Oscillation stroke: 20 mm
- Oscillation motor power: 0.25 kW
- Main motor output power: 3.8 kW (S6), 400 V
- Weight: 180 kg
Features & benefits
- Robust construction: The machine stand is torsion- and vibration-free, which ensures high stability and durability.
- Adjustable sanding unit: The sanding unit can be continuously tilted up to 45°, made possible by an easy-to-operate lever.
- Oscillating sanding belt: The sanding belt oscillation is driven by a separate gear motor, which leads to even sanding results.

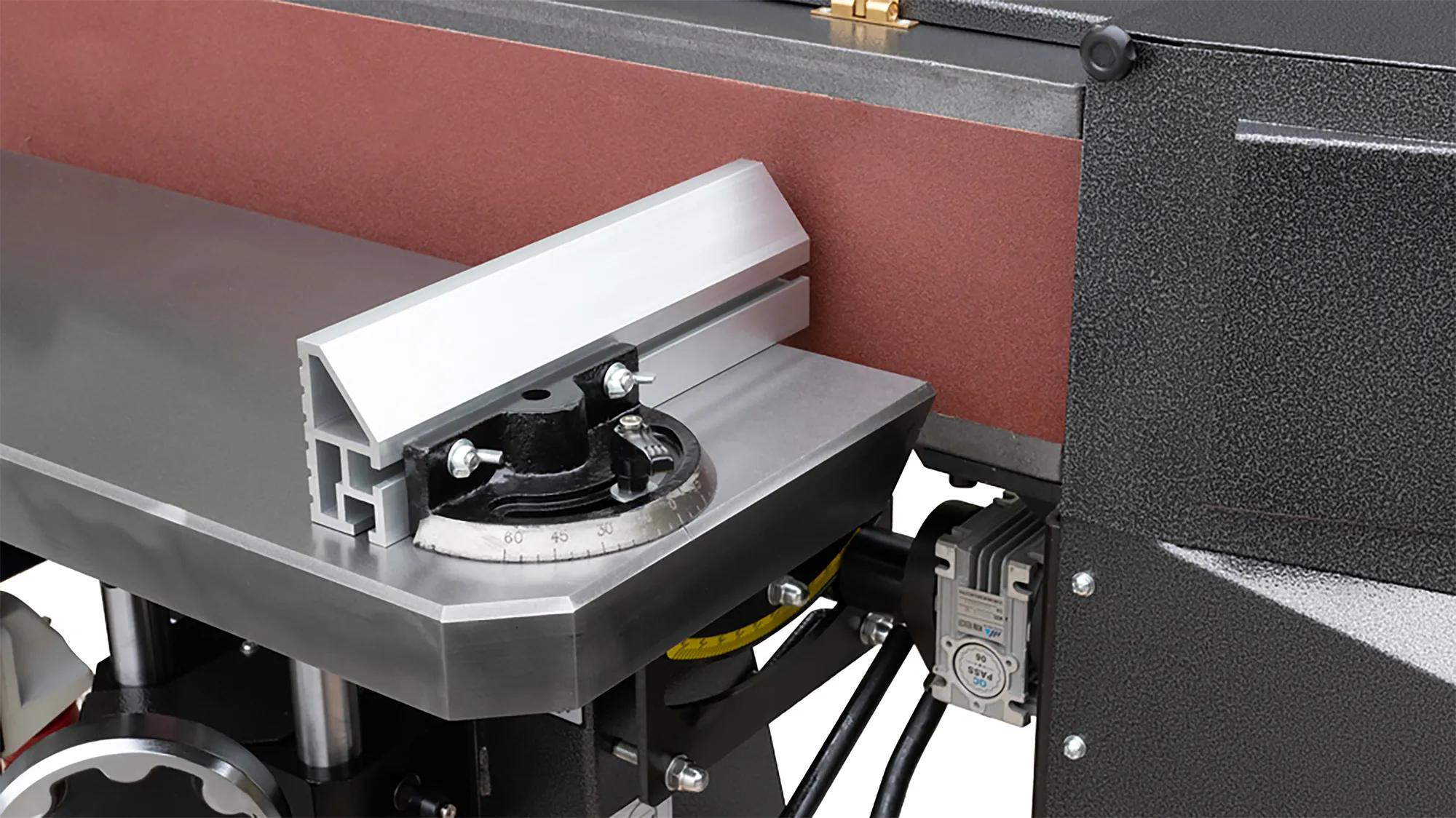

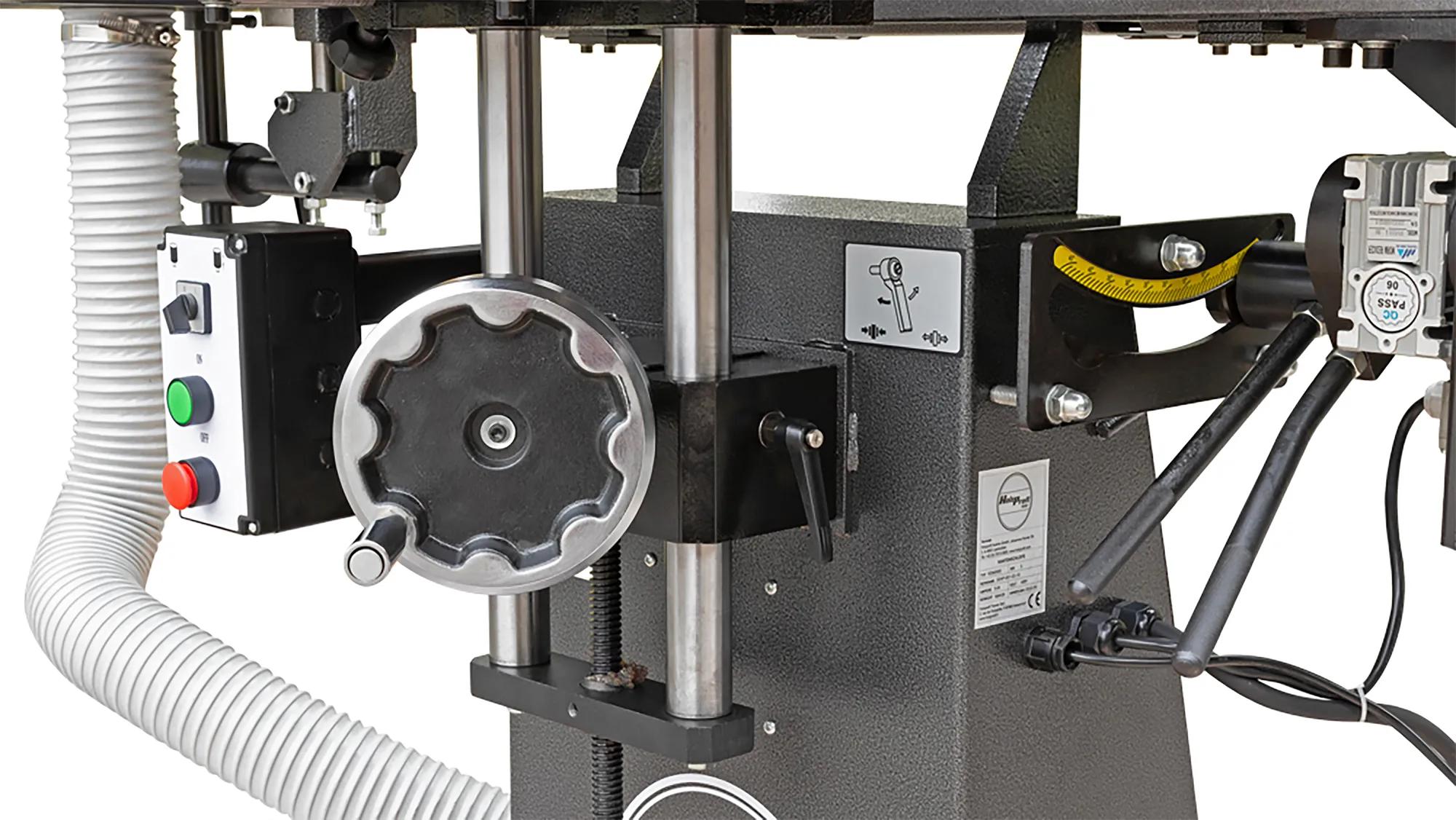

- Height-adjustable sanding table: The height of the table can be adjusted to optimise the entire width of the sanding belt.
- Additional auxiliary table: A height-adjustable auxiliary table with suction is integrated, ideal for sanding radii.
- Precise sanding: The infinitely variable adjustment of the sanding unit and the oscillation function enable precise and even sanding results.
- Flexibility: Thanks to the height-adjustable table and the swivelling sanding unit, different workpiece sizes and shapes can be processed.
- Ease of use: The simple operation and robust components ensure a smooth workflow and a long service life for the machine.
