Harvey BIG EYE B-52 (Metric)

Universal compatibility (approx. 685-800 mm) | Positive locking at both ends | Stability & repeatability

Delivery in 4-5 business days

Item is oversized and will be shipped by freight carrier.

€1,450.61

Brand: HARVEY INDUSTRIES

Item no.: HAR-804812

Weight: 29.7 kg

Scope of delivery

1x Harvey BIG EYE B-52 (Metric)

Manufacturer

Manufacturer:
Harvey Industries Europa GmbH
Ludwigstraße 16 35315 Homberg (Ohm) Germany
[email protected]

EU representative:
Harvey Industries Europa GmbH
Ludwigstraße 16 35315 Homberg (Ohm) Germany
[email protected]
https://www.harveywoodworking.de/

Harvey BIG EYE B-52 (Metric)

Technical data

Model
BIG EYE B-52 (Metric)
Maximum cutting length ("rip capacity" / fence length range)
Approx. 1 320 mm (equivalent to 52″) to the right of the saw blade.
Guide and rail dimensions
Front rail: 92 × 2,165 mm; rear rail: 65.5 × 1,855 mm.
Max. Max. load of the locking mechanism
300 N according to manufacturer's specification.
Sliding deviation over the entire barrel length
≤ 0.15 mm according to manufacturer's specification.
Locking dimensional accuracy at the "Lock" front and rear
≤ 0.02 mm (≈ 0.0008″) according to the manufacturer.
Net weight
approx. 34 kg, gross weight approx. 36 kg.
Universal compatibility
Fits many table saws with rail depths in the range of approx. 685-800 mm (27″-31½″) and is offered as a high-quality accessory for branded and self-made table saws.

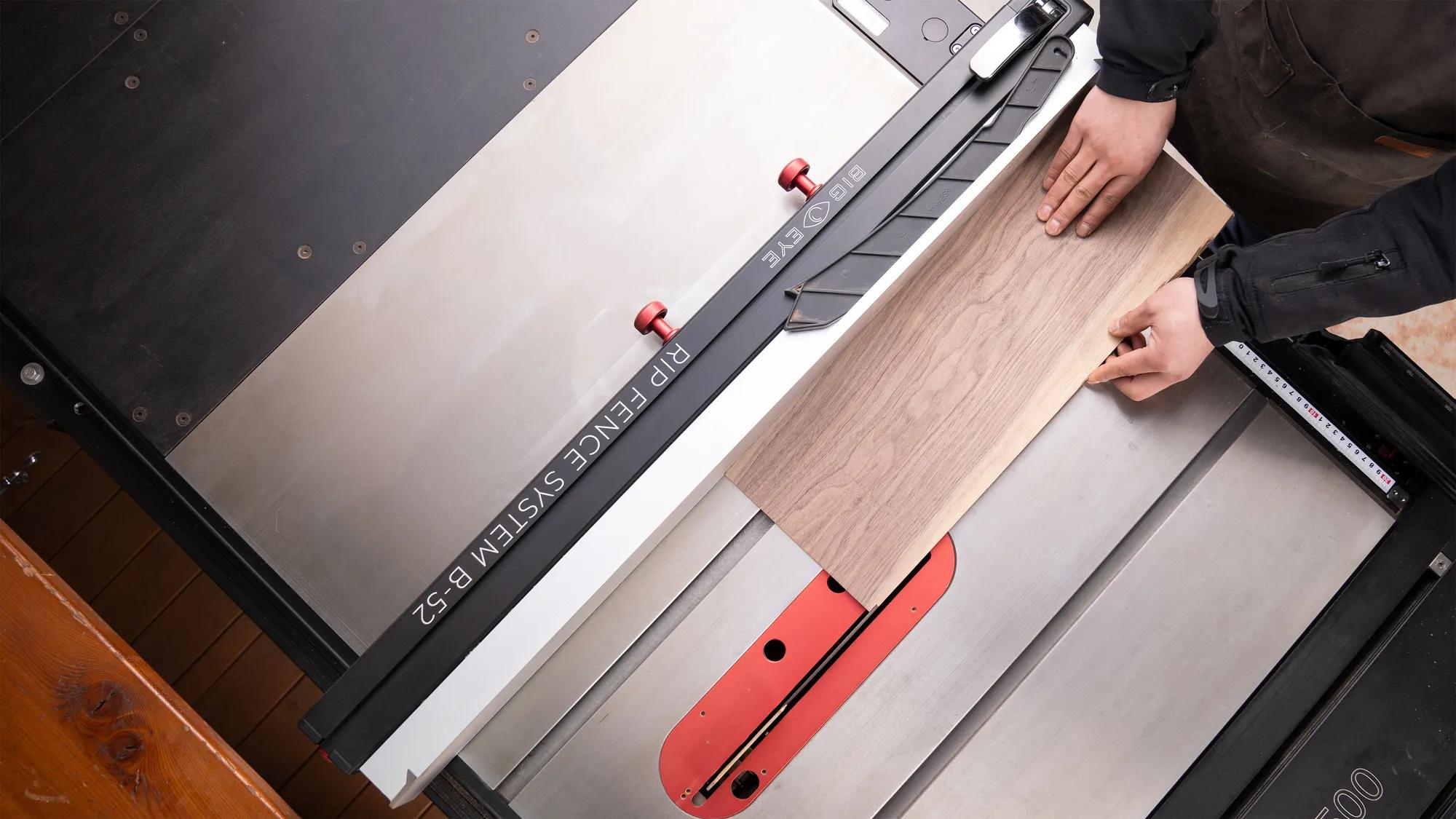

anschlag-big-eye-b-52-harvey-har-804812-02

Features & benefits

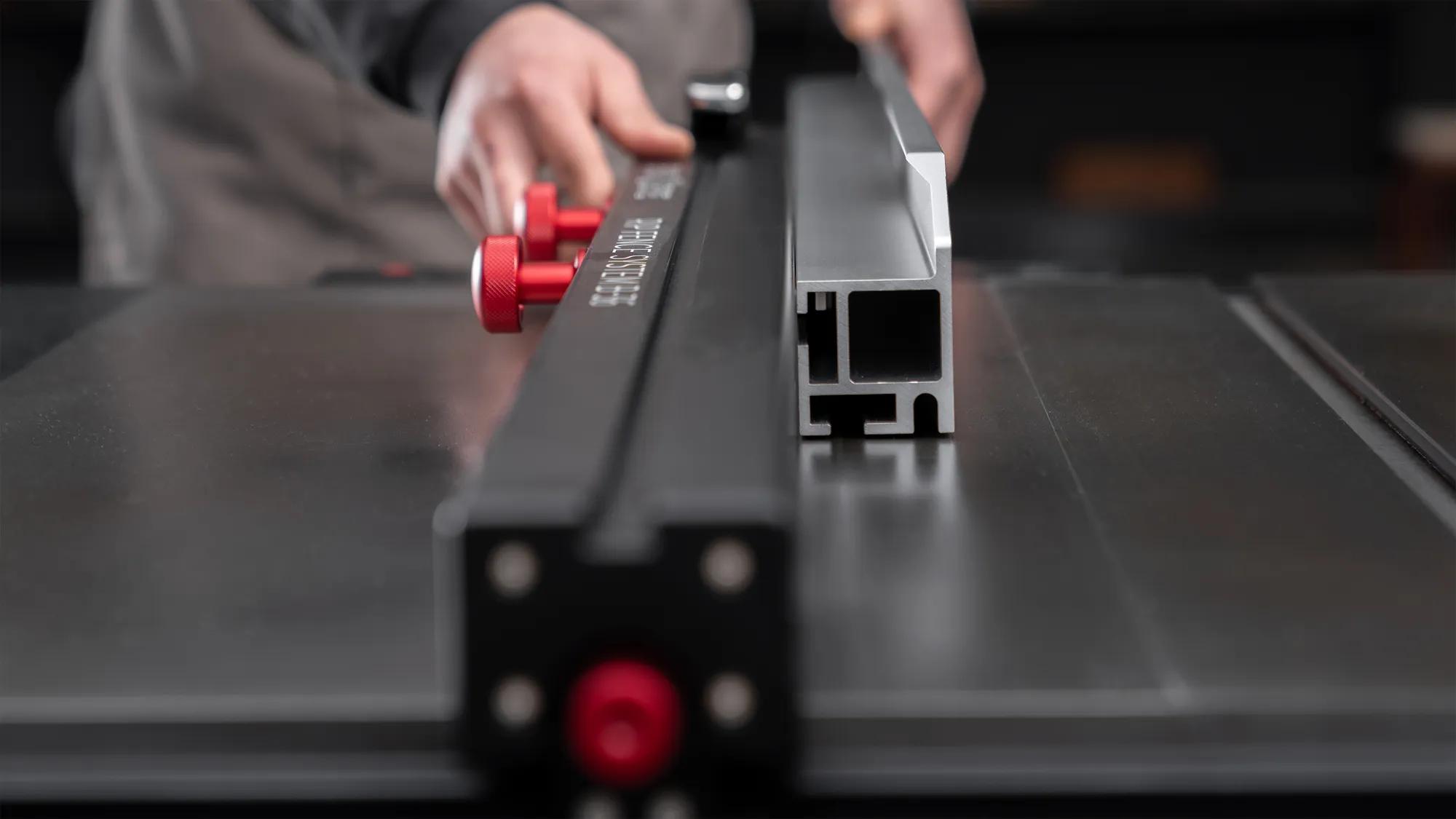

High-precision "Rip Fence" system with Dual-Axis Linear Guide Rail System: two hardened steel guide rods, eight precision roller bearings, sliding without play.

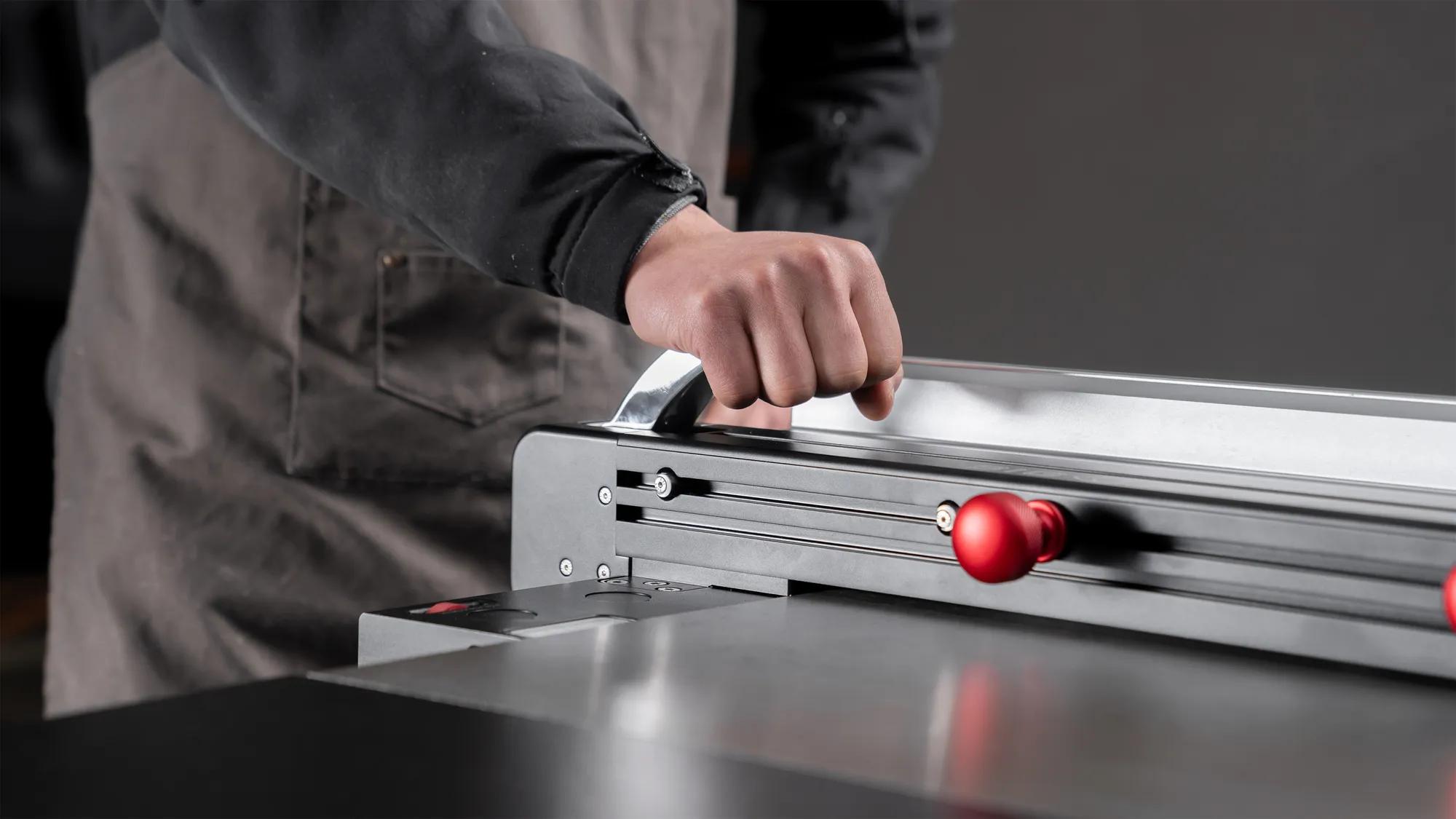

Synchronised positive locking at both ends: A lever operates simultaneously at the front and rear to prevent the fence from bending or twisting during cutting.

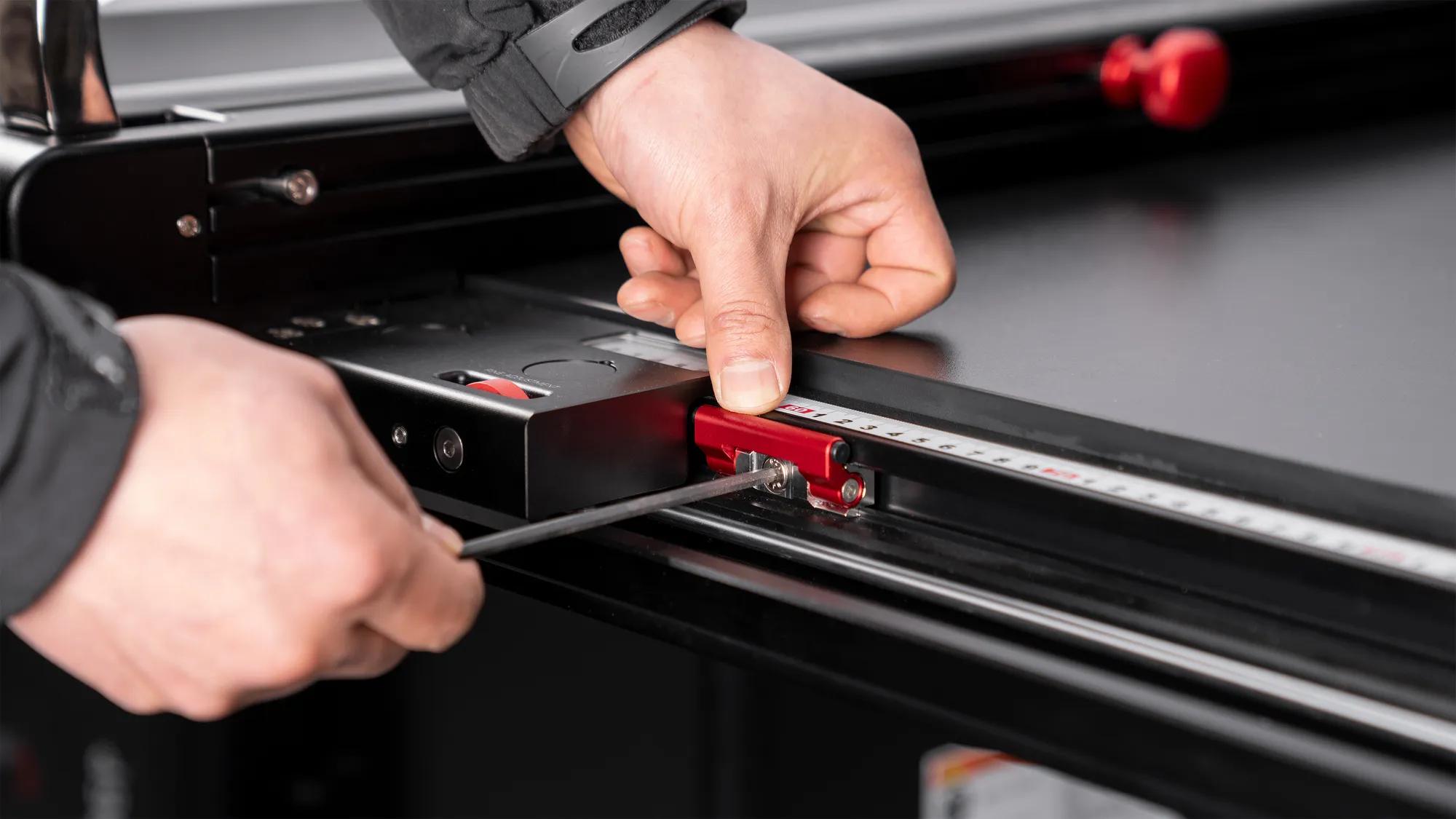

Integrated measuring and scale display in metric and imperial units, resolution in the metric range 1 mm.
High-quality materials: aircraft aluminium alloy, hardened steel, stainless steel - CNC-machined and precision-ground.

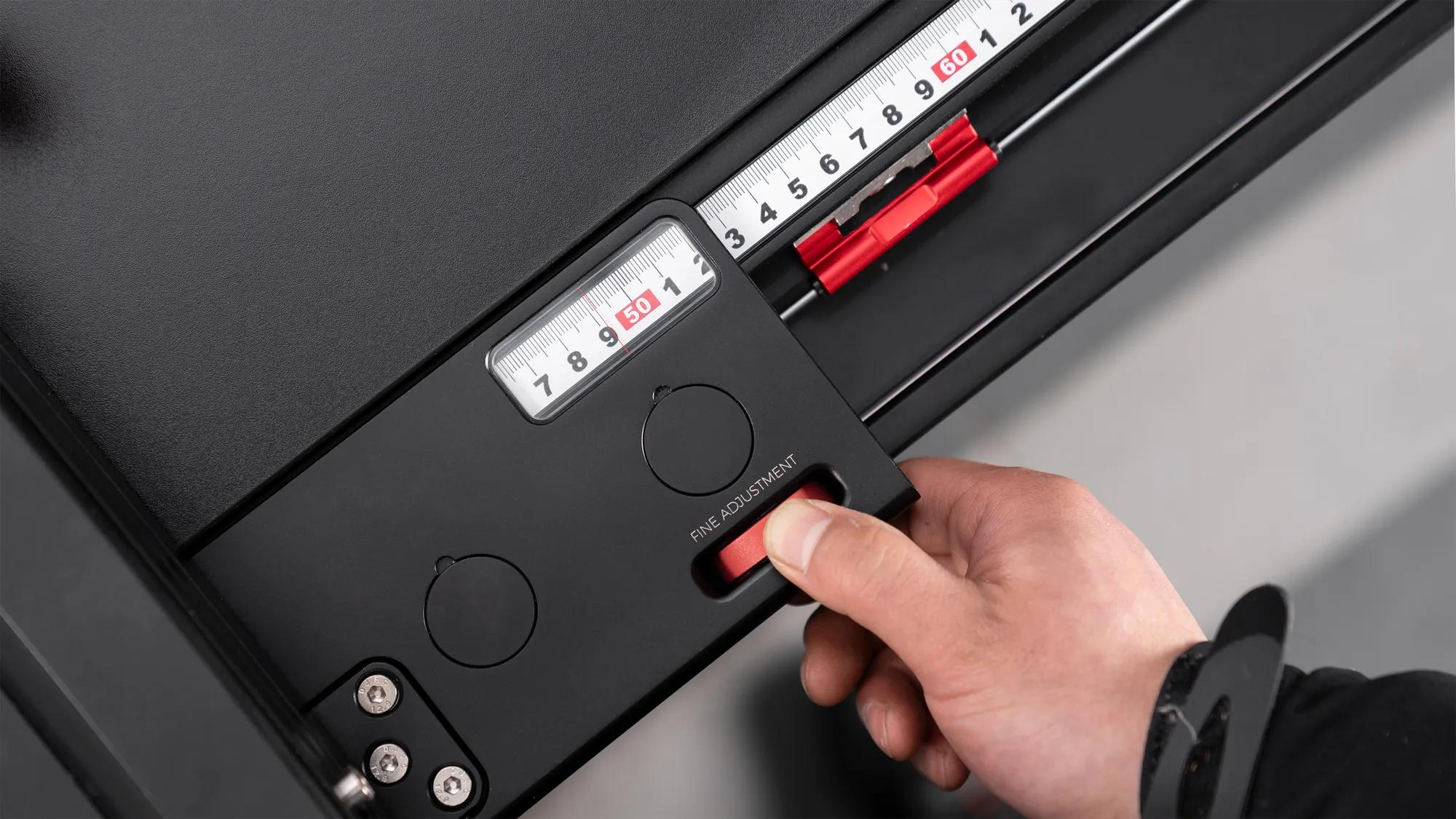

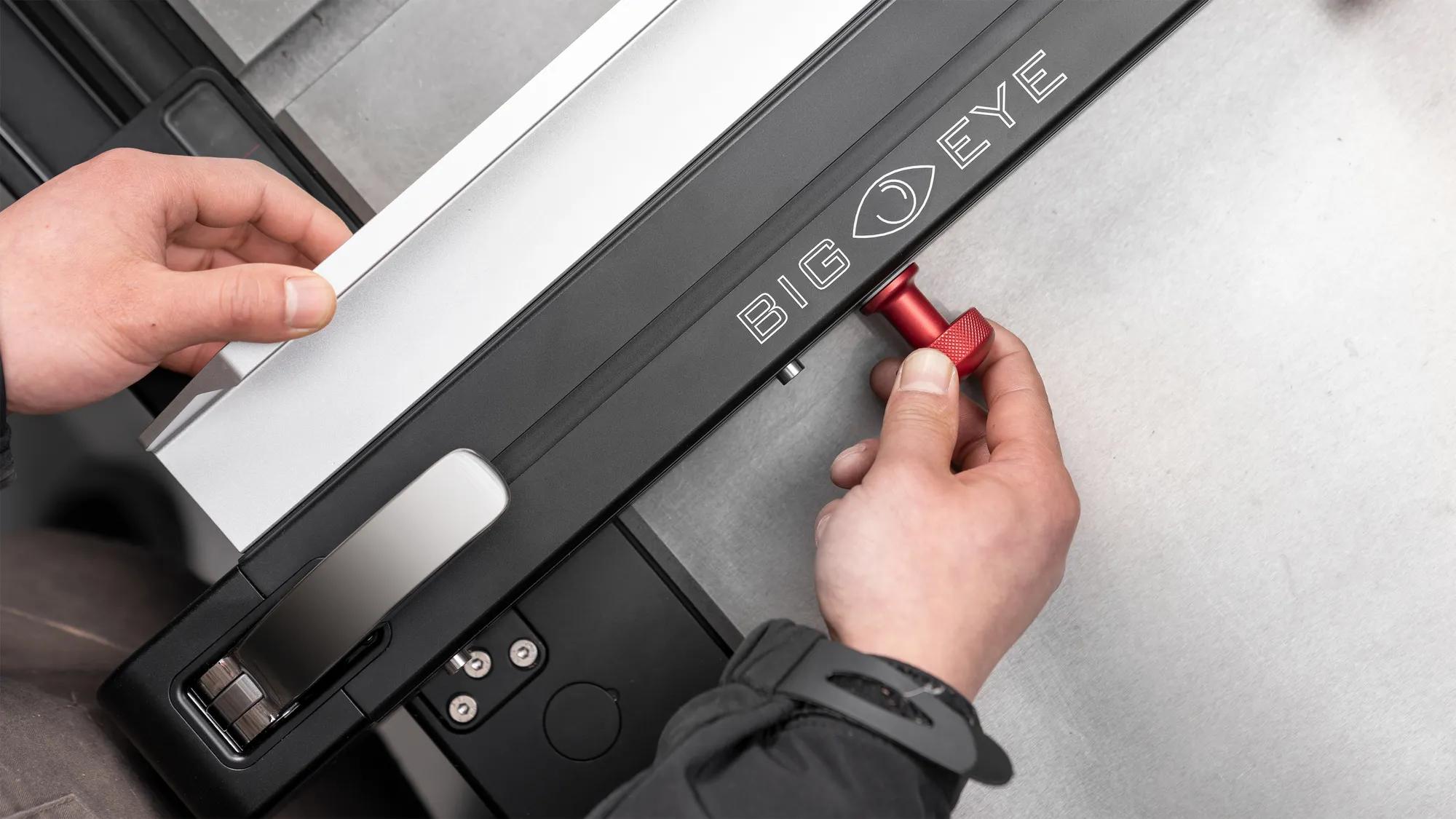

Micro-fine adjustment via handwheel and integrated "flip stops" for repeatable cuts.
Designed for a rail length (B-52 version) of approx. 1320 mm (52"), i.e. suitable for a cutting capacity up to this dimension to the right of the saw blade.
Extremely precise cutting guidance: Thanks to the linear guide and end lock, the parallelism to the saw blade is kept constant over the entire length, minimising deviations. (Manufacturer's specification ≤ 0.15 mm sliding deviation, locking accuracy ≤ 0.02 mm)
Stability & repeatability: The positive locking of both ends effectively prevents the stop from "bending" when cutting large workpieces.
Simple and intuitive operation: The fine adjustment via handwheel, the clearly legible metric scale and the convenient locking mechanism make handling efficient and user-friendly.
Value-adding & durable: High-quality materials, excellent workmanship and designed for precision - an investment for professional workshops that should last a long time.
