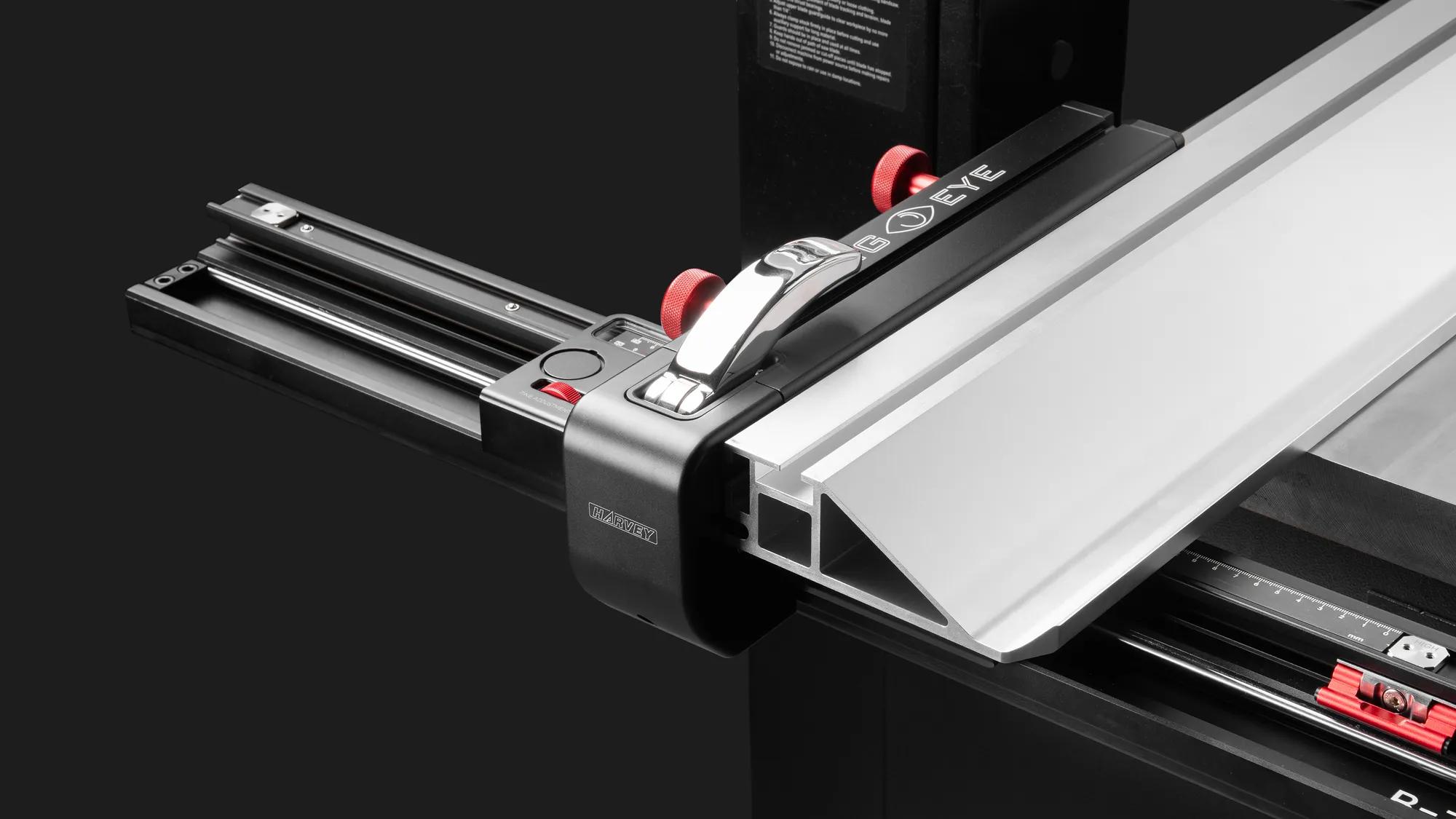

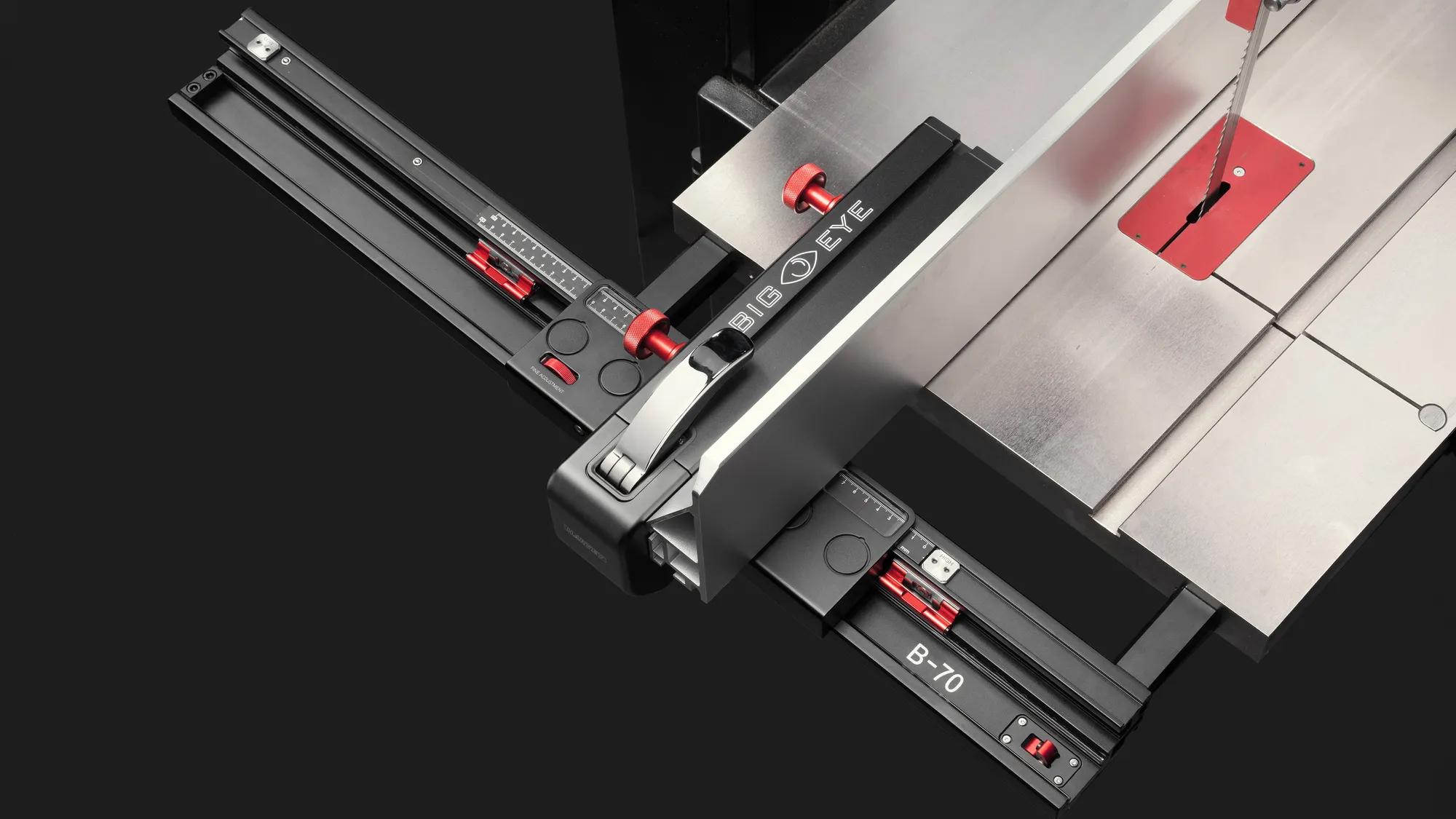

Harvey BIG EYE B-70 bandsaw cutting fence
A bandsaw is essential to any woodworking shop, but conventional cutting fences often lack stability and angular accuracy, tend to misalign, don't slide cleanly and require constant readjustment - compromising cut quality and precision and limiting the machine's full potential.
The Big Eye B-70 bandsaw cutting fence was developed to change just that. The Big Eye B-70 bandsaw cutting fence is an adaptation of our award-winning table saw cutting fence system - the BIG EYE B-36/52 cutting fence system.
Technical data
Accuracy & mechanics
-
Movement accuracy
approx. ± 0.15 mm over the entire travel distance
- Guide system
- 2 hardened steel guides
- 8 precision bearings (4 fixed, 4 adjustable)

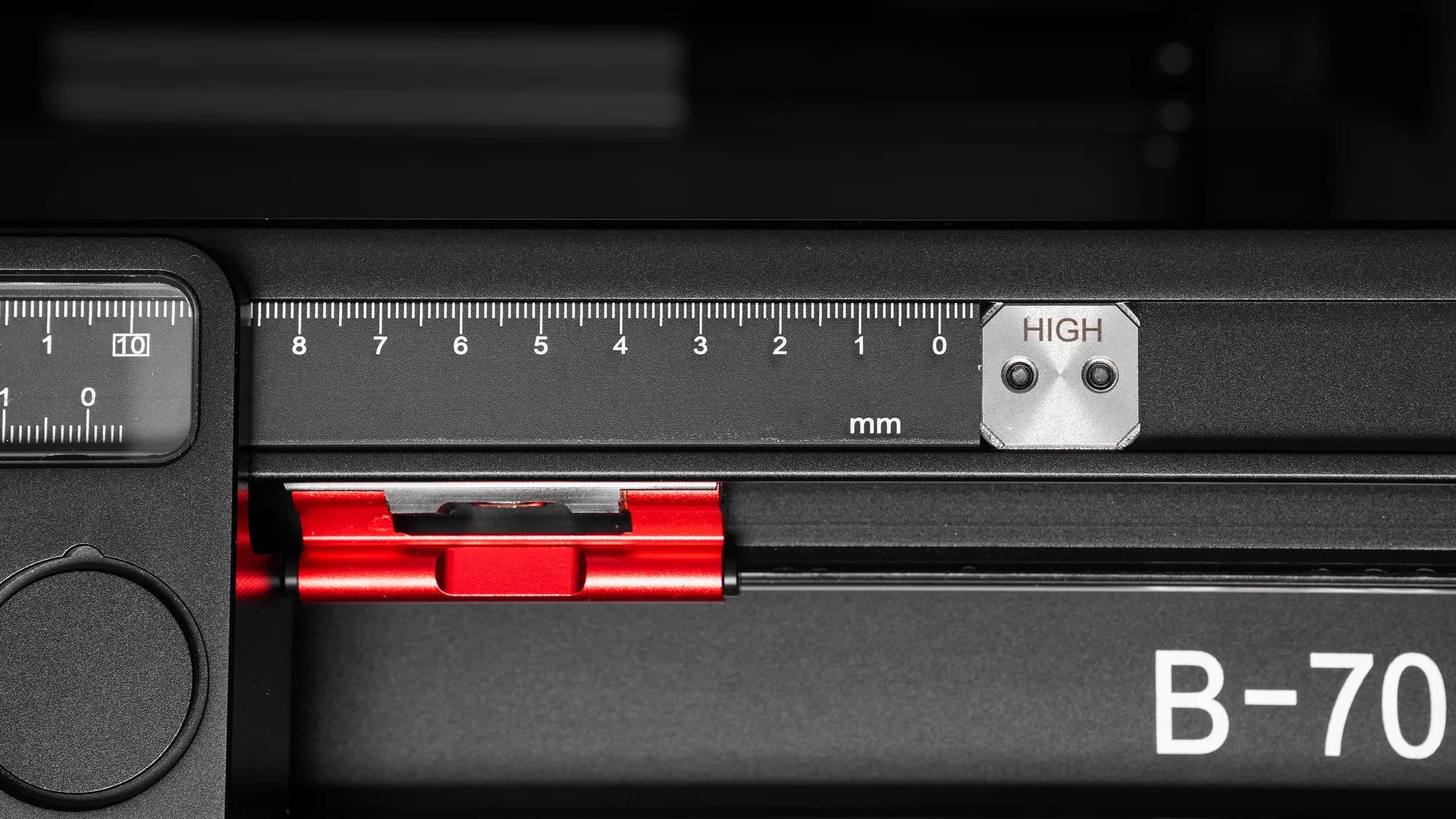

Scale & display
- Scale resolution
-
Metric
1 mm
-
Imperial
1/32″
-

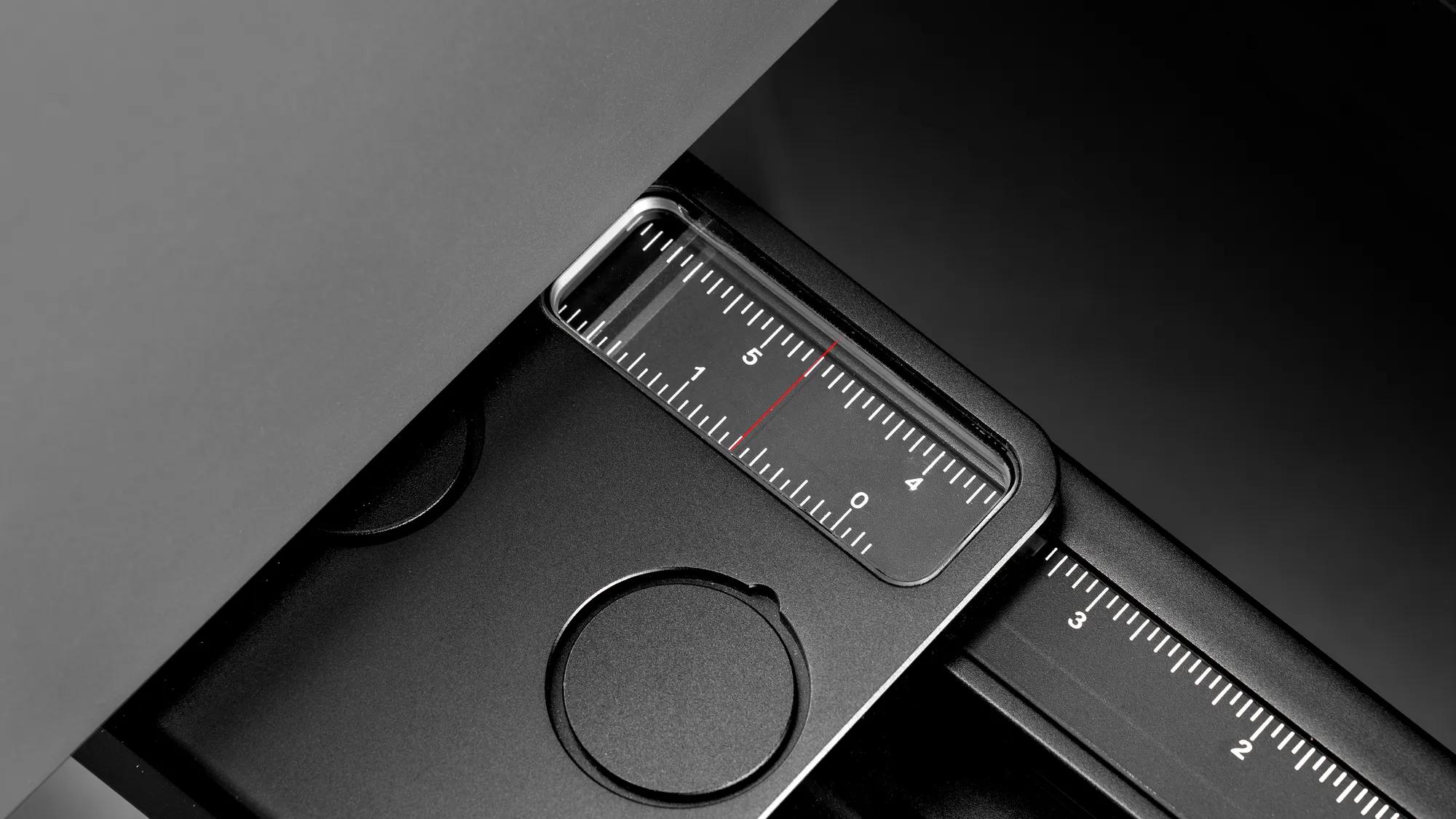

Viewing window
K9 crystal glass with approx. 92 % light transmission
Compatibility / installation dimensions
-
Minimum distance from the front edge of the table to the column structure
≥ 140 mm
-
Maximum table width
550 mm
-
Length of the front rail
approx. 845 mm
Construction & materials
- CNC-milled aluminium profile
- Stainless steel and hardened steel components
- Corrosion-resistant surfaces
Features & benefits
- Extremely high precision
- Backlash-free guidance enables very precise parallel guidance and minimises cutting deviations.
- Very quiet and smooth running
- Ball bearing guide reduces friction and facilitates positioning of the fence.
- Fast and reproducible settings

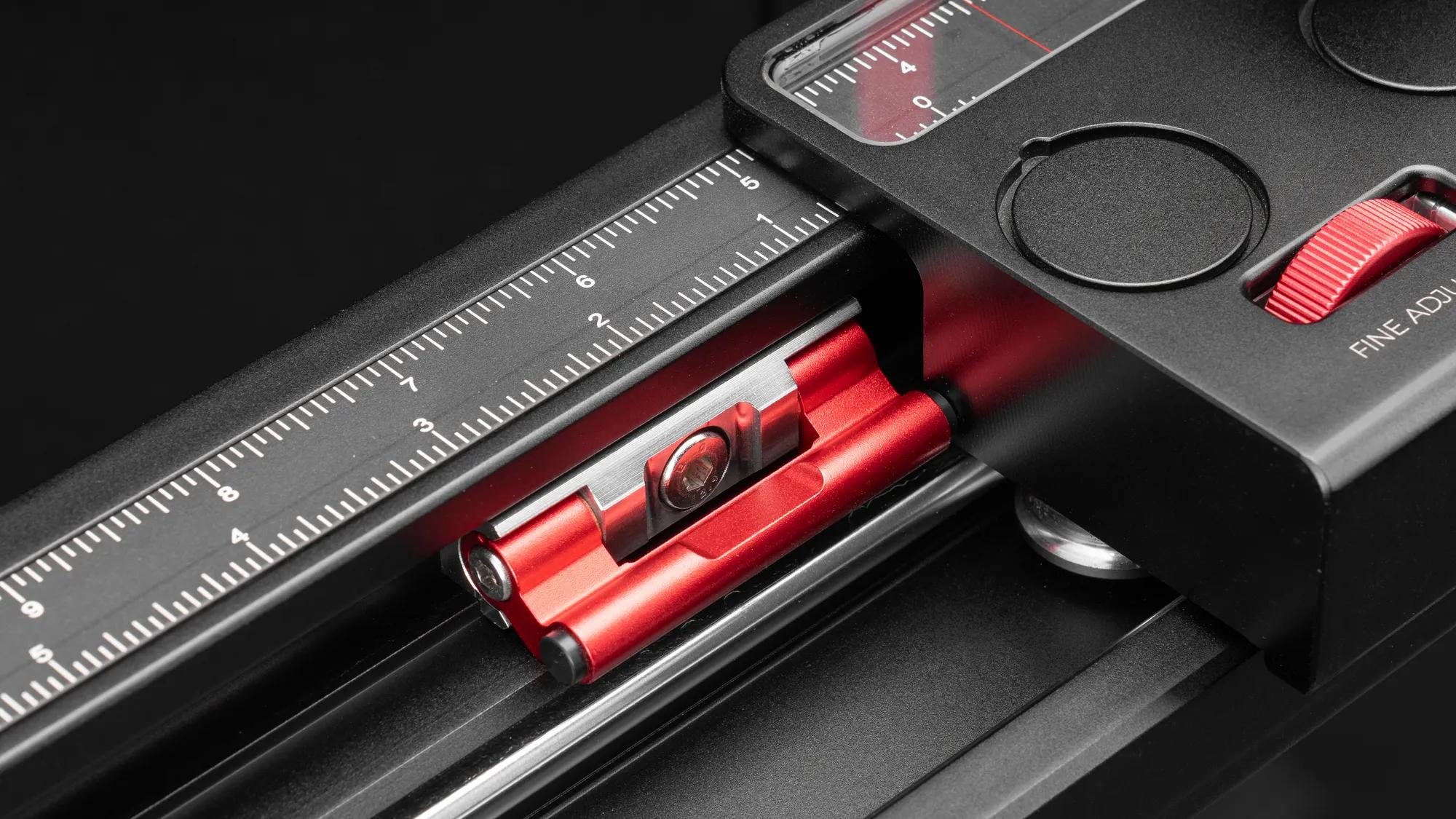

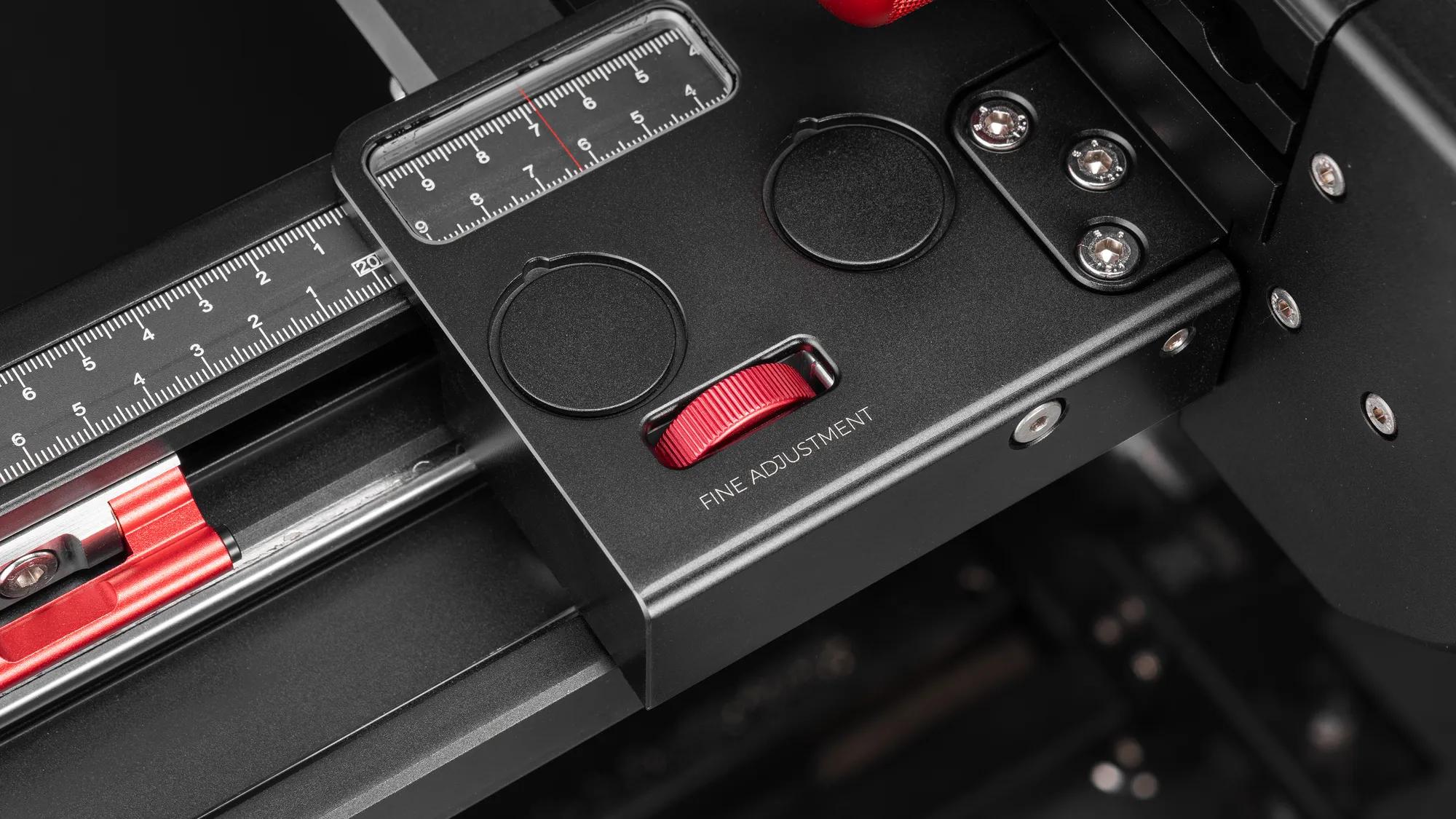

- Micro-adjustment and flip-stops increase efficiency and series accuracy.
- High stability for heavy-duty applications
- Particularly suitable for ripping (resawing), veneer cutting and precise band sawing work.
- Retrofit solution for many bandsaws
- Can also be used as an upgrade for existing machines.
- Durability and wear resistance
- Hardened guides and corrosion-resistant materials ensure long-lasting, precise operation.
