Harvey TURBO T-40

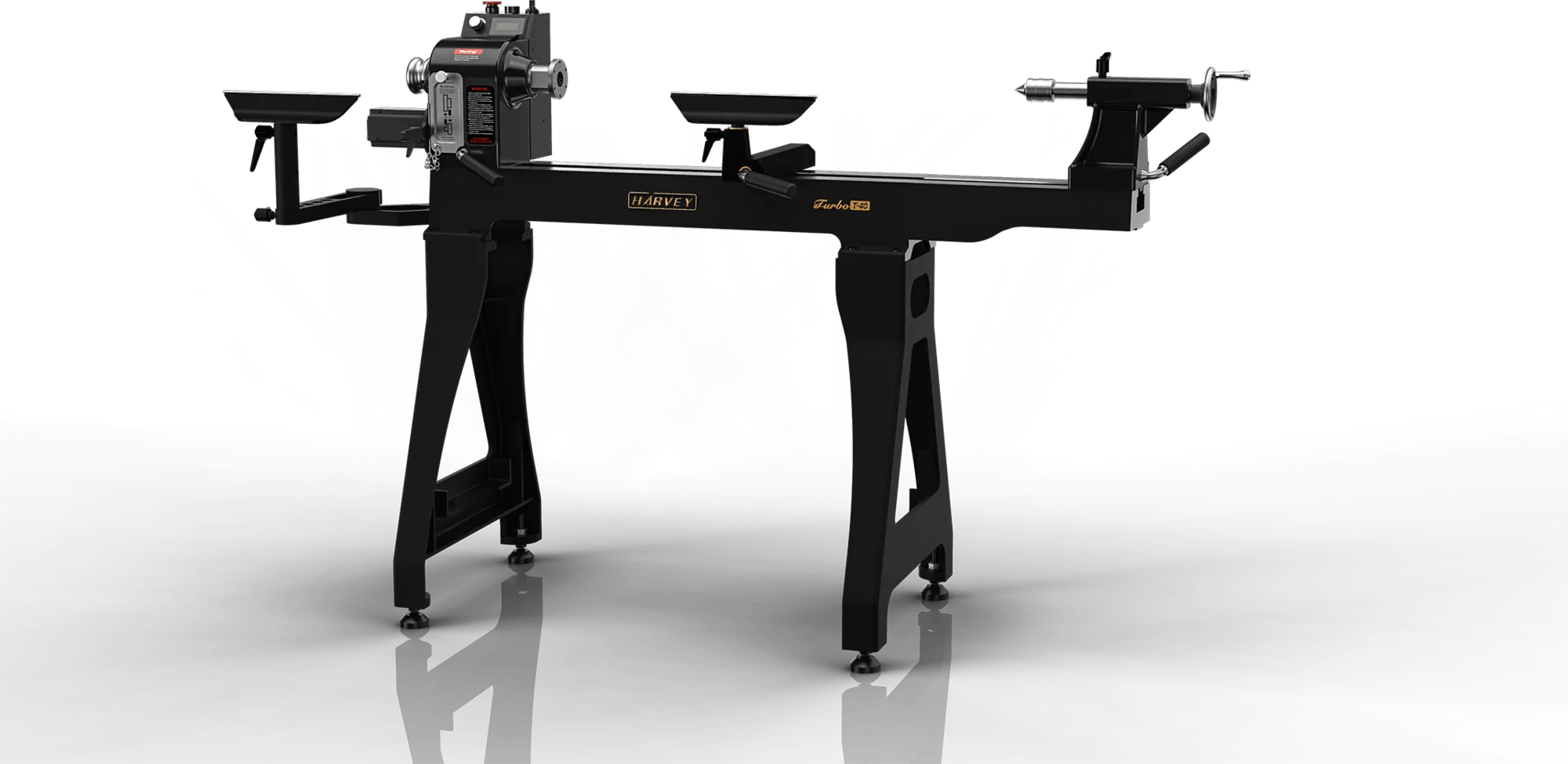

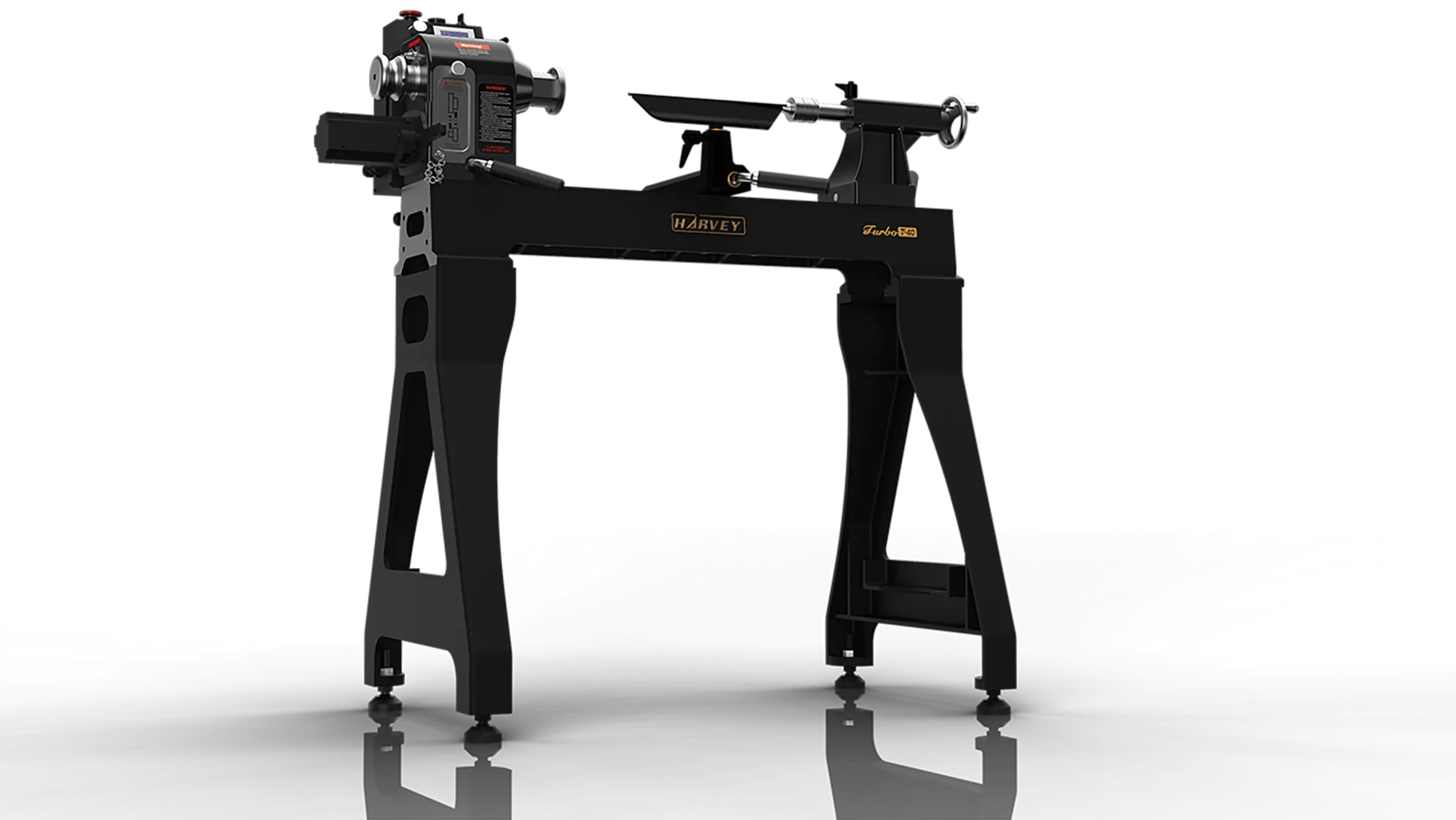

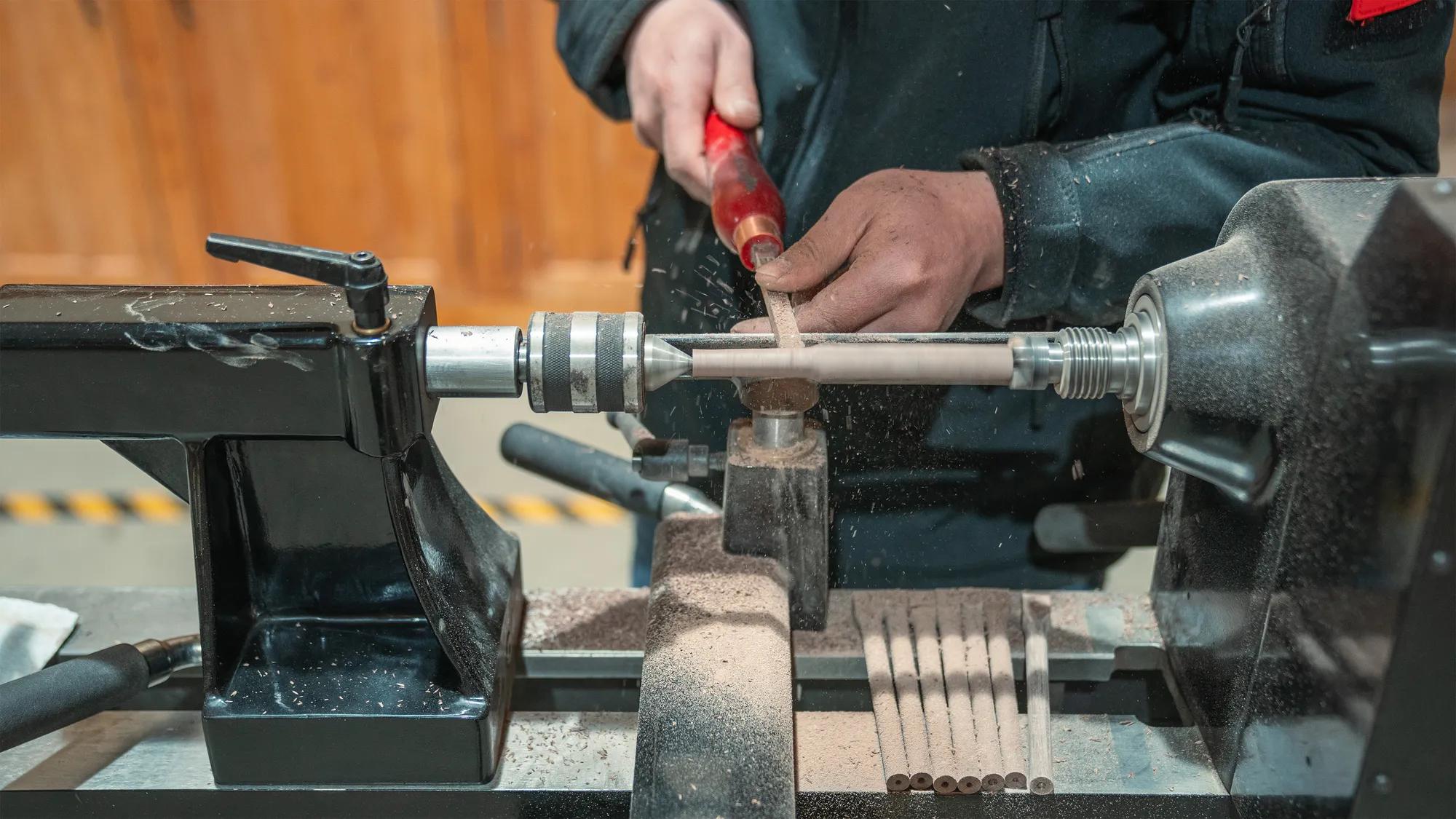

The TURBO-T-40 is one of Harvey's premium wood lathes. It is characterised by a very solid construction, very smooth running and modern electronic control. The machine has been designed to process even heavy workpieces safely and precisely.

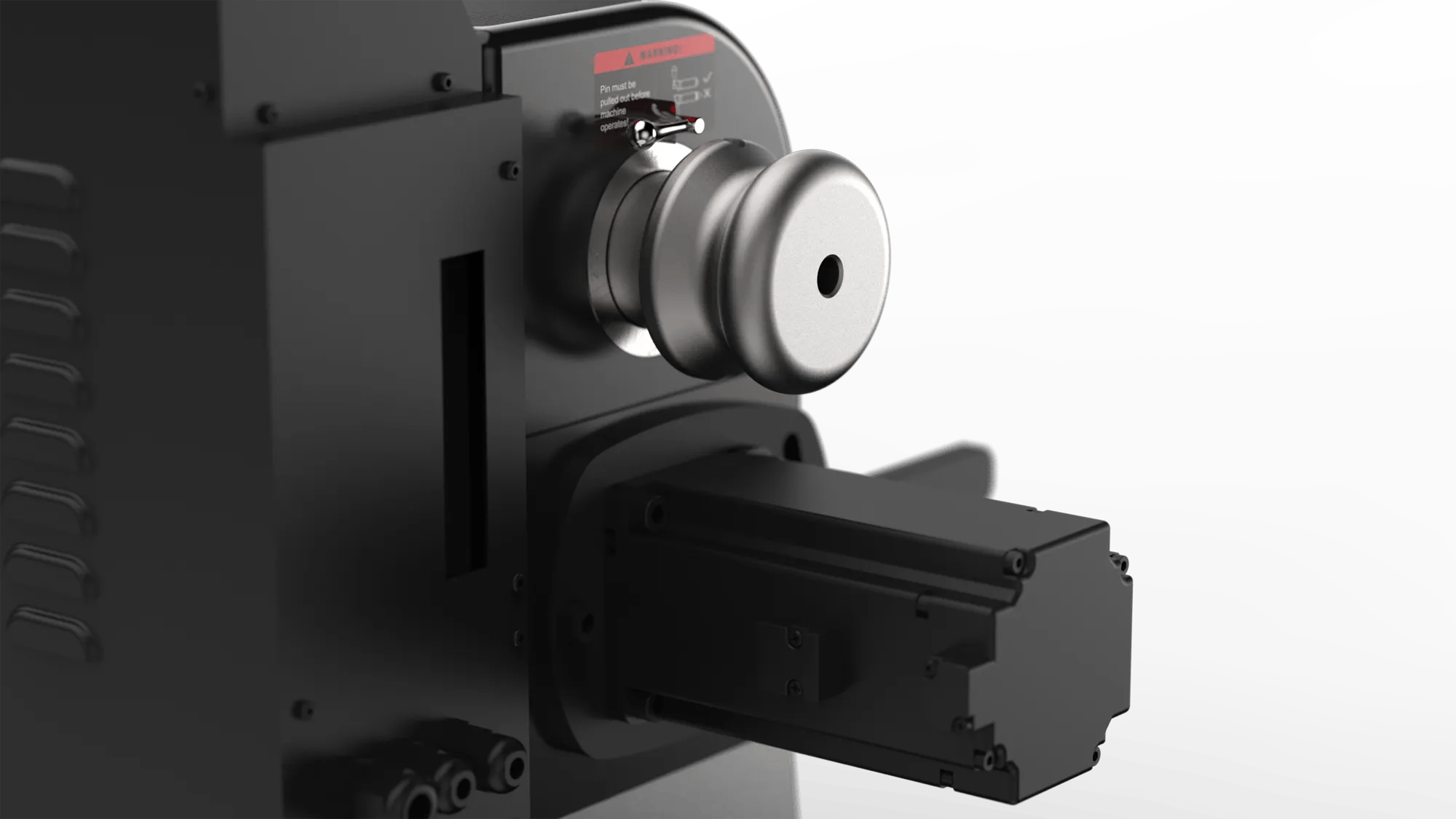

A key feature of the machine is the robust cast iron bed and the powerful direct drive with electronic speed control. This allows both delicate turning work and heavy shells or solid workpieces to be processed with ease.
Technical data
-
Motor power
0.75 kW
-
Power supply
230 V
-
Speed range
-4300/ 60 - 2800 rpm
-
Centre distance
610 mm
-
Width of tool rest
305 mm
-
Face plate diameter
76 mm
-
Max. Turning diameter over bed
460 mm
-
Max. Free-standing turning diameter
larger due to swivelling headstock
-
Spindle thread
M33 x 3.5
-
Spindle cone
MK2
-
Tailstock cone
MK2
-
Bed material
Cast iron
-
Speed control
Electronic (VFD)
-
Weight
80 kg
-
Base area
1030 x 240 mm
-
Length/ width/ height
1400 x 400 x 4 mm
Features & benefits
- Smooth running and high precision
- Solid machine body significantly reduces vibrations
- Ideal for the finest turning work and large workpieces
- Power reserve for large workpieces
- High motor power enables the turning of large bowls and blanks
- Constant speed even under load
- Convenient operation

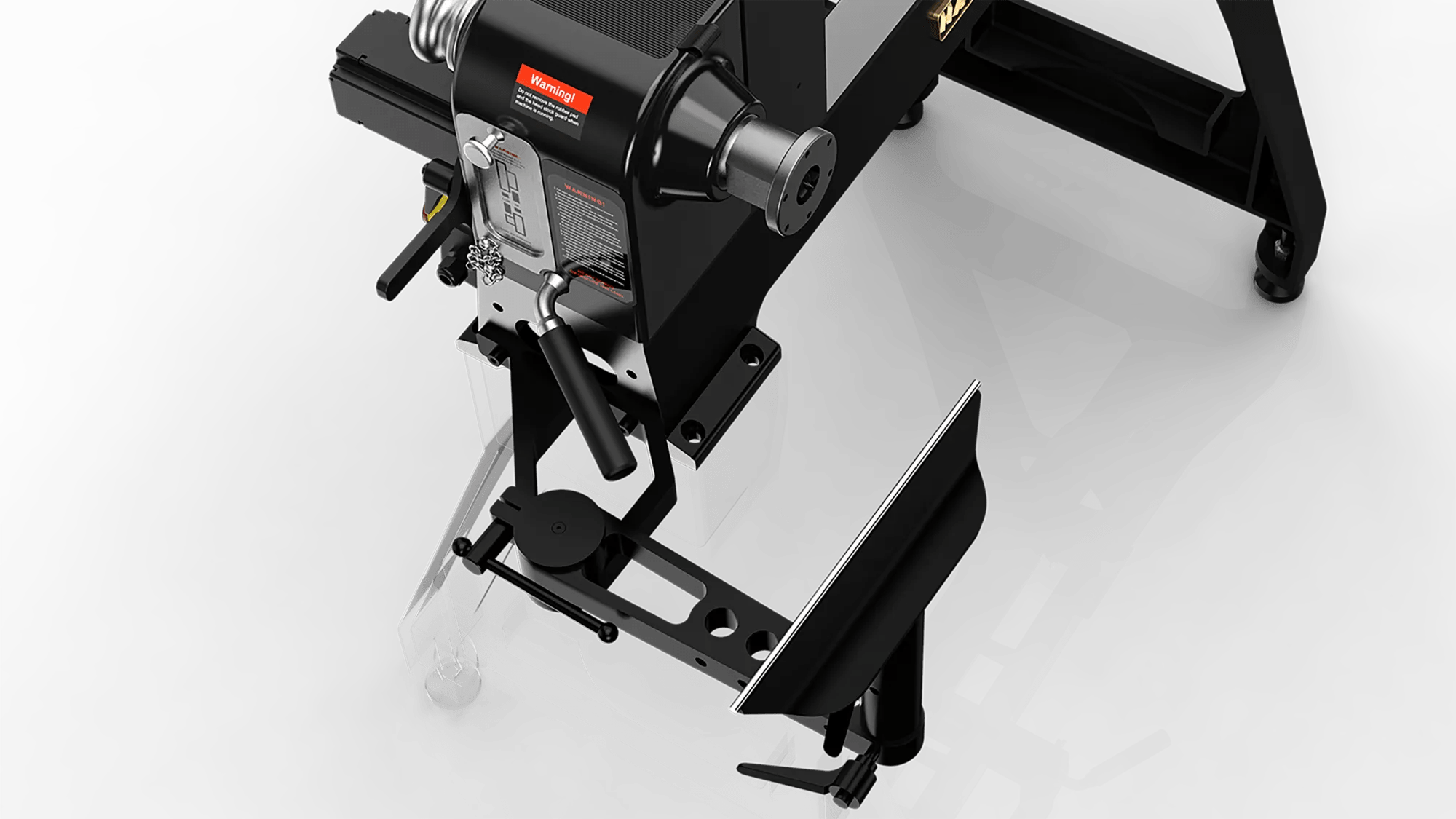

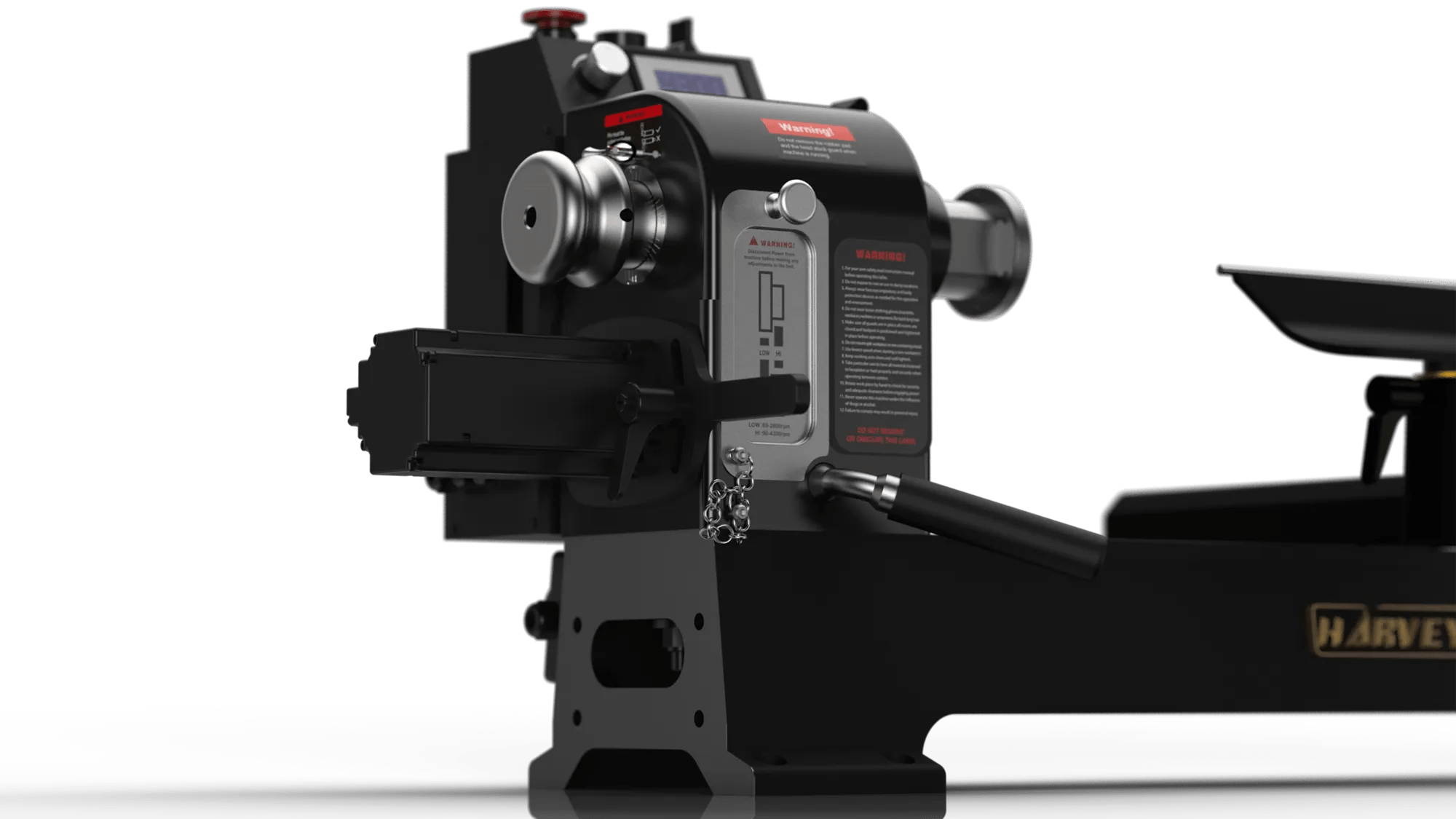

- Rotating headstock facilitates the machining of large diameters
- Electronic speed control without changing the belt
- Safety and control
- Soft start prevents jerky start-up
- Electronic overload monitoring protects motor and machine
- Professional versatility
- Suitable for ambitious hobby users through to professional use
- Ideal for bowl, disc and spindle turning
- High-quality electronic lathe with variable speed control
- Powerful brushless motor for smooth running
- Solid cast construction for maximum vibration damping
- Precise digitally controlled speed regulation via VFD system
- Rotating headstock for comfortable working with large workpieces
- Large machine bed for high stability
- Soft start and electronic brake

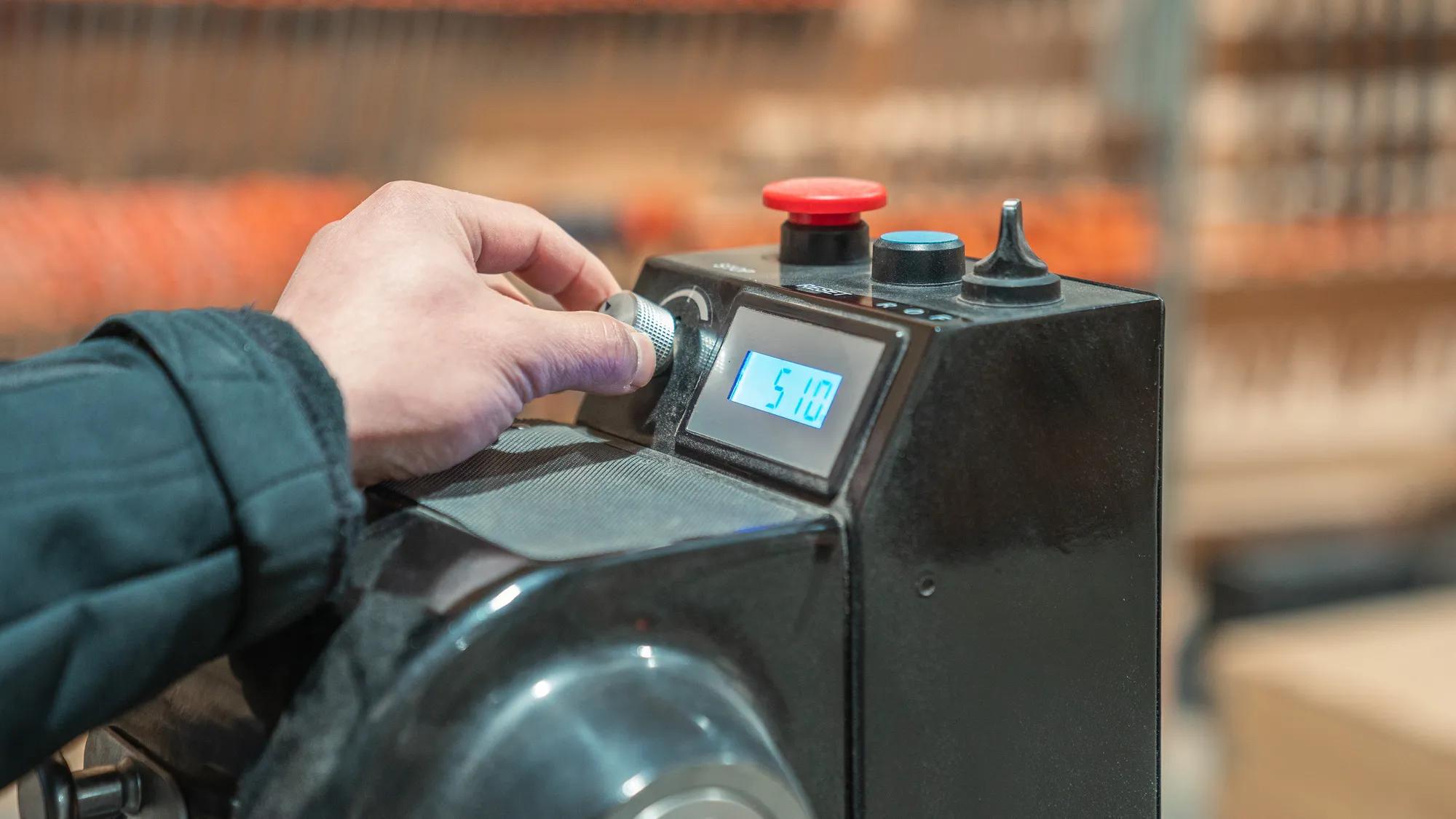

- Ergonomic control panel with digital display
- Industrial precision bearings for high concentricity
- Infinitely variable speed ranges for different materials
