New

Harvey TURBO T-60S

230V | 1.5kW | 610 x 1220mm Lathe with servo motor |

Delivery in 4-5 business days

Item is oversized and will be shipped by freight carrier.

€999,999.99

Brand: HARVEY INDUSTRIES
Item no.: HAR-702035-240131
Weight: 350 kg
  • 1x Harvey TURBO T-60S
Manufacturer:
Harvey Industries Europa GmbH
Ludwigstraße 16 35315 Homberg (Ohm) Germany
[email protected]
EU representative:
Harvey Industries Europa GmbH
Ludwigstraße 16 35315 Homberg (Ohm) Germany
[email protected]
https://www.harveywoodworking.de/

Harvey TURBO T-60S

The Harvey TURBO T-60S is a heavy-duty professional lathe with servo drive and a very large machining area. It is primarily aimed at demanding woodturners, workshops and semi-professional users who require high stability, torque and precision.

Technical data

Motor power: 1,500 W (2 HP) servo
Speed range: 60-1000 / 200-3500 rpm
Centre height (swing diameter): 610 mm
Centre distance: 1220 mm
Spindle cone: MK2
Indexing: 48 positions
Tailstock stroke: approx. 115 mm
Machine weight: approx. 350 kg
Machine material: Cast iron bed + alloy spindle

drechselbank-turbo-t-60-harvey-har-702035-240131-02

Features & benefits

  • High-performance servo drive:
    • Equipped with 1,500 W (2 HP) servo motor
    • Very quiet and low-vibration operation
    • Infinitely variable speed control with high torque even at low speeds
    • Overload capacity of up to approx. 300 %, allowing heavy blanks to be processed safely
  • Two speed ranges:
    • Low: approx. 60-1000 rpm
    • High: approx. 200-3500 rpm
  • Solid machine construction:
    • Bed and base body made of heavy cast iron
    • High-quality alloy spindle
    • Total weight approx. 350 kg for maximum running smoothness and vibration damping
    • Very high stability even with large workpiece diameters
  • Very large working range:
    • Centre height / swing diameter over bed: 610 mm (24")
    • Centre width: 1220 mm (48")
    • Suitable for:
      • Large bowls and plates
      • Long spindle work
      • Solid turning blanks
  • Precise spindle and index technology:
    • Spindle taper: MK2
    • 48-fold spindle indexing (7.5° grid)
    • → Ideal for:
      • Segment turning
      • Milling or engraving work
      • series production
  • Ergonomic equipment:
    • Tailstock quill stroke: approx. 115 mm
    • Extensive basic equipment:
    • Face plate
    • Driving centre
    • Comparison/measuring system

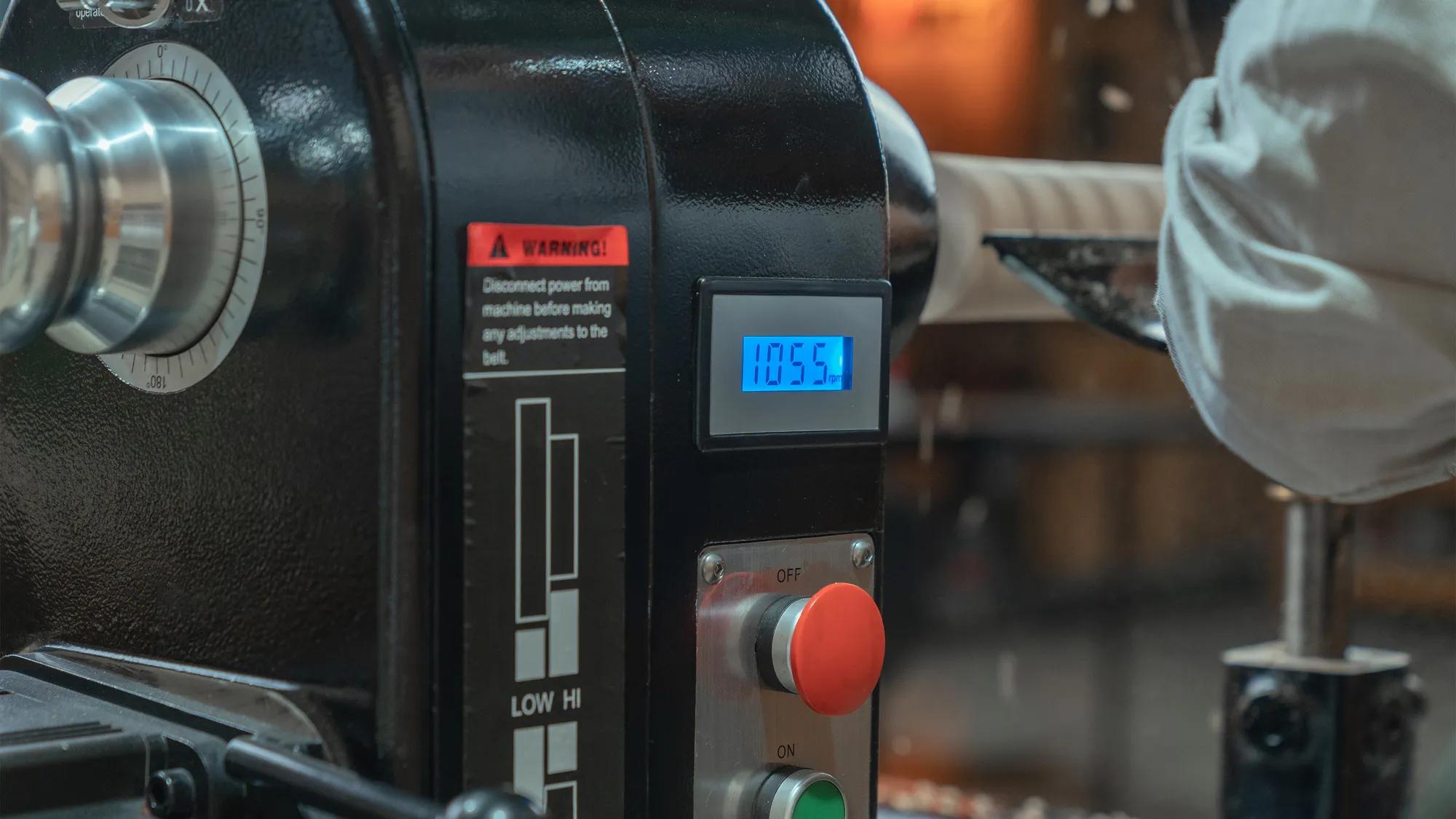

    • User-friendly control for quick speed adjustment
