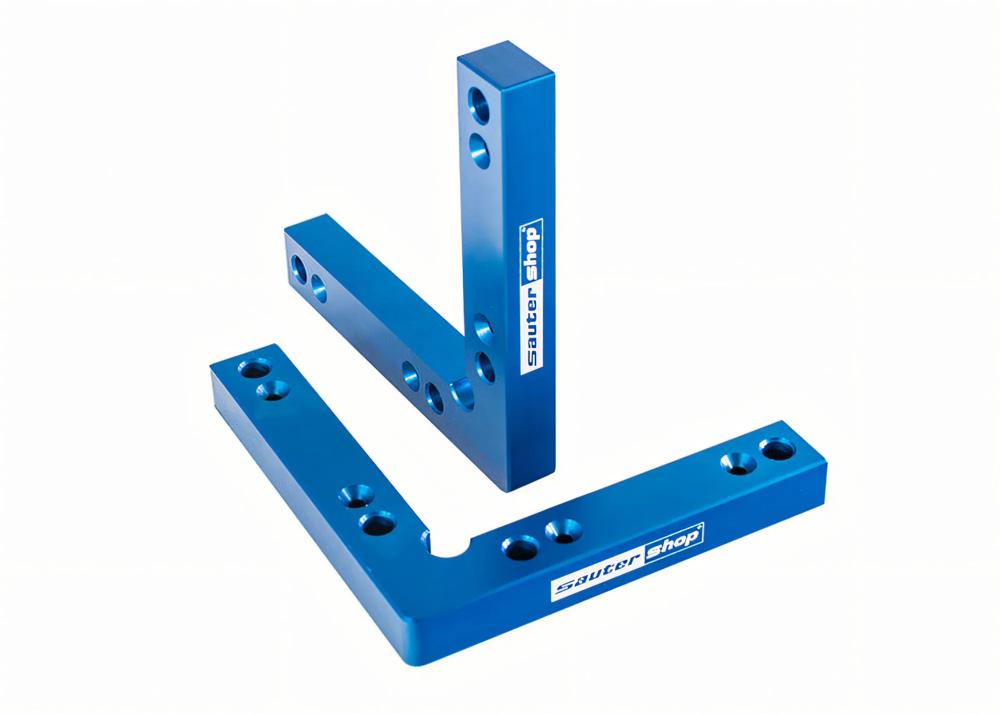

Clamping angle with practical one-hand clamps | Leg length: 150 mm | Clamping width: 150 mm
Shipping within 24 hours (working days)
89,90 €
incl. VAT
Art.-Nr: SET-4XOHCM-PSC2
1 Products
Technical Data
Dimensions: 150 x 25,5 x 20 mm
Holes:
4x Ø 10 mm
4x Ø 5 mm on both sides with countersink
Properties & Advantages

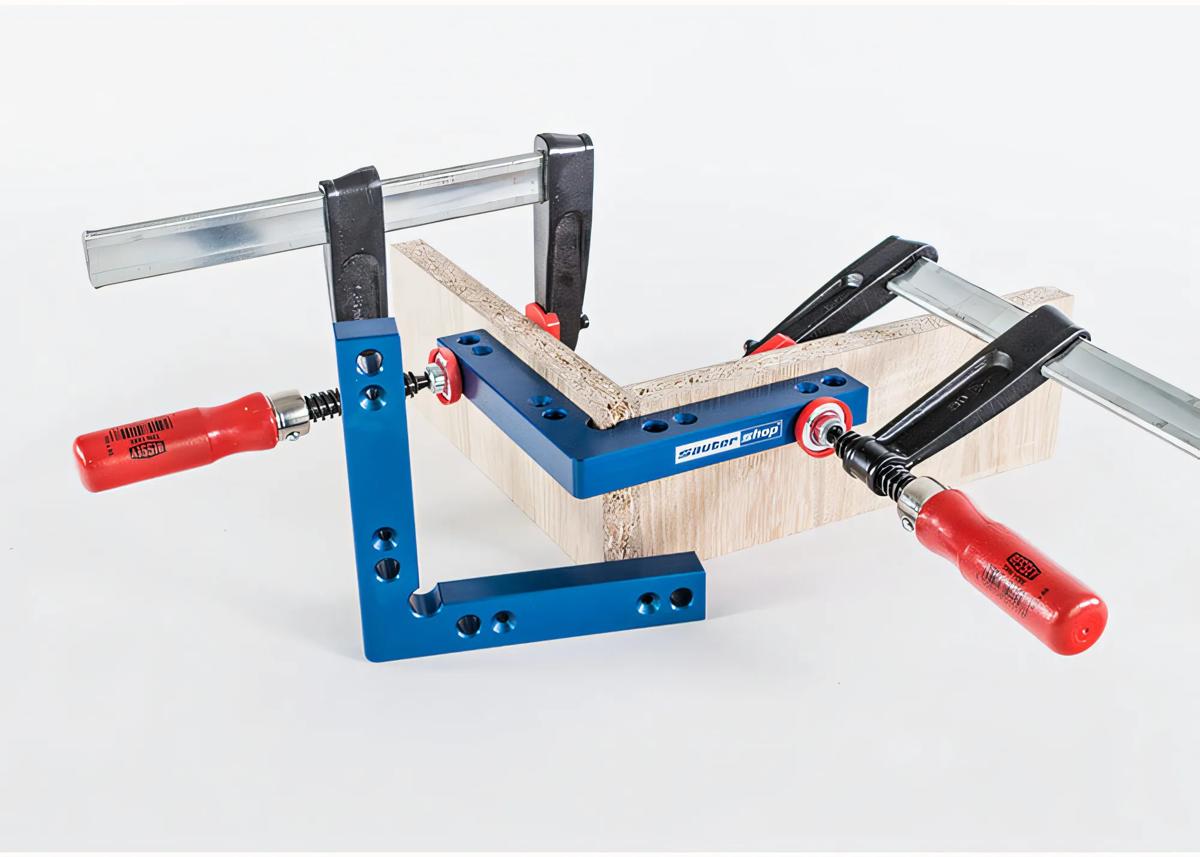

Ideal for gluing, screwing or the like of right-angled furniture joints
Perfectly suited to be clamped on the inside or outside of the workpiece → Notch in the inner corner of the angle clamp; rounded outer corner (radius = 5 mm)
Four countersunk screw holes Ø 5 mm for fixing the angle clamps by means of countersunk screws; four Ø 10 mm holes for fixing several angle clamps by means of threaded rod or threaded screw connect
Precisely milled from robust solid aluminium material and anodised in blue
Edges slightly chamfered
Also suitable for checking squares (e.g.: Router Tablestops, ...)
Advantage over Woodpecker's angle clamps: additional drill holes for standard countersunk screws
