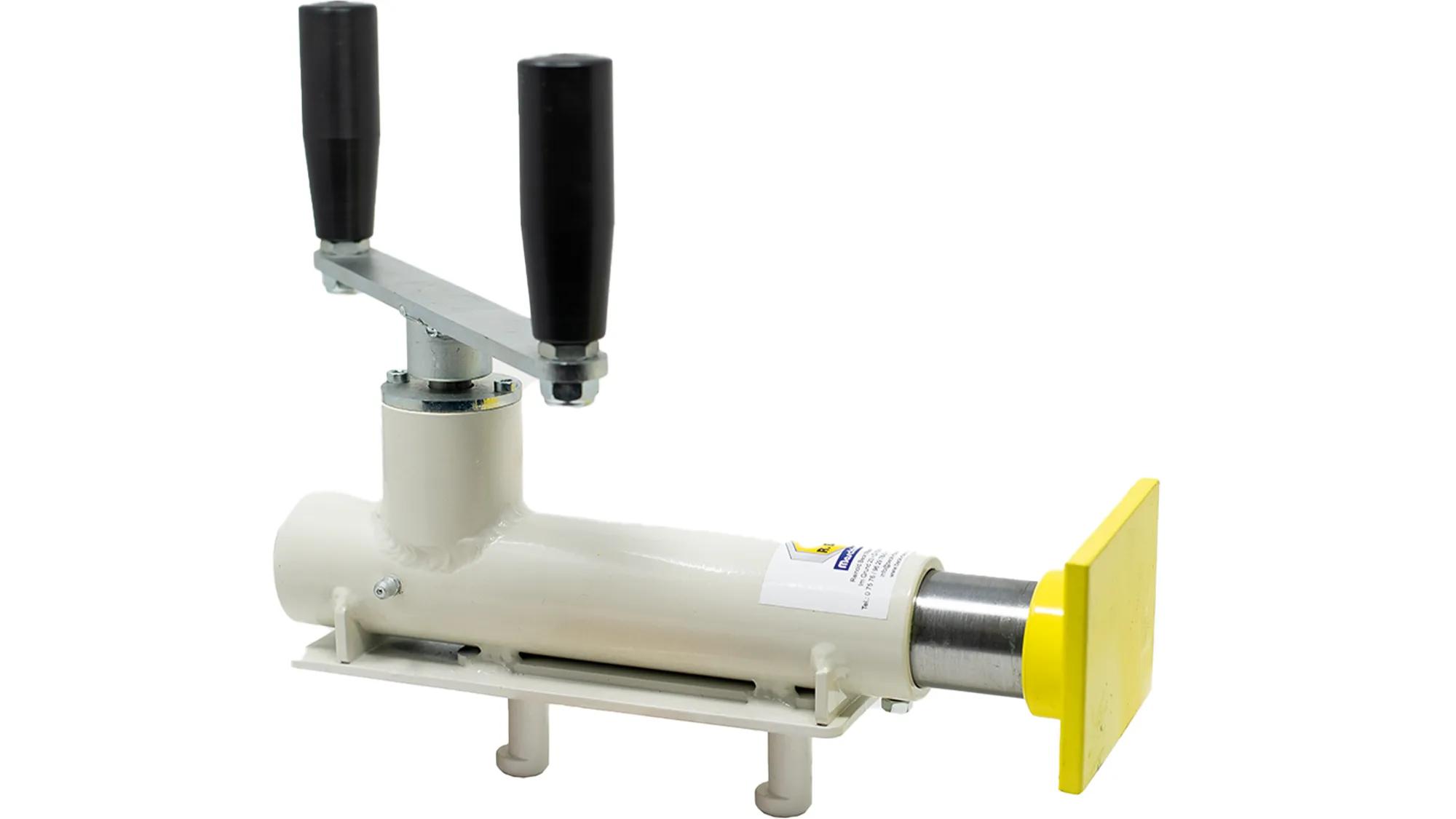

Beck Gear clamp with locking bolts and stop pin flat

For perforated grid worktops with Ø 22 mm | effective stroke 130 mm | clamping force 500 kg

Shipping within 24 hours (working days)
596,19 €
399,00 €
incl. VAT / excl. shipping costs
1
  • Brand:BECK
  • Article no.:SET-BK-GTRBSP
  • Weight:5kg

Beck Gear clamp with locking bolts and stop pin flat for worktops with Ø 22 mm grid

Provides secure support in the perforated grid plate and enables uniformly strong clamping.

Technical Data

  • For perforated grid plates with Ø 22 mm and centre distance 100 mm
  • Effective stroke: 130 mm
  • Pressure surfaces: 100 x 78 mm
  • Clamping force: 500 kg
  • Total length: 260 mm
  • Weight: 5 kg
winkelgetriebespanner-beck-set-bk-gtrbsp-02

Properties & Advantages

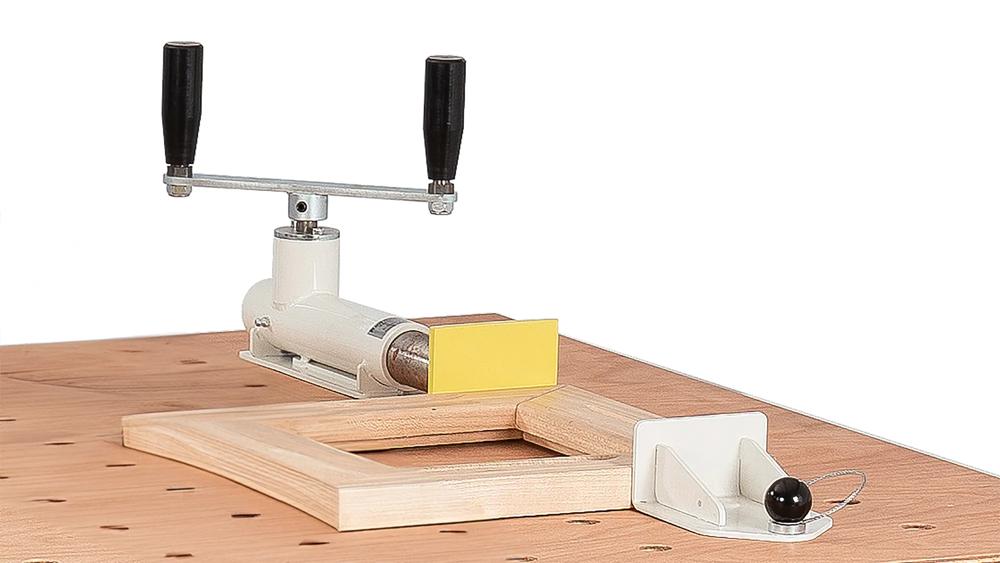

  • For the safe processing of workpieces on the lifting table or workbench.
  • With the large-format pressure plate, even tall workpieces and frames can be clamped evenly without any problems.
  • The clamping force can be precisely controlled thanks to the crank.
  • Gear clamp with 2 ratchet bolts, abutment with ratchet bolt and locking pin.
