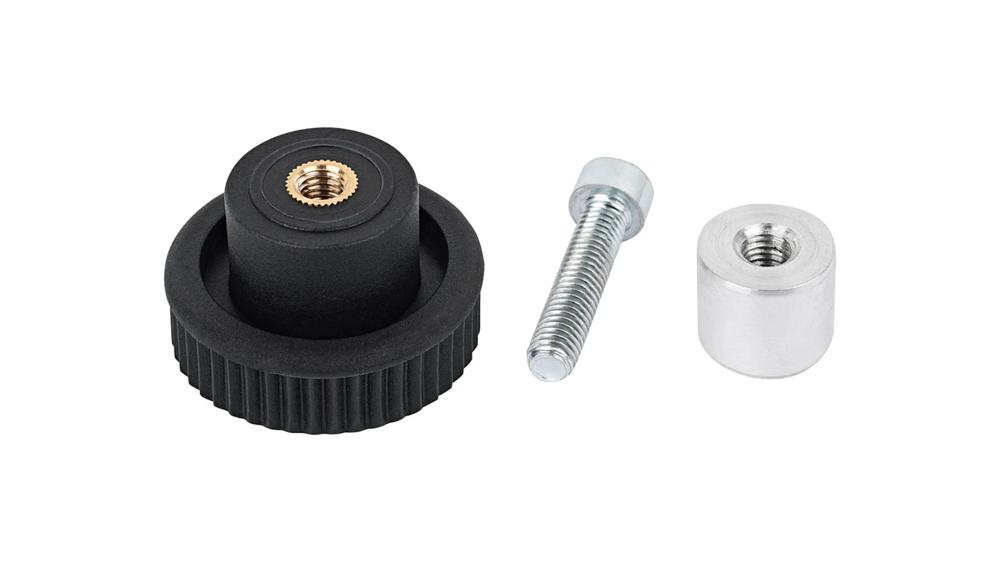

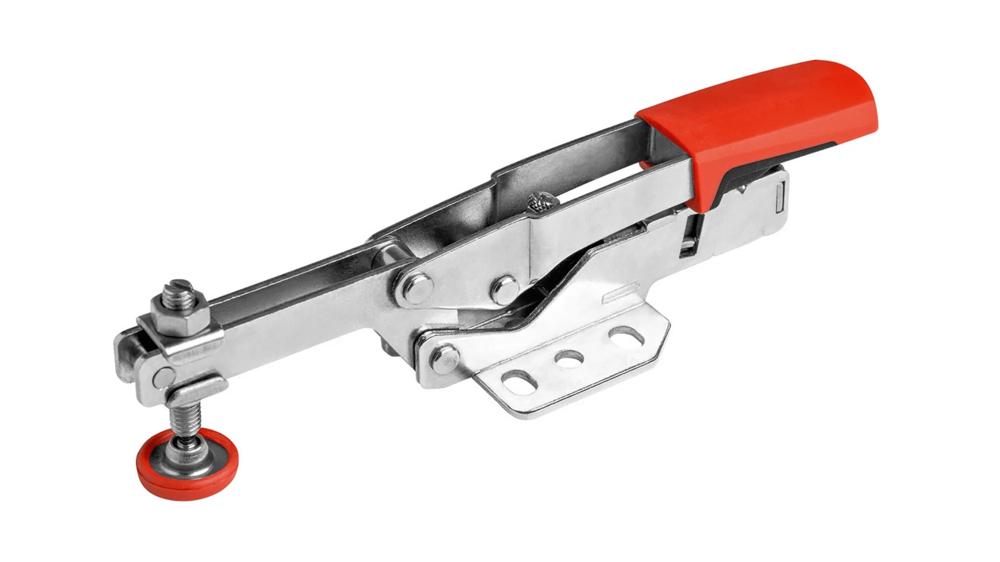

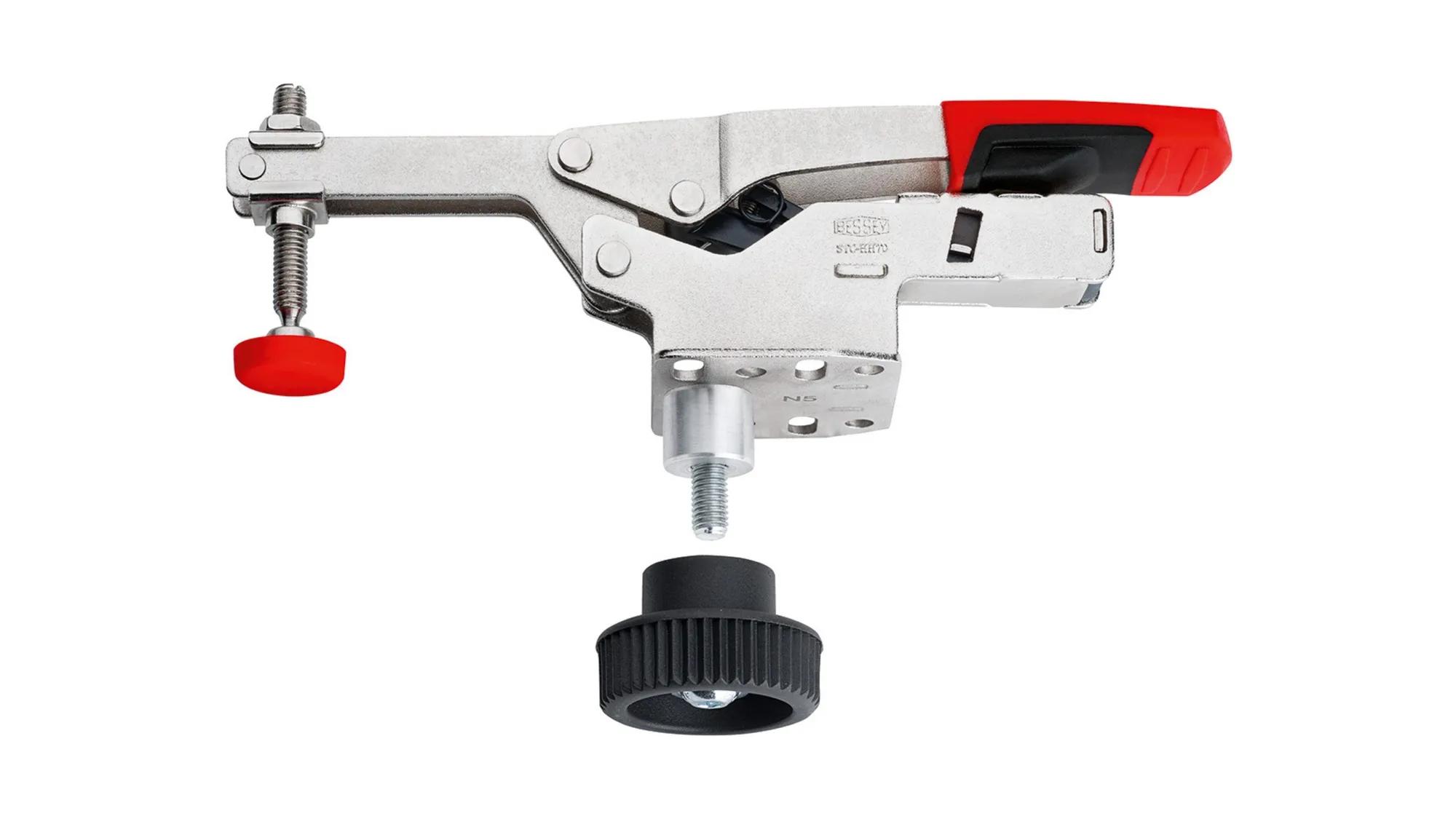

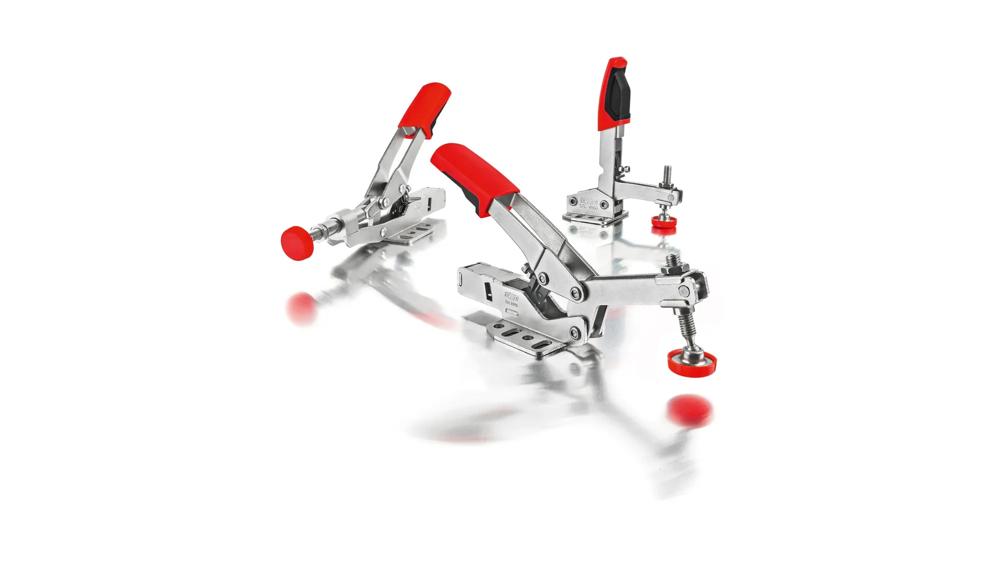

BESSEY Horizontal toggle clamp with open arm and horizontal base plate STC‑HH70 + STC accessory set for multifunction tables
Ready to go – the first time and for quick set-up during workpiece changes
Technical Data
Opening width: 60 mm
Automatic Adjustment: 35 mm
Clamping force 2500 N
Weight 0.51 kg
Clamping force is variable up to 2,500 N depending on the adjustment of the set screw in the cantilevered joint
Automatic and infinitely variable adjustment of the clamping height up to 35 mm while clamping force remains unchanged – without having to make manual changes to the position of the pressure screws
Properties & Advantages
In the clamped position, the lever is horizontal
Sturdy, tempered metal sheets for a long service life
Hole pattern on the base plate designed to facilitate fast and secure clamping set-up for metric and imperial

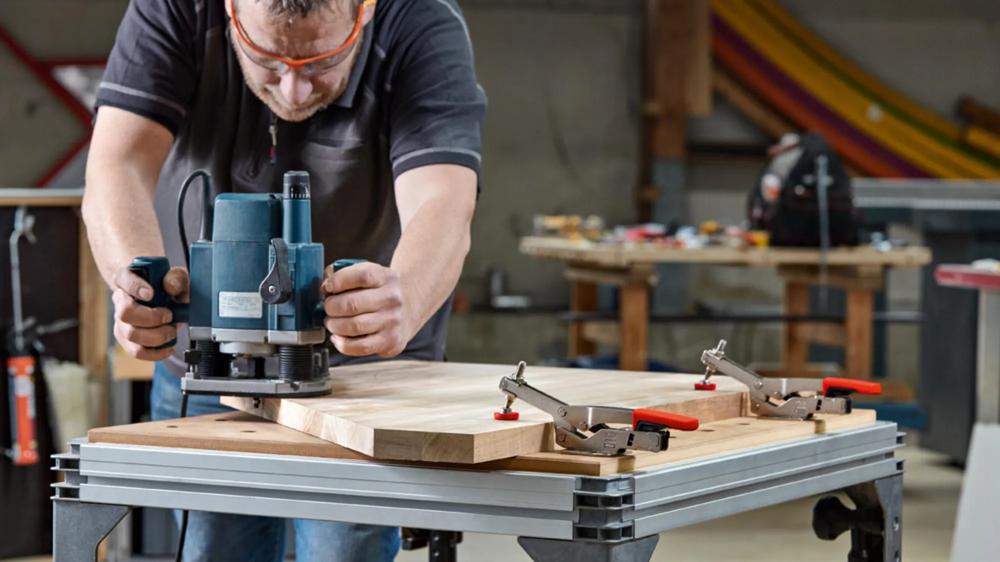

For using on multifunction tables such as Festool MFT and sauter Vario.bench with hole diameter of 20 mm and plate thickness of min. 19 mm to max. 25 mm
