Coordinate table K400

for precise and complex work | Coordinate table K400: 400 x 180 mm; longitudinal path: 320 mm; transverse path: 100 mm

Delivery time 2-3 days

221,91 €

incl. VAT / excl. shipping costs

Brand:WABECO
Article no.:WB-24410
Weight:8.28kg

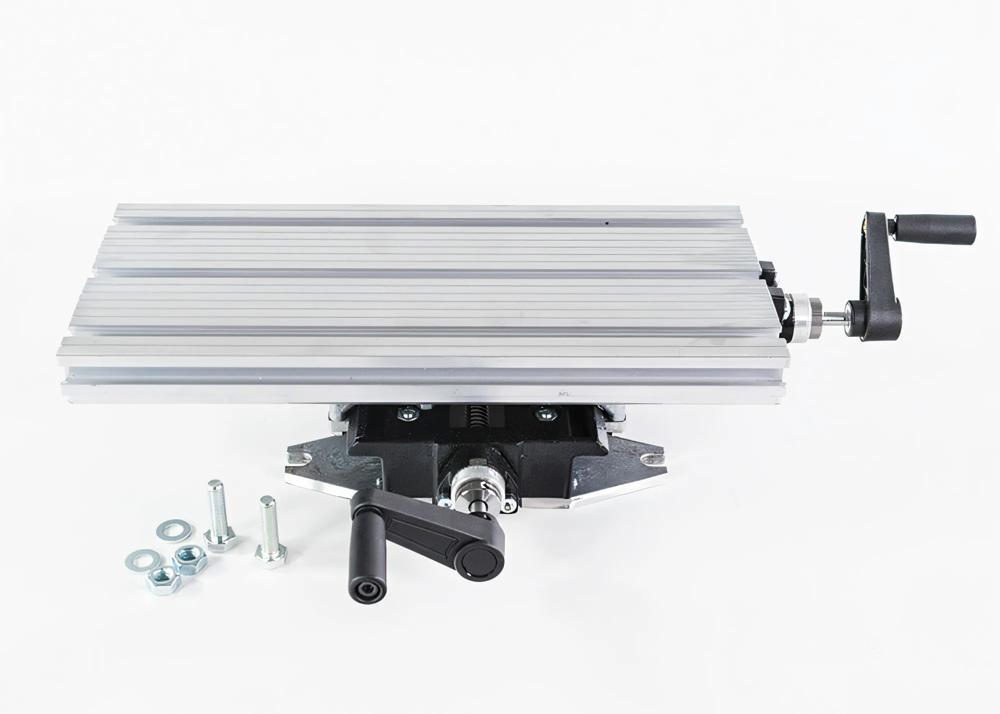

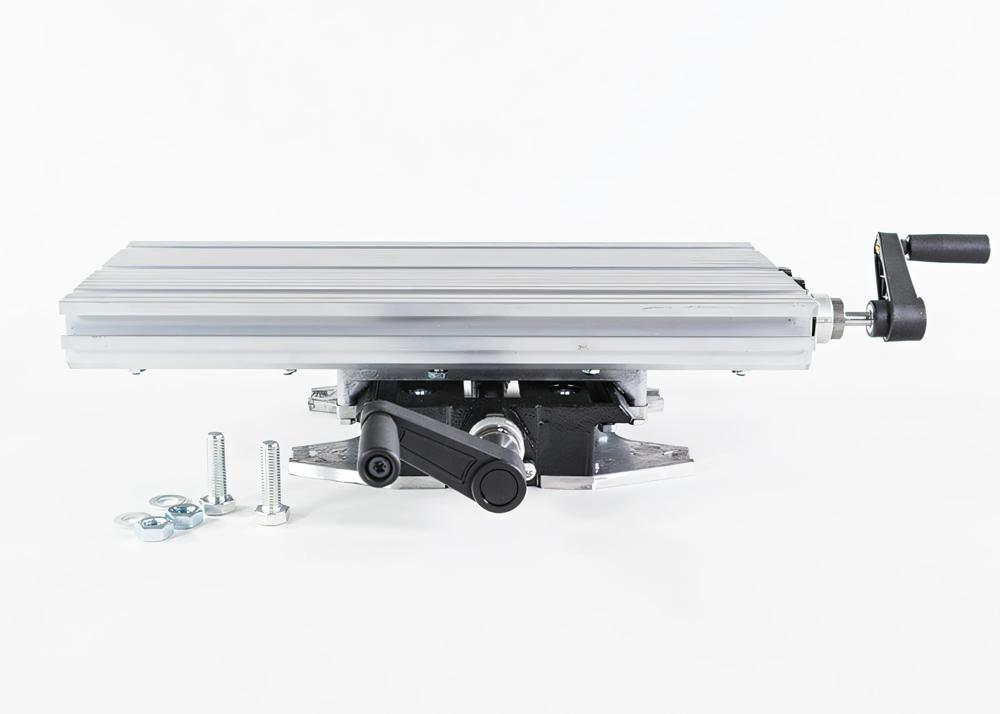

Coordinate table K400 from Wabeco

For complex applications in Routingand drilling

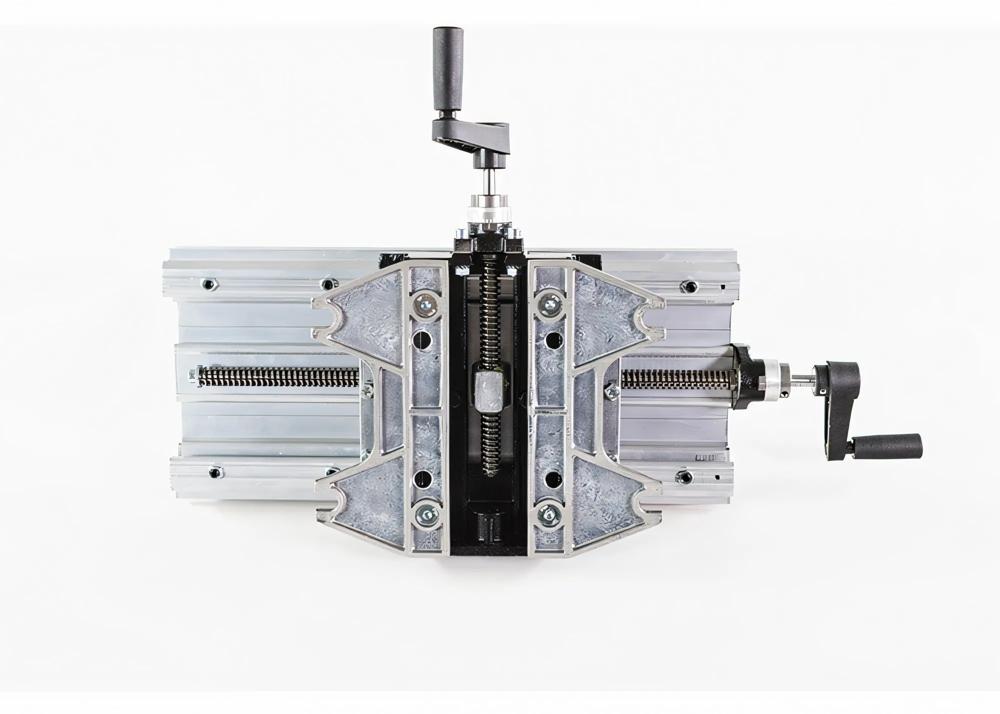

A unique universal genius that makes DIY enthusiasts dream and impresses professionals. Manufactured and designed by the company Wabeco in Germany, it offers the highest quality in Processing and material.Suitable for all bench drills, box column drills, pillar drills, drill stands and milling stands, as the clamping feet are individually designed for each make by means of holes and/or longitudinal grooves can be adjusted.

Properties & Advantages

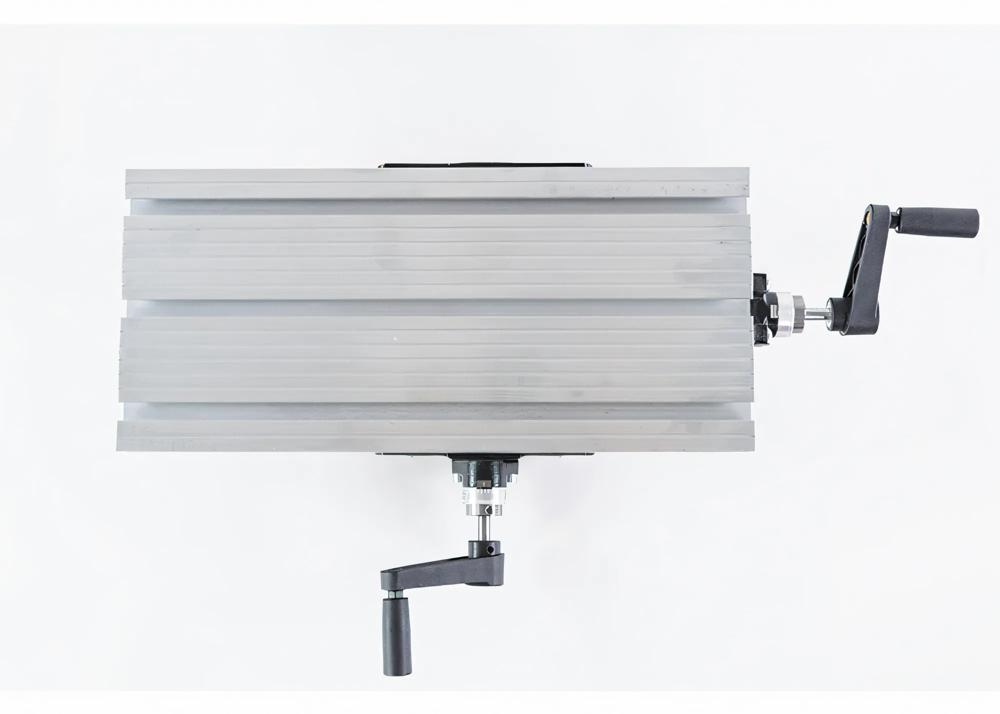

Clamping surface 400 x 180 mm
3 grooves in the mounting surface
1 groove each in the long sides
Travels:
- Clamping surface: 400 x 180 mm
- Longitudinal travel X-axis 320 mm ; transverse travel Y-axis 100 mm

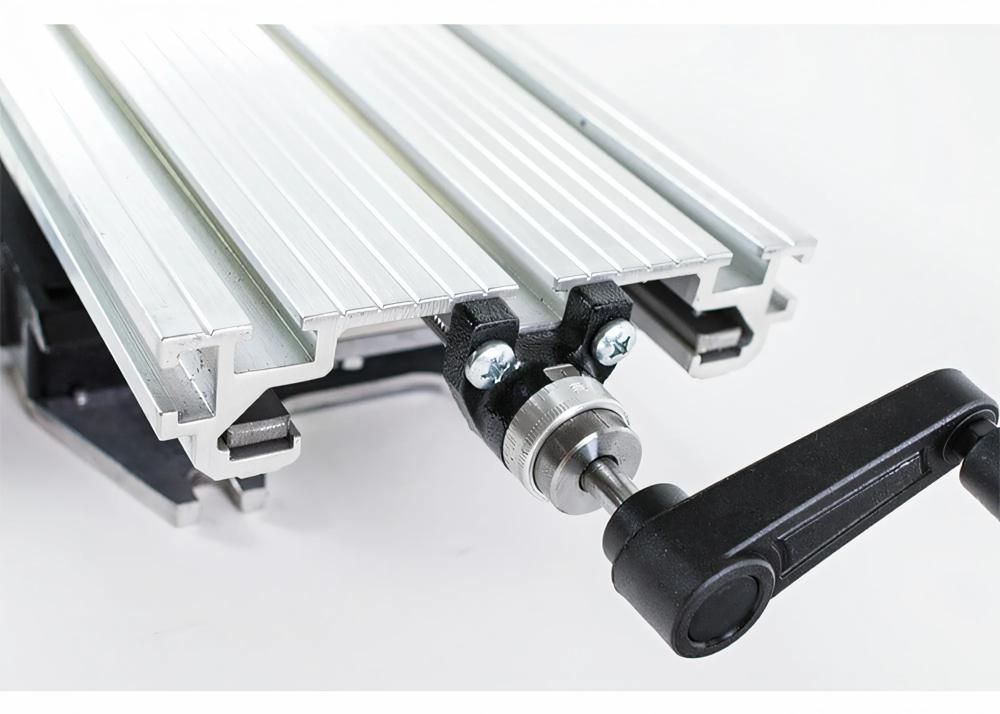

Width of the grooves for 10 mm T-nuts or M10 hexagonal bolts

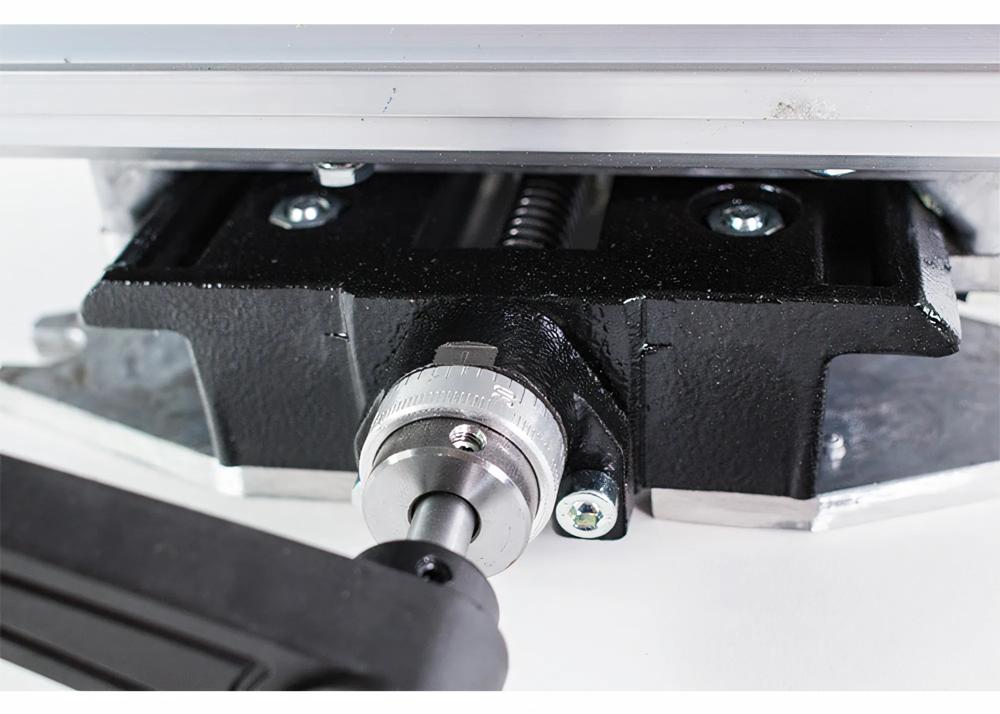

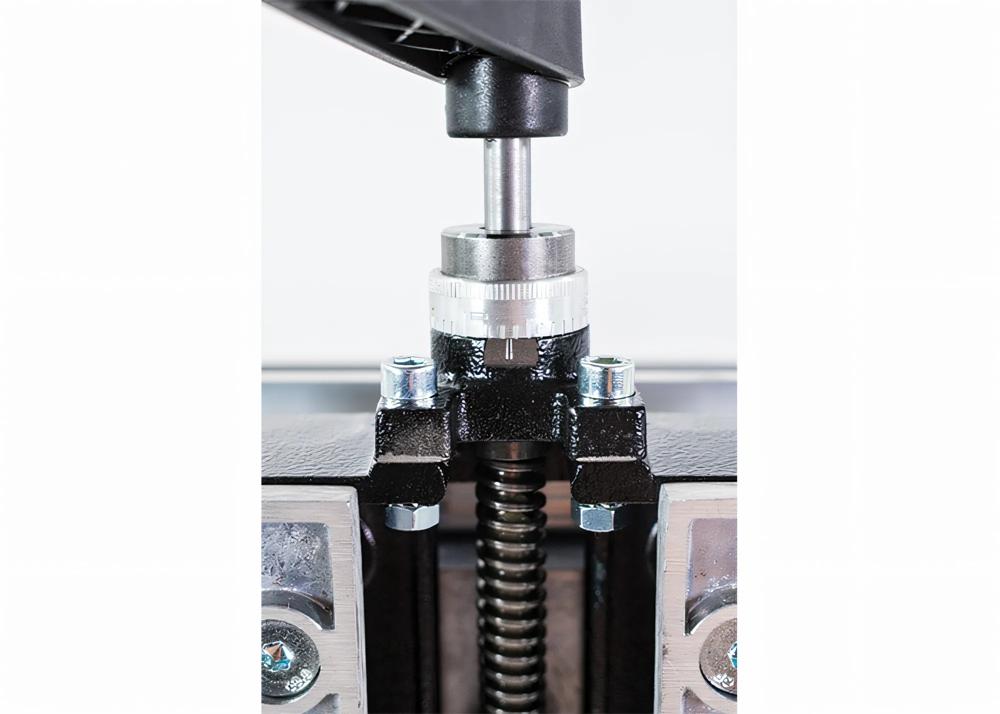

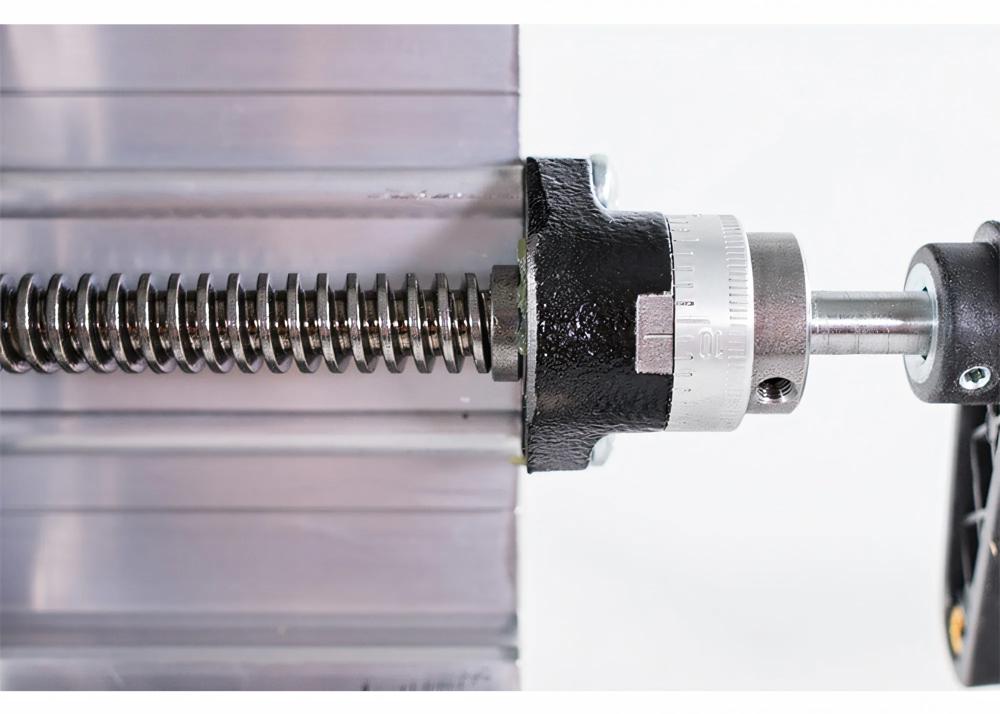

Trapezoidal threaded spindle Pitch 4 mm
Reading accuracy of the scaling 0.1 mm
Adjustable prismatic guide
for metalworking, woodworking, plastics processing
for do-it-yourselfers and professionals
Made in Germany
