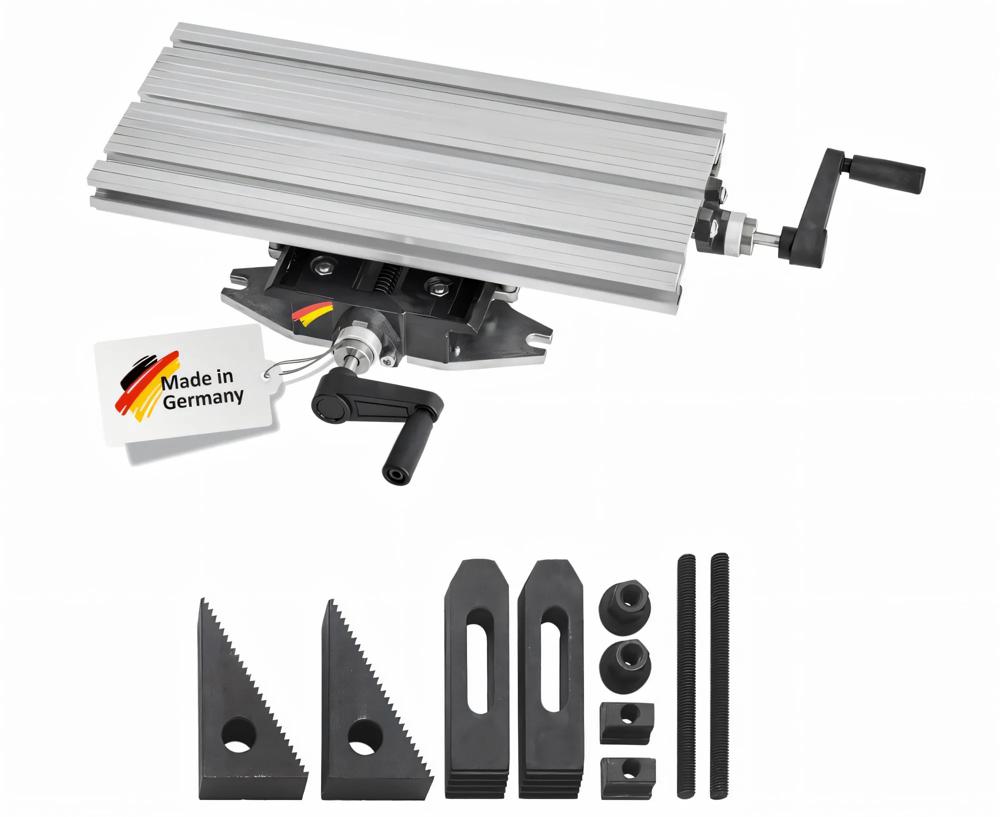

Coordinate table K400 with accessories

for precise and complex work | Coordinate table K400: 400 x 180 mm | longitudinal path: 320 mm | transverse path: 100 mm

Shipping within 24 hours (working days)

250,08 €

incl. VAT / excl. shipping costs

Brand:WABECO
Article no.:WB-24430
Weight:7.13kg

Coordinate table K400 from Wabeco

For complex applications in Routingand drilling

A unique universal genius that makes DIY enthusiasts dream and impresses professionals. Manufactured and designed by the company Wabeco in Germany, it offers the highest quality in Processing and material.Suitable for all bench drills, box column drills, pillar drills, drill stands and milling stands, as the clamping feet are individually designed for each make by means of holes and/or longitudinal grooves can be adjusted.

Technical Data

Clamping surface 400 x 180 mm
3 grooves in the clamping surface
1 groove each in the long sides
Travels:
- Clamping surface: 400 x 180 mm
- Longitudinal travel X-axis 320 mm ; transverse travel Y-axis 100 mm
Width of the grooves for 10 mm T-nuts or M10 hexagon head screws
Trapezoidal thread spindle Pitch 4 mm
Reading accuracy of the scaling 0.1 mm

Properties & Advantages

Adjustable prismatic guide
for metalworking, woodworking, plastics processing
for do-it-yourselfers and professionals
Made in Germany
