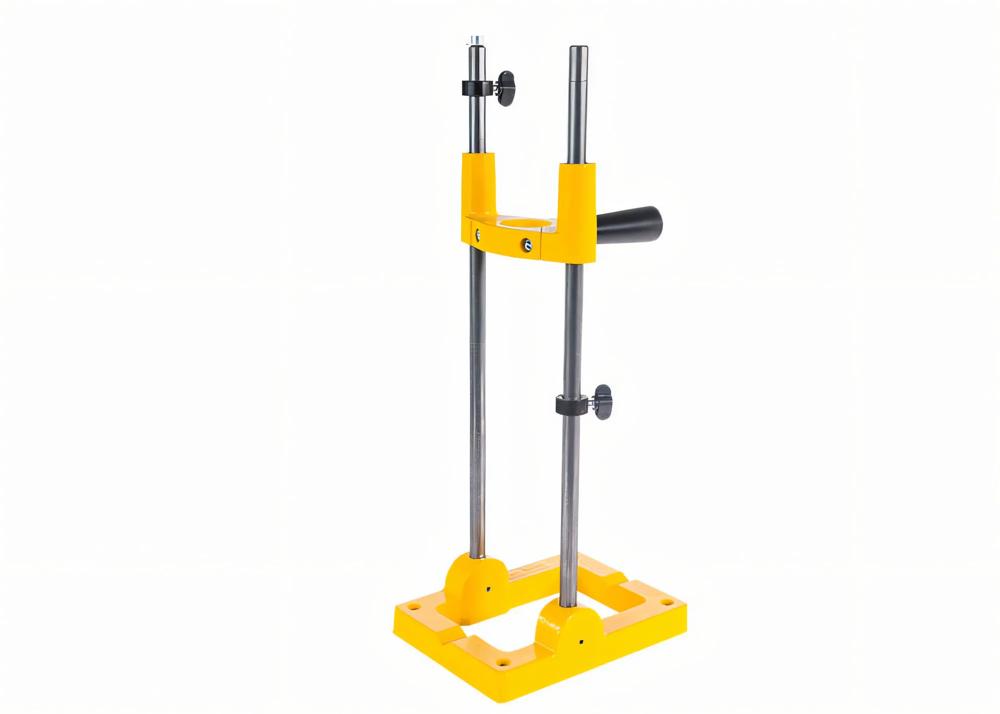

With additional handle, 2 stageless adjustable depth stops. Version with square foot and with additional stabiliser at the bottom of the guide bars. Precise drilling in exact 90° setting angle. Fixture set 1402.000: mountable on all FAMAG drill rigs with square foot. For power drills collar diameter 43 mm. Tool holder and foot made of cast aluminium, guide bars made of stainless steel.
Set of extension rails for clamping device | for drill rig rigid/pivot
Delivery time 2-3 days
53,56 €
incl. VAT
Art.-Nr: FA-140290100
1 Products
Technical Data
Drill lengths: max. 350 mm,
drilling depth: 320 mm,

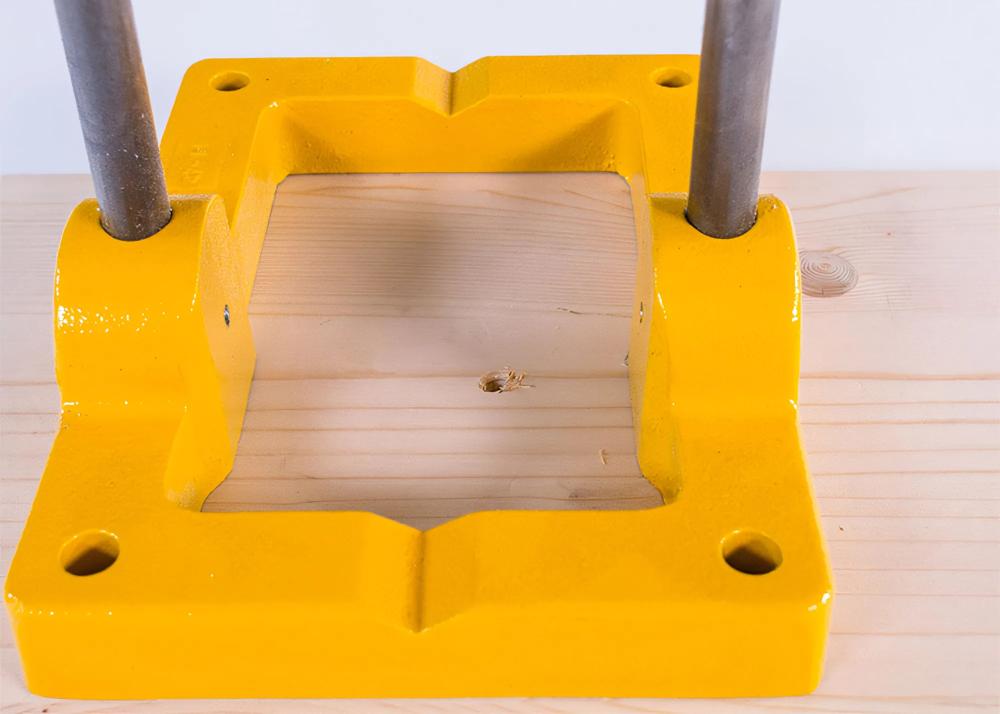

foot dimensions outside: 200 x 150 mm, f
oot dimensions inside: 155 x 100 mm,
GL: 490 mm
Properties & Advantages
With additional handle, 2 infinitely adjustable depth stops, 2 spiral springs for the return stroke of the machine and with adjustable drill bush plate for exact drill guidance

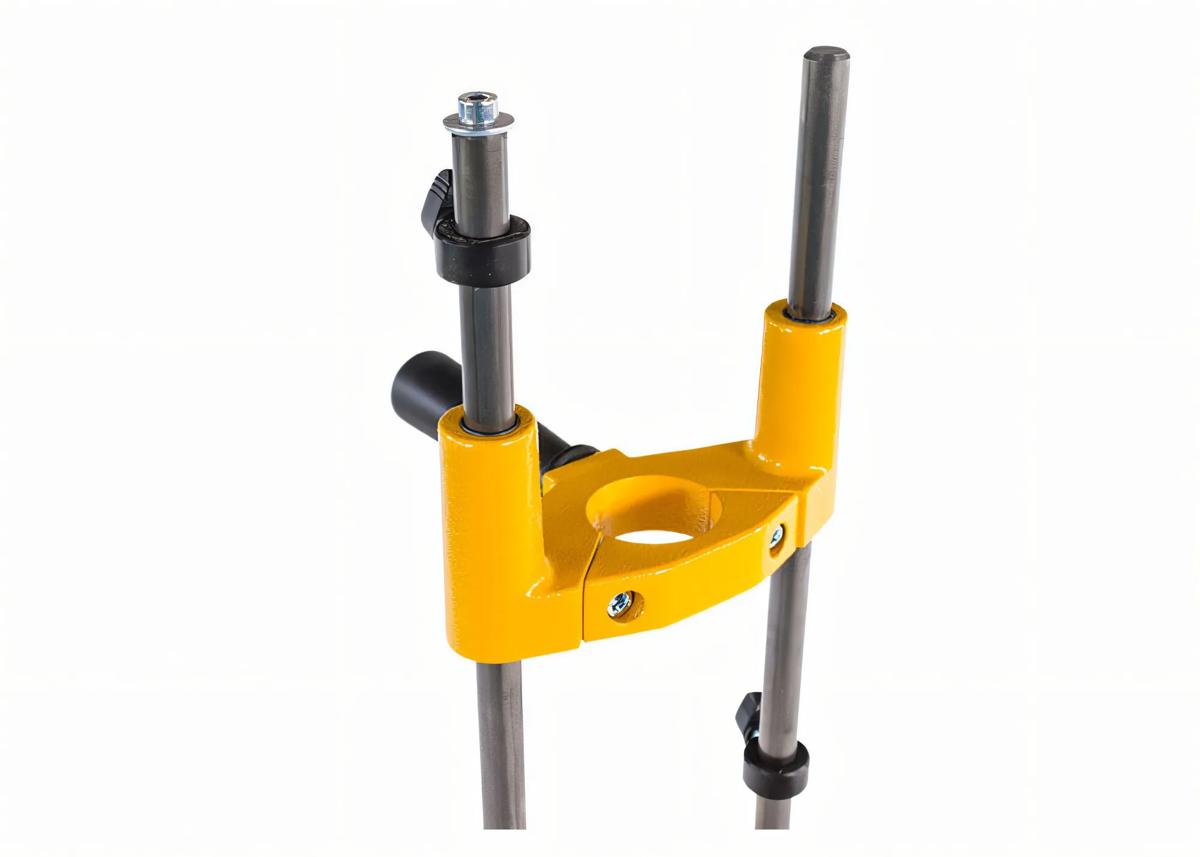

Machine mounting made of cast aluminium
Exactly positioned drilling at an exact 90° angle of attack (rigid version). Schwenkbare Version infinitely variable up pivotto 45°. With additional guidance of the drills by rotatable Drill bush plate.
For drills with 43 mm Euro-neck. For drill bits Ø 8, 10, 12, 14, 16, 18, 20, 22, 24, 26 mm. Version with two stable guide columns
