Festool Underframe UG-CSC-SYS

For the CSC SYS 50 Table Saw | NOT FOR SALE OUTSIDE THE EU, SWITZERLAND AND NORWAY

Shipping within 24 hours (working days)

359,00 €

incl. VAT / excl. shipping costs

Bulky GoodsItem is oversized / overweight and will be shipped as bulky goods.

Brand:Festool
Article no.:F-577001
Weight:18.13kg

Festool Underframe UG-CSC-SYS

Ideal in combination with the CSC SYS 50 cordless table saw.

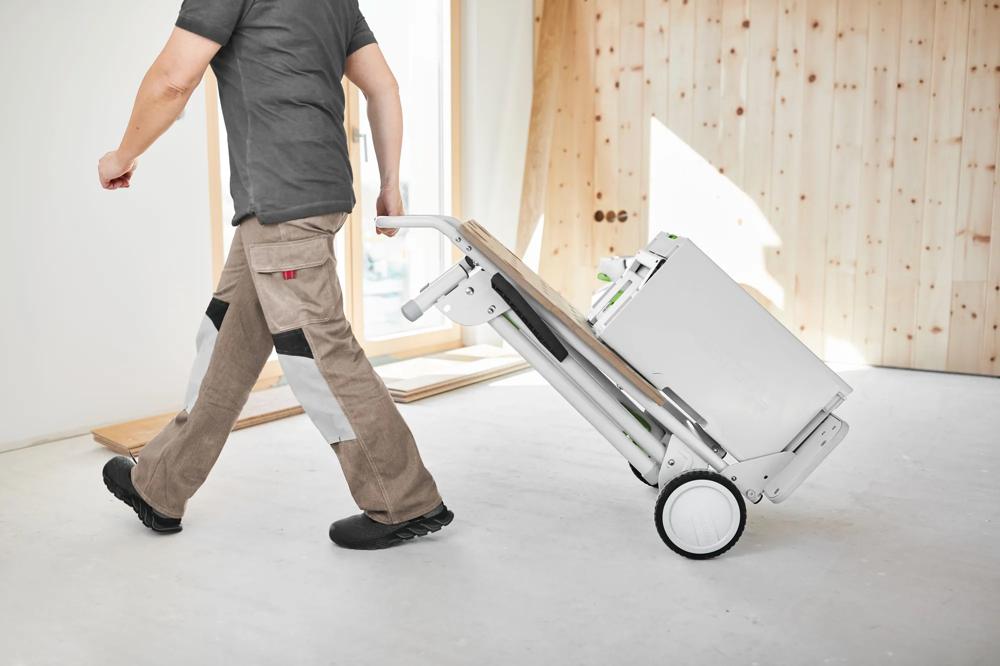

The UG-CSC-SYS underframe is the ideal 3-in-1 solution for your assembly jobs. It acts as a hand cart for transport from the vehicle to the point of use – allowing you to easily roll an entire tower of Systainers of up to 80 kg to the construction site. The foldaway legs are folded out in an instant, giving you a worktable of 58 x 58 cm in size; a practical alternative to trestles. Workpieces are securely clamped on the surface via the perforated top. However, the underframe demonstrates its full ability in combination with the CSC SYS 50 cordless table saw. This is securely positioned in the holes of the work space – and already you're working at an ergonomic height of 90 cm. The legs simply remain folded in when using the CSC SYS 50 cordless table saw close to the ground, e.g. when laying a floor. The "shovel" that just served as a transport surface for the Systainers is now set up as an ideal support for long workpieces for all rip cuts, cross cuts and angled cuts.

Technical Data

Table dimensions - 580 x 580 mm
Dimensions (L x W x H) - 1 067 x 580 x 245 mm
Tabletop height: High working position - 677.00 mm
Tabletop height: Low working position - 245.00 mm
Load capacity as worktable/hand truck - 100 / 80 kg
Product weight - 18.13 kg

Properties & Advantages

Versatile: Transport aid, worktable and underframe for the CSC SYS 50 cordless table saw in one
Resilient: Transport a Systainer tower up to 80 kg. The Systainers engage securely on the base plate. Additional fixing possible with a lashing strap

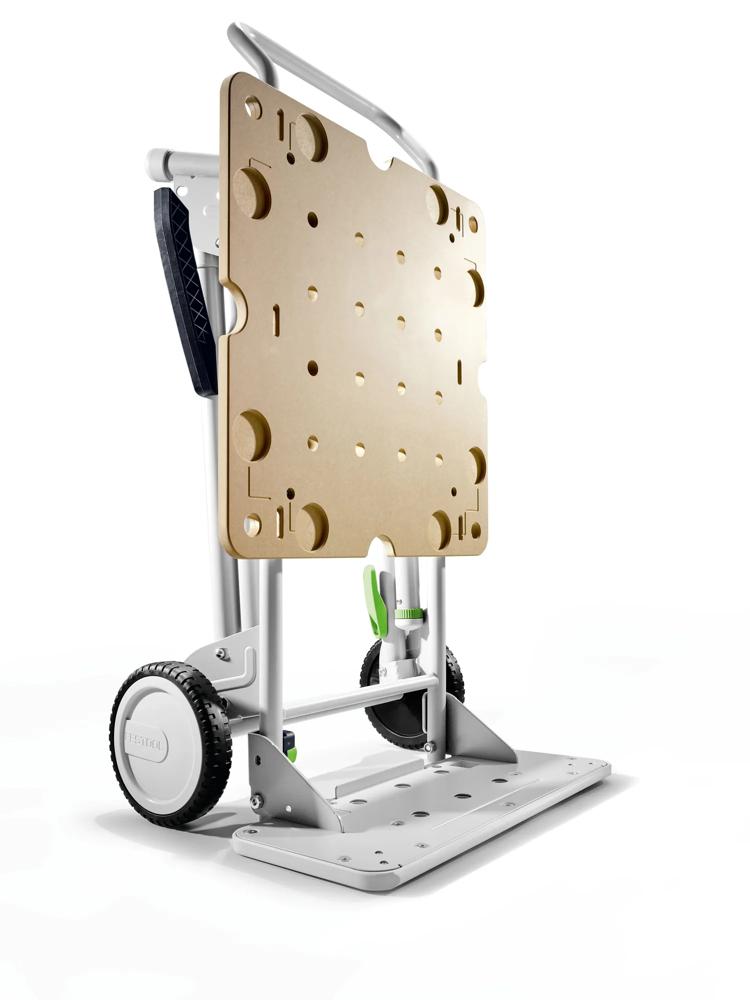

Saves space: Folded together, the underframe takes up barely any space in the vehicle

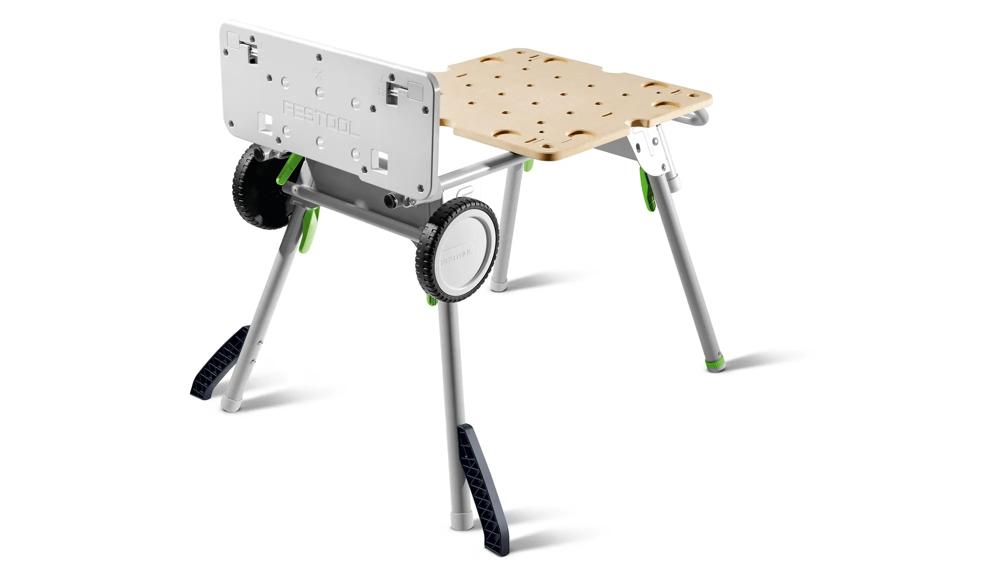

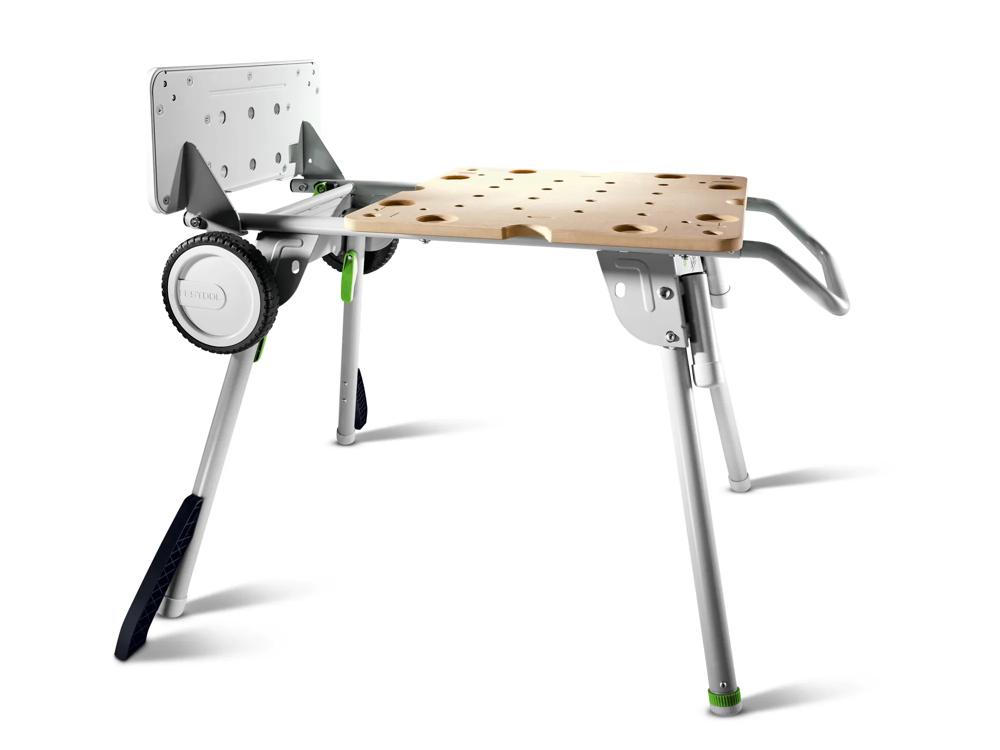

Practical: The foldaway legs are folded out in an instant. Unevenness in the floor is compensated for by a foot compensation on one of the foldaway legs
Stable support: The typical Festool hole pattern of the worktop allows secure clamping of workpieces with clamp clips and lever clamps

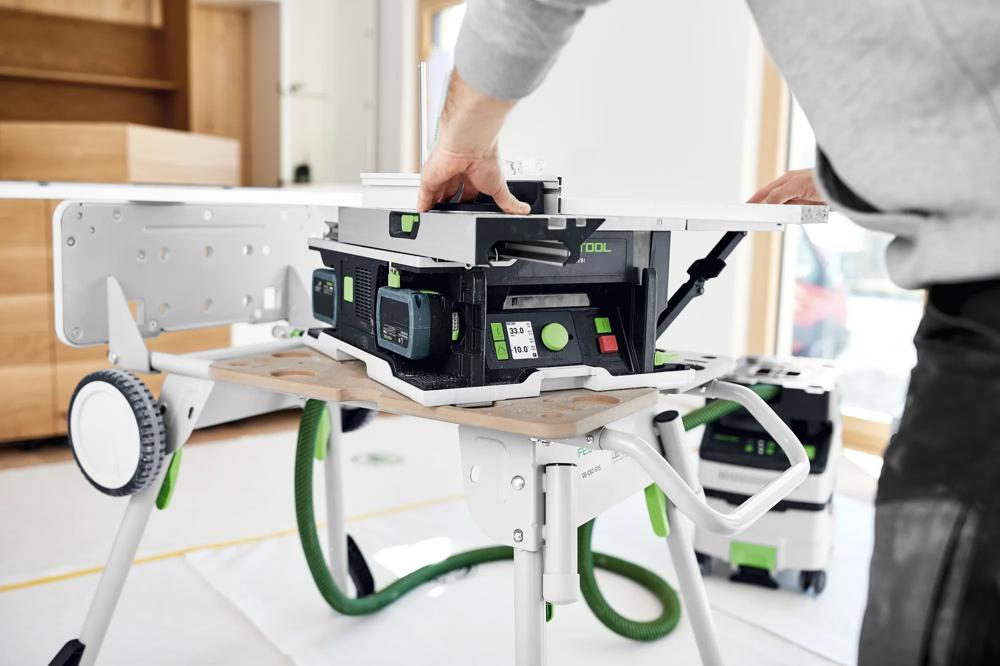

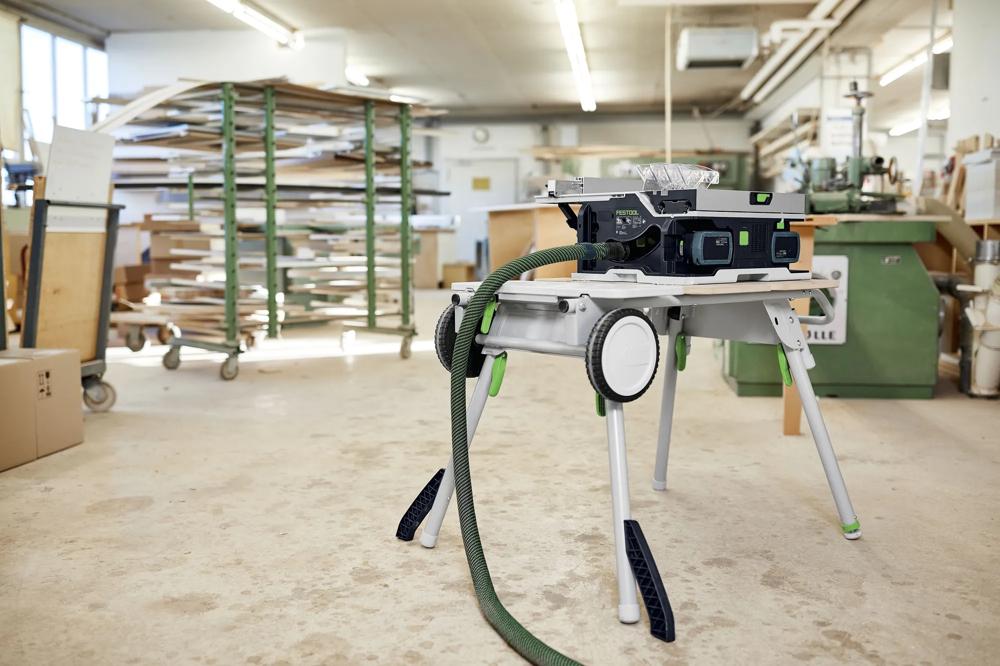

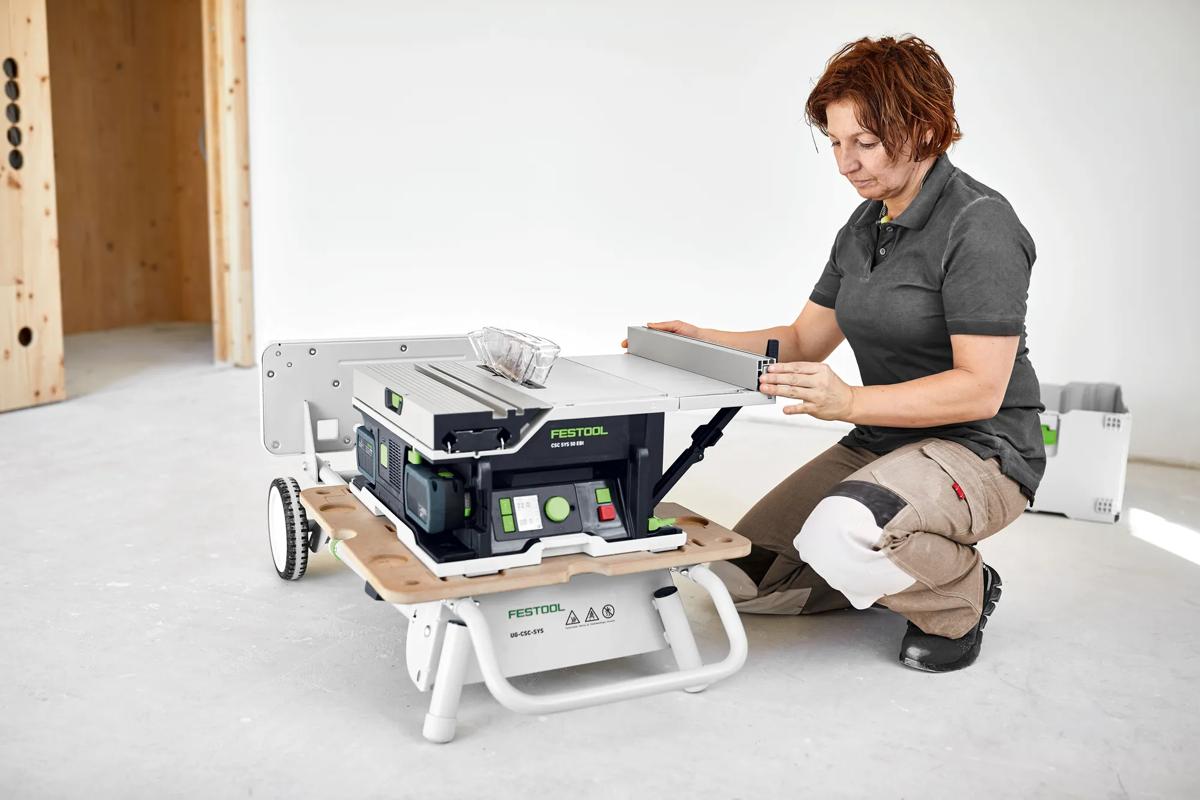

A perfect fit: The ideal combination with the CSC SYS 50 cordless table saw. Creates a working height of 90 cm, offers a stable support for long workpieces. The legs remain folded in when working close to the ground (working height 24.5 cm)

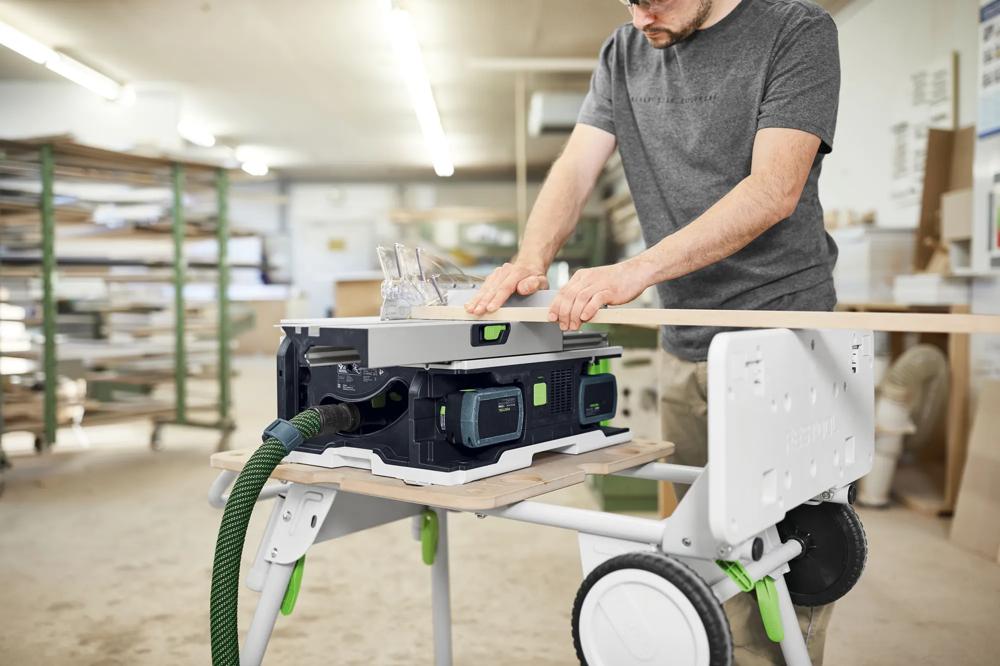

puts the CSC SYS 50 cordless table saw at a working height of 90 cm (with legs folded out)
