Harvey COMPASS ST-1500 Sliding table (Metric)

Sliding table | incl. Compass AH-3T | Maximum travel of the sliding table: 1540mm

Not available at the moment

1.783,81 €

incl. VAT / excl. shipping costs

FreightArticle is oversized / overweight and will be dispatched by a freight carrier.

Brand:HARVEY INDUSTRIES
Article no.:HAR-800734
Weight:40kg

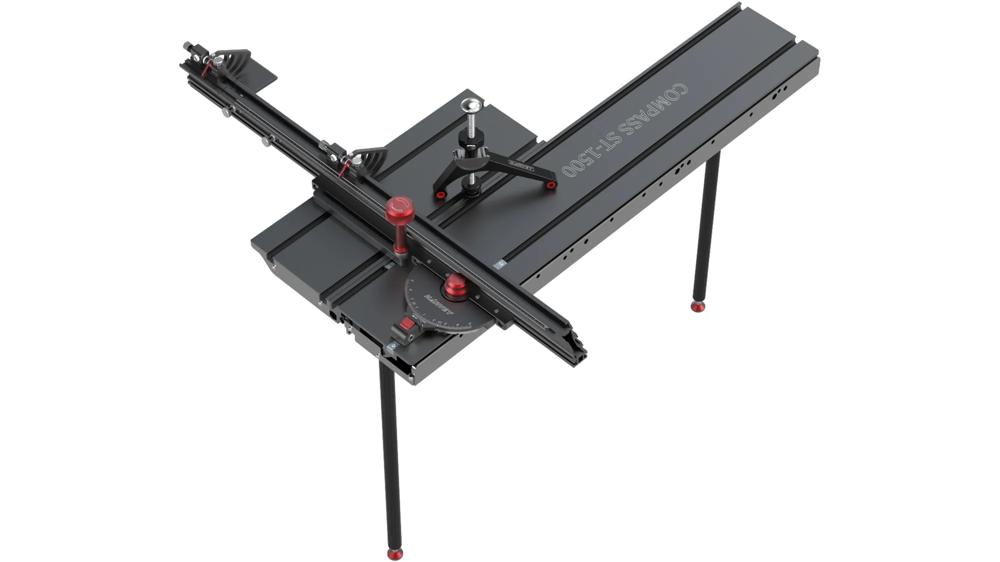

Harvey COMPASS ST-1500 sliding table (Metric)

The Compass ST-1500 sliding table is equipped with an industrial grade slide and an extremely precise mitre cutting protection system. The slider (1500mm/59" travel) is fitted with two unique preloaded V-shaped ball bearing rails that ensure backlash-free movement accuracy and consistent smoothness during operation. The mitre fence system is equipped with a sturdy fence body with extension, a large and thick crescent graduation gauge and two micro-adjustable flip stops. All main parts are made of 6061 aluminium alloy or stainless steel and precision machined on CNC machining centres.

The ST-1500 sliding table has been engineered with dedication to design, manufacturing and craftsmanship to meet your highest capacity requirements and your most critical circular table sawing needs.

"Good Enough Is Not Enough", we truly hope that the ST-1500 sliding table is a new option for you on another level!

Compatible accessories

t-nut-bodenniederhalter-harvey industries-har-800745-01

Harvey COMPASS AH-3T Arch Hold Down for T-Slot

Floor hold-down device for T-slots

Delivery time 2-3 days

189,21 €

incl. VAT

Art.-Nr: HAR-800745

1 Products

Technical Data

Compatible:
- Harvey: HW110SE; 110LG/C300; 110S; 110LC/C200
- Saw Stop: ICS; PCS
- Grizzly: G0899; G0690; G0691
- ShopFox: W1824; W1819; W1820
- If your table saw does not fit into the above range, you will need to drill the holes on the slider yourself to adapt it to your table saw.
Dimensions of the sliding table: 228.5x1200mm
Dimensions of the extension table: 228.5x600mm
Maximum travel of the sliding table: 1540mm
Maximum cutting width: 1240mm
Maximum stop position: 1500mm
Mitre angle adjustment, infinitely variable: -60°/+60°
Total length of the cross-cut fence: 1090mm
Fence scale: Imperial/Metric
Mitre angle adjustment, fixed positions with detent: -60°; -45°; -22.5°; 0°; +22.5°; +45°; +60°
Setting accuracy of the angle scale with vernier reading: 0.1°; 6' (6 angular minutes)
Setting accuracy of the length scale: 0.02mm
Package size: 1260x300x305mm
Net/gross weight (approx.): 35/40kg

Properties & Advantages

Supplied with Compass AH-3T bow cutter holder.
Materials are basically stainless steel, 6061 T-6 anodised aluminium alloy and brass.
All parts are designed to withstand high loads, ensuring exceptional strength and rigidity.
All main parts of the sliding table are completely stainless.

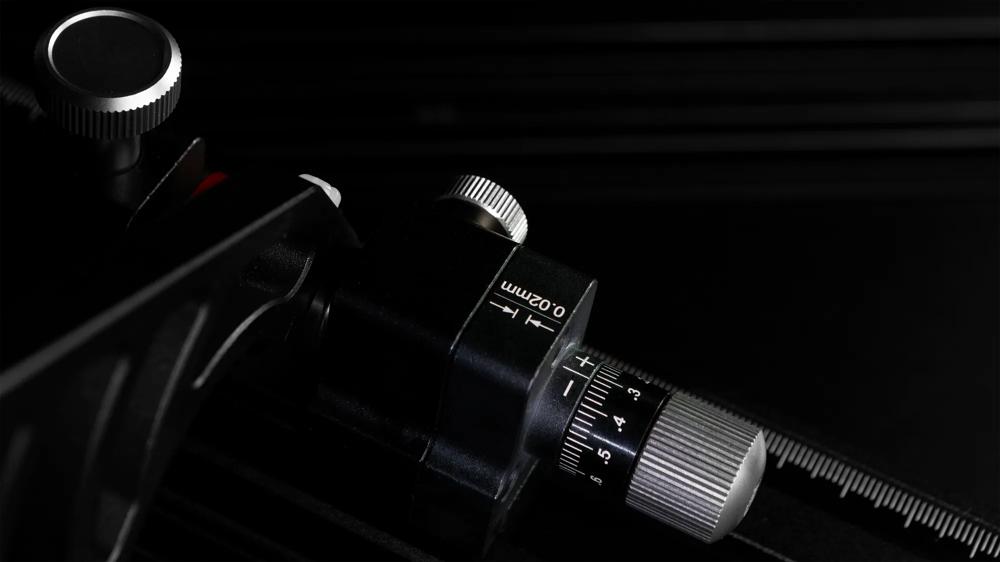

Micro-adjustable flip-stop

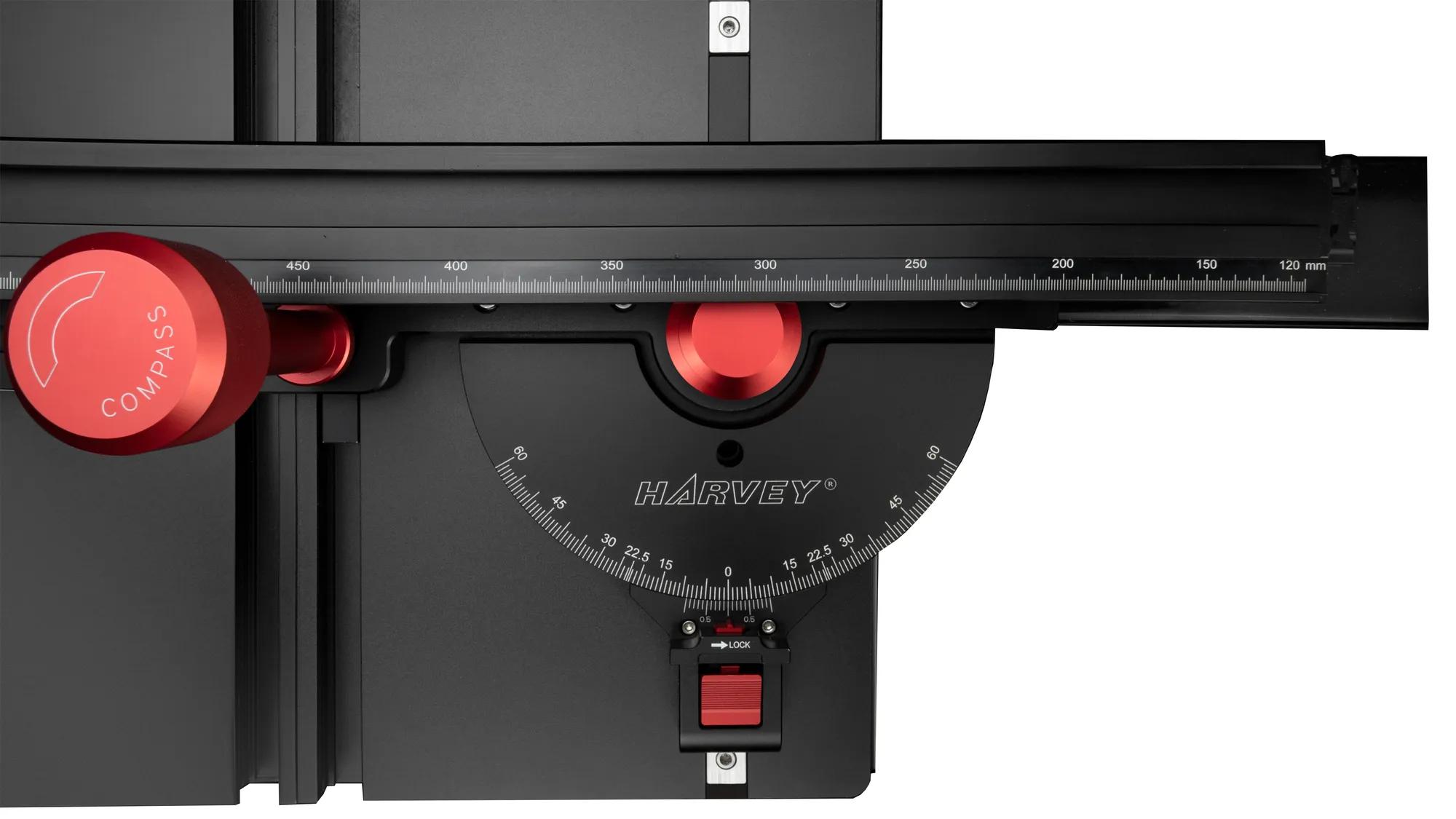

The laser-engraved vernier scale

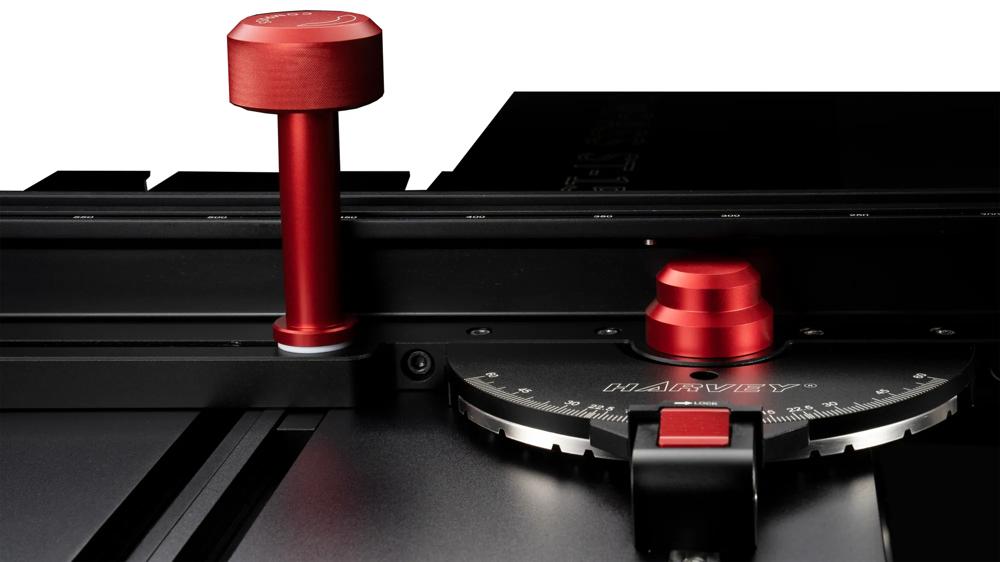

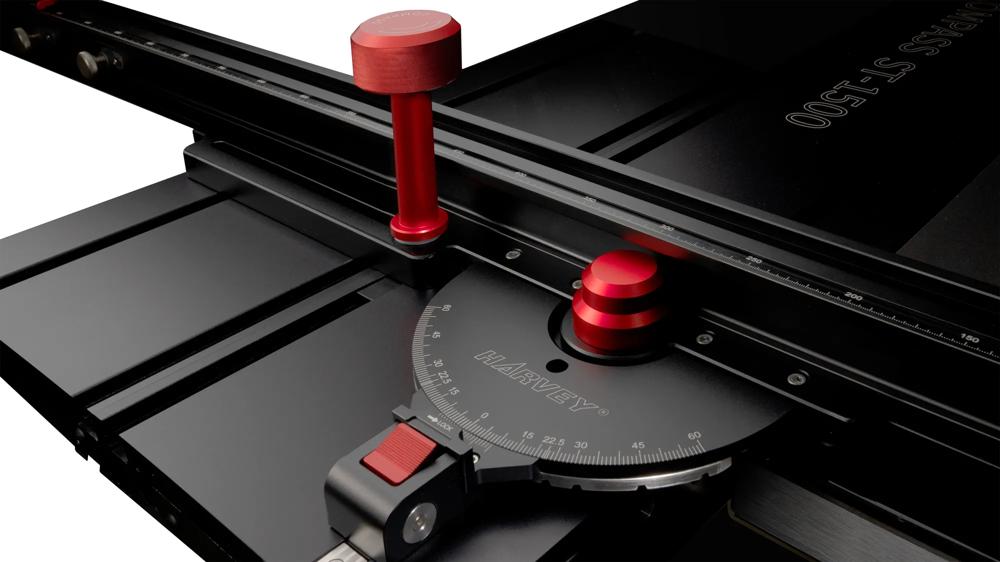

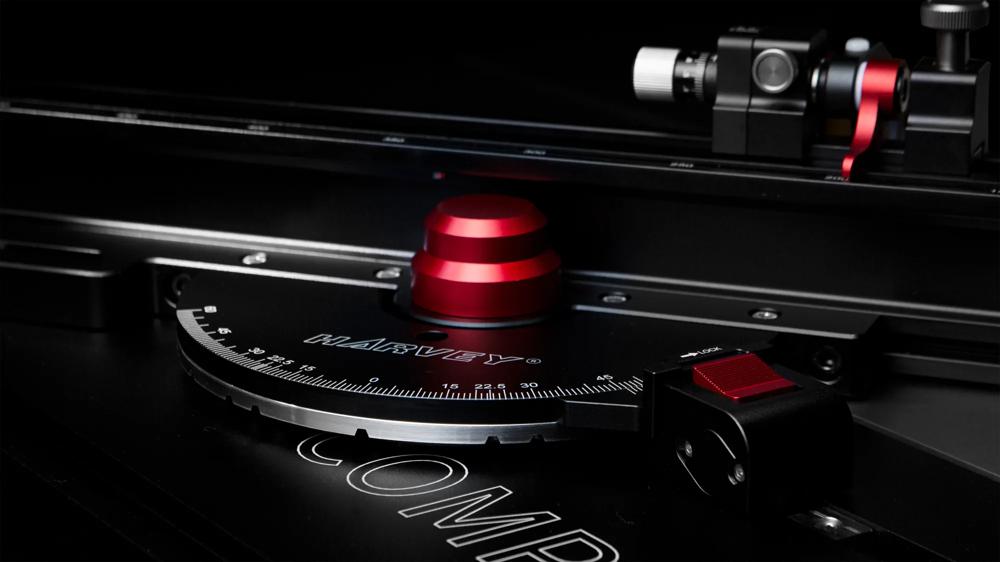

The mitre angle stop can be manually adjusted to any desired angle.
The industrial slide (1500mm/59" travel) is equipped with two unique preloaded V-shaped ball bearing rails that ensure backlash-free movement accuracy and consistent smoothness during work.
