IGM Carbide RESAWKING 20 x 0.6mm 1.5-2Tpi

For Laguna 18BX | length: 3670 mm | with carbide-tipped teeth

Delivery time 2-3 days
197,68 €
incl. VAT / excl. shipping costs
1
  • Brand:IGM
  • Article no.:I-F211-520
  • Weight:0.5kg

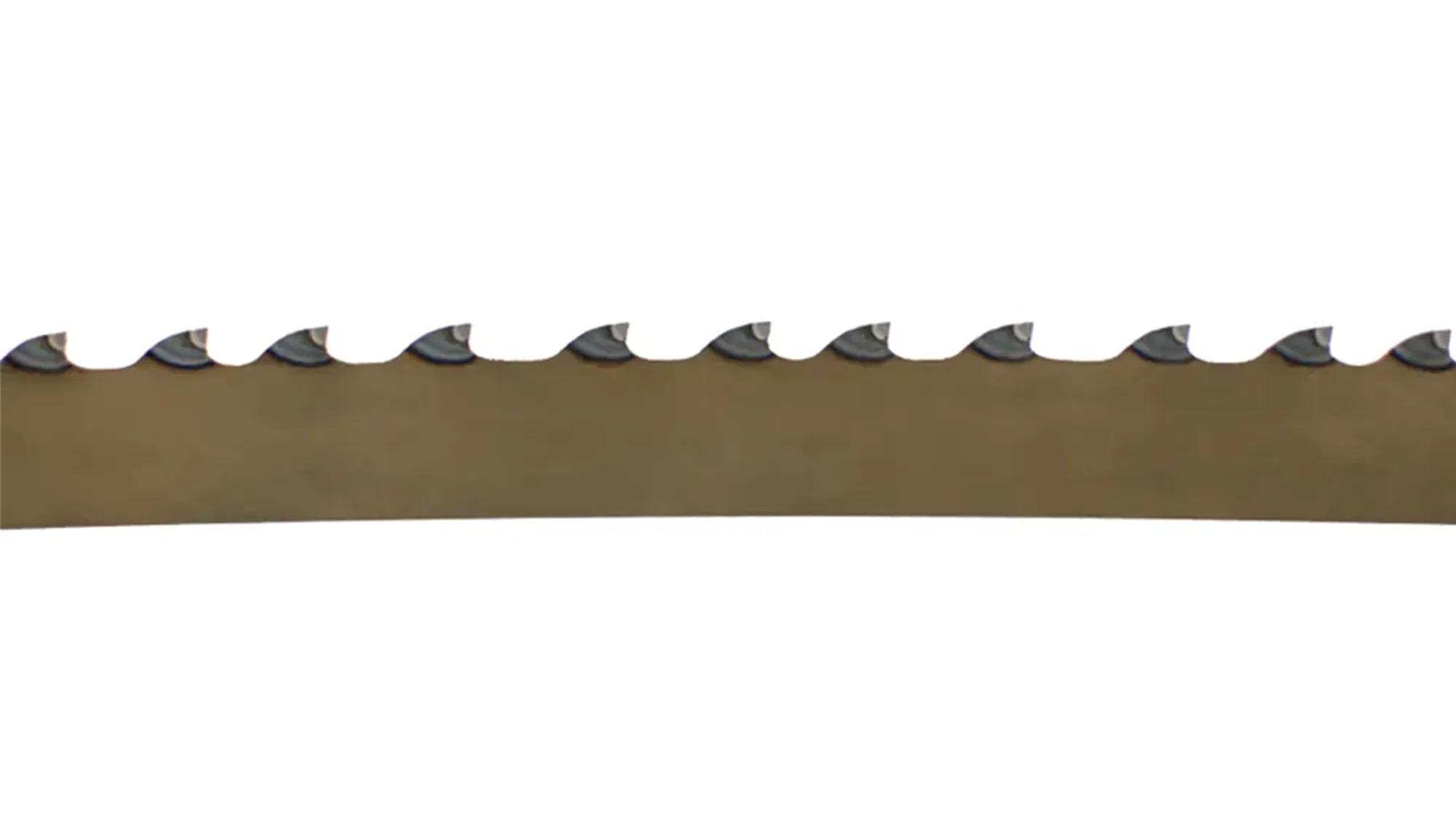

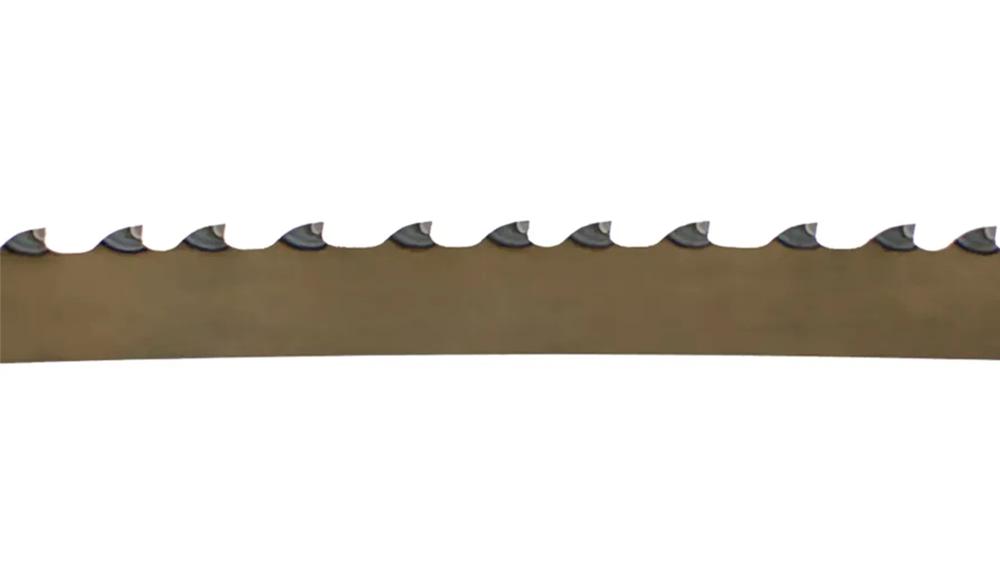

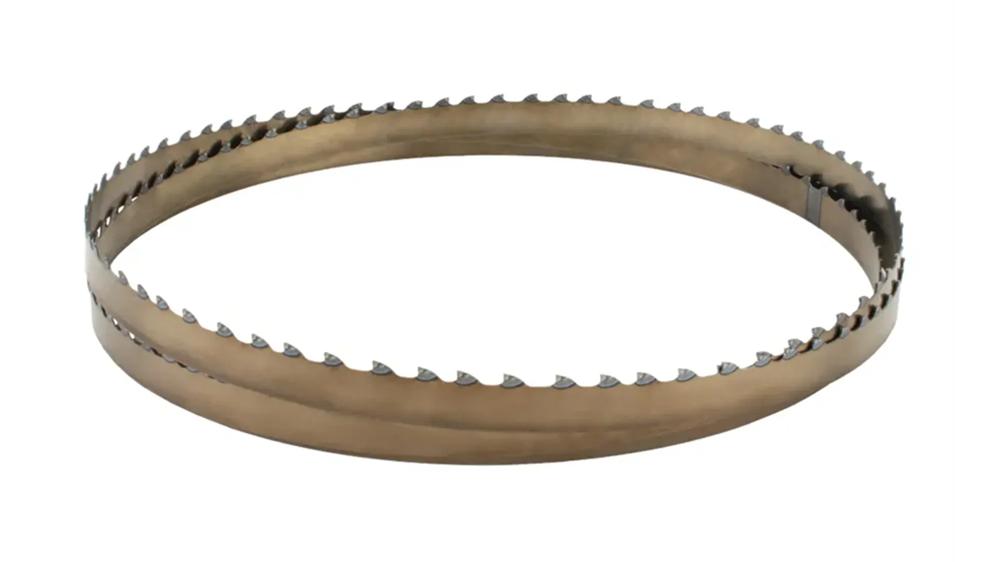

IGM Carbide RESAWKING 20 x 0.6mm 1.5-2Tpi 3670 mm

The ideal belt for the most demanding applications, suitable for high-speed, low-cutting.

You may also like

bandsaege-laguna-i-151-18bx-01
LAGUNA bandsaw 18BX
Professional, precise bandsaw | Swiveling table | Cutting height up to 410 mm | 400V | At present shipping is only possible to the EU, Switzerland and Norway
Delivery time 2-3 days
3.168,29 €
incl. VAT
Art.-Nr: I-151-18BX

Technical Data

  • Suitable for: Hardwood and softwood
  • Cutting height: up to 200 mm
  • Band width: 20 mm
  • Band thickness: 0.6 mm
  • Tooth pitch: 1 .5-2 tpi
  • Length: 3670 mm
bandsaegeband-resawking-1,5-2tpi-igm-i-f211-520-02

Properties & Advantages

  • Saw blade with carbide teeth.
  • Maximum blade durability, perfect for cutting very hard and exotic wood.
  • Narrow cut with only 1.2 mm.
  • The variable tooth pitch reduces belt vibrations.
  • General information on selecting the band saw blade:
    • The wider the band saw blade (according to your saw's capabilities), the longer the service life.
    • The narrower the band, the better small radii can be cut. (Tail blade)

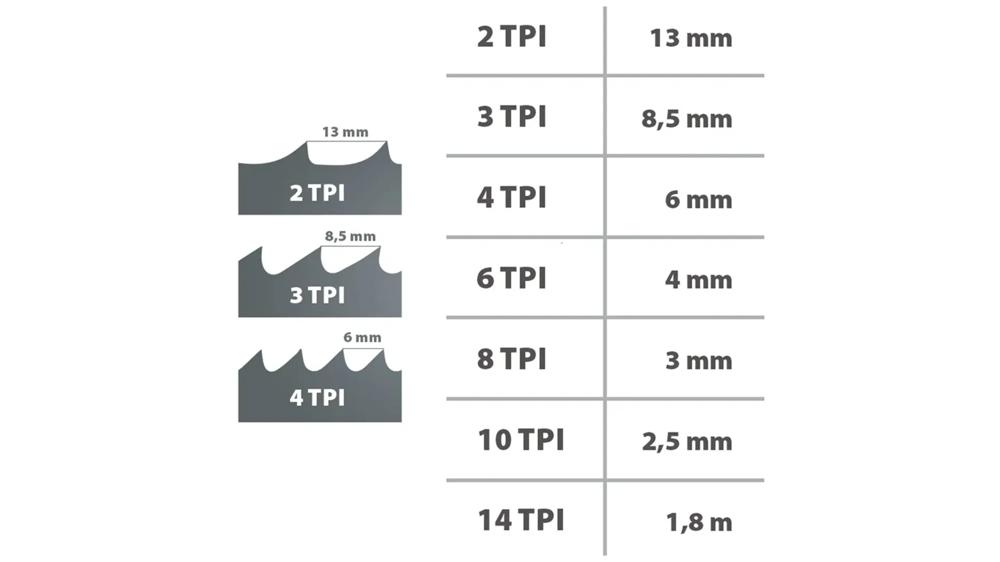

    • Tooth pitch 2, 3 and 4 tpi for coarser cuts and thick material.
    • Tooth pitch 4, 6 and 8 tpi for longitudinal and cross cuts; best ratio between cleanliness and cutting speed.
    • Tooth pitch 10 and 14 tpi for fine and clean cuts, for thin or soft material (e.g. also cuts in plywood)
    • Regular tooth shape: Tooth angle 0°; clean, smooth cut; universal shape.
    • Skip tooth shape: very long tooth base, one tooth appears to be "missing"; tooth angle 0°; less aggressive entry into the cut; for rough, fast work.
    • Tooth shape Hook: Tooth angle 10°; aggressive tooth shape for hard wood with greater material thickness.
