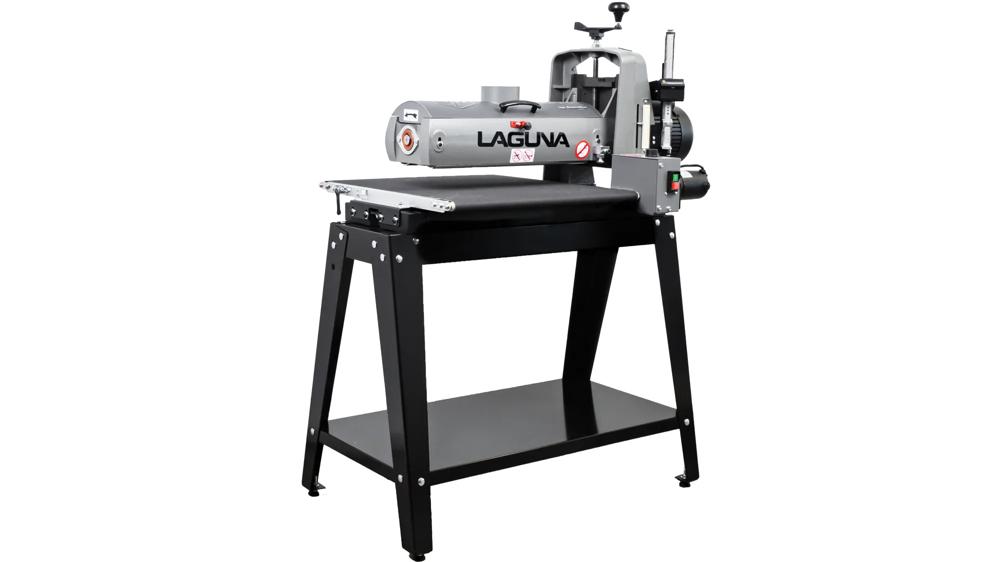

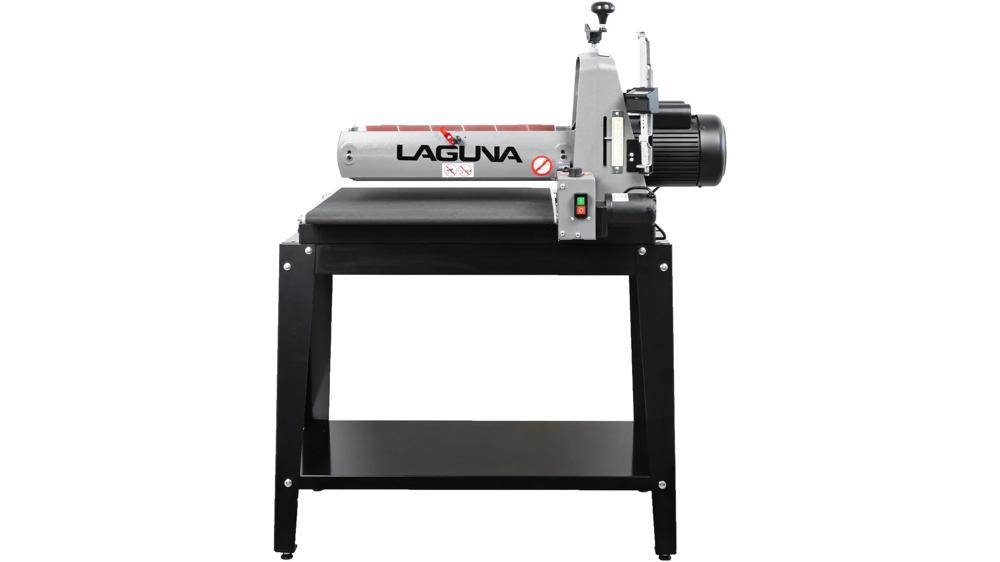

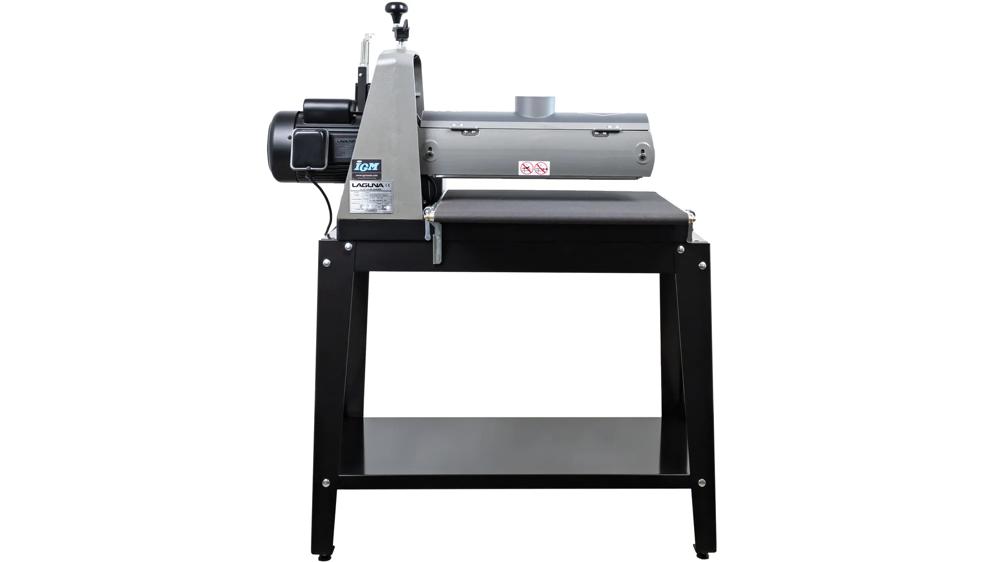

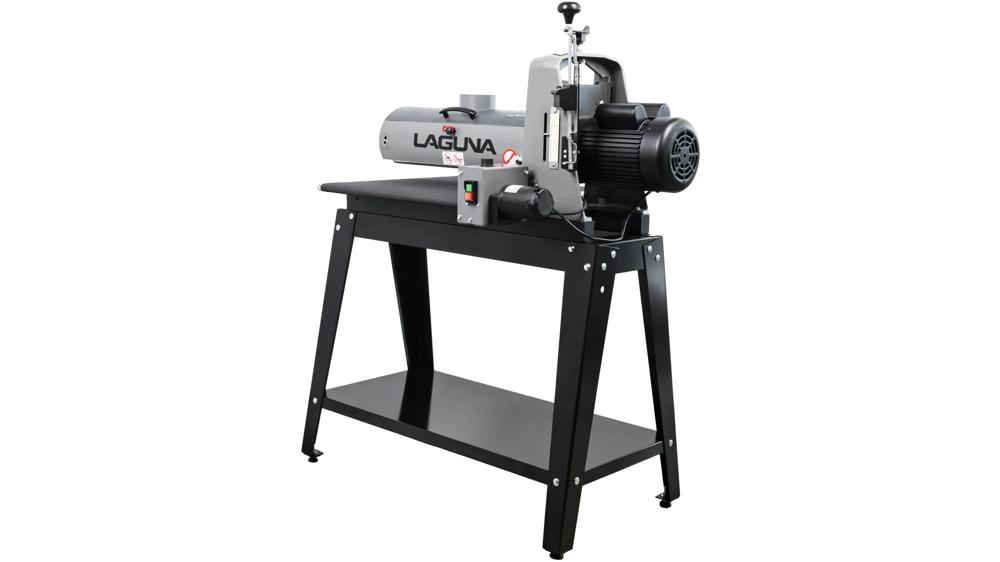

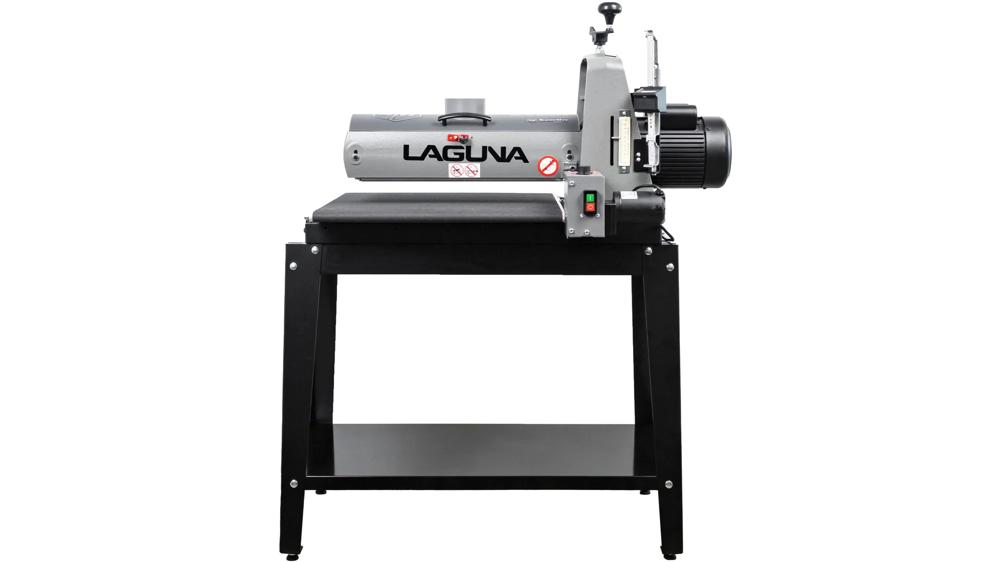

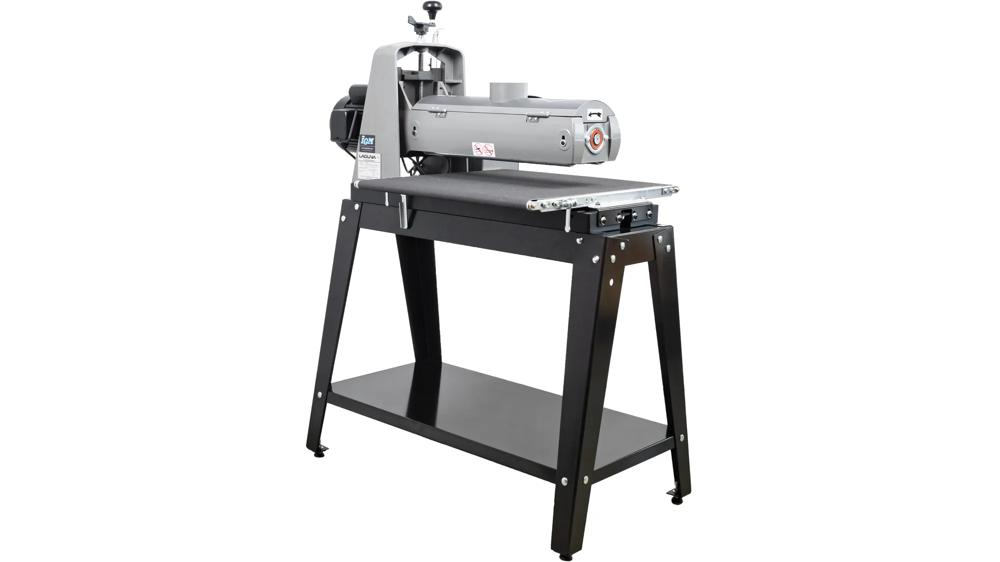

LAGUNA Drum Sander SuperMax 1938

The cylindrical grinding machine for demanding workshops | Perfect sanding of parts up to a width of 965 mm | Automatic feed adjustment | 1350 W At present shipping is only possible to the EU, Switzerland and Norway

Shipping within 24 hours (working days)

2.591,51 €

2.399,90 €

incl. VAT / excl. shipping costs

FreightArticle is oversized / overweight and will be dispatched by a freight carrier.

Brand:Laguna
Article no.:I-151-1938
Weight:71.7kg

LAGUNA Drum Sander SuperMax 1938

Developed together with master carpenters - for high demands.

Drum Sander designed by the woodworking community. Featuring innovative solutions professionals were lacking on modern sanding machinery. One of these is easy height adjustment. A thrust bearing below the handle and a nut positioned above prevent the drum from moving out of the set position while sanding. No backlash or slop in the height adjustment mechanism allows easier and more smooth height adjustments. Built-in Digital Read Out helps maintain consistent thicknesses to increase accuracy and output quality.Sanding accuracy guaranteed by robust drum housing and perfect parallel setting between the conveyor and drum. Just one nut adjusts the conveyor to parallel the sanding head, making aligning the conveyor to the sanding head quick and easy. Conveyor motor is placed on the back of the sander providing pulling motion instead of pushing. Extra wide (558 mm) conveyor is designed to properly support workpiece wider than 482 mm. Precision flattened steel conveyor bed, reinforced with four steel cross sections, guarantees flatness to less than 0,25 mm across the width of the sander.Intellisand Technology automatically adjusts the feed speed to provide consistent finish even with varying grain pattern and density. Meaning no burning, rip-out or damaging the workpiece. Abrasive conveyor belt provides the best grip on raw wood, giving you the ability to accommodate stock that is much shorter or thinner. Patented abrasive attachment system effectively tensions the abrasive, preventing loosening and overlapping. Easiest access to the abrasive fastening of any drum sander. Extra wide space eliminates the need for special tools!Dust cover is formed to match the shape of the drum providing excellent dust extraction. Self-cooling drum prevents overheating and extends abrasive life. Adjustable tension rollers to eliminate snipe. Heavy-duty cast iron construction.

Technical Data

Power (230 V): 1350 W
Feed belt motor: 40 W
Speed: 1420 rpm
Feed speed: 0-3 m/min.
Min. workpiece length: 60 mm
Max. workpiece width Workpiece width: 482 mm (965 mm)
Workpiece thickness min./max. : 0.8-100 mm
Cylinder dimensions: 127 x 482 mm
Sanding belt width: 76 mm
Minimum air flow: 1000 m3/hour
suction: 100 mm
L × W × H: 1090 x 670 x 1290 mm
Weight: 118 kg
Packaging dimensions: 1150 x 1150 x 815 mm
Weight incl. packaging: 130 kg

Properties & Advantages

Lever for quick unit height adjustment and micro set-up.

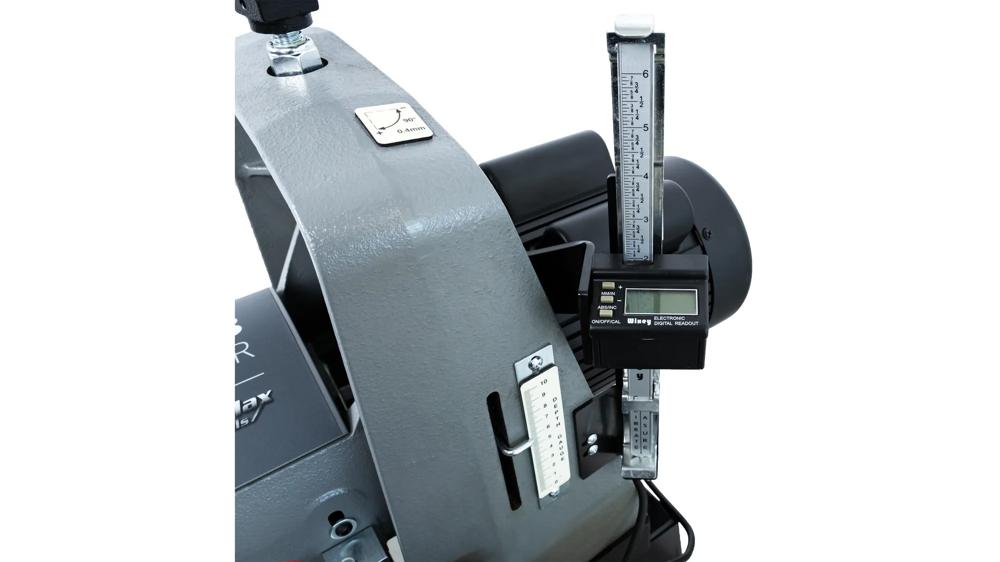

Digital display of sanding thickness in 1/10 mm increments for perfect sanding of parts up to 965 mm wide.
Extra wide feed belt with rough surface that guarantees flatness with a deviation of less than 0.25 mm over the entire width.

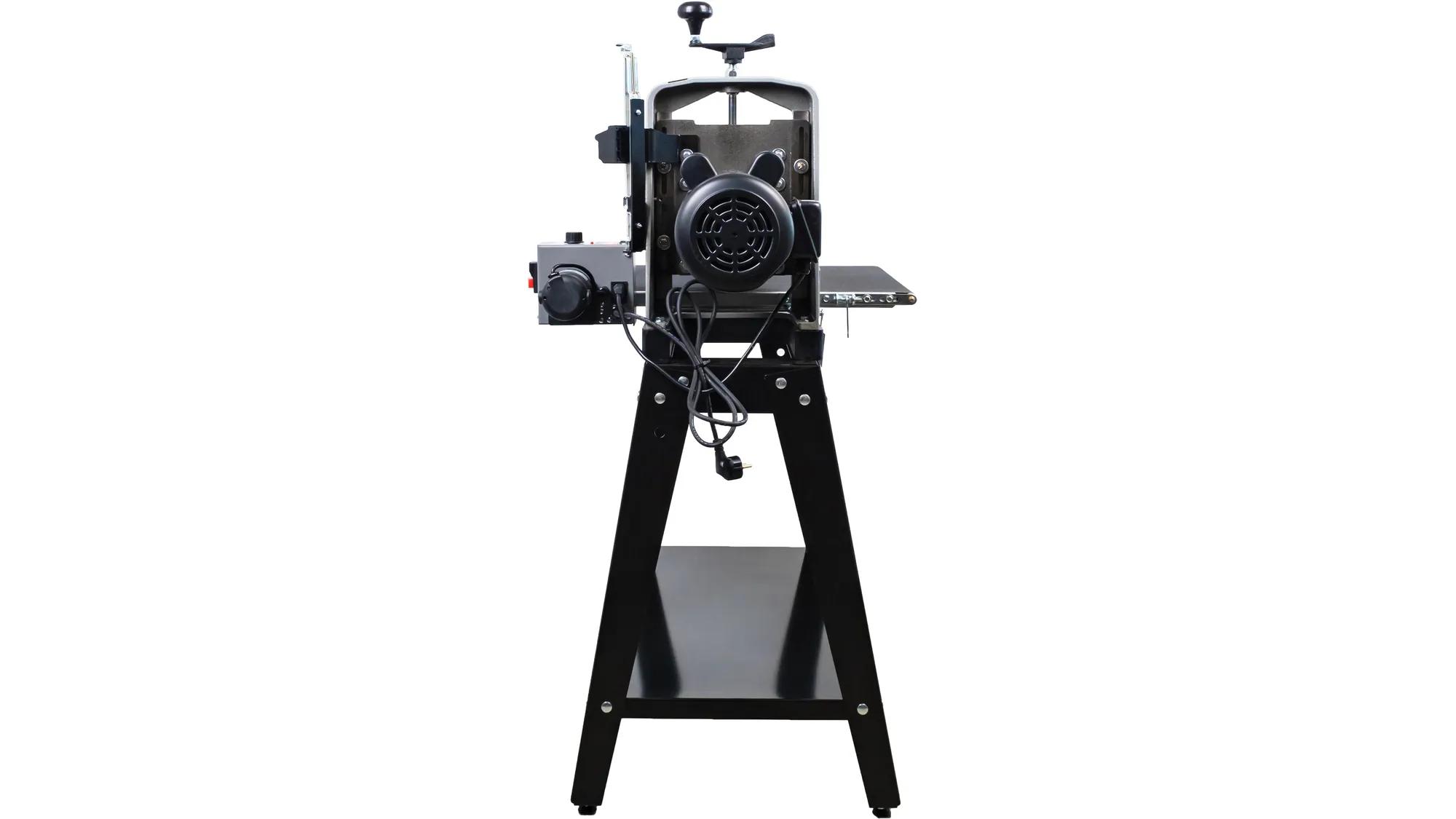

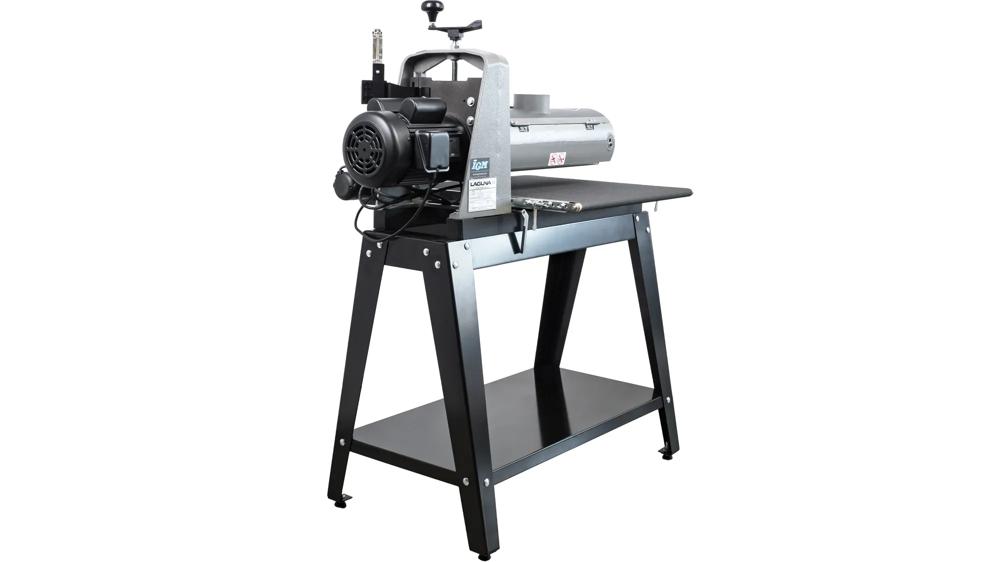

A separate feed belt motor is located on the back of the sander and the feed belt is thus pulled rather than pushed.

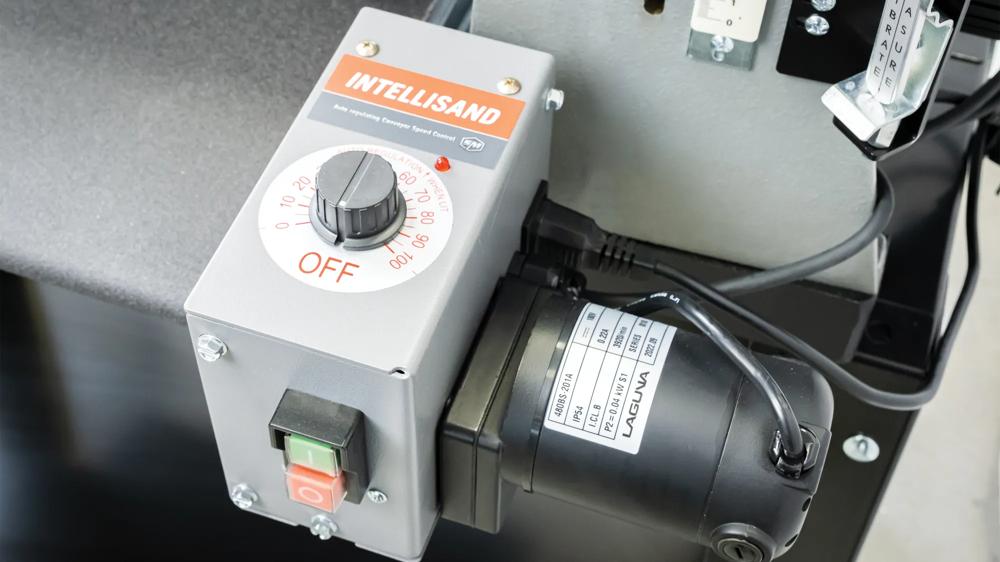

Feed slowdown with larger material removal thanks to Intellisand technology.
The cylindrical sanding machine has a patented sanding belt tensioning system that prevents the sanding belt from loosening and overlapping.
The self-cooling drum prevents overheating and extends the service life of the abrasive.
Robust cast iron construction.
Supplied with base and abrasive belt grit 80.
