Lamello Clamex P-10, 300 pairs

Clamex P-10, 300 pairs

Shipping within 24 hours (working days)

441,98 €

incl. VAT / excl. shipping costs

Brand:Lamello
Article no.:LA-145373
Weight:2.5kg

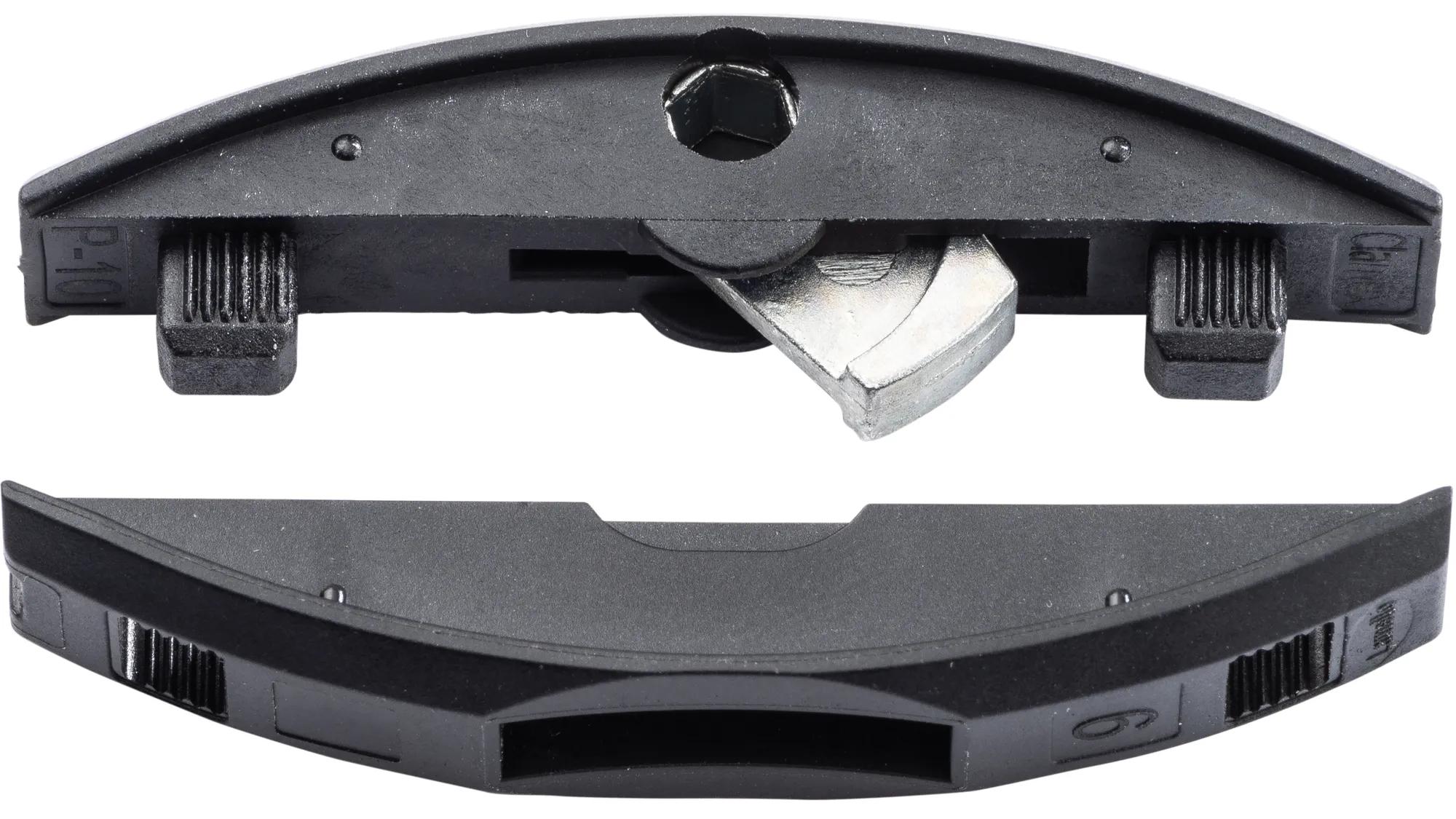

Lamello Clamex P-10, 300 pairs

Detachable connector for materials from 12 mm thickness

Clamex P-10 is a detachable connector and is anchored in the form-locking P-System groove within seconds. Through the minimalist 6 mm access hole, Clamex P-10 is firmly connected and disconnected using a lever. Clamex P-10 eliminates the need for glue, allows aesthetic joints at all angles and is ideal for permanently joined or detachable mitres. Clamex P-10 is used on mitre joints from 15 mm material thickness and in butt joints from 12 mm.

Technical Data

Installation tolerance longitudinal: ± 0.5
Installation tolerance radial: ± 0.5
Minimum material thickness for surface cuts: 11
Minimum material thickness for edge cuts: 12
Minimum material thickness for centre panel: 19
Minimum material thickness for angle bisector: 15
Minimum workpiece width: 65
Self-clamping: Yes
Invisible: No
Detachable: Yes

Properties & Advantages

Detachable
Aesthetic
Shallow depth
Stackable
Versatile
