"The Red Routers" by Freud
Freud rebate cutters

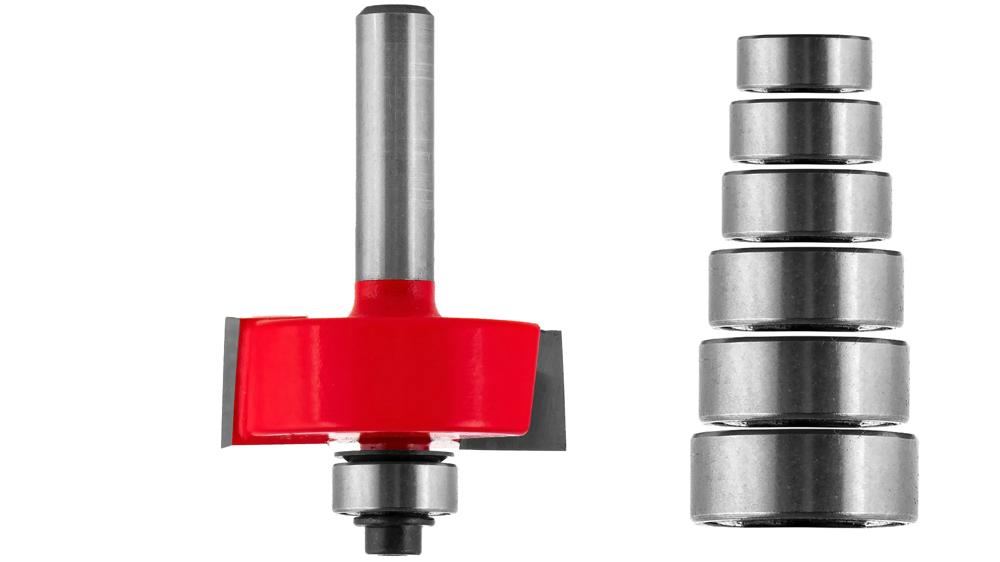

Rabbeting Bit with a set of 7 ball bearings D: 35mm

falzfraeser-7teilig-kugellagersatz-d35-freud-fr-32-50408p-01

falzfraeser-7teilig-kugellagersatz-d35-freud-fr-32-50408p-02

falzfraeser-7teilig-kugellagersatz-d35-freud-fr-32-50408p-03

Rabbeting Bit with a set of 7 ball bearings D: 35mm

Rabbeting bit | bearing | D35 | H54.4 | h12.7 | A8

Shipping within 24 hours (working days)

92,94 €

79,00 €

incl. VAT / excl. shipping costs

Brand:Freud
Article no.:FR-32-50408P
Weight:0.11kg

Freud Rabbeting Bit with a set of 7 ball bearings D: 35 mm

Rabbeting bit / bearing, D35, H54.4, h12.7, A8

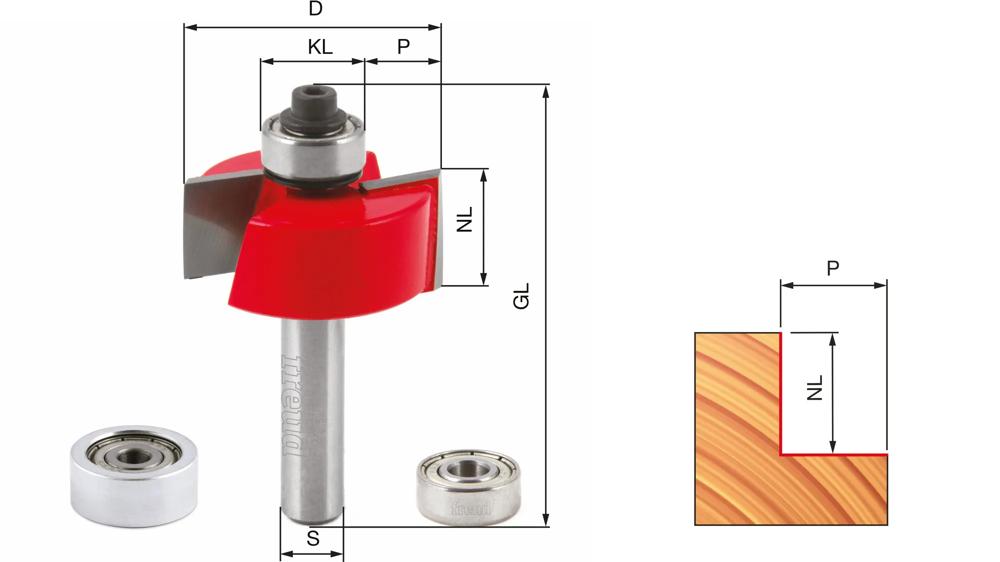

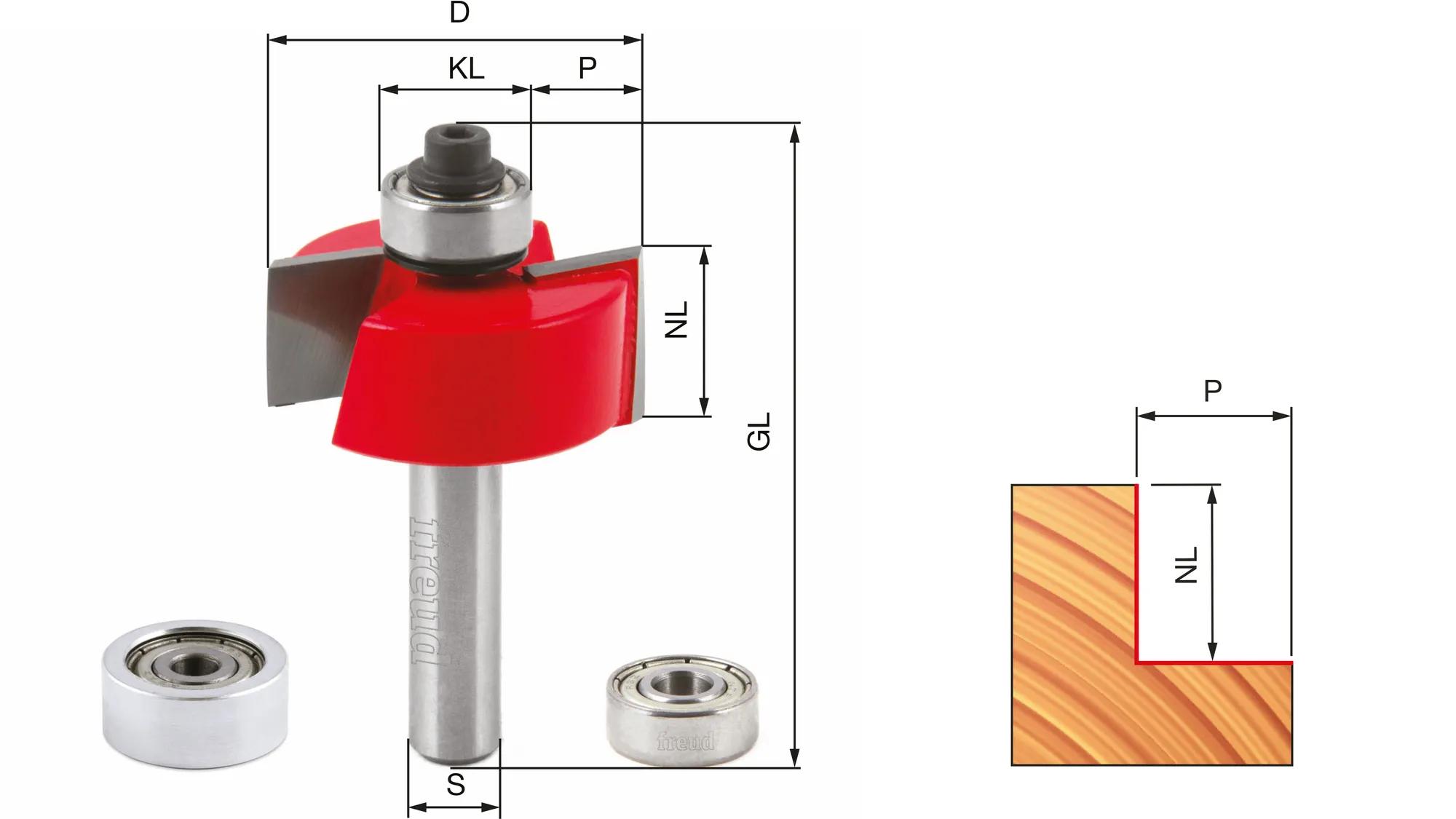

Technical Data

Diameter (D mm): 35
Cutting Length (h mm): 12,7
Overall Length (H mm): 54,4
Shank (A mm): 8
Bearing (C mm): 9.5-12.75-16-19.5-22.2-28.6-35
Cut (P mm): 12.7-11.1-9.5-7.75-6.4-3.2-0
Teeth: 2
Angle (°): -
Max RPM 1/min: 16000

Properties & Advantages

Applications:
Use to make strong lap joints, cut recesses to let in the back panels of cabinets or create an interesting detail on built-up moulding.Machines:
Hand-held routers and table routers.Materials:
Softwood, hardwood, plywood and wood based panels.Bit Material - TiCo Carbide
A specially formulated, highly compact Titanium Cobalt Carbide, engineered and manufactured by Freud.
It provides a sharper edge and a flawless finish with a dramatically longer cutting life.Perma-SHIELD Coating
A non-stick coating formulation that withstands the toughest applications.
It provides thermal insulation, protects from corrosion and eliminates resin build-up, reducing downtime for cleaning.

Rabbeting Bit with a set of 7 ball bearings D: 35mm

Rabbeting bit | bearing | D35 | H54.4 | h12.7 | A8

Freud Rabbeting Bit with a set of 7 ball bearings D: 35 mm

Rabbeting bit / bearing, D35, H54.4, h12.7, A8
