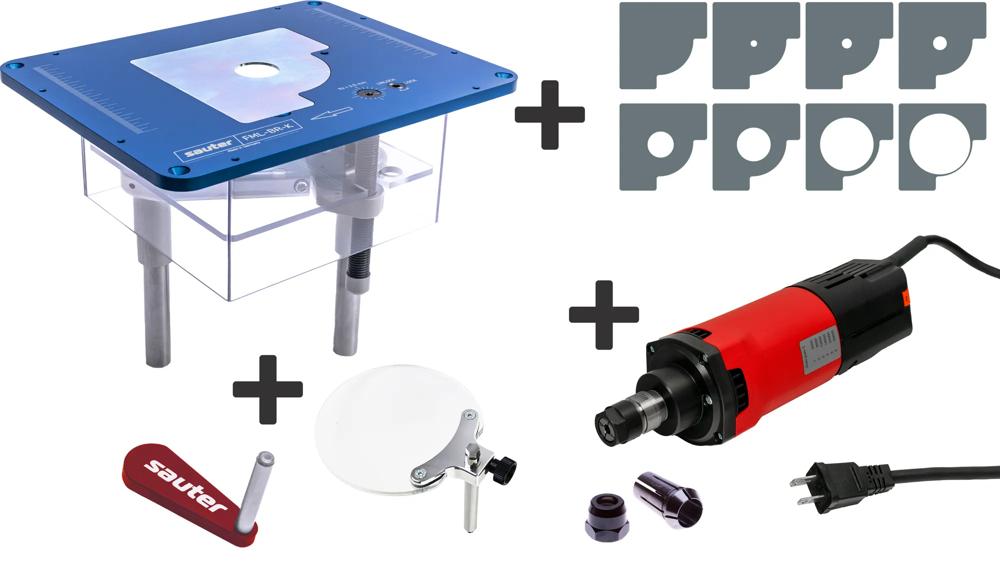

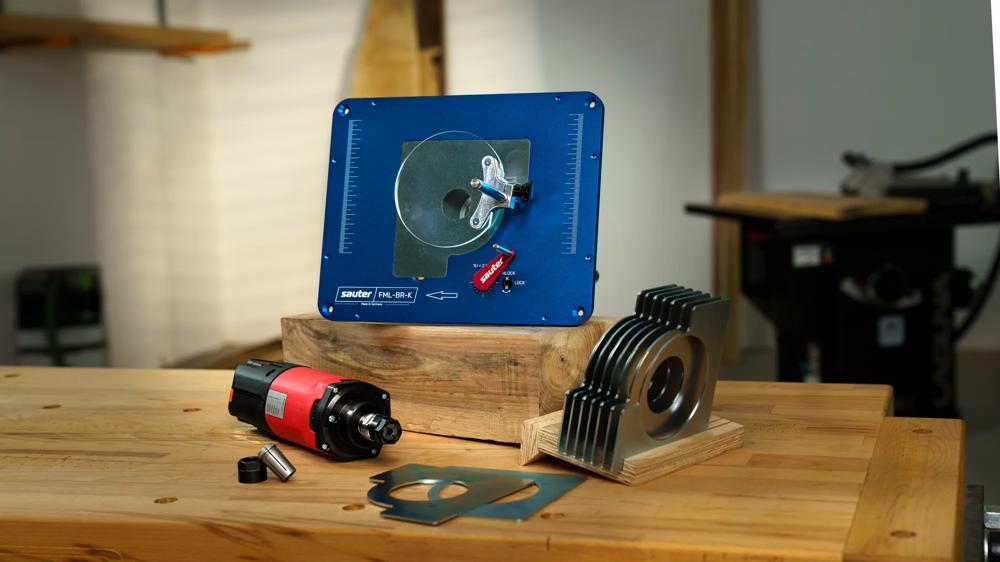

Router Lift FML-BR and Suhner Motor Complete Set - US Blue Edition

Take your woodworking to the next level with this high quality set | 100% Made in Germany, sauter Router Lift FML- BR Blue | Suhner UAK30RF SPZ-L | Accessories Packet | 120V North American Version

Shipping within 24 hours (working days)

1.284,01 €

incl. VAT / excl. shipping costs

Brand:sauter
Article no.:SA-BR-US-KIT-2
Weight:5.41kg

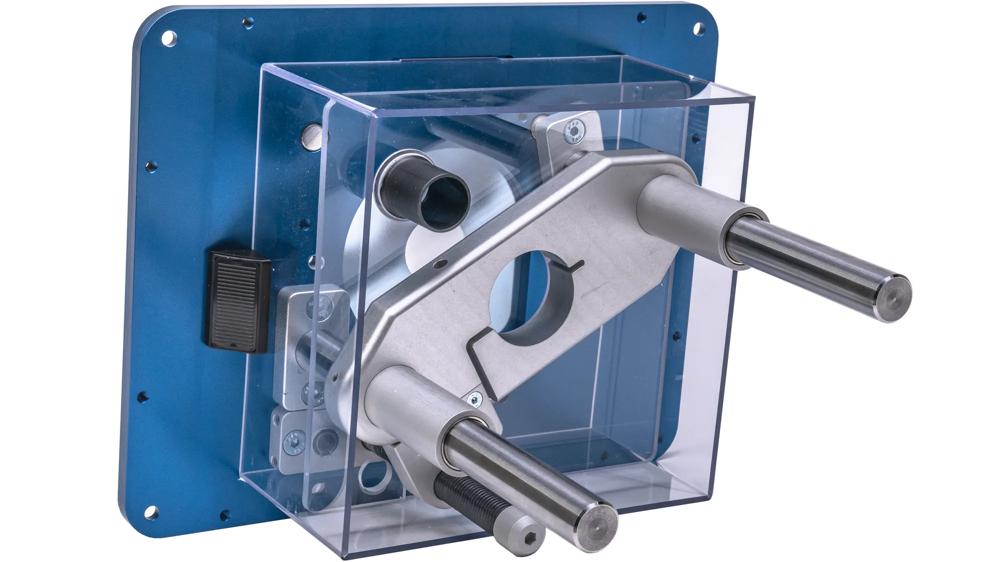

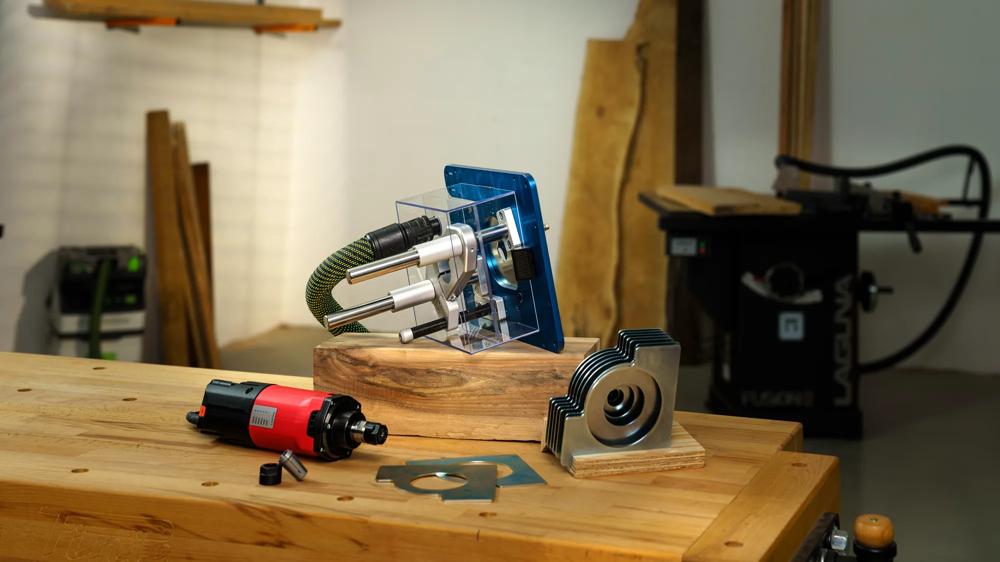

Sauter FML-BR Blue version router lift and Suhner UAK30 RF SPZ-L Complete Set

Version especially developed for the North American market with a powerful router motor fully compatible and compliant with the 120v / 60hz power grid

This set serves as your gateway to the realm of router tables. Our top-tier Sauter router lift boasts unparalleled precision and exceptional dust extraction, courtesy of the enclosed dust compartment beneath the table. Crafted in our manufacturing plant in southern Germany, these lifts uphold the region's legacy of exquisite craftsmanship. The robust motor, sourced from the esteemed German company Suhner in the Black Forest, is renowned globally for its quality, their motors are the preferred choice among German automotive manufacturers.

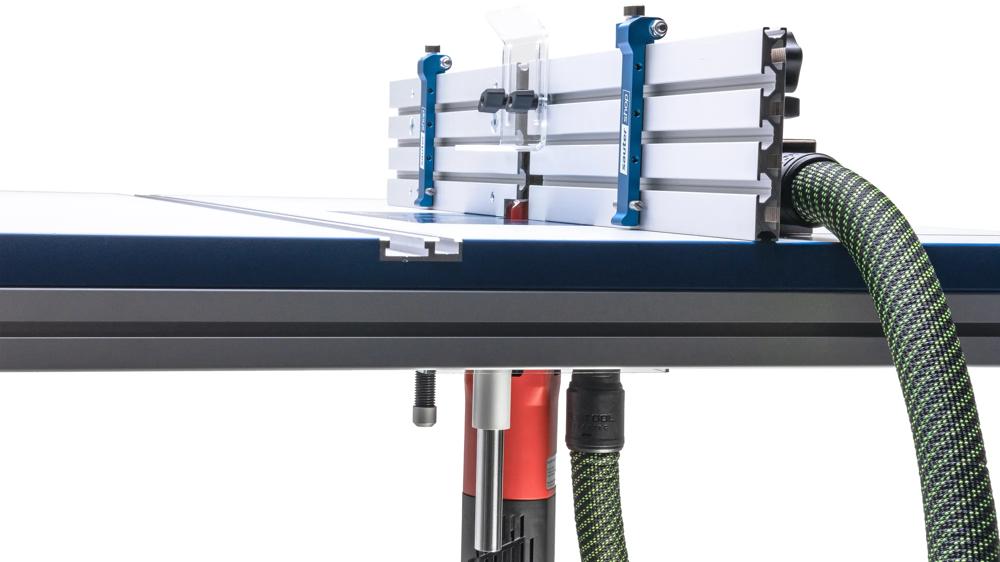

Compatible with various popular router tables, including those from Kreg, WoodRiver, Woodpeckers, and Harveys, or make you own table to siut your needs. This lift/motor combination is a versatile addition to your woodworking setup.

Using a motor and lift in your router table provides significantly more flexibility and precision compared to using a plunge router mounted in a table insert. It simplifies standard tasks and enables shaping of narrower boards, straightening board edges, trimming edges, and various other woodworking tasks. Router tables enhance the accuracy and efficiency of all router-related work. Moreover, they enable operations typically reserved for a shaper, such as edge shaping, hinge making, dado cutting, and a range of woodworking tasks beyond the capability of a standalone plunge router.

Compatible accessories

fraeslift-einlegeplatte-kopierhuelsenadapter-sauter-sa-rp-gb-01

Guide Bush Adaptor + 7 Metal Guide Bushes

For stationary routing with guide bushes | 7 guide bushes | for all sauter insert plates and lifts with steel reduction plates

Shipping within 24 hours (working days)

83,75 €

incl. VAT

Art.-Nr: SET-SA-RP-GB-M

befestigungsplatten-nivellierrahmen-kreg-format-sauter-sa-99600024-01

Levelling frame for mounting plates in Kreg format

for levelling of mounting plates and OFLs in Kreg format | especially with softer table top material

Shipping within 24 hours (working days)

21,57 €

incl. VAT

Art.-Nr: SA-99600024

fraesschablone-einlegeplatten-sauter-sa-elp-fs-k-01

Template ELP-FS for insert plates - Kreg Format

For fixing and insert boards in KREG format | of MDF | for insert boards with dimensions 298 x 235 mm

Shipping within 24 hours (working days)

30,95 €

incl. VAT

Art.-Nr: SA-ELP-FS-K

ofl-befestigungsplatten-montagesatz-alu-20teilig-sauter-sa-99600005-01

Mounting kit aluminium

for the installation of mounting plates and OFLs | 20-piece set made of high-quality aluminium

Shipping within 24 hours (working days)

34,51 €

incl. VAT

Art.-Nr: SA-99600005

Guide Bush Adapter for sauter Lifts and Inserts

for stationary routing with guide bushes | use with US copy sleeves | for all sauter insert plates and lifts with steel reduction plates

Shipping within 24 hours (working days)

29,90 €

26,92 €

incl. VAT

Art.-Nr: SA-RP-GB

5 Products

Technical Data

sauter FML-BR RL Blue Router Lift
- Max. Routing cutter Ø: 3.26" ( 86 mm )
- Cutter opening Ø : 3.86" ( 98 mm )
- Travel: 3.94" ( 100 mm )
- Adjustment travel per revolution: 0.8" ( 2 mm )
- Spindle locking from above with hexagon socket (5 mm)
- Dimensions of insert plate: 9 1/4" x 11 3/4" x 3/4" ( 298 x 235 x 9 mm )
- Corner radius of insertion plate: 3/4" (19,05mm)
- Depth below table: 8 1/3"
- Weight: approx. 8.8lb ( 4.0 kg )
- Extraction nozzle Ø (inside/outside): 0.85"/1.0" ( 22/25 mm )

Suhner UAK 30 RF SPZ-L
- Input power: 1,340 watts
- Output Power: 1.8hp
- Infinitely variable speed: 3,500 - 30,000 rpm
- Torque: 0.45 Nm
- Voltage: 120 volts / 60 Hz
- Noise level: 72 dB at 9000 rpm
- Max. Router bit Ø: 2.16" ( 55 mm )
- Collet chuck: 1/4" + 1/2"
- Further collets to be purchased separately.
- Collets up to 1/2" (12.7 mm ) possible
- Weight: 6.3lb ( 2,85 kg )

Properties & Advantages

sauter FML-BR RL Router Lift
- Perfectly tuned: Comfortable and reliable accommodation of the router motor.

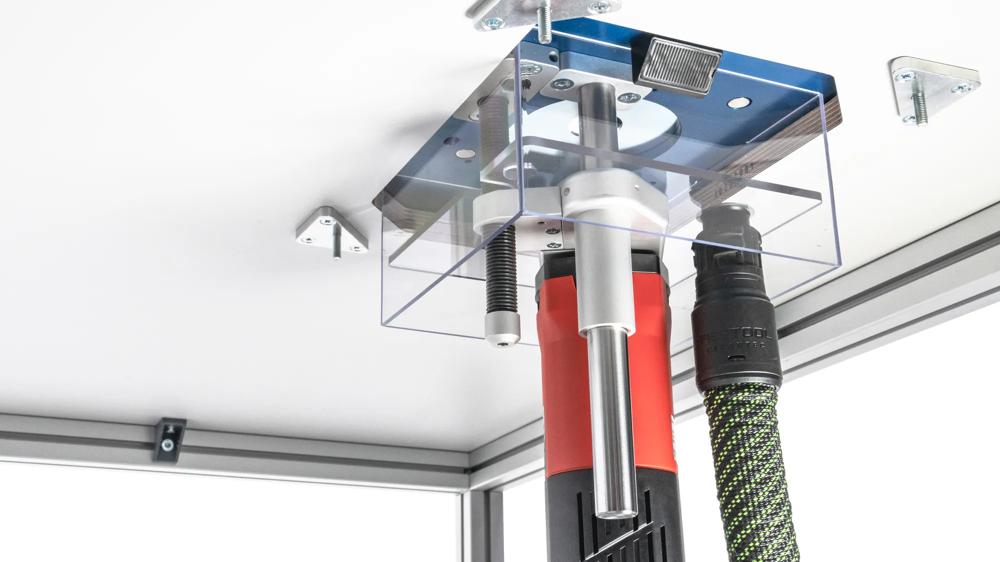

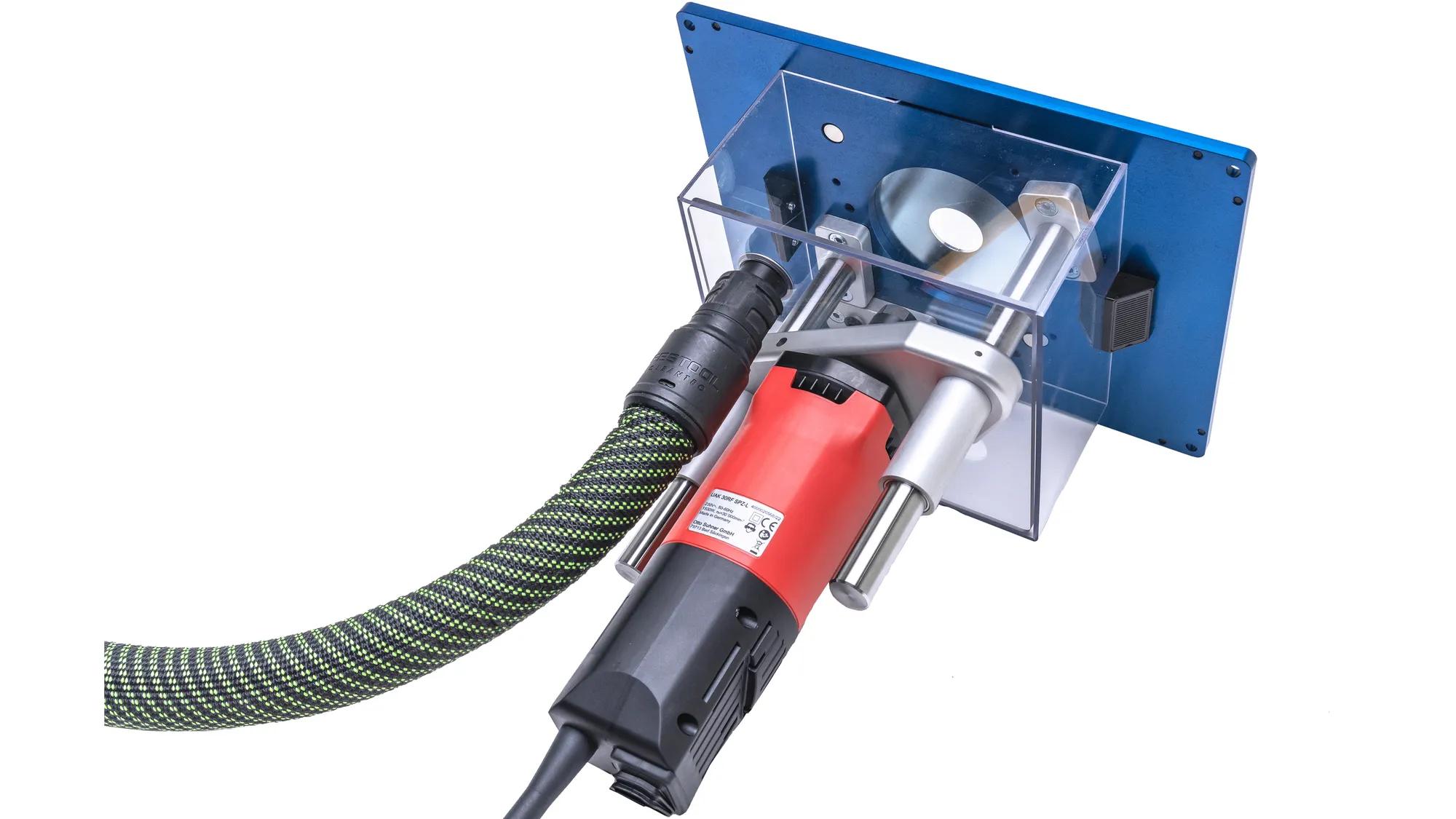

- Efficient and clean: Unique, integrated extraction connection from below.

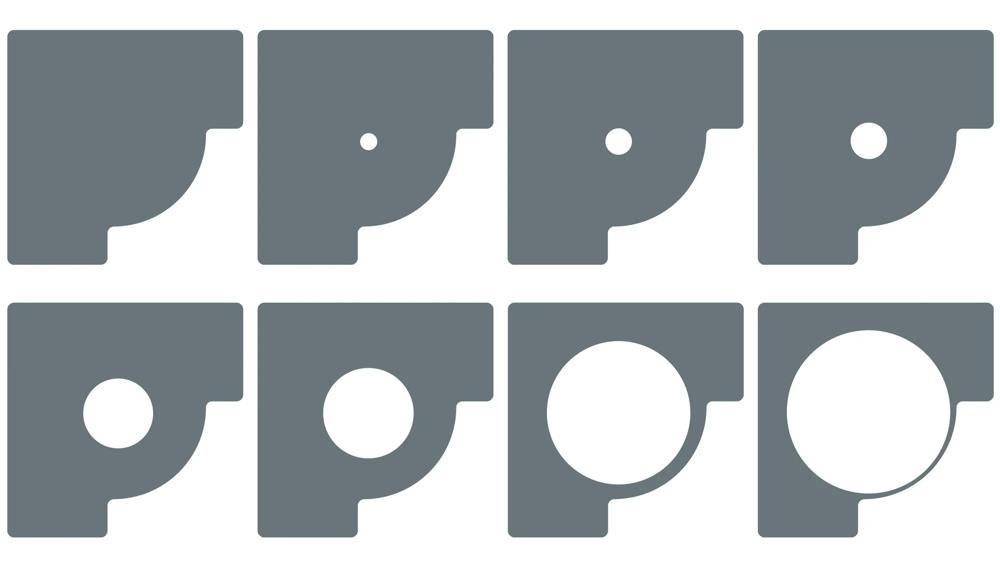

- Magnetic reduction plates to optimize dust extraction in 8 different sizes
- Starter Pin for freehand routing
- Fitting: Suitable for all router motors with Ø 43 mm clamping neck.
- Smooth: Very smooth height adjustment and reliable spindle locking from above.

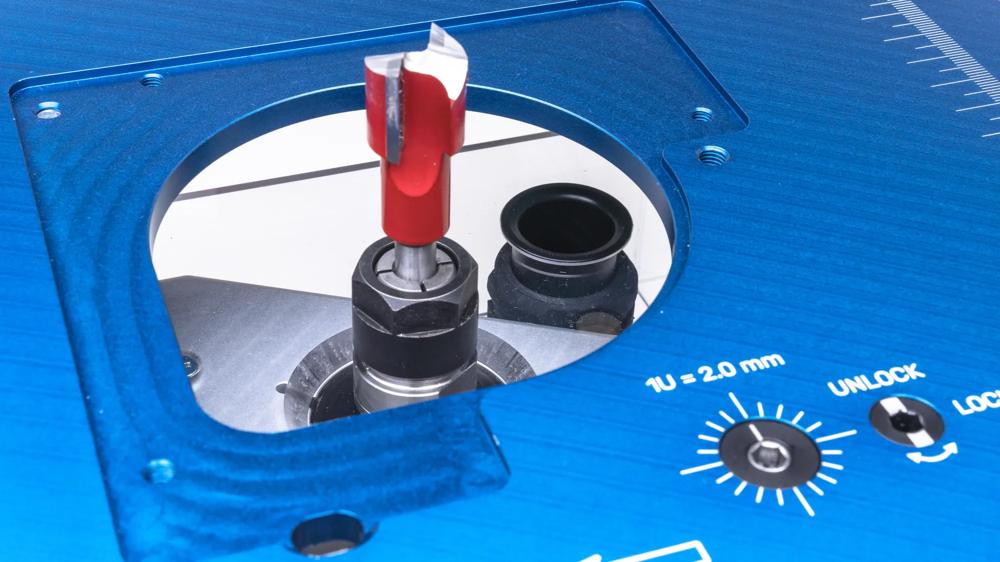

- Comfortable: Easy router bit change from above thanks to exposed and very accessible router spindle.
- Precise: Fine height adjustment can be set to 1/10 mm (1/250 Inch) exactly.

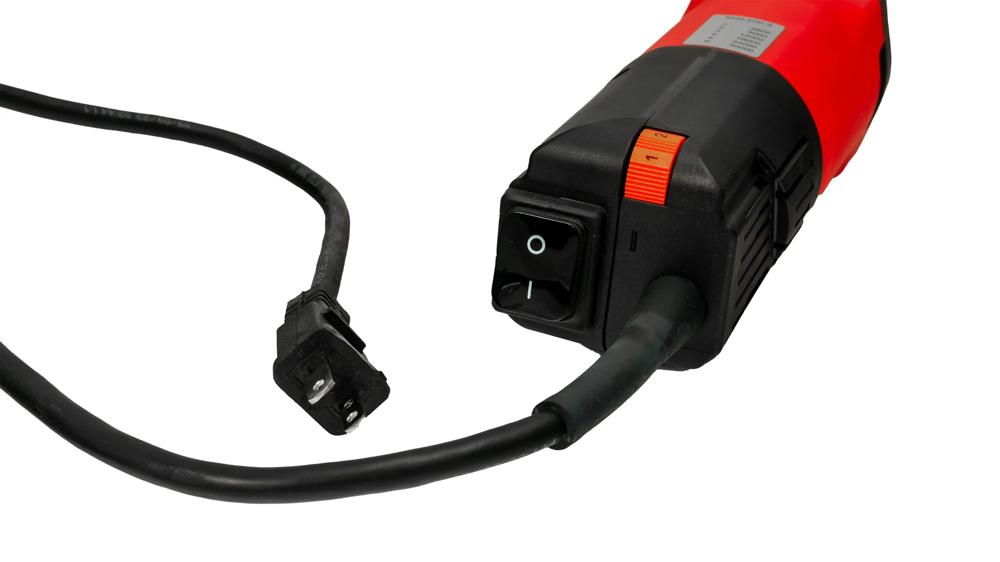

- Safe and practical: router can be controlled via safety switch.
- No loss of milling depth.
- High-contrast laser scaling.
- Easy and quick mounting in the router table.
- Quality 100% from Germany.
- Fits perfectly in Kreg and Harvey router tables and many more

Suhner UAK 30 RF SPZ12
- Ideal for the router table: Powerful - low weight - tool holder up to 12.7 mm (1/2").
- Protectively insulated universal motor with extremely high efficiency - unrivalled in robustness and effect.
- Extremely powerful, enormously high-torque motor with large power reserve in a compact design.
- Very stable clamping neck Ø 43 mm (1.68") in steel design - for installation in drill stands, CNC and milling devices.
- Precision double ball bearing - for powerful and highly accurate routing.

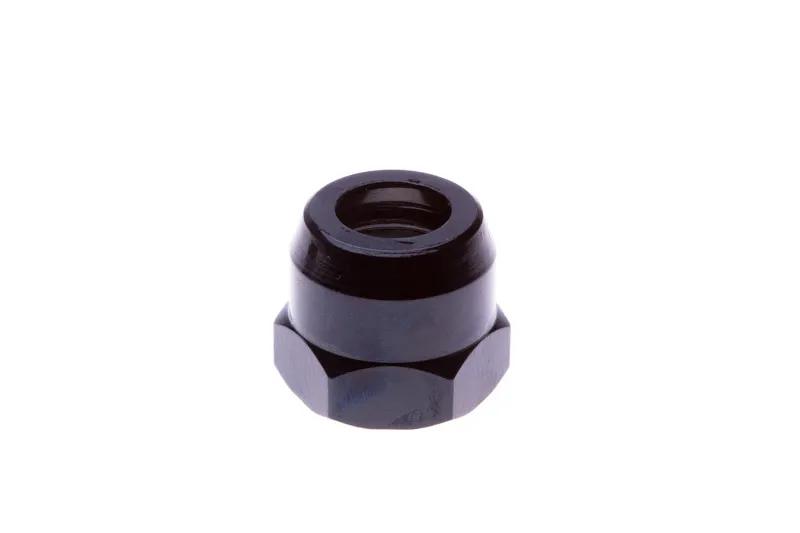

- Tool holder via classic OZ collets with clamping nut for optimum guidance of the tool shank and precise concentricity.
- Exact concentricity even under the heaviest loads - guarantees results and safety.
- Ideally suited for heavy routing operations in window construction, in the furniture industry, for dowel and profile routing, for edge processing, etc..
- Design incl. tacho control electronics for constant working speeds for even cutting speeds, high running smoothness, blocking protection, soft start for jerk-free starting, fast cycling and PTC thermal monitoring.
