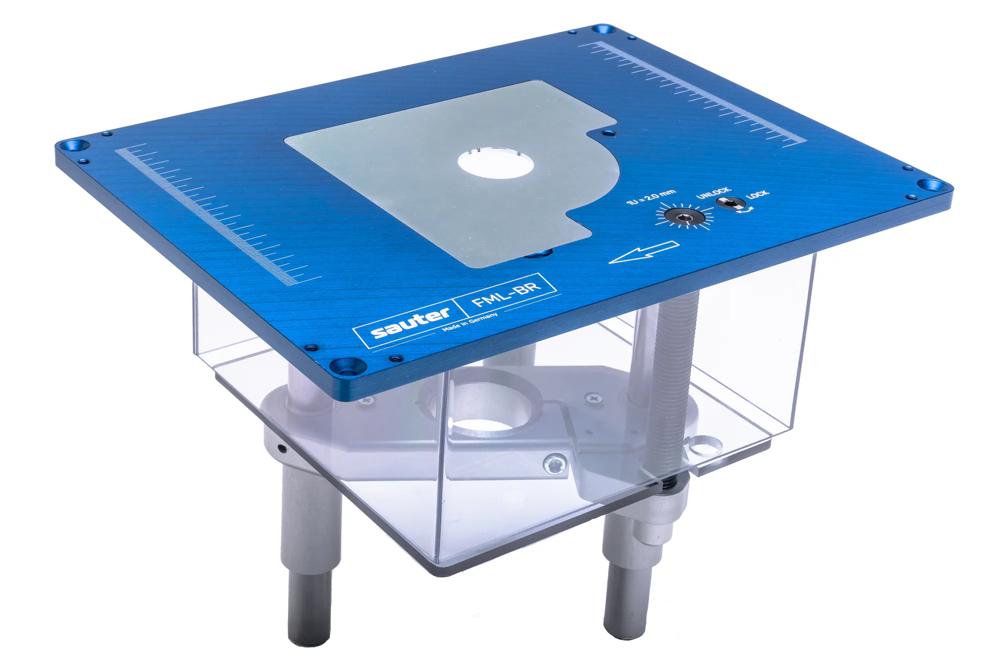

Router Lift FML-BR

Unique and dust-free - The router lift with extraction connection | With exact height fine adjustment & magn. reducing plates | for router motors with Ø 43mm clamping neck

Shipping within 24 hours (working days)

486,19 €

437,56 €

incl. VAT / excl. shipping costs

Brand:sauter
Article no.:SA-FML-BR
Weight:5.38kg

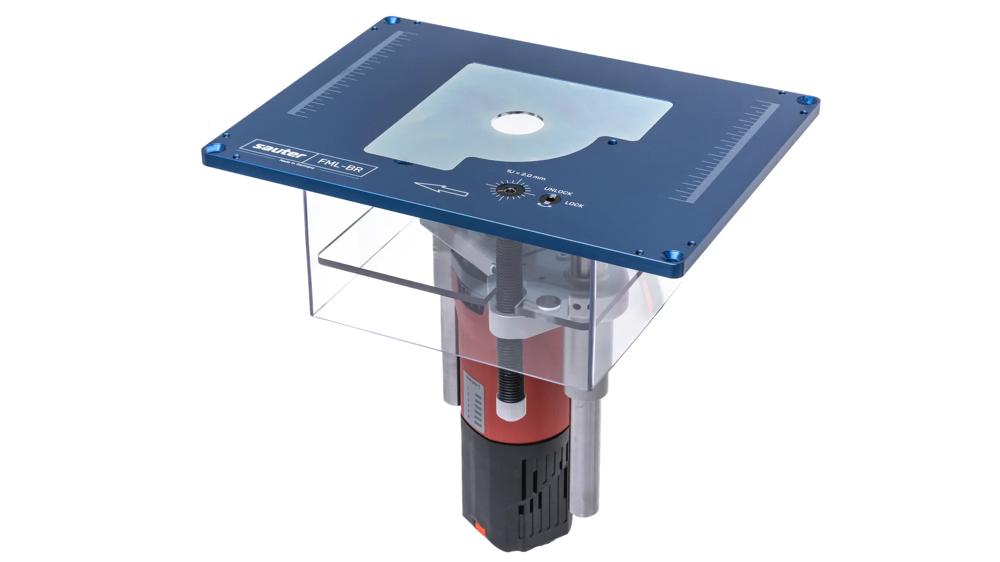

SAUTER ROUTER MOTOR LIFT FML-BR for your router motor

The dust-free router lift

The router lift FML-BR was specially developed for router motors with Ø 43 mm clamping neck and is the successor of the popular OFL2.0-AD43. Due to its design and functionality, it is perfectly tailored to the use of even large and powerful router motors. The FML-BR is the only router lift with an integrated extraction connection that efficiently extracts chips. Thus, the router motor is safely protected from wood dust and chips. Like all the other router lifts in the sauter lift family, the FML-BR is characterised by first-class and solid workmanship - truly Made in Germany!

Technical Data

Max. Routing cutter Ø: 86 mm
Ø Cutter opening: 98 mm
Travel: 100 mm
Height adjustment from above with hexagon socket (5 mm)

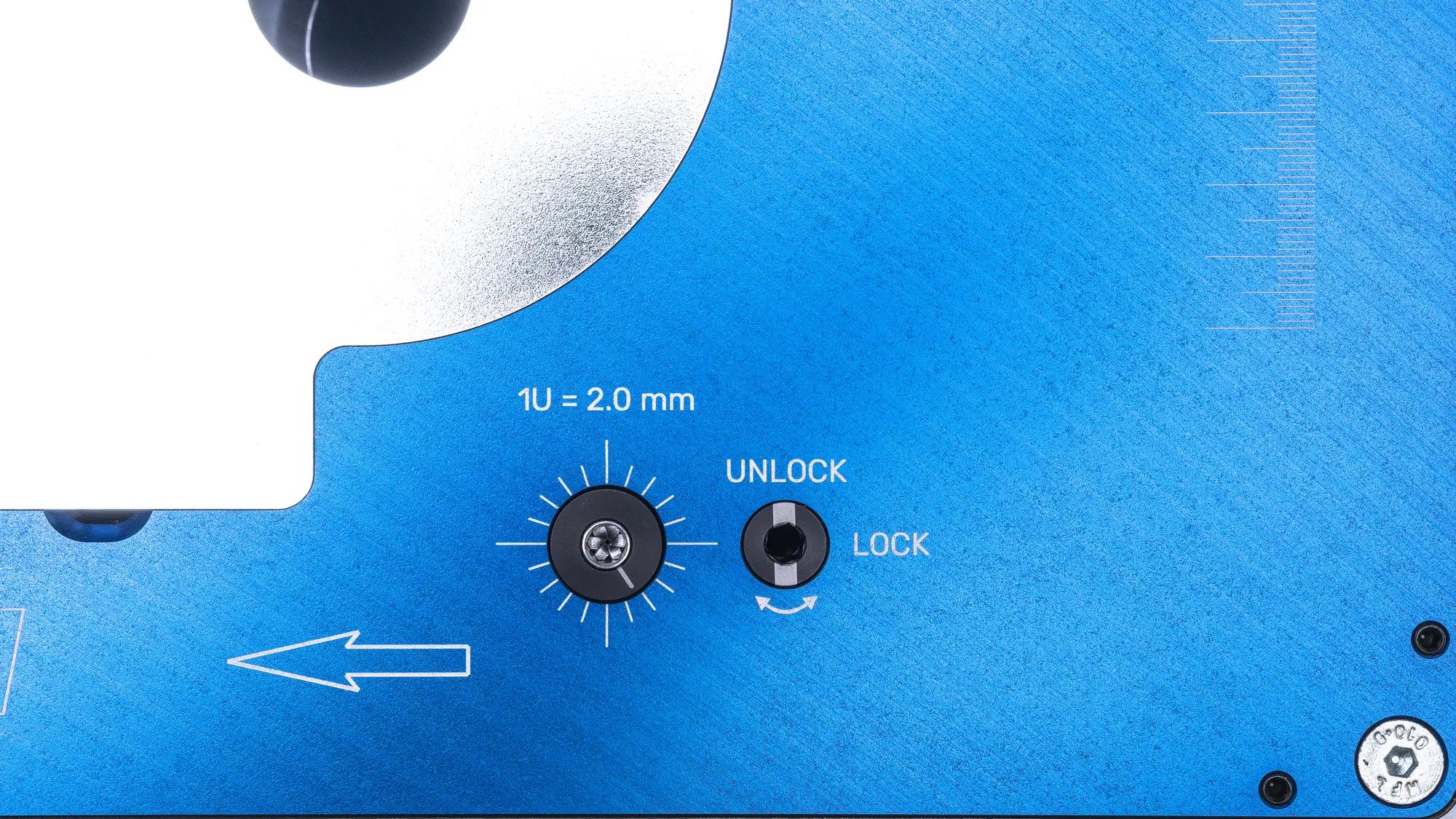

Adjustment travel per revolution: 2 mm
Spindle locking from above with hexagon socket (5 mm)
Dimensions of insert plate: 306 x 229 x 9 mm
Corner radius of insertion plate: R6
Dimensions (LxWxH): 306 x 229 x 213 mm
Weight: approx. 4.0 kg
Ø Extraction nozzle Ø (inside/outside): 22/25 mm

Properties & Advantages

Perfectly tuned: Comfortable and reliable accommodation of the router motor.

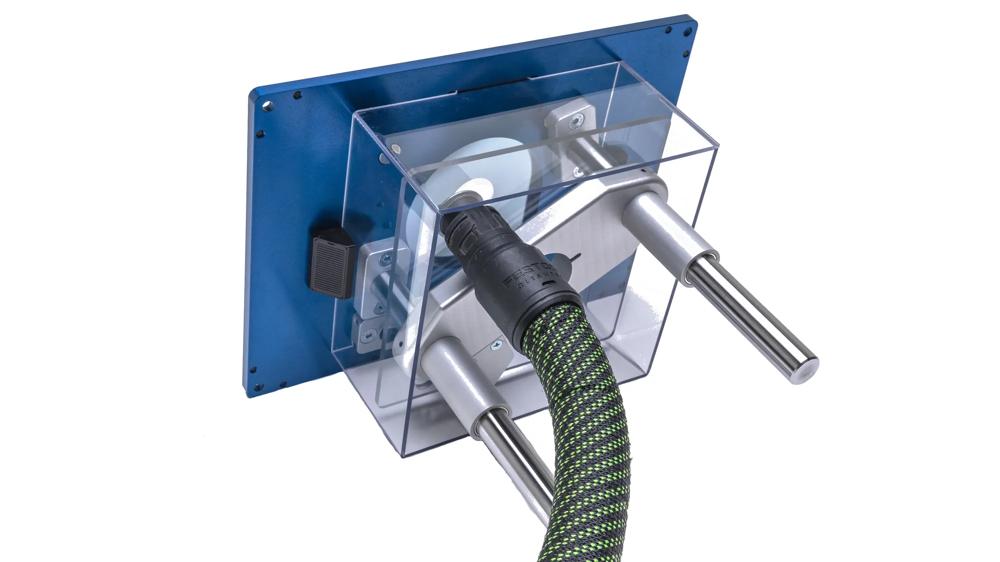

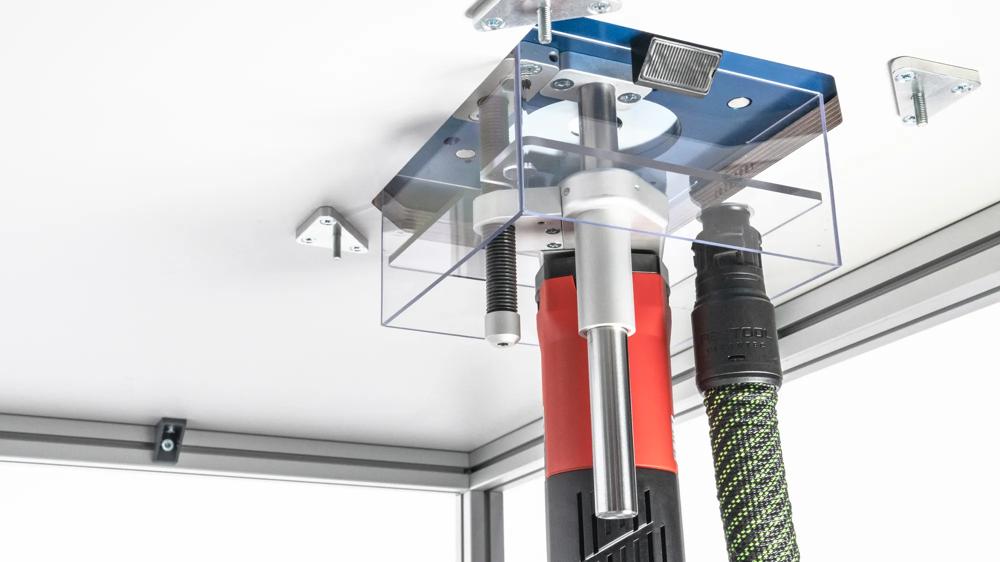

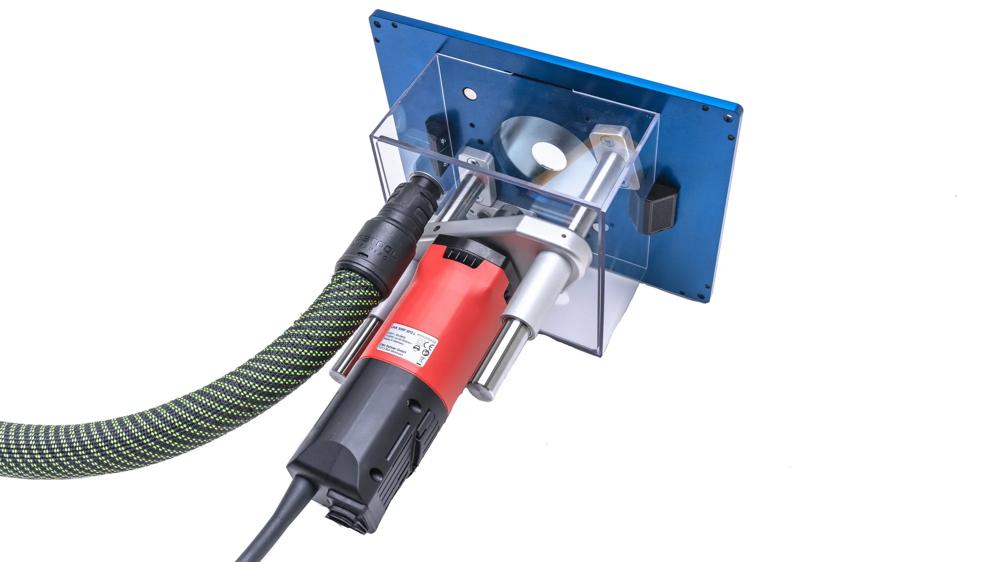

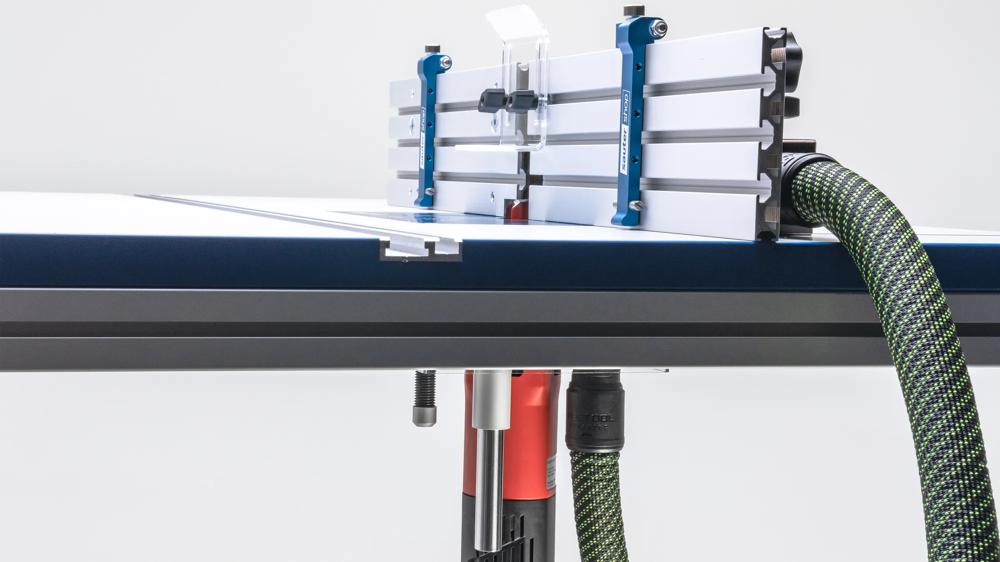

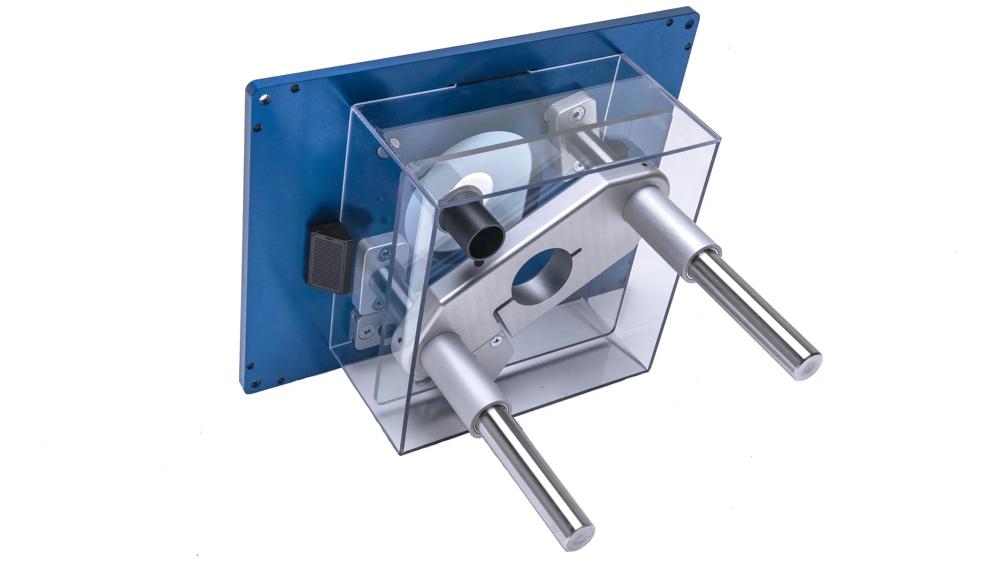

Efficient and clean: Unique, integrated extraction connection from below.
Fitting: Suitable for all router motors with Ø 43 mm clamping neck.
Smooth: Very smooth height adjustment and reliable spindle locking from above.
Comfortable: Easy router bit change from above thanks to exposed and very accessible router spindle.
Precise: Fine height adjustment can be set to 1/10 mm exactly.
Safe and practical: router can be controlled via safety switch.
No loss of milling depth.

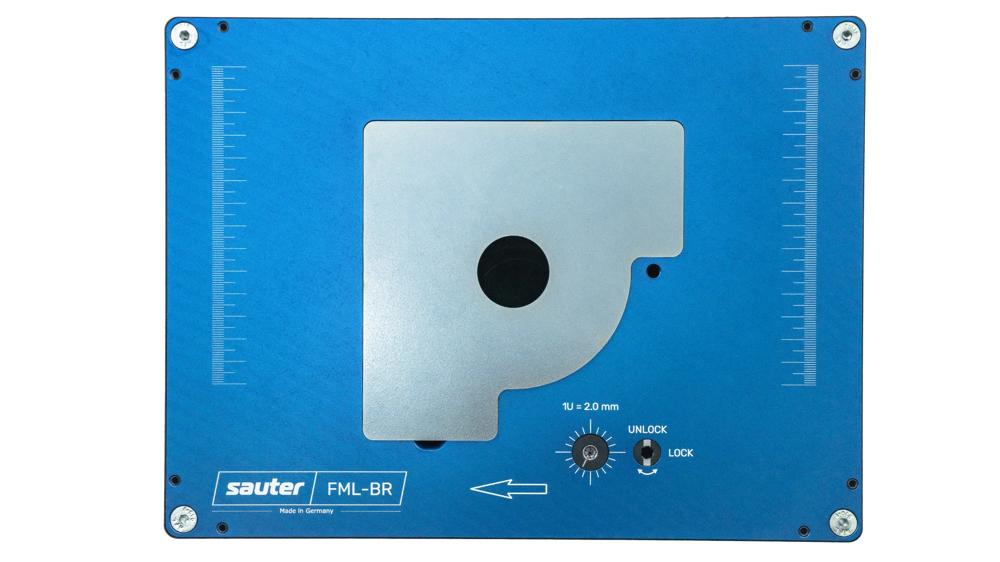

High-contrast laser scaling.
Easy and quick mounting in the router table.
Quality 100% from Germany.

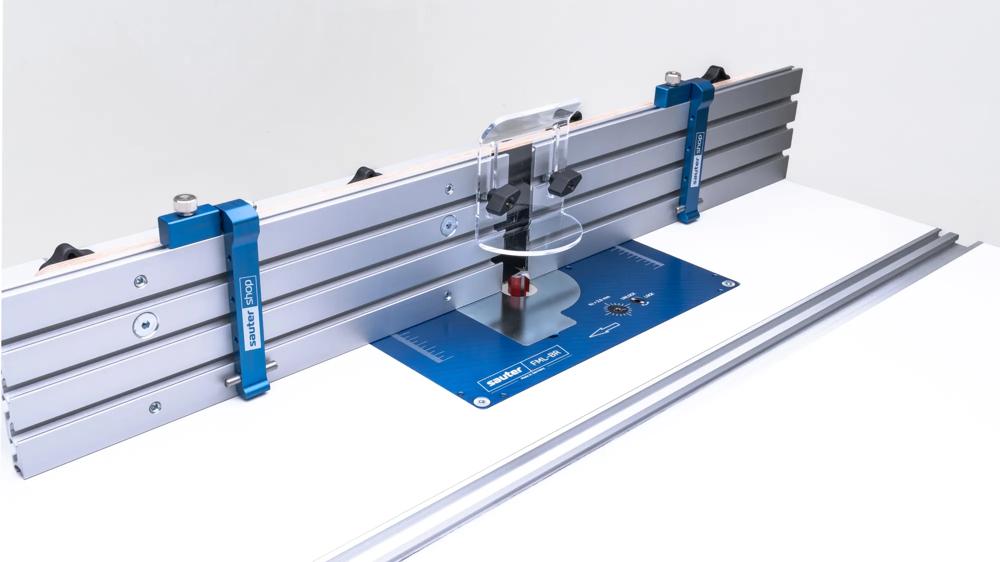

Fits perfectly in sauter and Trend router tables
