Unique and dust-free - The router lift with extraction connection | With exact height fine adjustment & magn. reducing plates | for router motors with Ø 43mm clamping neck
Shipping within 24 hours (working days)
486,19 €
437,56 €
incl. VAT
Art.-Nr: SA-FML-BR
1 Products
Technical Data
Max. Router Ø: 50mm
Ø Cutter opening: 55mm
Travel: 65mm
Height adjustment from above with hexagon socket (5mm)
Adjustment travel per revolution: 1.5 mm
Spindle locking below the table, one-sided locking.
Dimensions of the table top: 306 x 229 x 9 mm
Corner radius of insertion plate: R6
Dimensions (LxWxH): 306 x 229 x 146 mm
Weight: approx. 2.9 kg
Properties & Advantages

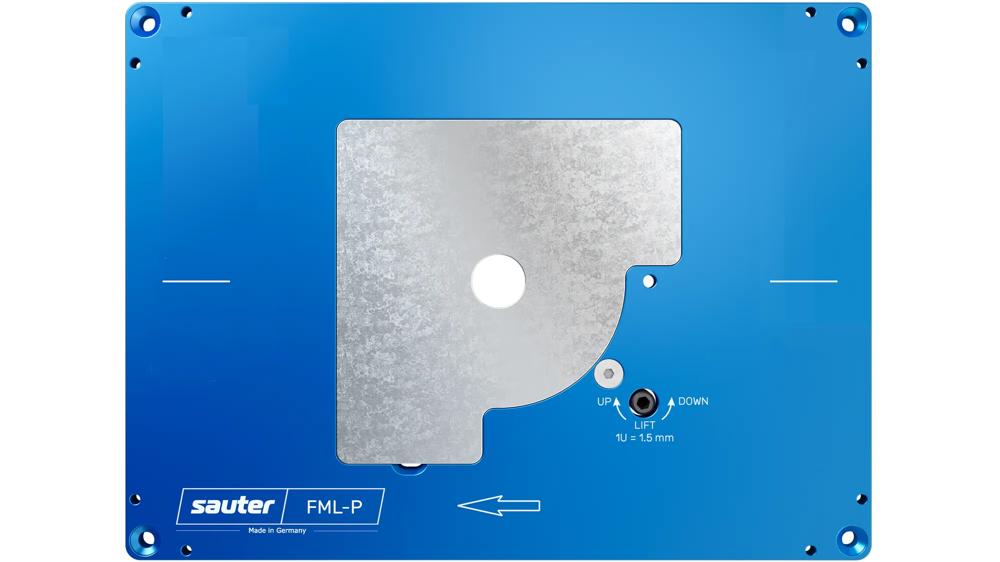

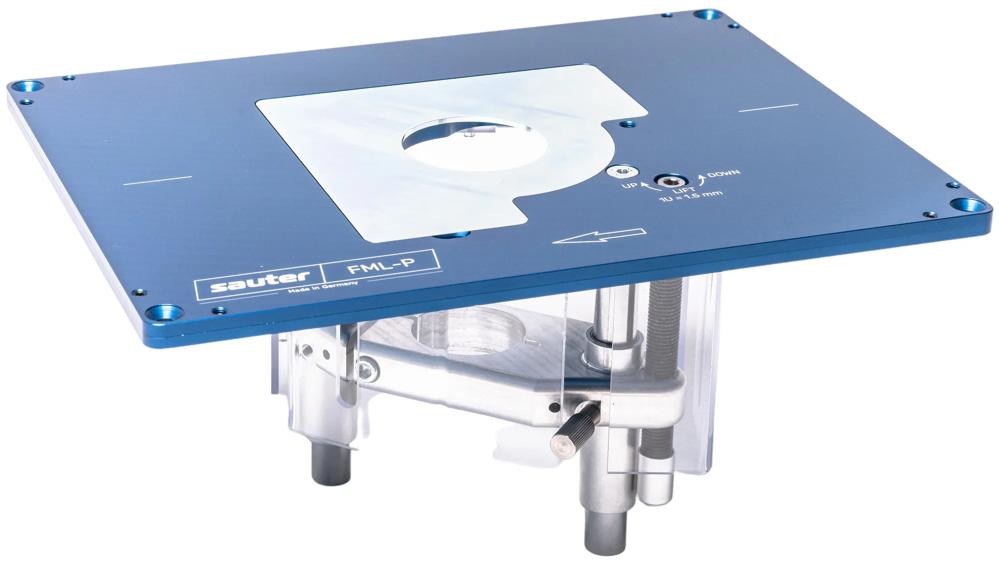

Thought-out and full-featured: router lift with robust and 9 mm thick aluminium insert plate and functional lift construction.

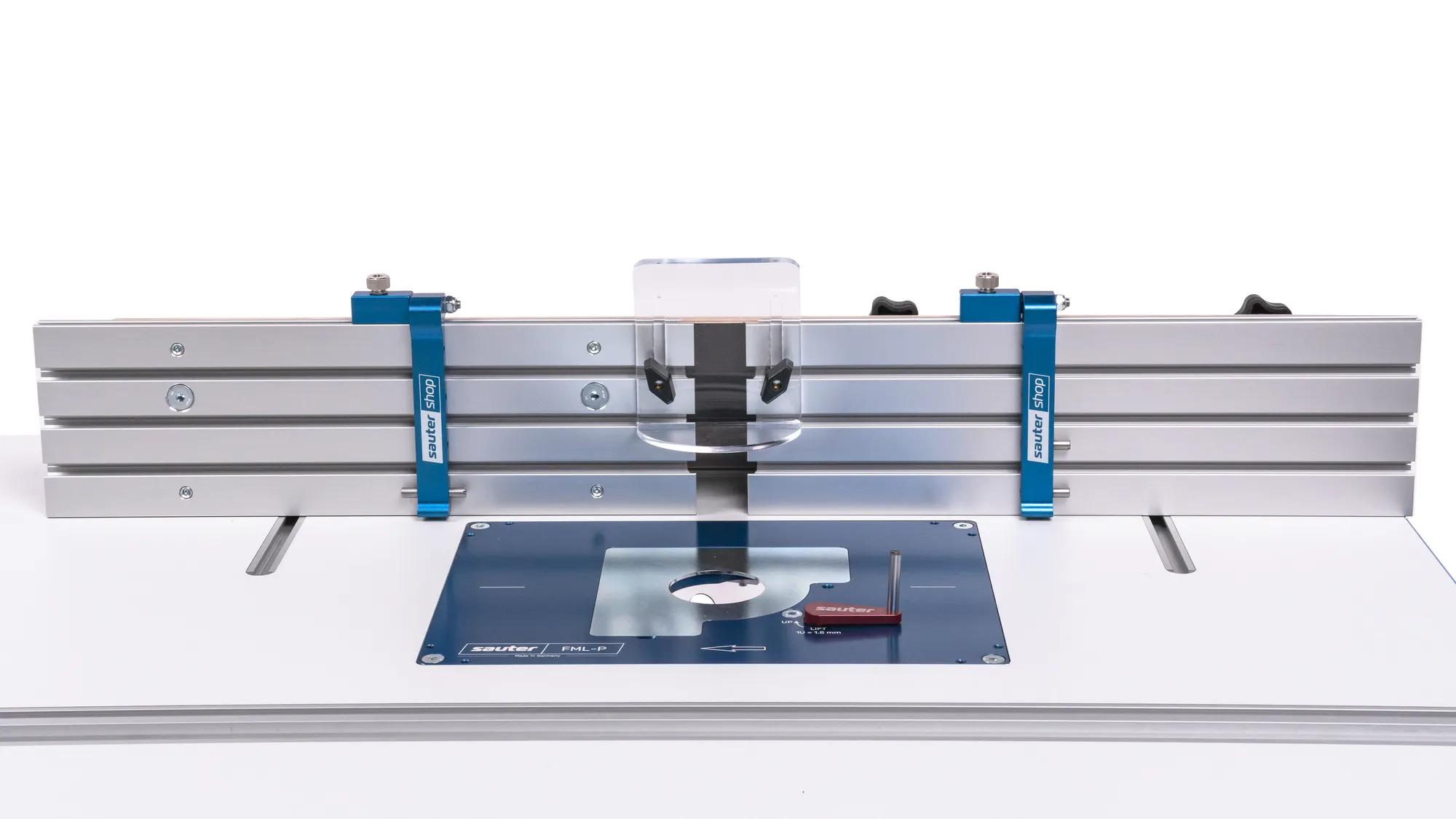

Prepared: The lift fits perfectly into the sauter router table system.
Ergonomic: The milling height can be conveniently adjusted from above.

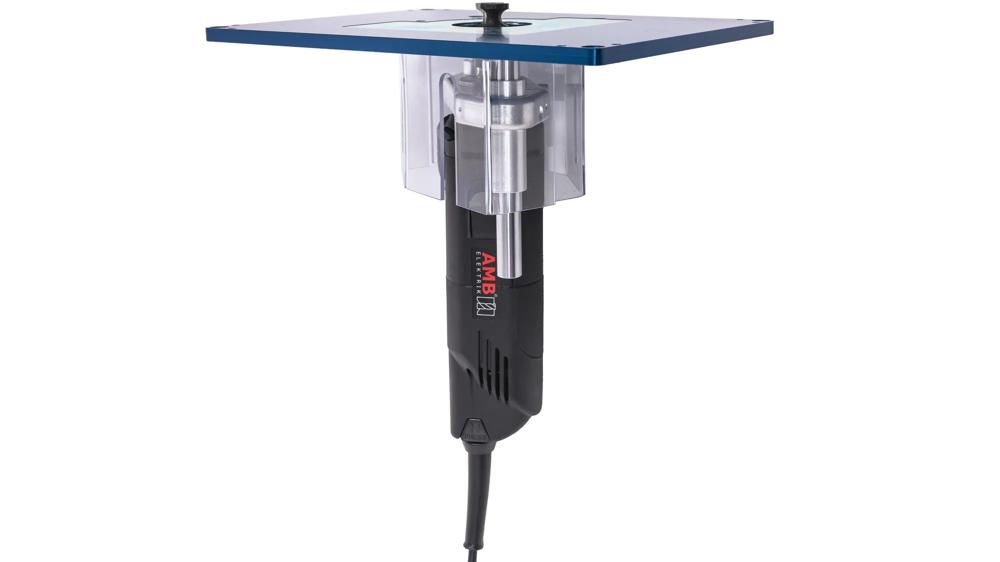

Drive: Suitable for router motors with Ø 43mm clamping neck with motorisation up to 1,100 watts.
Considered safety: the router can be conveniently controlled via a safety switch .

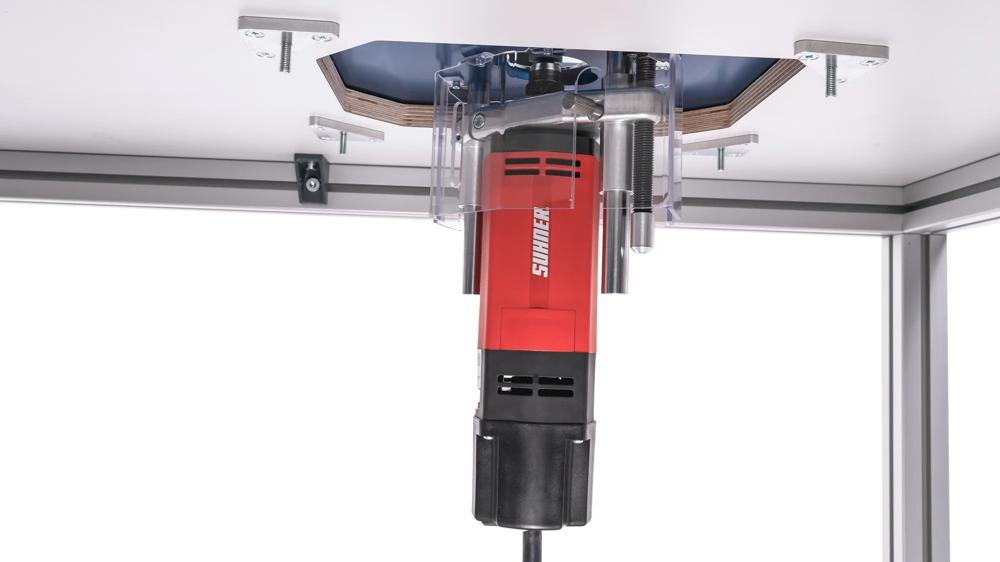

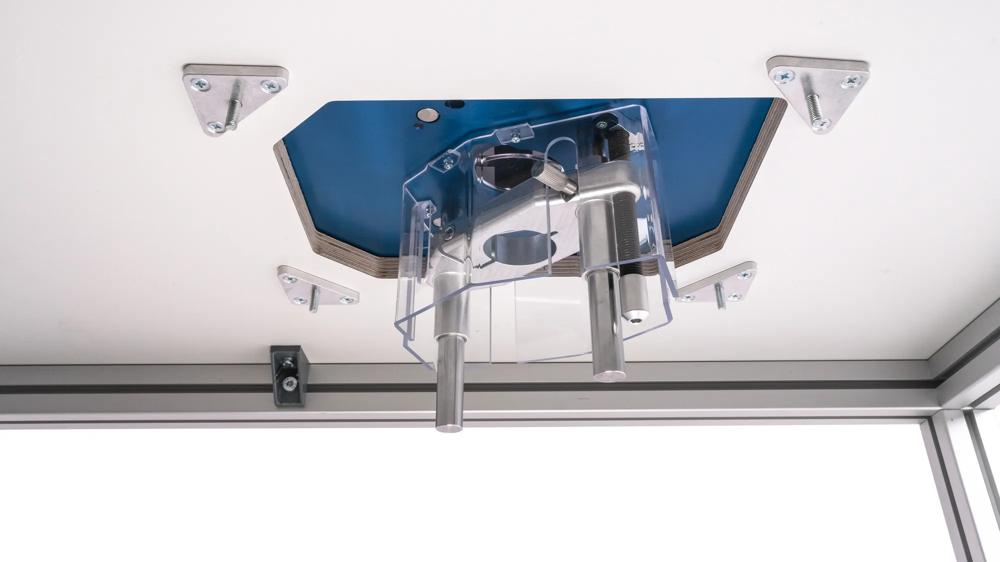

Plug & Play: The lift is prepared for simple assembly in the router table.
Constantly held: The locking screw located directly on the guide column ensures efficient locking of the lift cage.

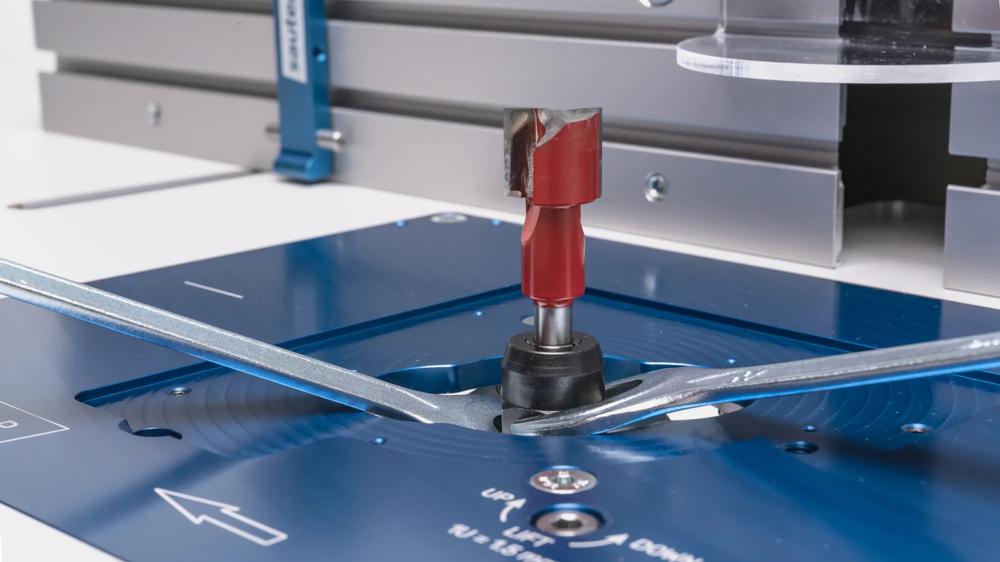

Rightly tuned: The steel reducing plates always ensure the correct milling opening and reliably adhere strongly in the router table.
