Router Lift Set FML-P & Suhner Router Motor UAD25RF

set-fraesmotor-fraeslift-sauter-set-fml-p-uad-01

set-fraesmotor-fraeslift-sauter-set-fml-p-uad-02

set-fraesmotor-fraeslift-sauter-set-fml-p-uad-03

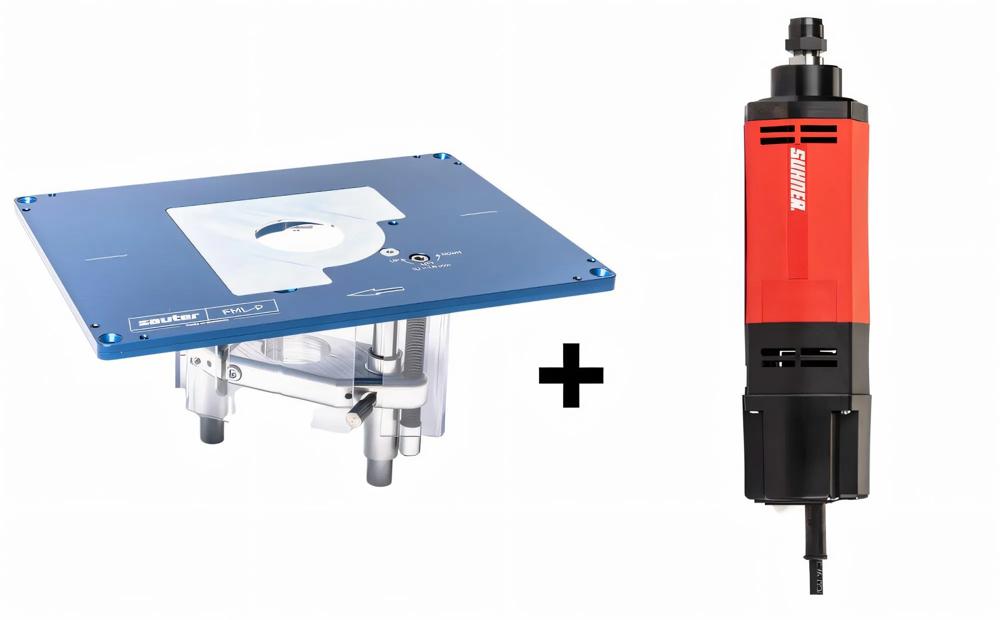

Router Lift Set FML-P & Suhner Router Motor UAD25RF

High end 1050w motor and top quality sauter lift | For the ambitious woodworker

Delivery time 2-3 days

678,12 €

incl. VAT / excl. shipping costs

Brand:sauter
Article no.:SET-FML-P-UAD
Weight:6.45kg

sauter router lift fml-p & suhner router motor uad25rf

A perfect entry into the sauter world of router lifts with router motor

Compatible accessories

oberfraeslift-hoeheneinstellung-handkurbel-sauter-sa-ofl-kurbel-01

Hand crank for sauter router lifts

Fine height adjustment for all sauter OFL router lifts | Allen Key Size 5

Delivery time 2-3 days

19,56 €

incl. VAT

Art.-Nr: SA-OFL-KURBEL

freifraesanschlag-mit-schutzschild-sauter-sa-rts-kit-01

Starter Pin with Protective Shield

Perfect accessory for all sauter OFL and ELP | Safely keeps fingers protected

Delivery time 2-3 days

55,80 €

incl. VAT

Art.-Nr: SA-RTS-KIT

reduzierplatte-einlegeplatte-ungebohrt-sauter-sa-rp2.0-0-01

Reduction plate for ELP2.0 - undrilled

for sauter premium insert plate ELP2.0, OFL2.0 & OFL3.0 | made of galvanised, 2 mm thick steel to close the opening

Delivery time 2-3 days

12,32 €

incl. VAT

Art.-Nr: SA-RP2.0-0

reduzierplattenset-rundloch-sauter-sa-rp2.0-set-1-01

Round Hole Reducing Plate Set for ELP and OFL - 4pcs

for all sauter ELP2.0, OFL2.0 and OFL3.0 | Steel reducing plates with Ø 10 |16 | 54 | 98 mm

Delivery time 2-3 days

46,54 €

incl. VAT

Art.-Nr: SA-RP2.0-SET-1

ofl-befestigungsplatten-montagesatz-alu-20teilig-sauter-sa-99600005-01

Mounting kit aluminium

for the installation of mounting plates and OFLs | 20-piece set made of high-quality aluminium

Delivery time 2-3 days

34,51 €

incl. VAT

Art.-Nr: SA-99600005

5 Products

Technical Data

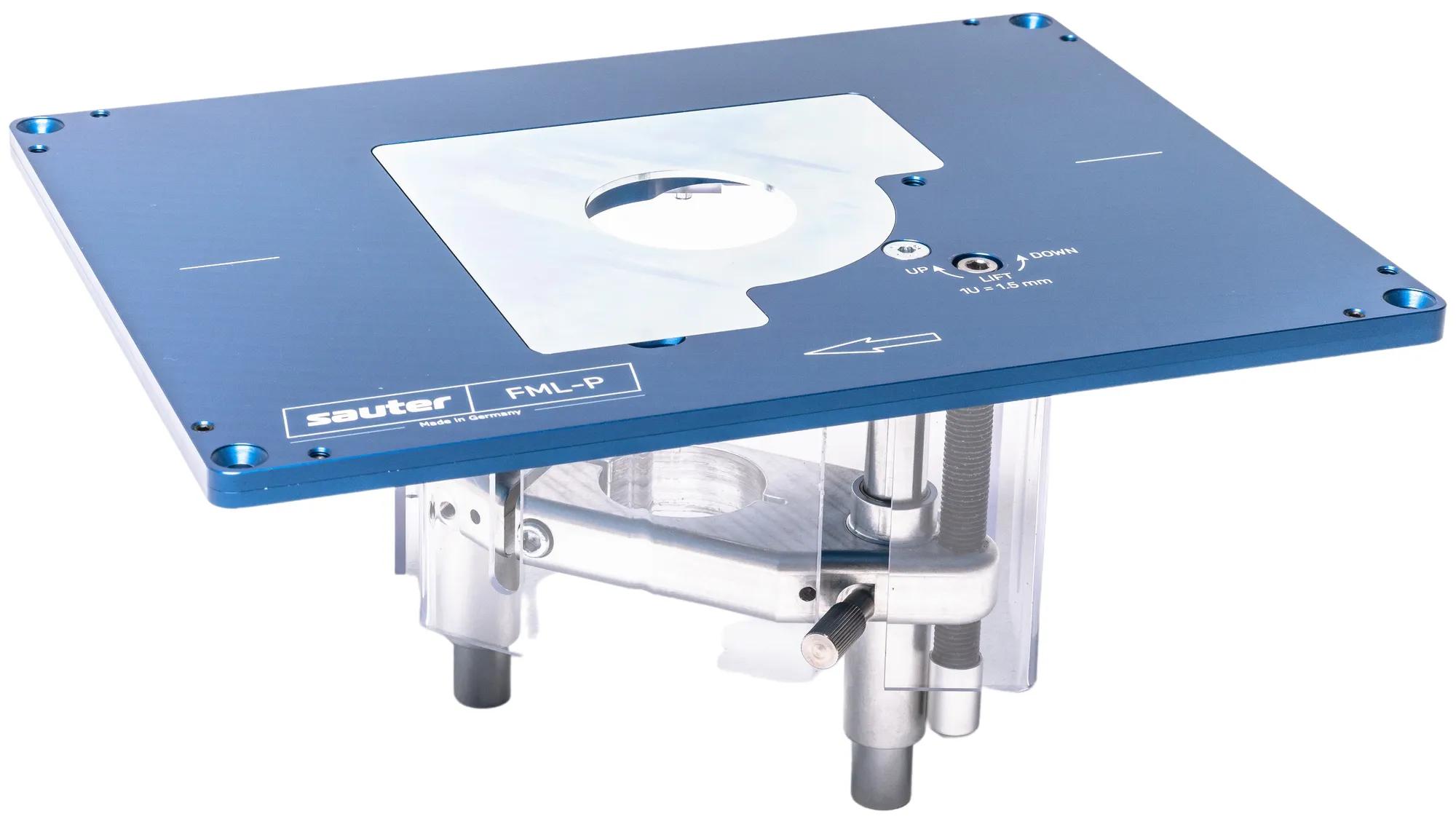

Router Lift Adapter FML-P:
- Max. Routing cutter Ø: 50mm
- Ø Cutter opening: 55mm
- Travel: 65mm
- Height adjustment from above with hexagon socket (5mm)
- Adjustment travel per revolution: 1.5 mm
- Spindle locking below the table, one-sided locking
- Dimensions of the table top: 306 x 229 x 9 mm
- Corner radius of insertion plate: R6
- Dimensions (LxWxH): 306 x 229 x 146 mm
- Weight: approx. 2.9 kg

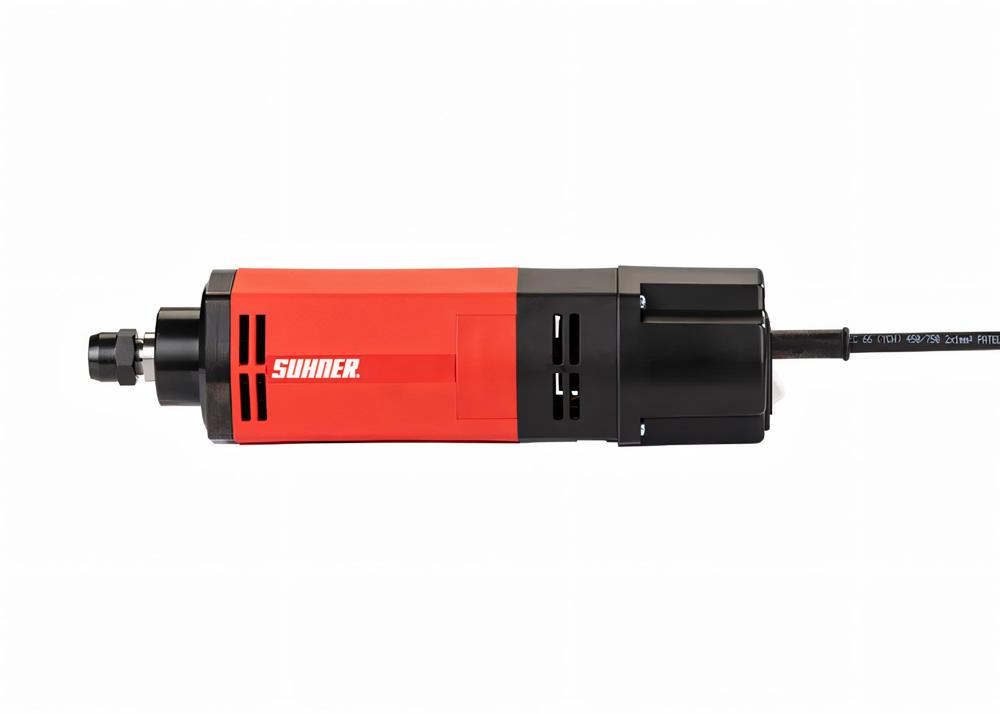

Suhner router motor:
- Power: 1,050 watts
- Chuck neck: Ø 43 mm (standard)
- Rotation speed: 3,500 - 25,000 rpm
- Torque: 0.3 Nm
- Collet: 8 mm
- Weight: 2.7 kg

Properties & Advantages

Pre-assembled router motor lift adapter with insert plate.
Fits into the sauter router table system
Height adjustment from above
Routing can be controlled via safety switch
Easy installation in the router table
Efficient clamping from below
Includes two reducing plates Ø 22 and 54 mm
Quality from Germany
