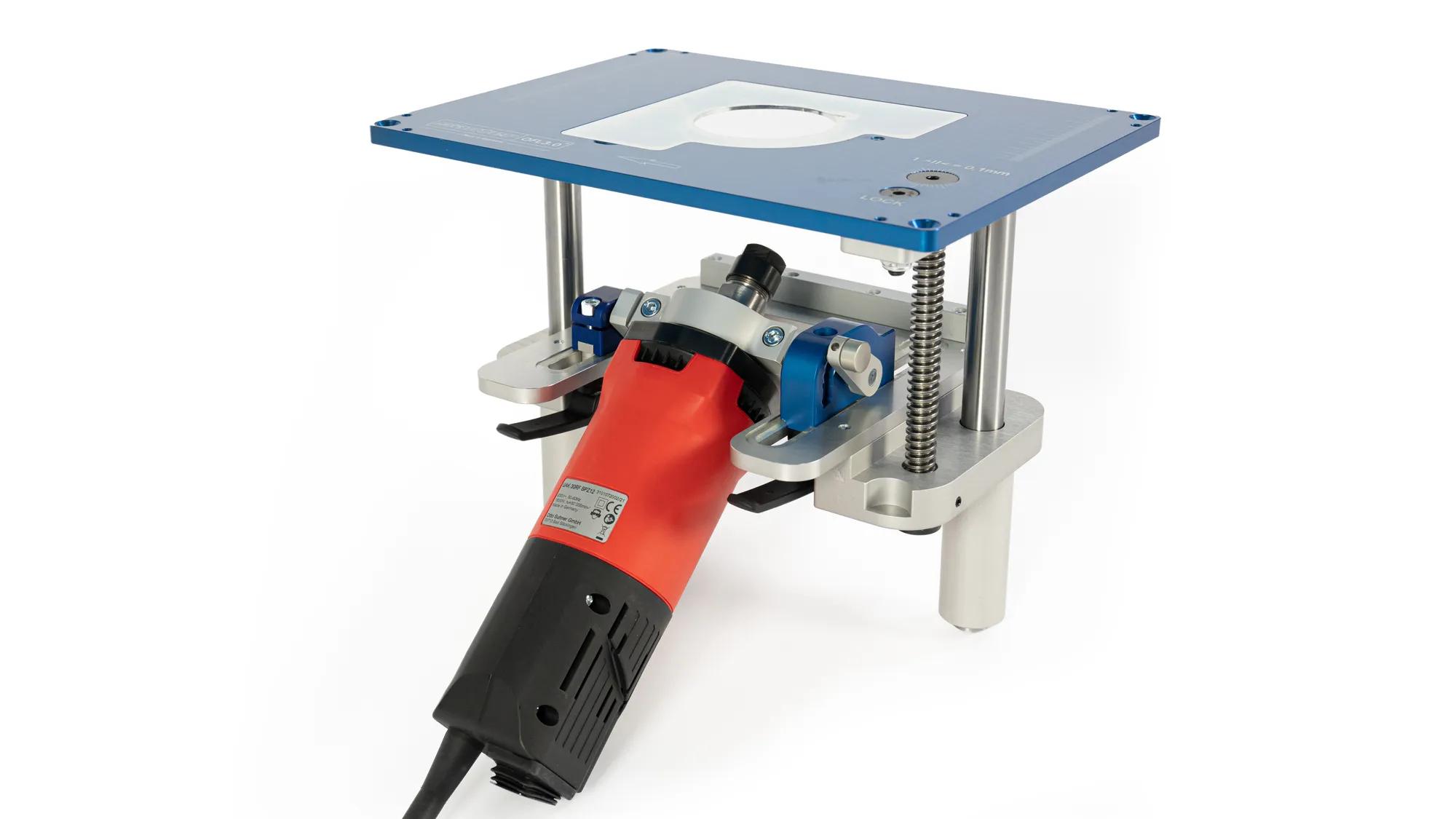

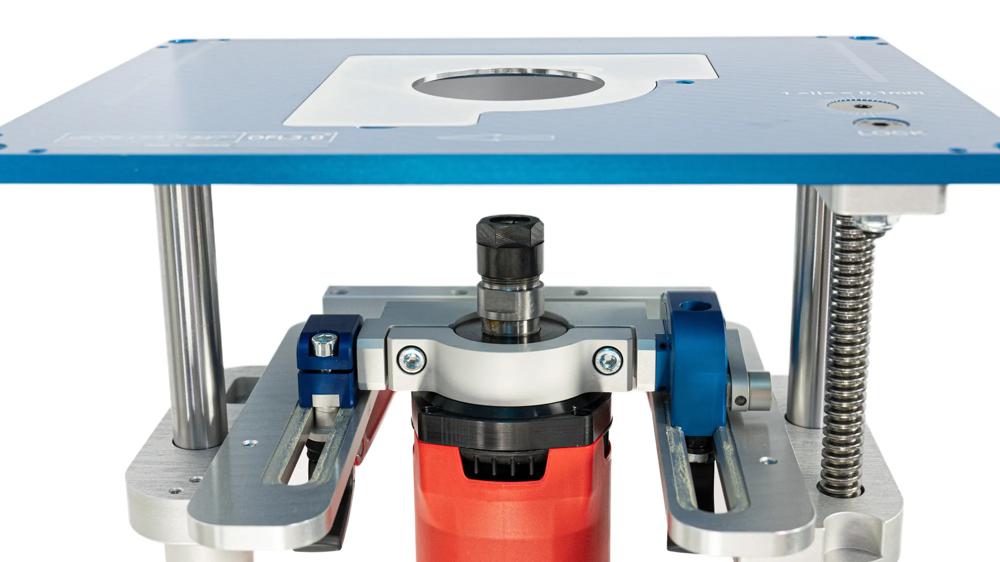

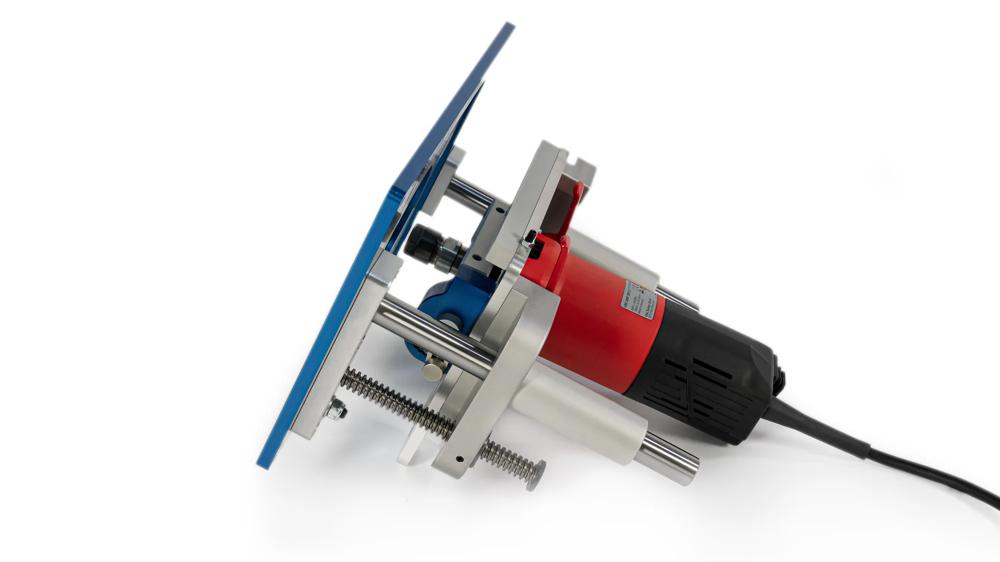

Router Lift Set OFL3.0 & Suhner UAK 30 RF SPZ12 UK

OFL3.0:

• Pivots from -5 to 50°
• Raster points: 22.5°, 30°, 45° and 90°.
• Dimension insert plate: 306 x 229 x 9 mm
• Max. adjustment travel: 101 mm
• Max. Cutter diameter: 55 mm

Suhner UAK 30 RF SPZ12: This model is fitted with a 3-pin plug suitable for UK electrical sockets

• Input power: 1,530 watts
• Infinitely variable speed: 3,500 - 30,000 rpm
• Collet chuck up to 12.7 mm (1/2") possible
• Max. Router bit Ø: 55 mm
• incl. collet chuck 6.35 mm (1/4")
• Weight: 2,85 kg

When installing the following space is needed under the table

• 450mm - Min Depth when lift in at it’s lowest
• 150mm - Minimum from front edge of the lift to allow for the full 45° pivot
