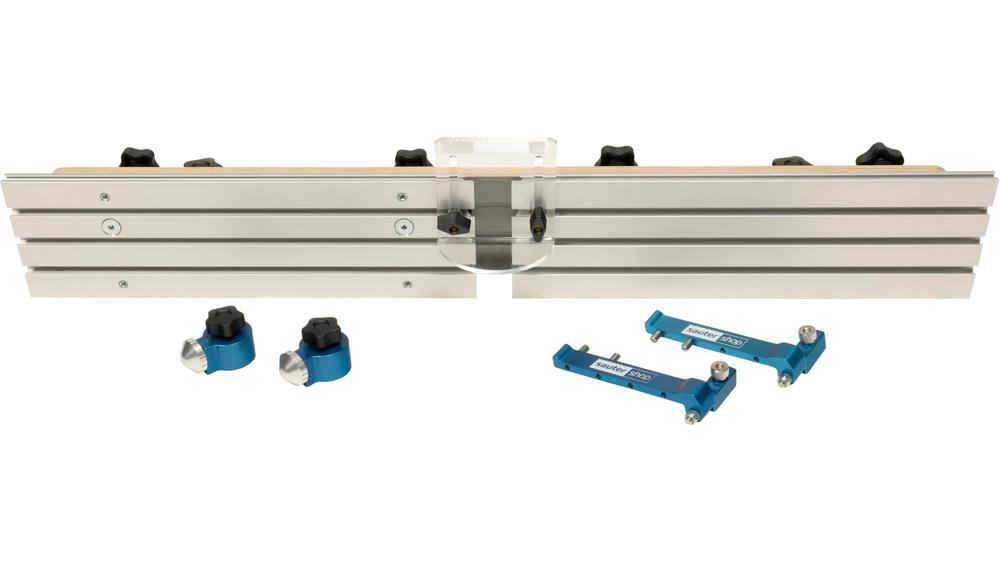

sauter Router Fence FA-SA 2.0 incl. Flip stops & fine adjustments

Fence suitable for all sauter table tops FTP & HPL | 2x sauter swing fence + 2x sauter fine adjustment

Delivery time 2-3 days

424,60 €

incl. VAT / excl. shipping costs

Brand:sauter
Article no.:SET-FA-SA20-ALL
Weight:10.6kg

sauter routing fence FA-SA 2.0 incl. fine adjustment + flip stops

Compatible with all sauter FTP and HPL router table tops for router tables

The parallel fence with infinitely variable jointing function: Adjustable pick-up jaw for jointing work

Aluminium stop jaws with M8 grooves at the front and M6 groove at the top offer a wide range of options for clamping accessories.Made from a 3 mm thick, anodised aluminium profile, the perpendicularity of the parallel fence is perfectly guaranteed.All milled and drilled holes are precise and accurate thanks to state-of-the-art CNC production.

Compatible accessories

fraestisch-fraesanschlag-endkappe-sauter-sa-fa-zub03-01

End cap with Ø50 mm extractor opening

End cap for FA-GTS10 | Extractor opening Ø: 50 mm

Delivery time 2-3 days

8,34 €

incl. VAT

Art.-Nr: SA-FA-ZUB03

fraestisch-fraesanschlag-endkappe-sauter-sa-fa-zub01-01

End cap for rip fence FA-GTS10

End cap for FA-GTS10 | Extraction opening Ø: closed/suitable for customizing

Delivery time 2-3 days

8,34 €

incl. VAT

Art.-Nr: SA-FA-ZUB01

fraestisch-absaugung-endkappe-sauter-sa-fa-zub02-01

End cap with Ø 35 mm extractor opening

End cap for FA-GTS10 | Exraction opening Ø: 35 mm

Delivery time 2-3 days

8,34 €

incl. VAT

Art.-Nr: SA-FA-ZUB02

universelle-schutzhaube-fraesanschlag-sauter-fo-crt1-06-01

Universal protective cover for fences

Made of clear acrylic glass

Delivery time 2-3 days

14,73 €

incl. VAT

Art.-Nr: FO-CRT1-06

4 Products

Technical Data

Milling fence FA-SA 2.0:

Parallel fence dimensions:
Length (closed/open): 800 mm to 913 mm
Height: 120 mm
Depth: 93 mm
Base support: Aluminium square tube, 610 x 60 x 60 mm, wall thickness: 3 mm
3x M8 grooves on the front, 4x M8 grooves on the back of the stop jaws.
Right stop jaw reversible

Fine adjustment:

Materials: Aluminium; anodised (blue)
Minimum length: 65mm
Max. length: 75 mm
Length of travel: 10 mm
adjustable from | to | 0.05 mm

Swing stop:

Total height: 143 mm
Overlap: 118 mm
Total depth: 26 mm
Total width: 65 mm
Sliding block dimensions: 10 x 10 x 2 mm

Properties & Advantages

FA-SA 2.0 routing fence:
Compatible with all sauter FTP and HPL router table tops for router tables.
Aluminium fence jaws: stable and torsion-resistant for precise results

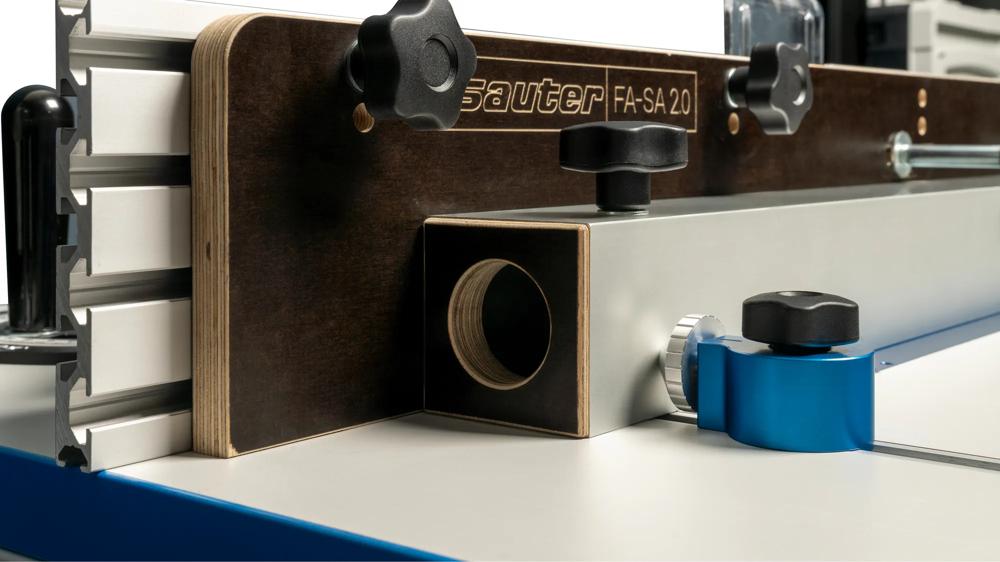

Integrated suction channel: in the square aluminium base support with Ø35 mm connection (other connection sizes optional)
Infinitely variable joining function: levelling of the removal jaw via four grub screws
Adjustable stop jaws: safe routing and optimised dust extraction for perfect adjustment to the router bit
M8 sliding nut guide: clean sliding in clean C-profile rails for smooth adjustment of the milling depth
Stop jaws with M8 slots (front): Individual attachment of pressure combs and stops
Stop jaws with M6 groove (top): Fastening option on the top side
Ideal for precise adjustment: two fine adjustments are included in the set!

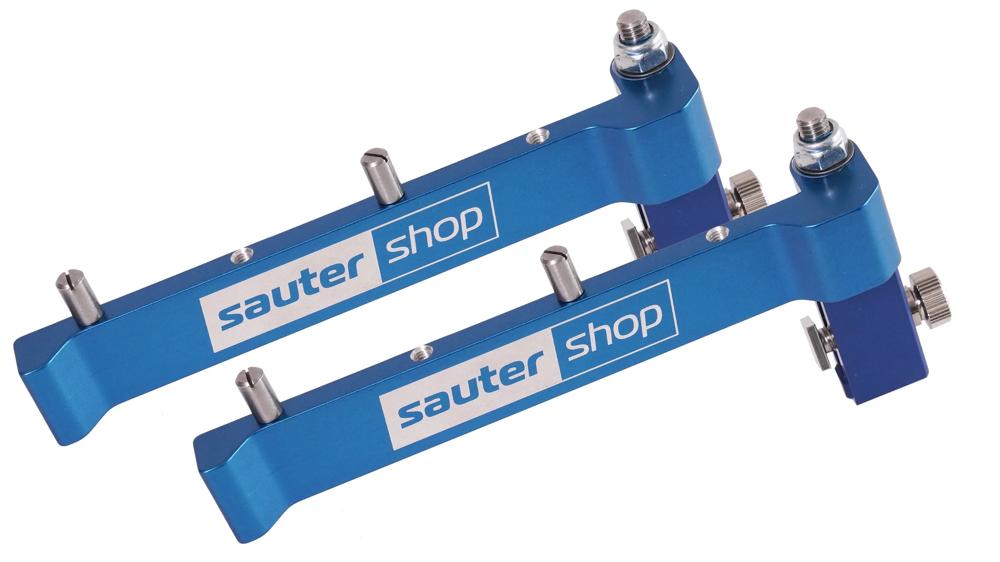

Fine adjustment:

Useful addition to sauter routing stops.
Unique solution for fine adjustment of the routing fence.
Easy to operate by simply turning the knurled screw.
Ultimately precise fine adjustment with the adjustment screw adjustable from | to | 0.05 mm
Compatible with sauter routing fence FA-SA 2.0
Compatible with all sauter FTP and HPL router table tops for router tables
Anodised to protect against corrosion and give them our unmistakable "sauter blue" design.
Made in Germany.

Fine adjustment:

Useful addition to sauter routing fences.
Unique solution for fine adjustment of the routing fence.
Easy to operate by simply turning the knurled screw.
Ultimately precise fine adjustment with the adjustment screw adjustable from | to | 0.05 mm
Compatible with sauter routing fence FA-SA 2.0
Compatible with all sauter FTP and HPL router table tops for router tables
Anodised to protect against corrosion and give them our unmistakable "sauter blue" design.
Made in Germany.
