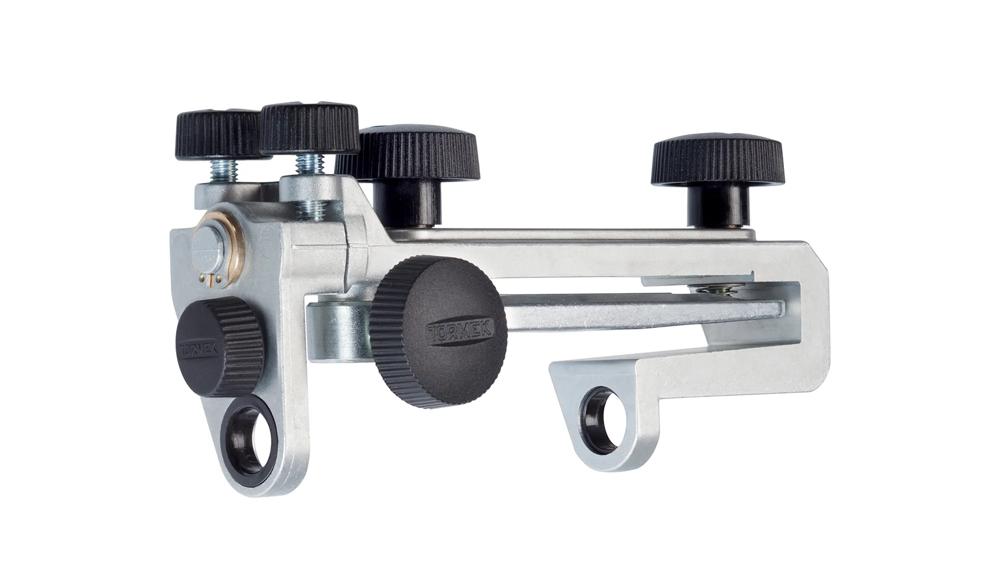

Tormek SE-77 Square Edge Grinding Jig

For chisels and plane irons | Perfect 90° cutting edges | With rounding function for the edges

Delivery time 2-3 days

66,72 €

incl. VAT / excl. shipping costs

Brand:Tormek
Article no.:TM-SE-77
Weight:0.71kg

Tormek SE-77 Square Edge Grinding Jig

Maximum precision for cutting edges that are sharper than when new.

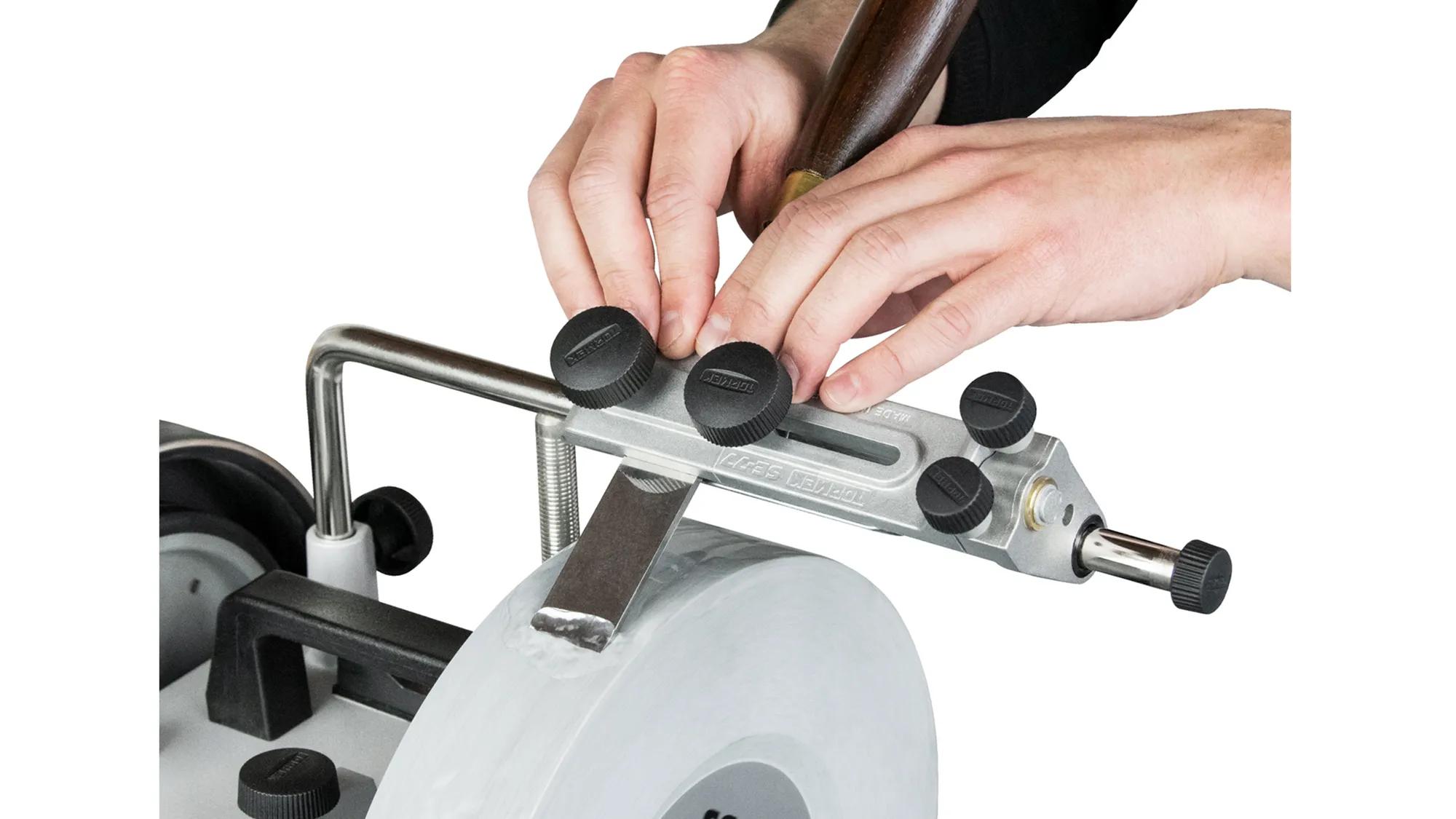

The tool is aligned in the jig along the flat top surface of the tool. The SE-77 Square Edge Jig has a flat shoulder that makes it easy to mount the tool correctly at an angle of 90°. The pressure from the center of the plate is distributed to the edges, positioning the tool firmly in the jig without having to force it to stay in place. Then you just have to check the sharpening angle and set the jig at the right height on the universal support, and away you go!

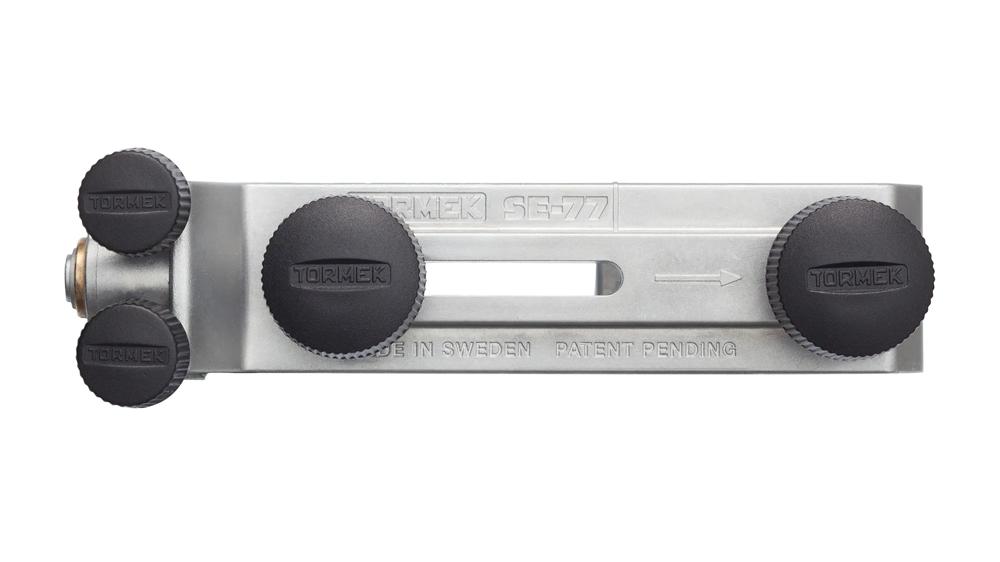

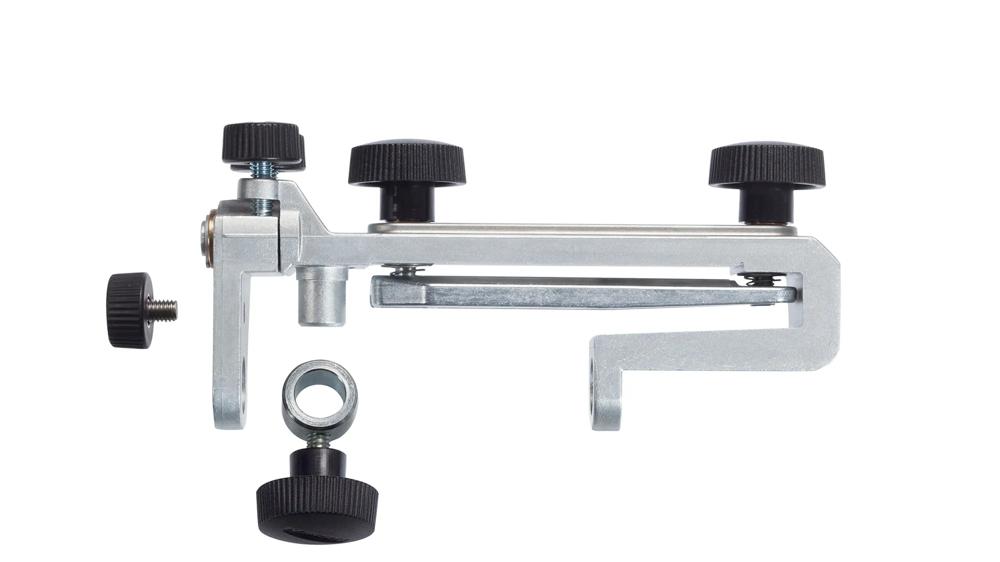

The SE-77 Square Edge Jig has been fitted with a movable end that can be adjusted using two small adjustment screws, which allows for fine tuning the settings if necessary. This might be required if the tool is very narrow or not exactly parallel to the grinding wheel, or if the blade is slightly twisted. Fine tuning the settings is done in seconds by releasing one of the adjustment screws and tightening the other.

The jig's design also allows conical tools that are thicker towards the handle, such as some Japanese chisels, to be positioned and sharpened.The safety stops keep the jig on the universal support bar and prevent the tool slipping off the grinding wheel. So there's no risk of you hurting your fingers while sharpening your tools. The jig fits chisels and plane irons up to 77 mm (3.03") wide.

Most plane irons benefit from having a slightly rounded shape. The degree of chamfering depends on the type of hand plane and is roughly equivalent to the thickness of the shavings produced by the plane. The adjustable end of the SE-77 Square Edge Jig allows you to achieve the optimum shape for your tool. When sharpening to chamfer the edges, center the tool below the pivot point of the jig, marked with a line. The more you release the adjustment knobs, the greater the pendulum movement, which increases the chamfer.

Technical Data

For blade widths up to 77 mm
Material: Precision die-cast zinc, black composite
Weight: 0.63 kg

Properties & Advantages

The sanding device is easy to set up and use.
The well thought-out design ensures stable positioning of the tool - from the centre to the edges.
Adjustment screws allow fine adjustment to compensate for small deviations in the tool design.
Japanese chisels with a conical shape can also be sharpened without any problems.
As a rounded shape is advantageous for most plane irons, the SE-77 device can be adjusted to suit by setting up a pendulum movement.
Compatible with the Tormek T-4, T-8 and older models.
Tormek offers a 2-year guarantee on the grinding jig.
