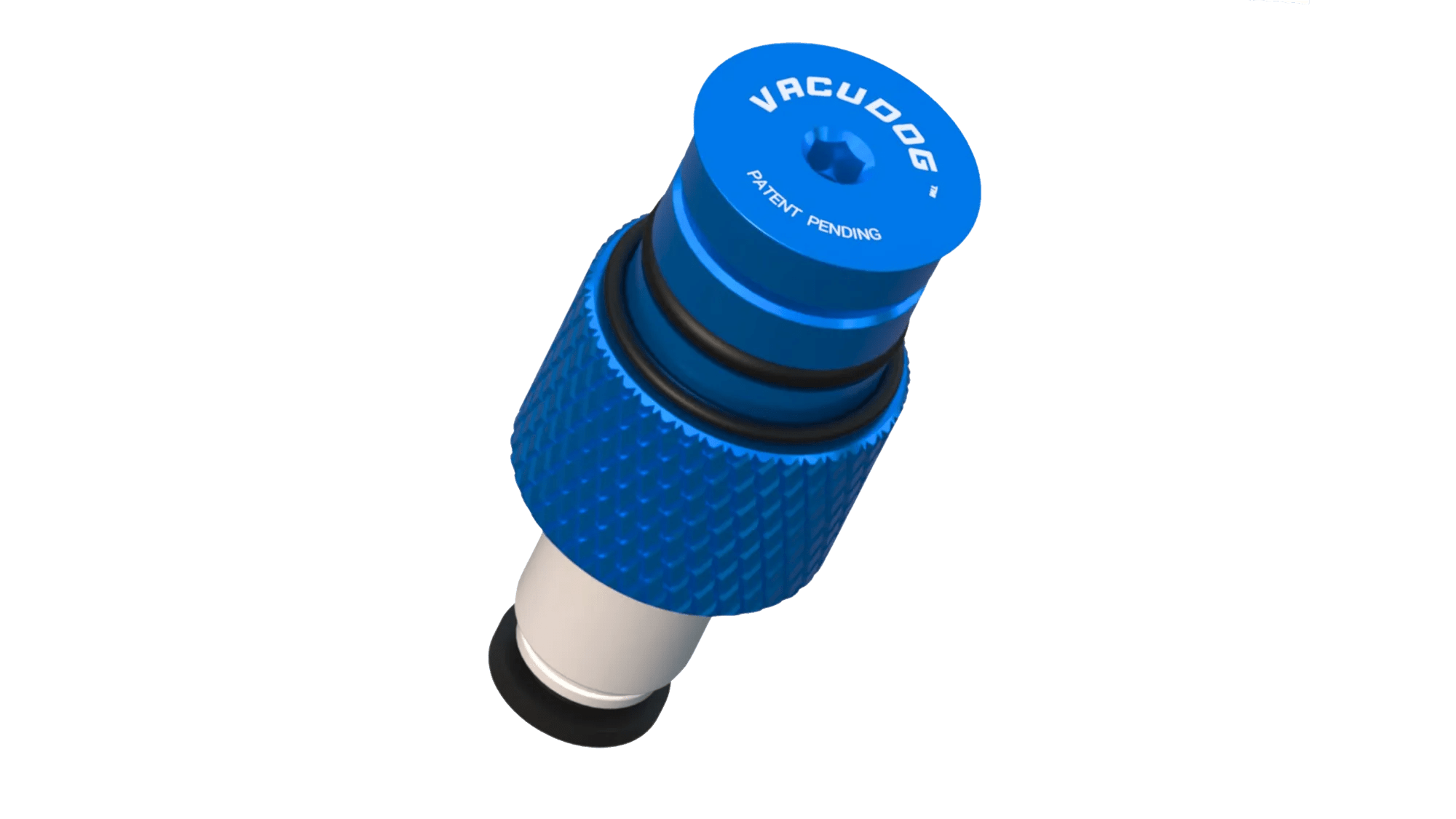

Vacudog™ vacuum bench dog for MFT

Simple and cheap vacuum table | For MFTs with Ø 20 mm hole pattern

Shipping within 24 hours (working days)

69,90 €

incl. VAT / excl. shipping costs

Brand:TRACKTUBES
Article no.:RD-VAS-20-BLU
Weight:0.284kg

VACUDOG™ VACUUM BENCH Dog FOR MULTIFUNCTIONAL TABLES

There is no simpler or more cost-effective way to convert your MFT into a vacuum table.

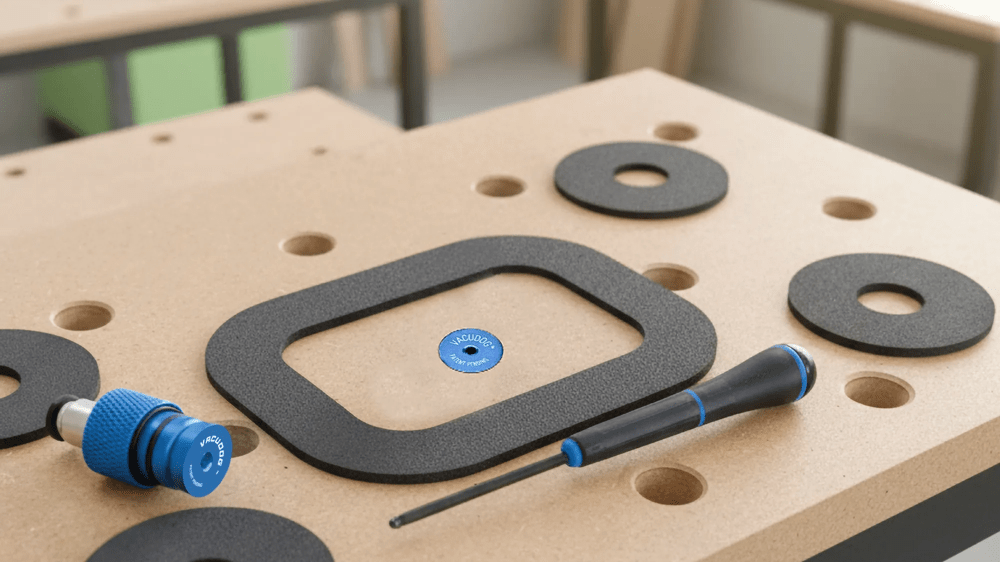

Small part, big impact. A highly innovative bench hook allows you to turn any standard multifunctional table with a 20 mm hole pattern into a vacuum clamping table. It is perfect for reliably clamping workpieces to the workbench for machining.

Technical Data

Hole diameter: 20 mm
Suction hose diameter: 8 mm
Vacudog™ hexagon socket size: 4 mm
Suitable for worktop thickness: 20 mm
Vacudog™ material: anodised aluminium

Properties & Advantages

One Vacudog™ is sufficient to securely fix the workpiece to the worktop.
No clamps get in the way during processing, e.g. when sanding, oiling, planing or milling.
Impressive suction power with just one Vacudog™.
Perfect for all MFTs with a 20 mm hole pattern.

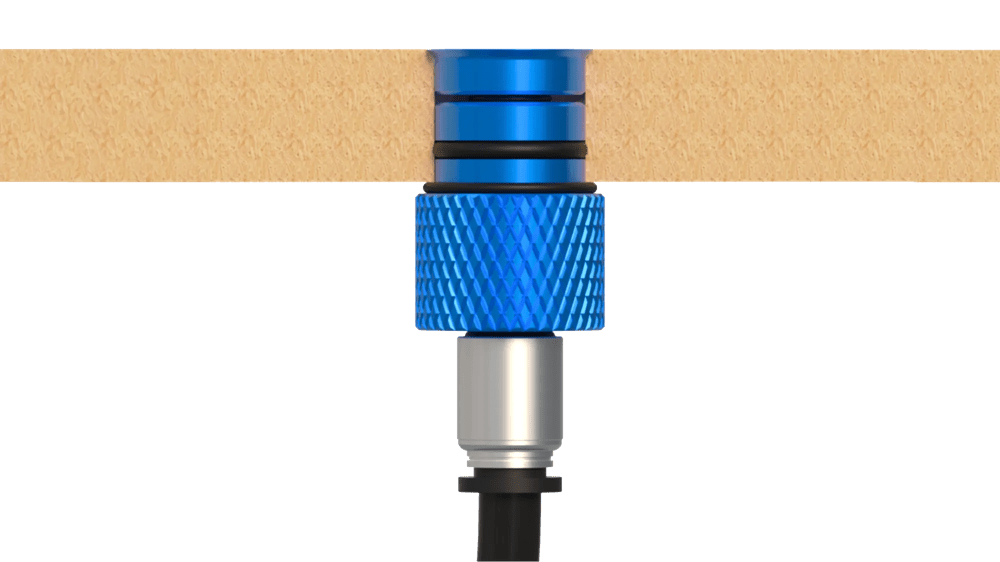

Table holes must be chamfered for the Vacudog™, e.g. with a sauter chamfer cutter or Benchdog reamer.
Designed for Ø 8 mm suction hoses.
Requirements: A vacuum pump with an 8 mm hose connection and an 8 mm suction hose are required. Recommended vacuum pump: A simple pump with a capacity of 50 L/min (2 cfm) is sufficient.
