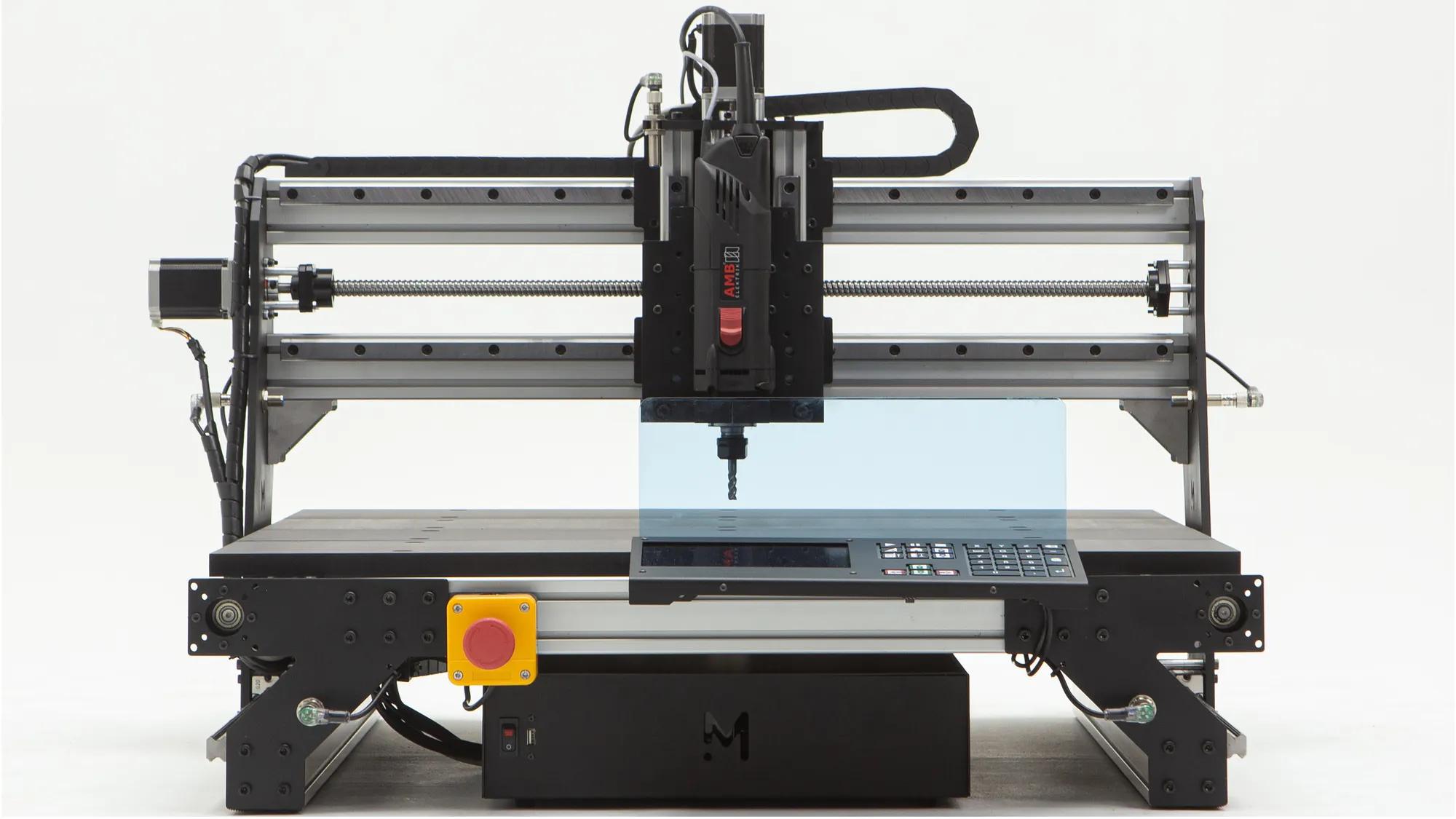

Mekanika Pro L

Technical data

SIZE AND PERFORMANCE

• Total size (L)
  1370x1370x600 mm
• Work surface X/Y (L)
  1030x1030 mm
• Z-spacing/height (standard/high Z)
  133 mm/230 mm
• Maximum material thickness that can be cut completely (standard/high Z)
  65 mm/90 mm
• Feed speed
  5000 mm/min
• Cutting depth
  4 mm
• Spindle speed
  18,000 rpm
• Carbide cutter 3 cutting edges 6 mm
• Maximum travelling speed
  10,000 mm/min
• Typical cutting accuracy
  0.1 mm (this value depends heavily on the tool and cutting parameters selected by the operator)
• Positioning accuracy
  ± 50 µm / 300 mm

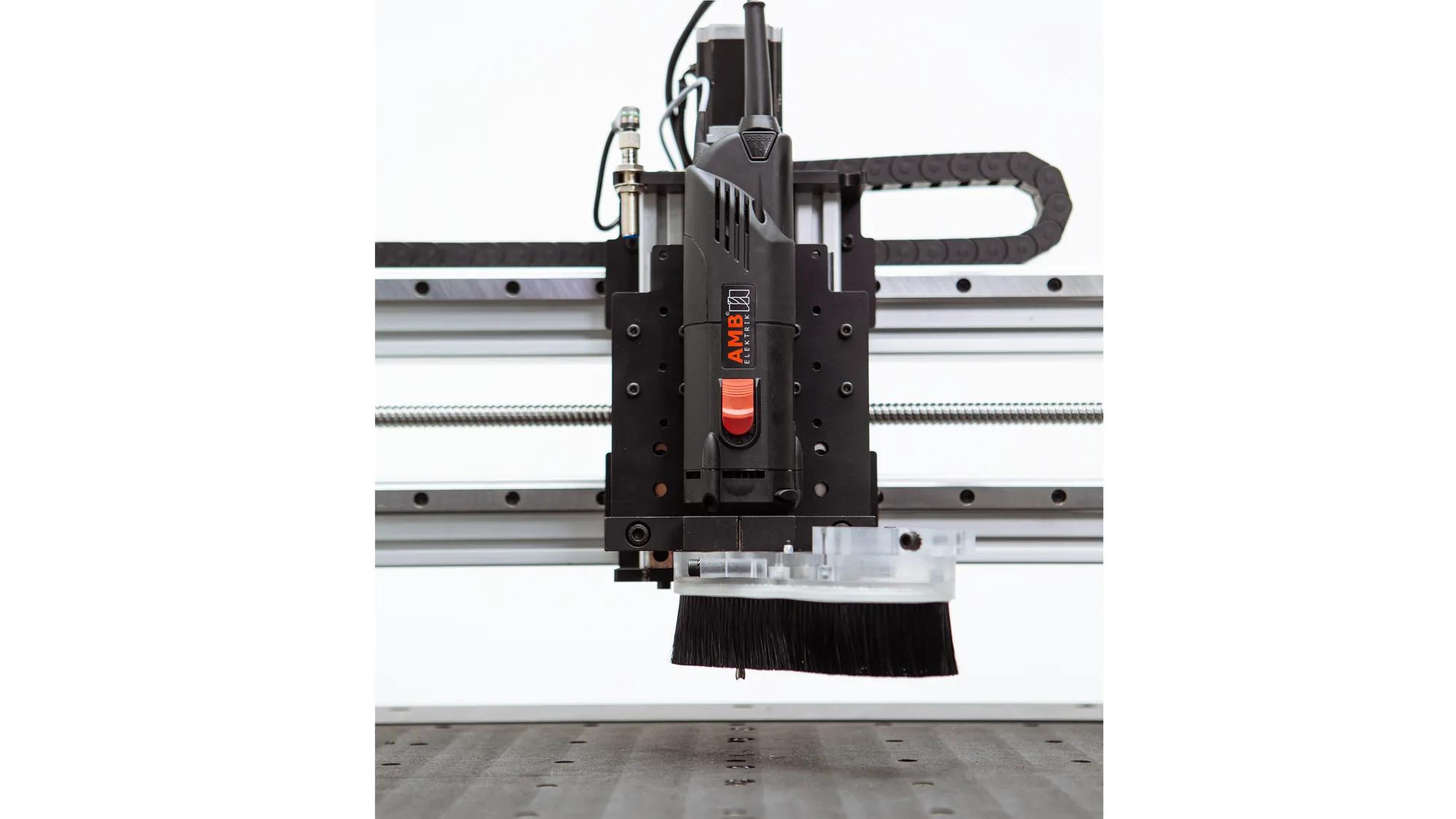

• AMB 1400 FME-P Di ER16 (1400 W)

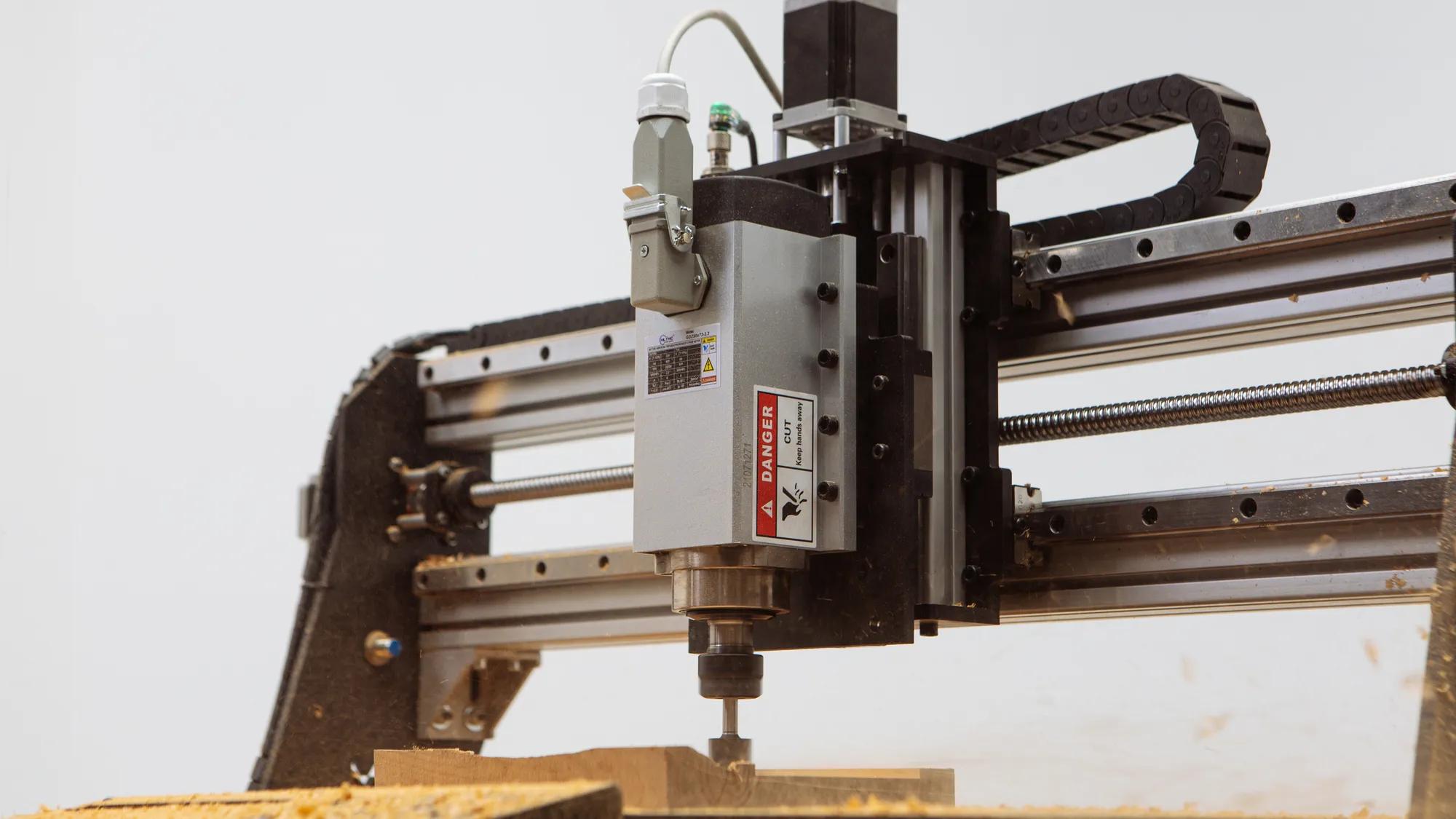

• Mekanika VFD 2.2kW ER20 spindle
• Power consumption
  1x 230VAC (max. power: 650W without spindle)

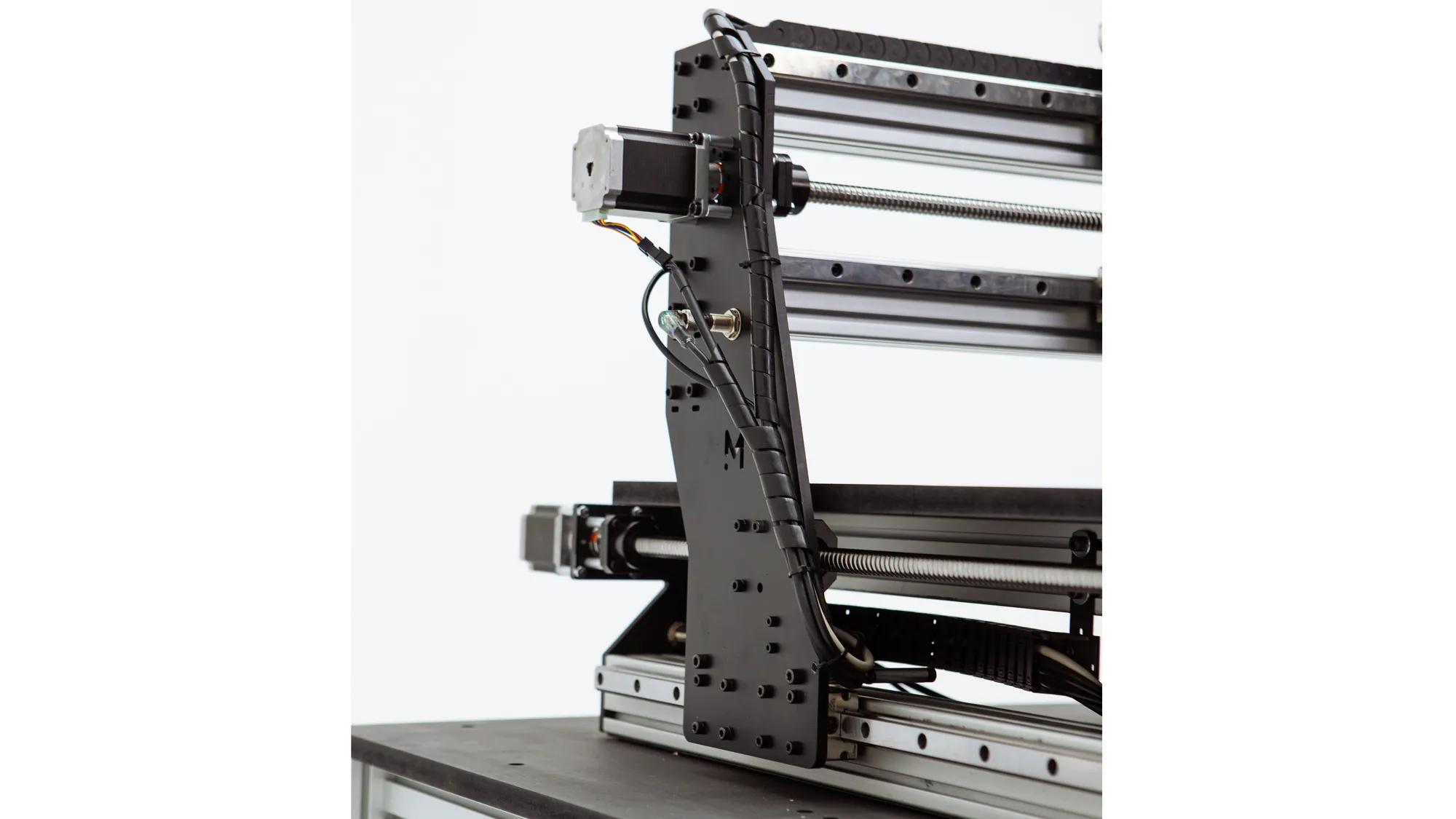

MECHANICS

• Steel plates (8mm)
• Aluminium profiles (30x60mm & 60x60mm)

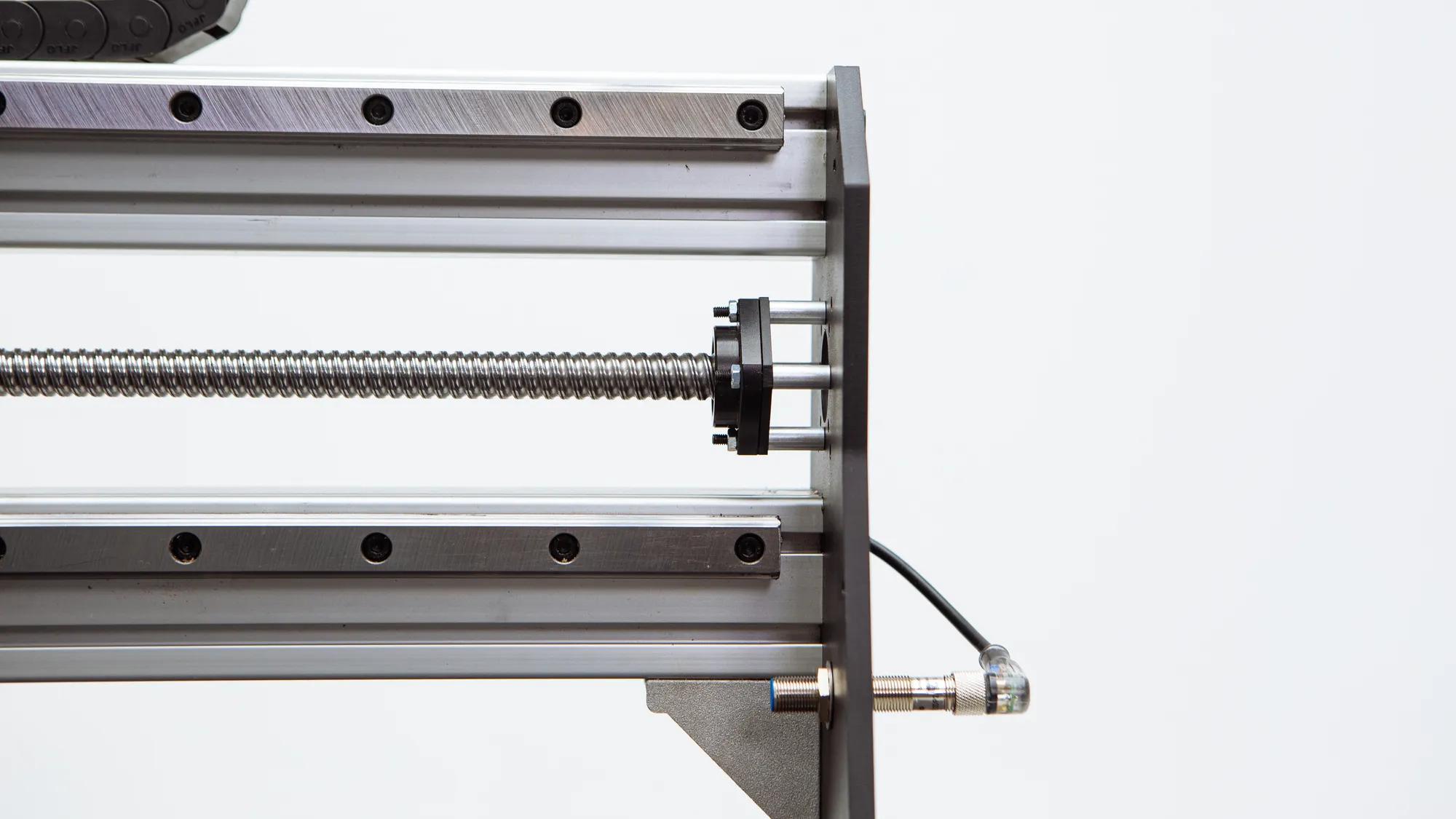

• Linear guide system
  HGR20 double prismatic rail

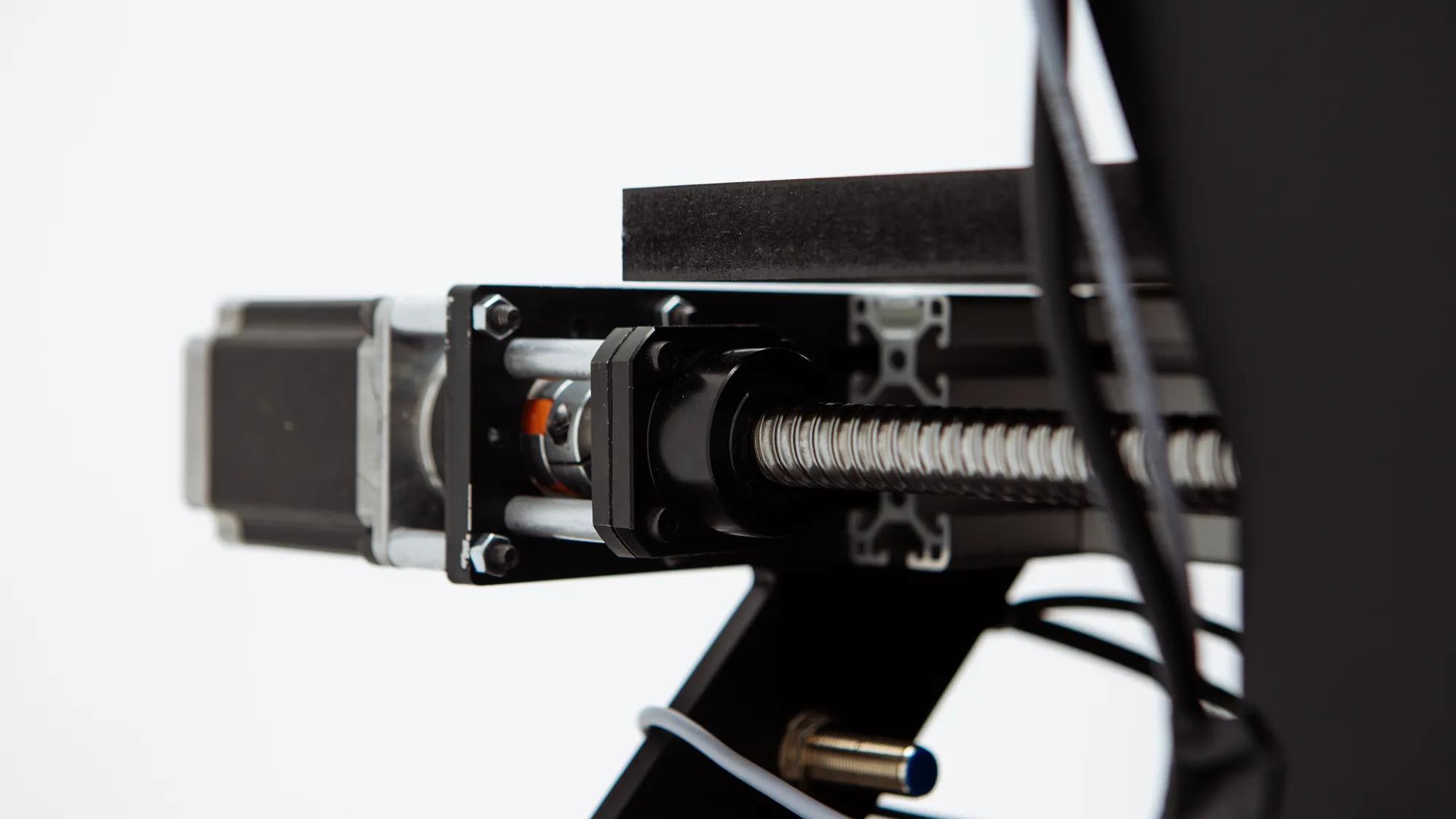

• Ball screws 16 mm ±50 µm / 300 mm (C7)
• Two ball screws 16 mm ±50 µm / 300 mm (C7)

ELECTRONICS

• Motors
  Nema23, 5 A, 2.2 Nm (4x)
• 32-bit DSP
• 48 VDC 6.0 A
• Microstep operation 1/32
• No-load current control
• Speed smoothing coefficient (acceleration/deceleration)
• Embedded computer
  Raspberry Pi 4 - 2 GB RAM
• 3 USB ports
• 1 Ethernet port
• 1 HDMI port

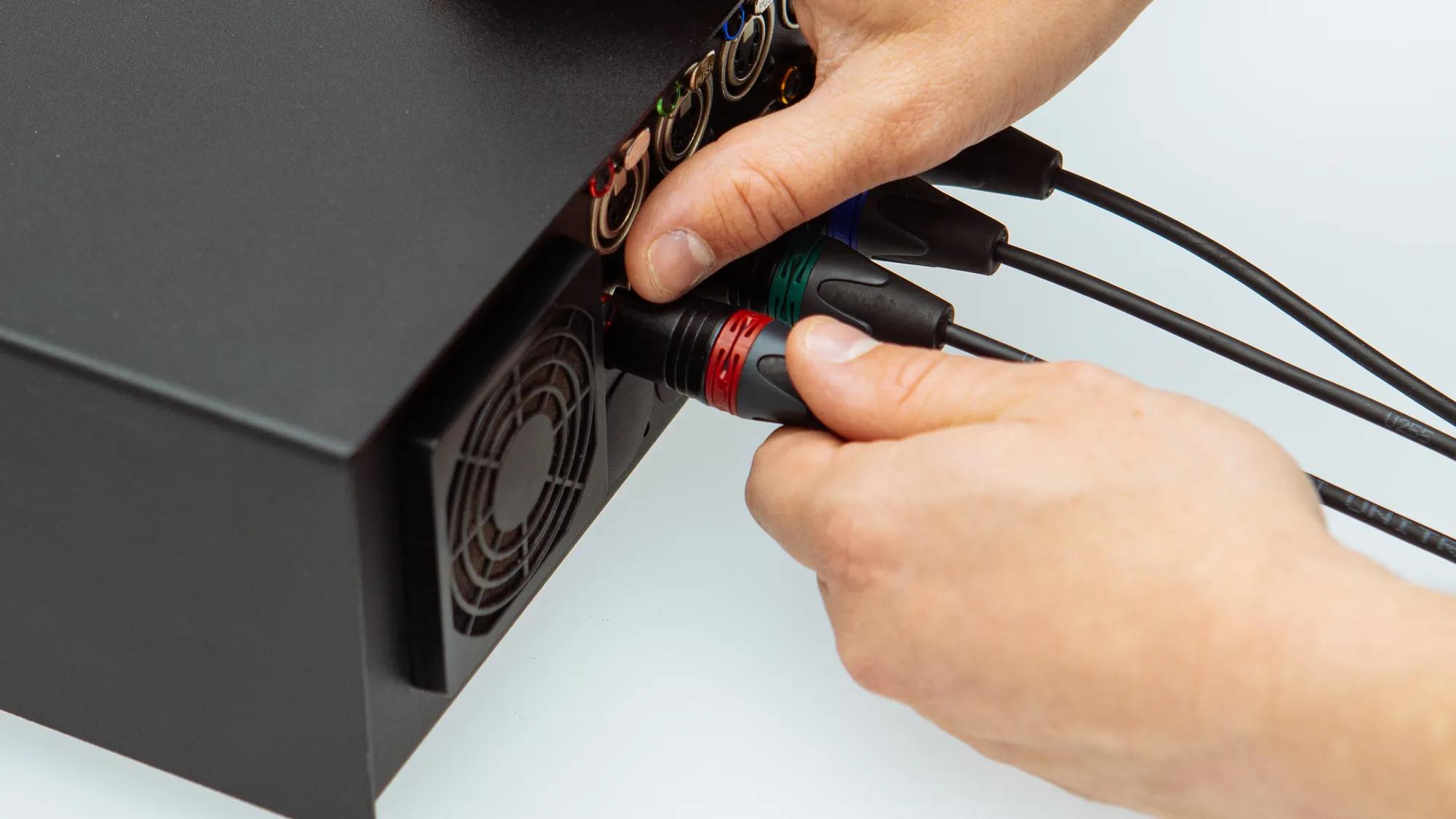

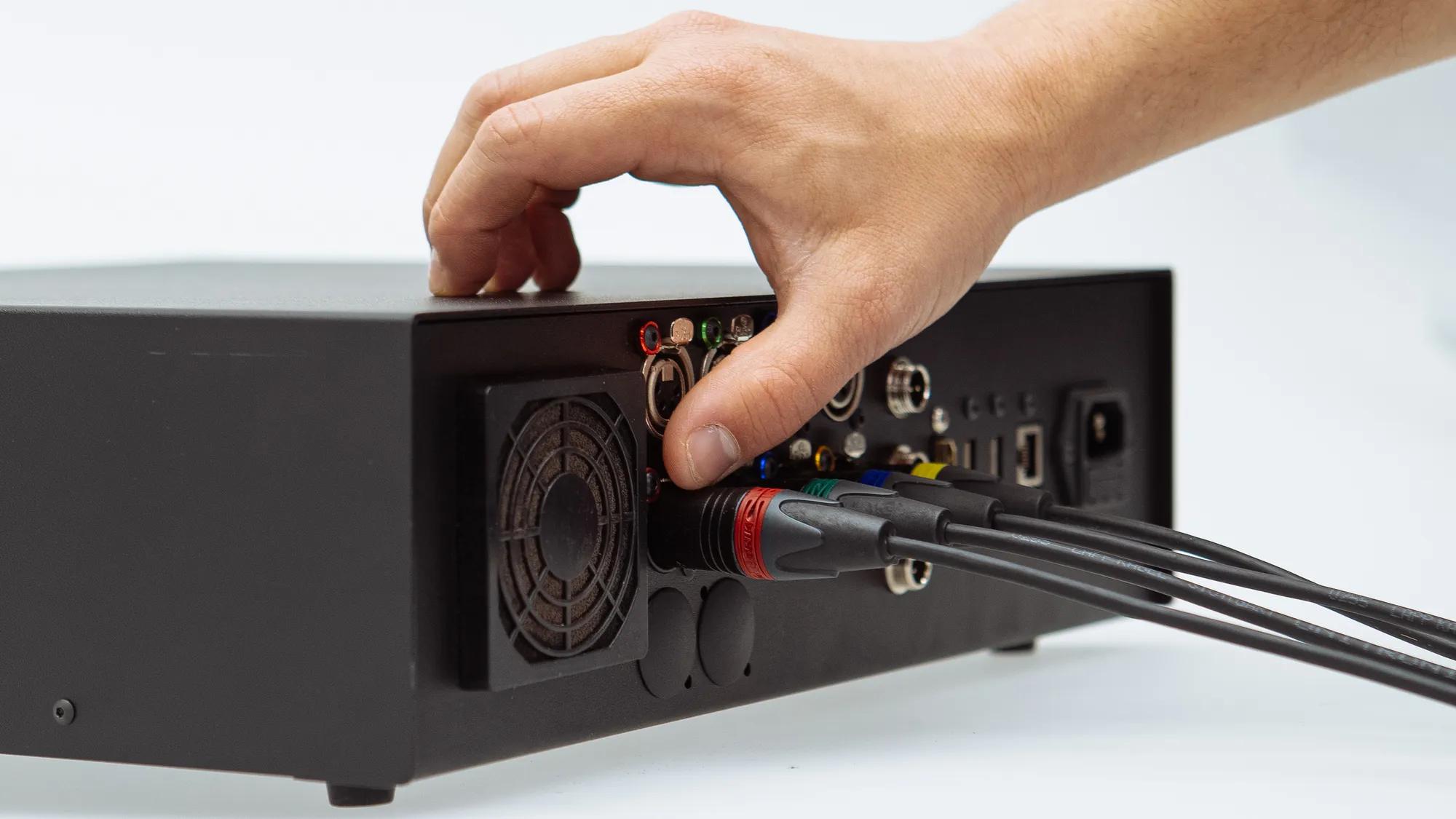

• Neutrik XLR (motors and sensors)
• GX12 (inputs/outputs)
• 7" TFT IPS capacitive touchscreen

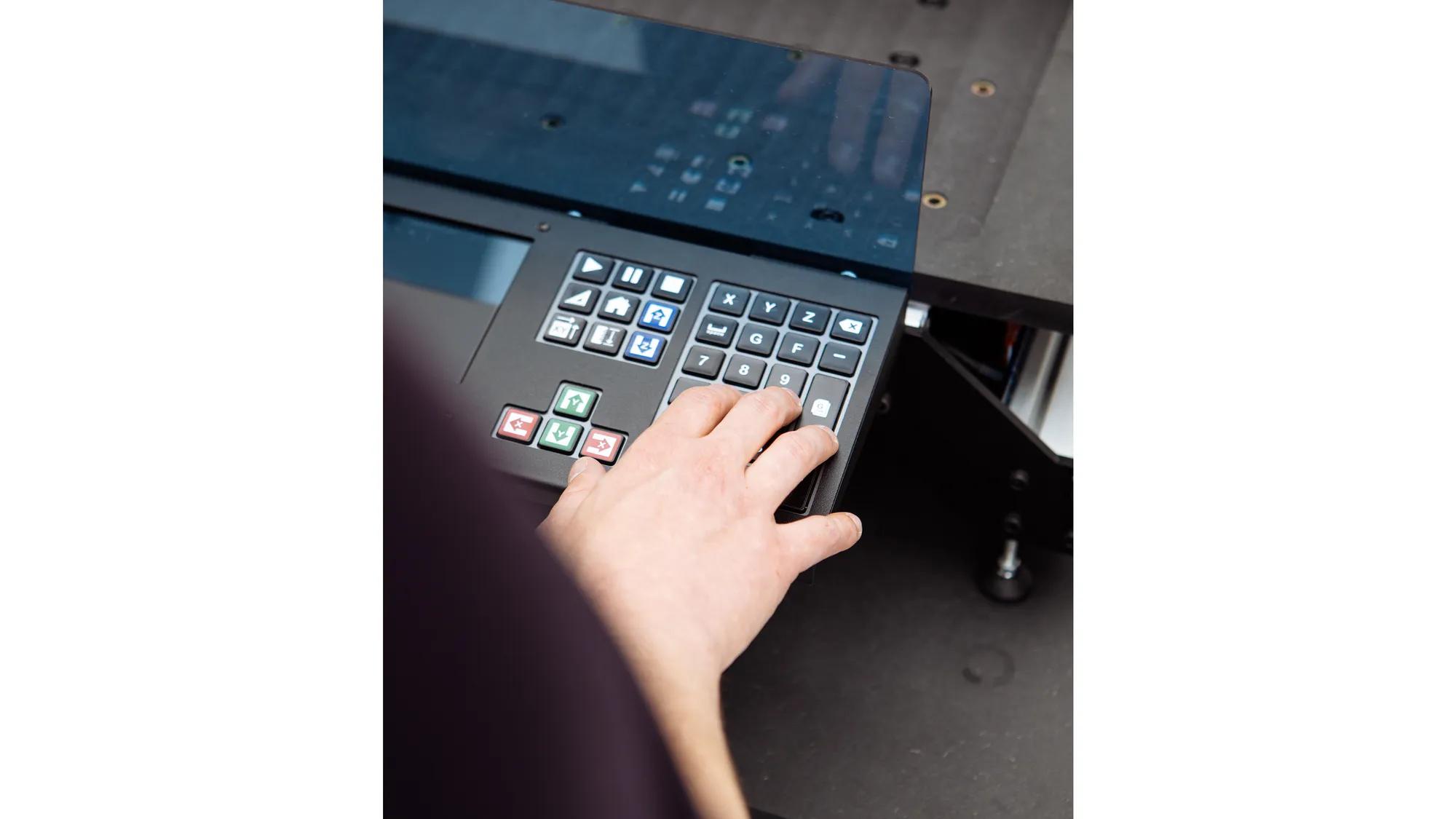

• Customised Bluetooth keyboard
• WiFi (2.4 GHz and 5.0 GHz IEEE 802.11ac )
• Bluetooth (5.0)
• Gigabit Ethernet
• Limits sensors
  Inductive sensors (6x)
• Tool length sensor
  Touch plate with crocodile clip
• Controller
  PlanetCNC Mk3/4

CONTROL SOFTWARE

• Embedded G-code generator/editor
• Toolpath visualisation
• Import of toolpaths from 2D files (dxf, png,...)
• Advanced motion interpolation
• Simulation mode
• Manual data input mode (MDI)
• Automatic homing and square portal
• Automatic tool length measurement and probing
• Feed and speed override
• Customisable view, scripts and M-codes
• Compatible with any CAM software available on the market (recommendation
  Vectric VCarve PRO; Fusion360)

SAFETY

• The DI spindles are automatically stopped when an emergency stop button is pressed or a milling programme is finished.
• This minimises the time it takes for a sharp end mill to rotate.
• DI spindles are optional products.
• The enclosure provides a safe environment around the CNC where nothing can enter while the CNC is running.
• The doors are monitored and opening them automatically leads to an emergency stop of the machine and the DI spindle.
• The enclosure is an optional product.

• Required assembly time (estimated)
  16 hrs.
