Mekanika
The CNC milling machines from Mekanika were developed for hobbyists and small businesses. It offers all the advantages and possibilities of a fully-fledged CNC milling machine:
- Control: Via the X, Y and Z axes for 3D projects
- Kit: Build and know your machine from scratch
- Operation: Intuitive with 7" touchscreen console
- Data transfer: Convenient via USB
- Drive: Powerful with the AMB milling motor 1,050 watts; AMB milling motor 1400 watts DI up to 2.2kW VFD Spindle
- Work surface: Up to 2,700 x 1,300 mm in size
- Materials: Wood, solid surface materials, plastics, acrylic glass, aluminium, rubber
Kit | incl. on-board computer, touchscreen and numeric keypad | (S): 630x630 mm
Item no.: MEK-M01495Delivery in 4-5 business days
Kit | incl. on-board computer, touchscreen and numeric keypad | (S): 630x630 mm
Item no.: MEK-M01498Delivery in 4-5 business days
Kit | incl. on-board computer, touchscreen and numeric keypad | 1300x2700 mm
Item no.: MEK-M01424Delivery in 4-5 business days
Processing size: 1300x2700 mm | 2.2kW milling motor | dust extraction kit Book your personal demonstration here : Book a demo
Item no.: MEK-M01626Delivery in 4-5 business days
Kit | incl. on-board computer, touchscreen and numeric keypad | (M): 630x1030 mm
Item no.: MEK-M01496Delivery in 4-5 business days
Kit | incl. on-board computer, touchscreen and numeric keypad | (M): 630x1030 mm
Item no.: MEK-M01499Delivery in 4-5 business days
Processing size: 1300x2700 mm | 2.2kW milling motor | vacuum table - complete package Book your personal demonstration here : Book a demo
Item no.: MEK-M01627Delivery in 4-5 business days
Kit | incl. on-board computer, touchscreen and numeric keypad | (L): 1030x1030 mm
Item no.: MEK-M01497Delivery in 4-5 business days
Kit | incl. on-board computer, touchscreen and numeric keypad | (L): 1030x1030 mm NOT FOR SALE OUTSIDE THE EU, SWITZERLAND AND NORWAY
Item no.: MEK-M00656Replenishment is on the way
Kit | incl. spindle 1400W, spoiler board and dust shoe 43 | (S): 630x630 mm
Item no.: MEK-M01602Delivery in 4-5 business days
Kit | incl. spindle 2200W, spoiler board and dust shoe 59 | (L): 630x630 mm
Item no.: MEK-M01605Delivery in 4-5 business days
Kit | incl. spindle 1400W, spoiler board and dust shoe 43 | (M): 1030x630 mm
Item no.: MEK-M01603Delivery in 4-5 business days
Kit | incl. spindle 2200W, spoiler board and dust shoe 59 | (L): 630x1030 mm
Item no.: MEK-M01606Delivery in 4-5 business days
Kit | incl. spindle 1400W, spoiler board and dust shoe 43 | (L): 1030x1030 mm
Item no.: MEK-M01604Delivery in 4-5 business days
Kit | incl. spindle 2200W, spoiler board and dust shoe 59 | (L): 1030x1030 mm
Item no.: MEK-M01607Delivery in 4-5 business days
Kit | incl. on-board computer, touchscreen and numeric keypad | (S): 630x630 mm
Item no.: MEK-M01611Delivery in 4-5 business days
Kit | incl. on-board computer, touchscreen and numeric keypad | (S): 630x630 mm
Item no.: MEK-M01608Delivery in 4-5 business days
Kit | incl. on-board computer, touchscreen and numeric keypad | (M): 630x1030 mm
Item no.: MEK-M01609Delivery in 4-5 business days
Kit | incl. on-board computer, touchscreen and numeric keypad | (M): 630x1030 mm
Item no.: MEK-M01612Delivery in 4-5 business days
safety first | spindle stop | accessible EMERGENCY STOP
Item no.: MEK-M00135Delivery in 1-2 business days
Kit | incl. on-board computer, touchscreen and numeric keypad | (L): 1030x1030 mm
Item no.: MEK-M01613Delivery in 4-5 business days
Kit | incl. on-board computer, touchscreen and numeric keypad | (L): 1030x1030 mm
Item no.: MEK-M01610Delivery in 4-5 business days
Kit | incl. on-board computer, touchscreen and numeric keypad | (S): 630x630 mm
Item no.: MEK-M01614Delivery in 4-5 business days
Kit | incl. on-board computer, touchscreen and numeric keypad | (S): 630x630 mm
Item no.: MEK-M01617Delivery in 4-5 business days
Mekanika in comparison EVO vs. PRO vs. FAB

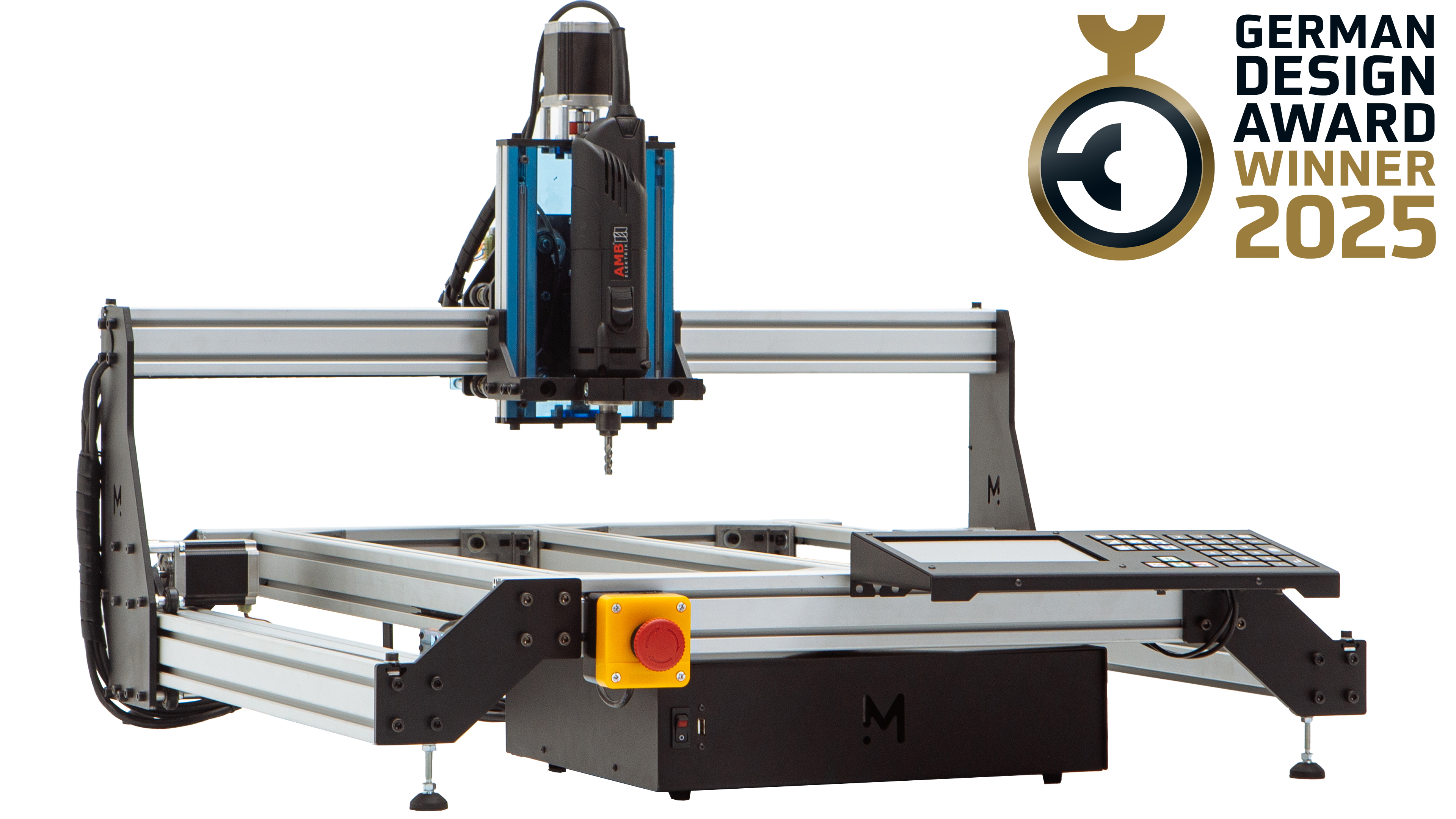

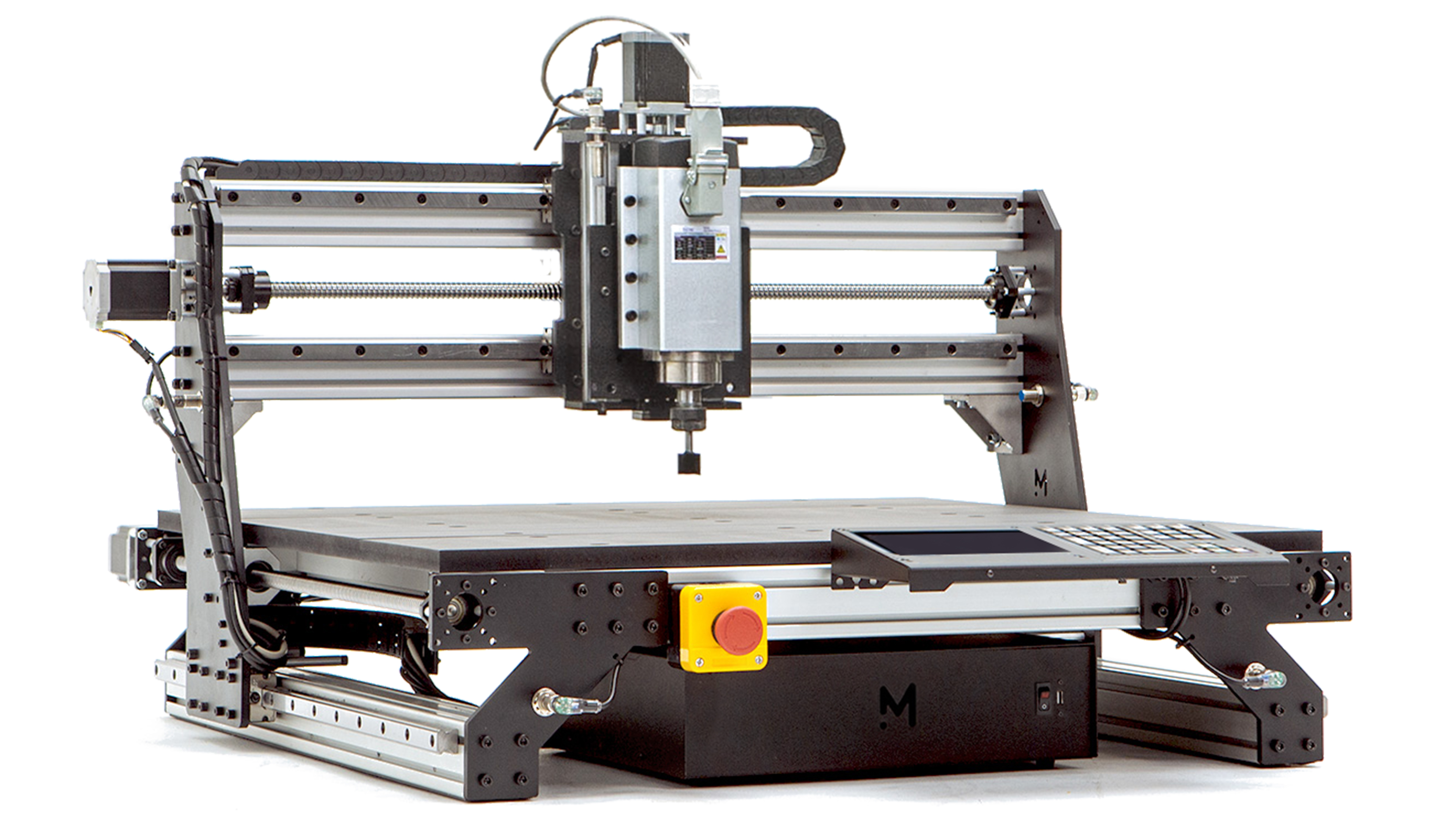

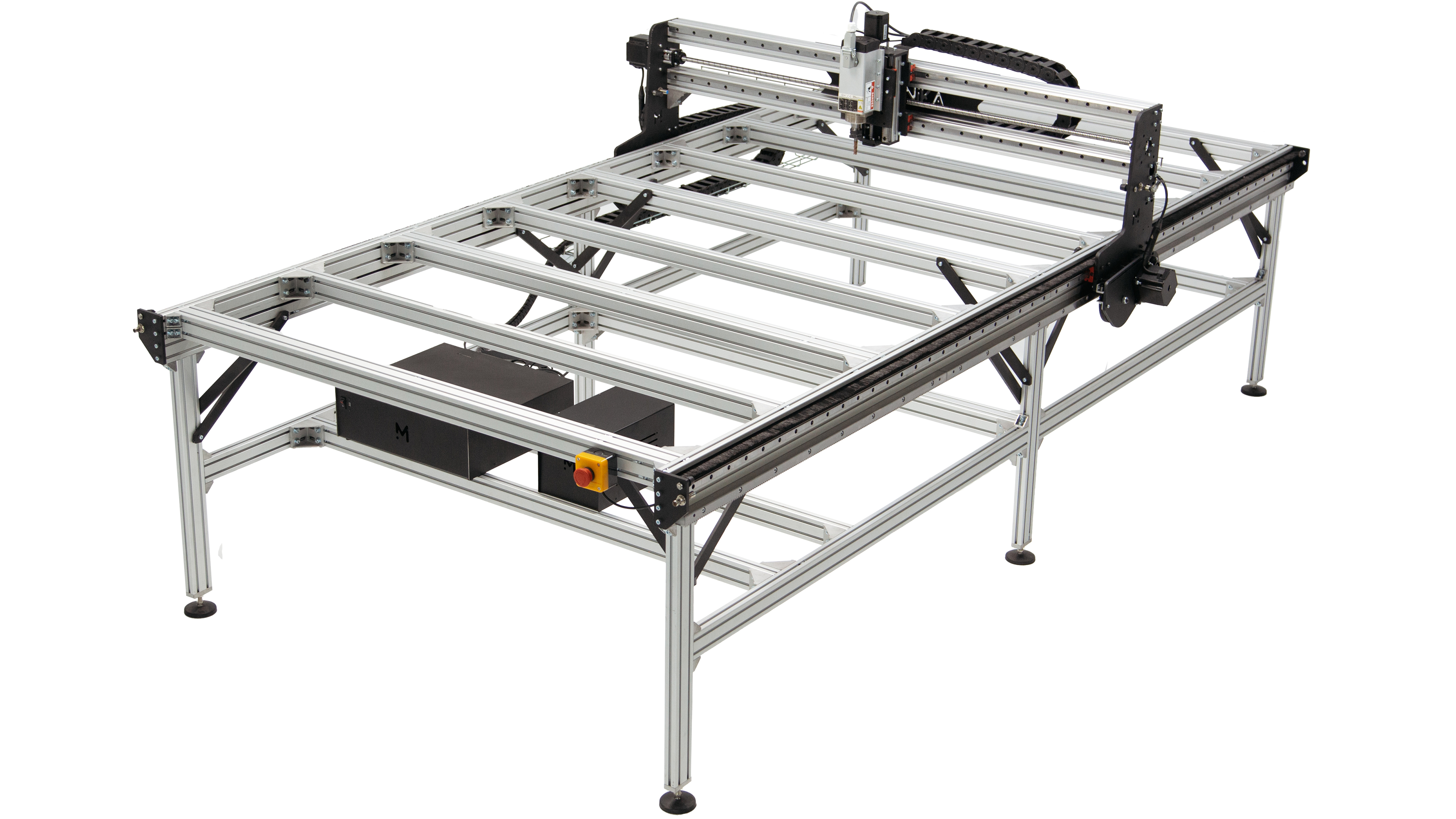

| Name/ Model | EVO model | PRO model | FAB model |
| image |  |
 |
 |
| Up to 3 available sizes (S, M, L) | Yes | Yes | One size fits all |
| Work surface | From 630 x 630 mm up to 1030 x 1030 mm | From 630 x 630 mm up to 1030 x 1030 mm | 1300 x 2700 mm |
| Starting price (without VAT) | From €2.200 | From 4.700€ | From 11.000€ |
| 5 year guarantee | Yes | Yes | Yes |
| Materials that you can mill | Wood, cork, PMMA (Plexiglas), HPL (Trespa), foam, ATH (Corian), carbon fibre, aluminium and much more... | All materials milled with EVO + stone and hard metals (brass, steel, etc.) | All materials milled with EVO + stone and hard metals (brass, steel, etc.) |
| Typical cutting speeds (softwood) | 2500mm/min | 5000mm/min | 7000mm/min |
| Typical cutting depth (softwood) | 0.5 x tool diameter | 0.7 x tool diameter | 0.8 x tool diameter |
| Linear guide system | V-groove wheels | Double linear rail HGR20 | Double HGR20 prismatic rail |
| Drive system (X-axis & Y-axis) | Steel-reinforced PU GT2 belts and pulleys Nema23 motor 2.2Nm | Ball screw 16mm Nema23 motor 2.2Nm | Y-axis: gear rack Mod 2 ±26µm / 1000mm (DIN5) and Nema34 motor 4.5Nm X-axis: ball screw 16mm and Nema34 motor 4.5Nm |
| Drive system (Z-axis) | T8 trapezoidal threaded spindle Nema23 motor 2.2Nm | Ball screw 16mm Nema23 motor 2.2Nm | Ball screw 16mm Nema23 motor 2.2Nm |
| Control unit (Planet CNC) | Yes | Yes | yes |
| Built-in computer (Raspberry Pi 4 - 2 GB RAM) | yes | yes | yes |
| User interface | 7" TFT IPS capacitive touchscreen Customised Bluetooth keyboard | 7" TFT IPS capacitive touchscreen Customised Bluetooth keyboard | Attachment: 13" capacitive touch screen Customised Bluetooth keyboard |
| Available spindles | AMB 1050 FME-1 AMB 1400 FME-P DI | AMB 1400 FME-P DI Air-cooled 2.2kW VFD | Air-cooled 2.2kW VFD |
| Tool length sensor | Yes | Yes | yes |
| Bundles available | EVO bundle / EVO education bundle | PRO bundle / PRO education bundle | FAB bundle |
| Complete technical data | EVO model | PRO model | FAB model |
Computer-aided woodworking with Mekanika CNC
Thanks to the large processing areas of up to 2,700 mm x 1,300 mm, Mekanika CNCs can process panel materials directly without pre-formatting. And with a precision that is in no way inferior to large machining centres.
The intuitive control via the 7-inch touchscreen enables you to produce your first professional results within a short time, even without prior CNC knowledge. And without several days of training!
The uncomplicated data transfer and connection to the CNC portal and the milling unit is important for the CNC control. Once the workpiece has been designed in the CAD/CAM software, the G-code can be easily transferred to the CNC machine via USB with the Mekanika. The rest is done by the driven milling motor and the milling tool used.
Modular accessories for every configuration
You can retrofit or upgrade any machine with the accessories from Mekanika. From the 1,050 watt AMB high-performance spindle to the 2.2 kW VFD spindle, you can customise your machine to suit your applications. You have the option of enclosing the machines and much more.
