SET suction unit Holzprofi Maker FM300M
Replenishment is on the way
€700.28
% €721.94 (3% saved)
Currently not available
Holzprofi Austria GmbH
Johannes-Humer Straße 3 4663 Laakirchen Austria
[email protected]
Holzprofi Austria GmbH
Johannes-Humer Straße 3 4663 Laakirchen Austria
[email protected]
https://holzprofi.com/
SET Holzprofi Maker FM300M extraction unit
The FM300M extraction unit from Holzprofi Maker is a powerful solution for the effective removal of chips and dust in workshops.
A paper air filter is available as an option, which further improves the filter performance.
The FM300M extraction unit is therefore a valuable addition to any woodworking shop that prioritises cleanliness and efficiency.
This SET includes 10 chip bags HOLZPROFI 250 litres and the upgradepaper filter, filter cartridge for extraction.
Technical data
Extraction unit Holzprofi Maker FM300M
-
Motor power
1.5 kW at 100 % duty cycle
-
Power supply
400 V
-
Extraction capacity
2,500 m³/h
-
Negative pressure
1,800 Pa
-
Filter area
1.45 m²
-
Suction connection
125 mm
-
Distributor
2-fold with 100 mm connections each
-

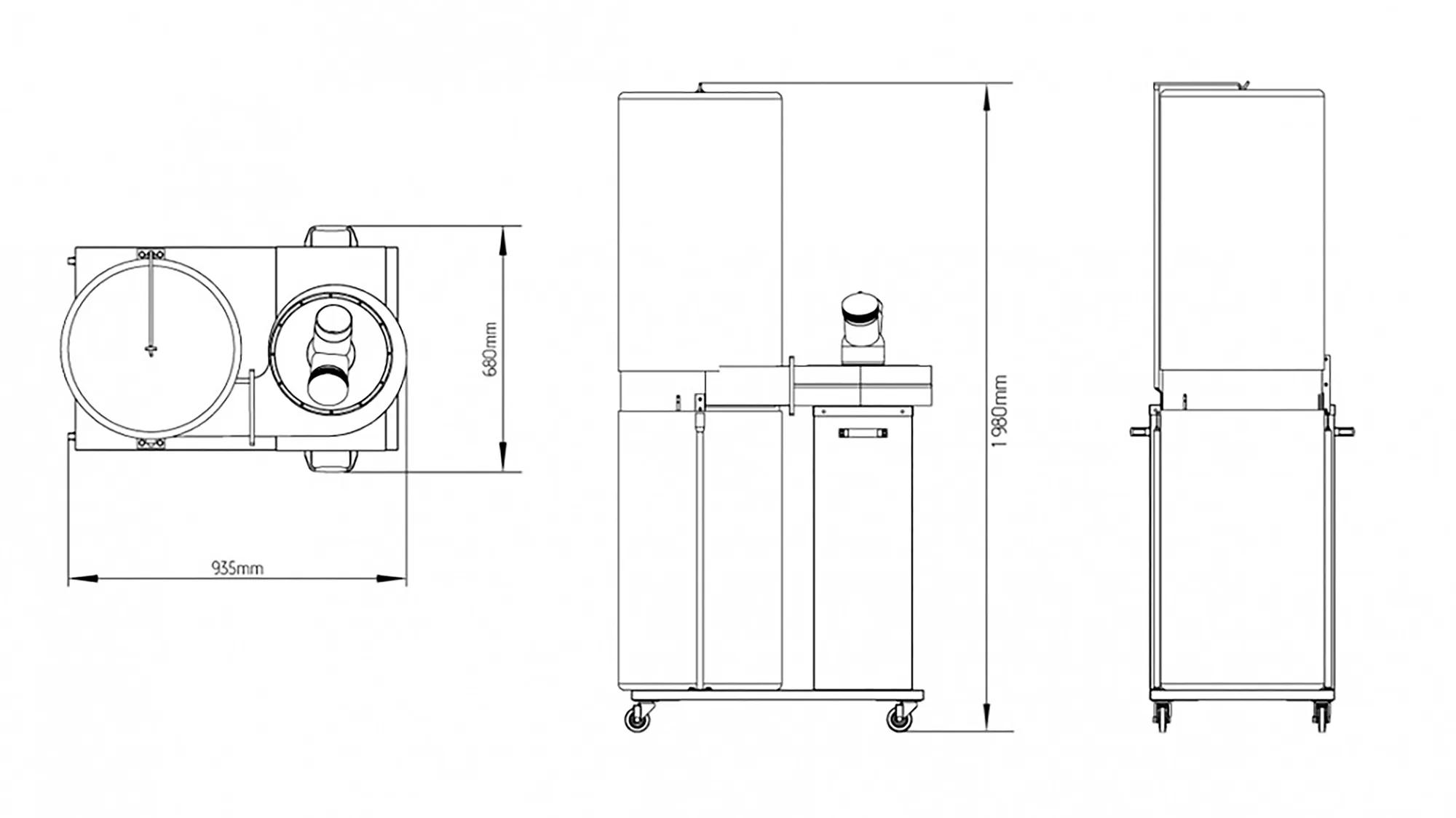

Dimensions (L x W x H)
935 x 690 x 1,980 mm
-
Weight
approx. 48 kg
Paper filter, filter cartridge for FM300 extraction unit
-
Filter area
Approx. 4 m²
-
Height
Approx. 68 cm
-
Inner diameter
Approx. 48 cm
-
Outer diameter
Approx. 50 cm
-
Filter performance
approx. 99.5% at 3 µm (G4 level)
Chip bag Holzprofi Maker 250 litres
-
Length
1,400 mm
-
Diameter
Up to 500 mm
-
Circumference
1,560 mm
Features & benefits
- Efficient extraction: With a high air flow rate, the appliance ensures a clean working environment and reduces dust pollution.
- Durability: The sturdy steel construction ensures a long service life and reliability in daily use.
- Flexibility: The mobile design enables easy transport and flexible application options within the workshop.
- Easy handling: The large chip bag and the well thought-out design facilitate maintenance and operation of the device.
- Robust construction: Both the wind wheel and the housing are made entirely of steel, which ensures durability and stability.
- Powerful motor: Equipped with a 1.5 kW motor that enables high extraction performance.
- Large chip bag: The large chip bag offers sufficient capacity for longer work intervals without frequent emptying.
- Mobility: Thanks to the mobile design, the appliance can be positioned flexibly in the workshop.
- CE conformity: The appliance complies with European safety standards.
