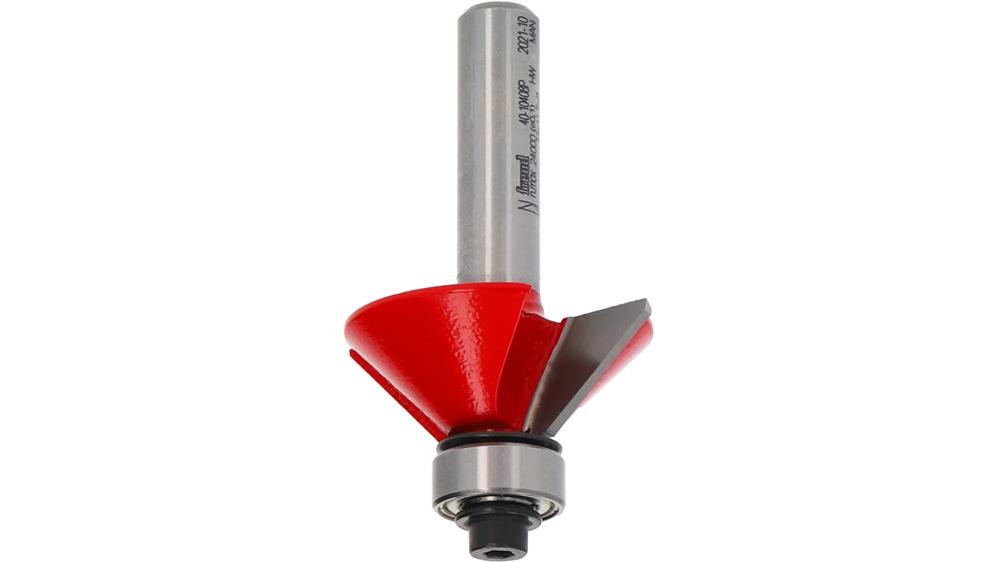

Chamfer Bit D: 33mm R:11,5mm

Chamfer bit | bearing | D33 | H54 | h11.5 | A8

Delivery time 2-3 days

32,13 €

incl. VAT / excl. shipping costs

Brand:Freud
Article no.:FR-40-10408P
Weight:0.11kg

Freud Chamfer Bit D: 33mm R:11,5mm

Chamfer bit / bearing, D33, H54, h11.5, A8

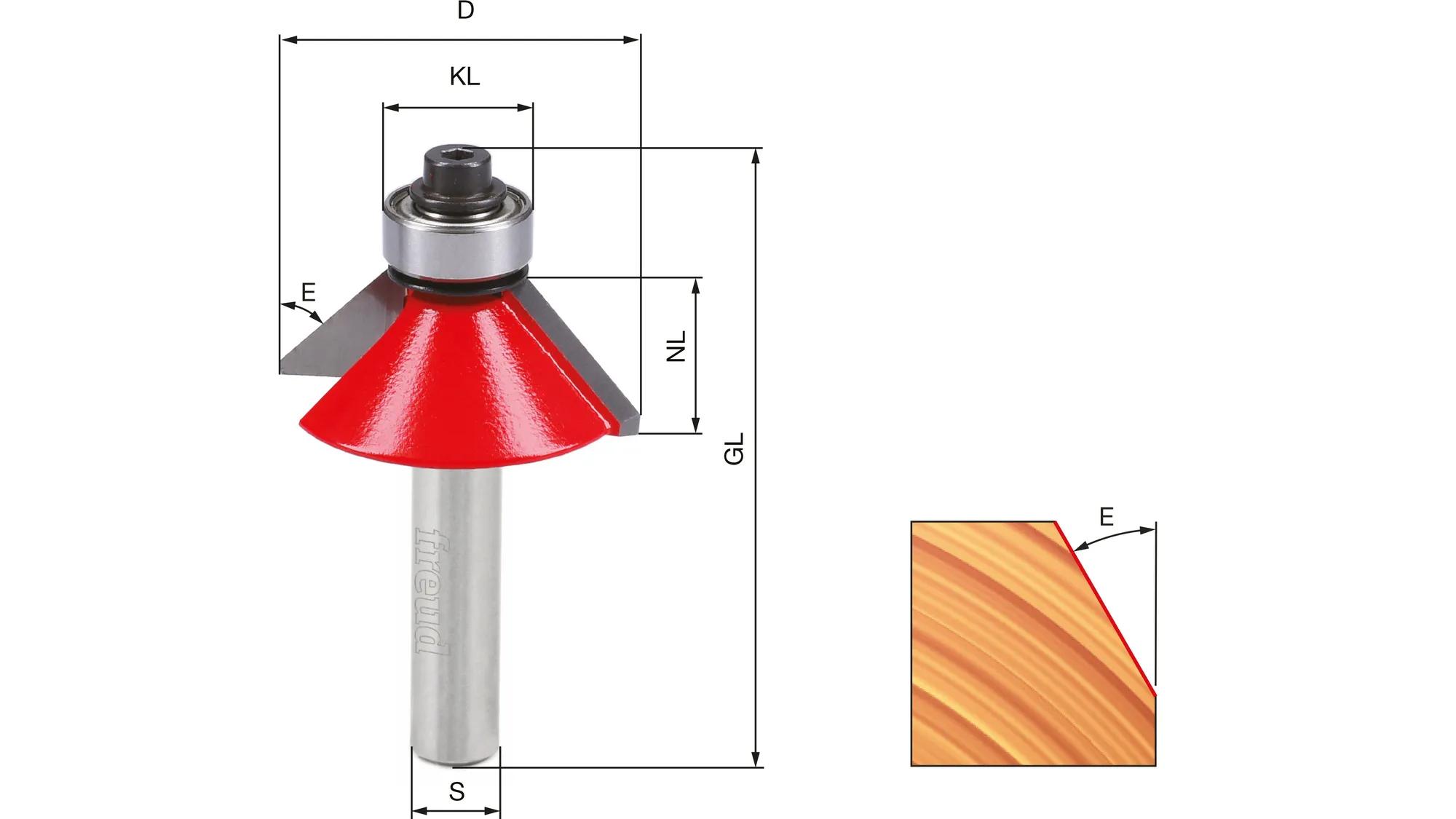

Technical Data

Diameter (D mm): 33Cutting Length (h mm): 11,5Overall Length (H mm): 54Shank (A mm): 8R1 Radius: -R2 Radius: -R3 Radius: -Bearing (C mm): 12.7 Teeth: 2Angle (°): 45°Max RPM 1/min: 16000

Properties & Advantages

Applications:
Easing edges, chamfer bits create a uniform
chamfer on the edge of any workpiece.Machines:
Hand-held routers, table routers and CNC
machines.
Bits with ball bearing are not recommended to
be used on CNC machines.Materials:
Softwood, hardwood, plywood and wood
based panels.Bit Material - TiCo Carbide
A specially formulated, highly compact Titanium Cobalt Carbide, engineered and manufactured by Freud.
It provides a sharper edge and a flawless finish with a dramatically longer cutting life.Perma-SHIELD Coating
A non-stick coating formulation that withstands the toughest applications.
It provides thermal insulation, protects from corrosion and eliminates resin build-up, reducing downtime for cleaning.

Chamfer Bit D: 33mm R:11,5mm

Chamfer bit | bearing | D33 | H54 | h11.5 | A8

Freud Chamfer Bit D: 33mm R:11,5mm

Chamfer bit / bearing, D33, H54, h11.5, A8
