Chamfer Routing Cutter without ball bearing D 22.2 mm

fasefraeser-ohne-kugellager-d222-klein-kle-c107-222-r-01

fasefraeser-ohne-kugellager-d222-klein-kle-c107-222-r-02

fasefraeser-ohne-kugellager-d222-klein-kle-c107-222-r-03

Chamfer Routing Cutter without ball bearing D 22.2 mm

Name: sauter GmbH
Address: Arzbergerstraße 4, Herrsching a.Ammersee, Germany, Bayern, 82211, Deutschland
Telephone: +49 8152 92898-88

E: 23°| D: 22.2 mm | B: 10 mm | L: 38 mm

Shipping within 24 hours (working days)

25,82 €

21,96 €

incl. VAT / excl. shipping costs

Brand:Klein
Article no.:KLE-C107-222-R
Weight:0.018kg

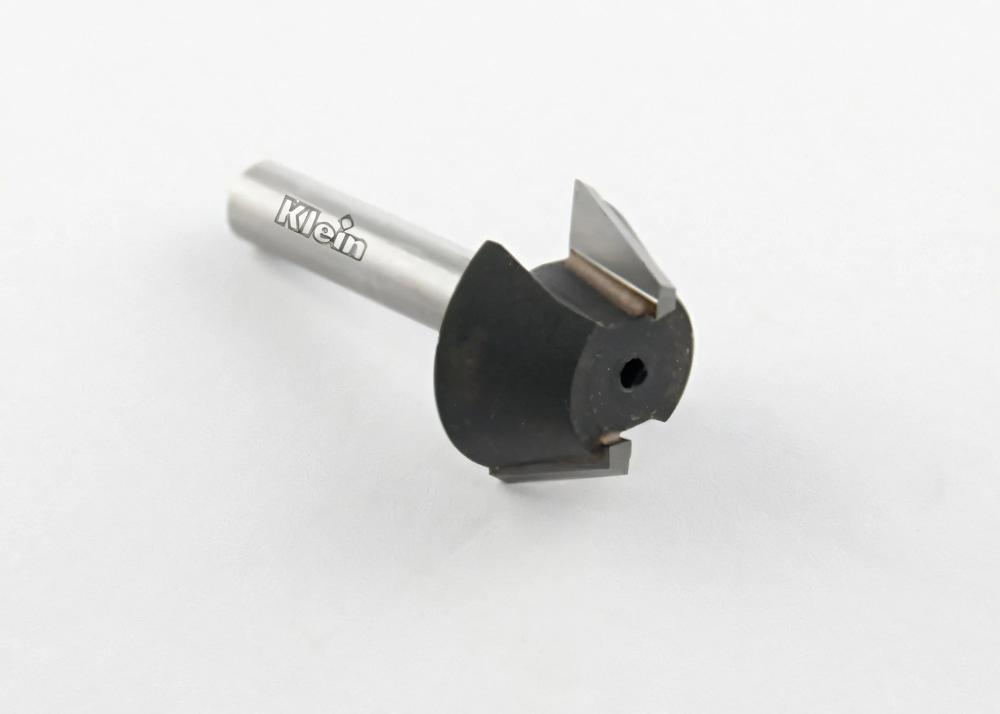

Chamfer Routing Cutter HW (HM) without ball bearing Z2

It Fase-Trimming Router Cuttercan perform two tasks at once. Chamfering and flush Routing. The milling cutter has a cutting edge at the bottom and is therefore suitable for boring.

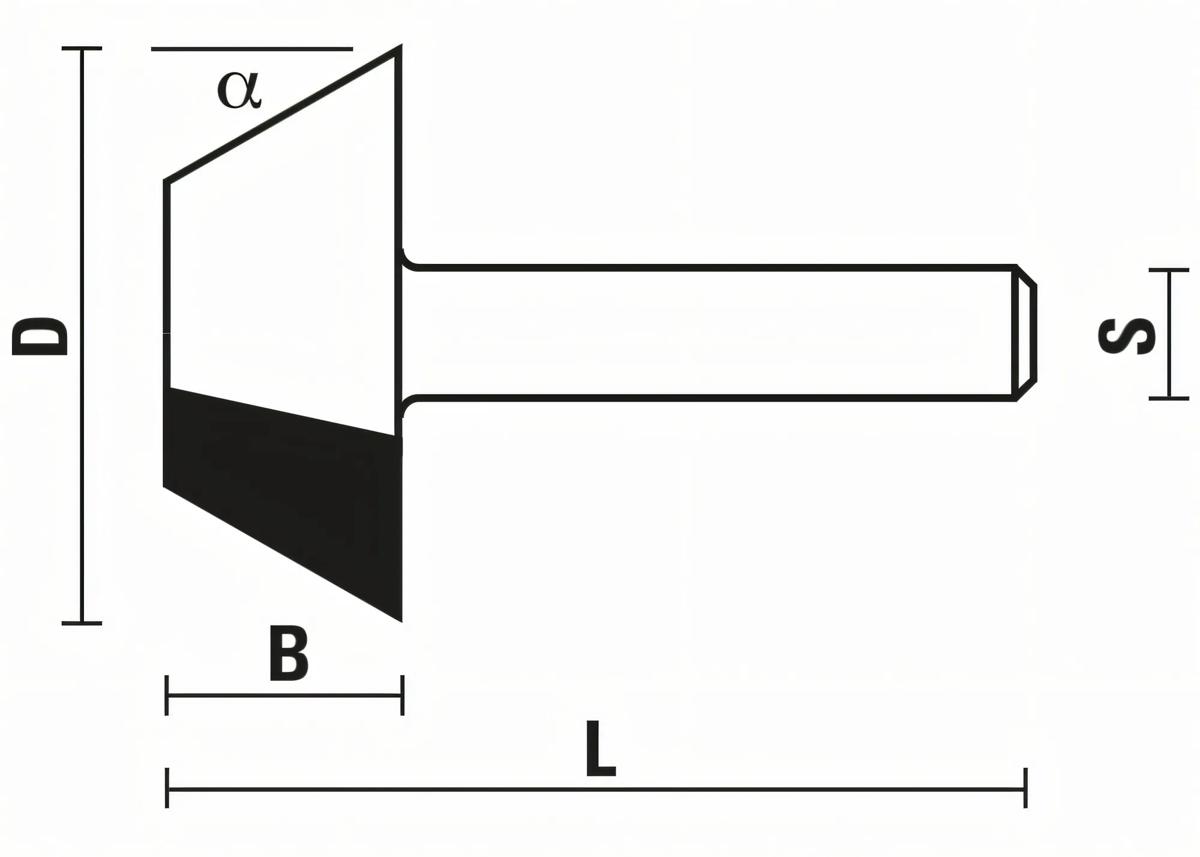

Technical Data

D: 22.2 mm
E (a): 23°
B: 10 mm
L: 38 mm
S: 8 mm

Properties & Advantages

For hard and soft woods
For plastics (acrylic, polypropylene and polycarbonate)
For laminates (HPL, Trespa...)
For veneered board materials (chipboard, fibreboard, plywood)
