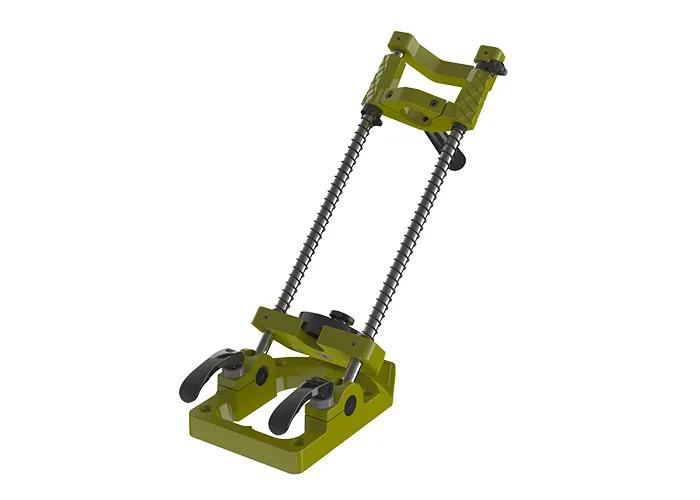

Drill stand pivotup to drilling depth 160 mm

Name: sauter GmbH
Address: Arzbergerstraße 4, Herrsching a.Ammersee, Germany, Bayern, 82211, Deutschland
Telephone: +49 8152 92898-88

without clamping device | including drill guide | drill length: 320 mm | Drilling depth: 160 mm | GL: ~490 mm

Delivery time 2-3 days

344,03 €

incl. VAT / excl. shipping costs

With additional handle, 2 infinitely adjustable depth stops, 2 stainless steel coil springs for the return stroke of the machine, adjustable drill bush plate for exact drill guidance and additional stabilizer at the end of the guide columns
Machine mount, stabilizer and base made of cast aluminium. Springs and guide columns of stainless steel
For drills with 43 mm Euro-neck. For drill bits Ø 8, 10, 12, 14, 16, 18, 20, 22, 24, 26 mm

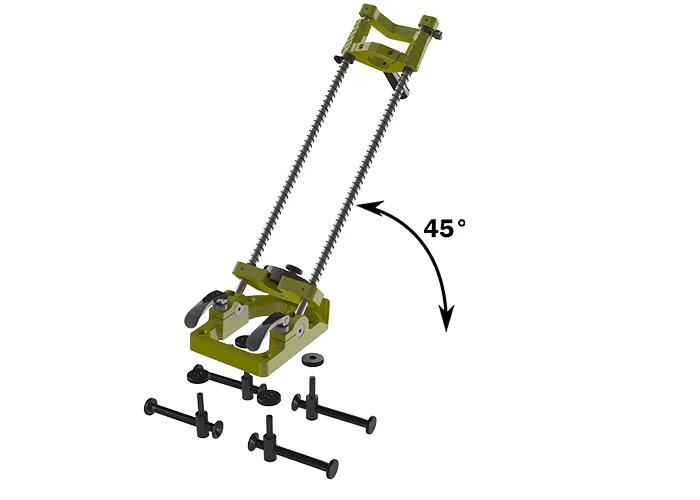

Exactly positioned drilling in exactly 90° to 45° stepless pivotangle of attack.
Two clamping levers for optimal locking of the desired angle of attack
With additional guidance of the drills by rotatable drill bush plate
Mountable on all FAMAG drill rigs with square base
Easy return stroke of the machine due to spiral springs
