Forstner Bits
The Forstner bit is a helpful wood drill for large holes. Unlike the twist drill, a Forstner bit has a short tip and no drill thread. With the aid of the centring point, the drill can be easily fixed in place when attaching.
The Forstner bit is used in woodworking mainly for making blind holes. For example, a knothole can be drilled precisely. Therefore, the Forstner bit is also colloquially called a knothole drill bit. Holes for top hinges in furniture are also made with that wood drill.
Read more
in Systainer | 11-piece | Limited Edition 160
Item no.: FA-162281100Delivery in 1-2 business days
for counterbores with drill-Ø: 40 - 90 mm
Item no.: FA-161910000Delivery in 1-2 business days
AØ: 90 mm | NL: 150 mm | GL: 330 mm
Item no.: FA-140521000Delivery in 1-2 business days
Infinitely adjustable | 1 blade for Ø 30 - 45 mm | 1 blade for Ø 45 - 60 mm
Item no.: KLE-R110-600-RDelivery in 1-2 business days
Infinitely adjustable | 1 blade for Ø 60 - 80 mm
Item no.: KLE-R110-800-RDelivery in 1-2 business days
in a wooden box | Drill bit Ø: 40, 50, 60 mm
Item no.: FA-162253000Delivery in 1-2 business days
AØ: 10 mm | SØ: 8 mm | NL: 57 mm | GL: 90 mm
Item no.: FA-163001000Delivery in 1-2 business days
AØ: 3,8 mm | SØ: 8 mm | for Ø: 20 - 40 mm
Item no.: FA-161920800Delivery in 1-2 business days
AØ: 20 mm | SØ: 13 mm | IØ: 8 mm | NL: 90 mm | GL:- 140 mm
Item no.: FA-161402000Delivery in 1-2 business days
AØ: 15 mm | SØ: 8 mm | NL: 57 mm | GL: 90 mm
Item no.: FA-166301500Delivery in 1-2 business days
in a wooden box | Drill bit Ø: 35, 40, 45, 50 mm
Item no.: FA-166350400Delivery in 1-2 business days
Incl. pilot drill and center point | AØ: 15 mm | SØ: 10 mm | NL: 57 mm | GL: 90 mm
Item no.: FA-162401500Delivery in 1-2 business days
AØ: 10 mm | SØ: 8 mm | NL: 57 mm | GL: 90 mm
Item no.: FA-162201000Delivery in 1-2 business days
in a wooden box | Drill bit Ø: 15, 20, 25, 30, 35 mm
Item no.: FA-166350500Delivery in 1-2 business days
AØ: 10 mm | SØ: 13 mm | NL: 70 mm | GL: 120 mm | long
Item no.: FA-162301000Delivery in 1-2 business days
AØ: 8 mm | SØ: 8 mm | NL: 50 mm | GL: 75 mm | for Countersinks Ø: 20-40 mm
Item no.: FA-161900800Delivery in 1-2 business days
AØ: 11 mm | SØ: 8 mm | NL: 57 mm | GL: 90 mm
Item no.: FA-162201100Delivery in 1-2 business days
AØ: 12 mm | SØ: 8 mm | NL: 57 mm | GL: 90 mm
Item no.: FA-163001200Delivery in 1-2 business days
AØ: 14 mm | SØ: 8 mm | NL: 57 mm | GL: 90 mm
Item no.: FA-163001400Delivery in 1-2 business days
AØ: 15 mm | SØ: 8 mm | NL: 57 mm | GL: 90 mm
Item no.: FA-163001500Delivery in 1-2 business days
AØ: 16 mm | SØ: 8 mm | NL: 57 mm | GL: 90 mm
Item no.: FA-163001600Delivery in 1-2 business days
AØ: 18 mm | SØ: 8 mm | NL: 57 mm | GL: 90 mm
Item no.: FA-163001800Delivery in 1-2 business days
in a wooden box | Drill bit Ø: 15, 20, 25, 30, 35 mm
Item no.: FA-163050500Delivery in 1-2 business days
AØ: 12 mm | SØ: 8 mm | NL: 57 mm | GL: 90 mm
Item no.: FA-162201200Delivery in 1-2 business days
Forstner bits from Famag

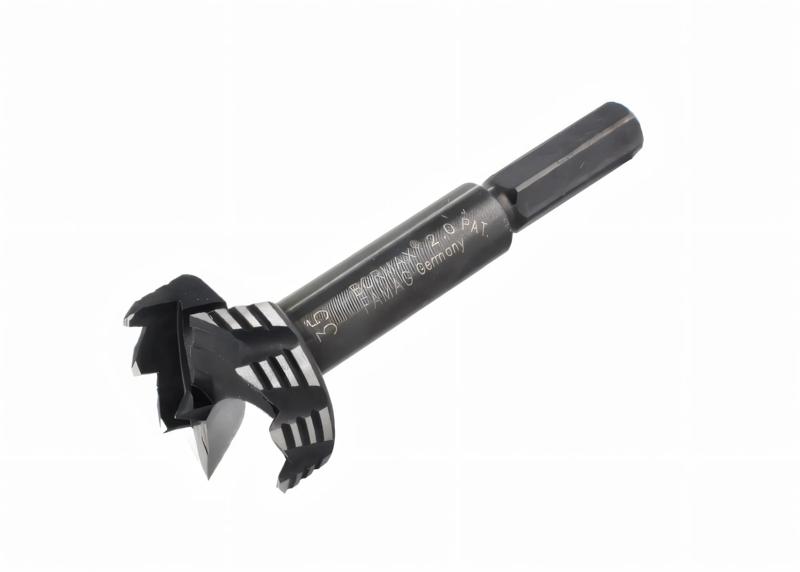

We offer a selection of excellent Forstner bits from Famag in premium quality. Among them you will find the Bormax Forstner bits. These drills are characterized by a low heat development and thus have a long service life with the highest drilling quality. Solid wood and chipboard can be chipped very quickly at lower feed rates than with conventional drills.
Pre-drilling is important
To avoid having to force the centering pin through the wood, pre-drilling should be carried out. Make sure that the correct diameter is used. It is helpful to use the tip of the Forstner bit as a guide.
The Forstner bit - named after its inventor, American Benjamin Forstner - is used in woodworking mainly for making flat bottomed holes. For example, a knot hole can be drilled out exactly and precisely. That is why the Forstner bit is also colloquially called knothole drill. In addition, it can also be used to make holes for concealed hinges in furniture.
" }, { "Frage": "For what types of material is a Forstner bit suitable?", "Antwort": "Forstner bits belong to the category- wood drills and are therefore suitable for wood and wood-based materials.
" }, { "Frage": "What must be considered when using a Forstner bit?", "Antwort": "Forstner drills are equipped with a centring point due to the diameter of the bit. It is important to make sure that this centre point is firmly held in the workpiece when the drill is applied. This is the only way to ensure that the drill does not slip during drilling and that a clean hole is produced.
" }, { "Frage": "Up to what diameter are Forstner bits available?", "Antwort": "Our assortment offers you a large selection of Fornstner bits. In our Classic range we offer bits up to Ø50 mm, Tool steel (WM) range up to Ø60 mm and in Tungsten-Carbide (HM) up to Ø60 mm.
" }, { "Frage": "What is the difference between a Forstner bit and a cylindrical bit?", "Antwort": "The cylindrical drill is a variation of the Forstner bit. While the Forstner drill usually consists of a centre point, two main cutting edges and two closed circumferential cutting edges, the cylindrical drill is equipped with two open circumferential cutting edges. In general, the Forstner bit is ideal for free-hand applications and the cylindrical drill is ideal for working with a stationary device, such as a drill stand.
" }, { "Frage": "When should I use a Forstner bit with tool steel (WS) and when with tungsten-carbide cutting edges (HM)?", "Antwort": "Drill bits with tungsten-carbide cutting edges generally have a longer service life and are particularly suitable for hard woods. Tthey are also ideal for wood-based materials such as MDF and chipboard.
Fornstner drills made of tool steel are ideal for drilling in soft woods.
" } ]
