Powerful. Versatile. With 4 gears for every application. With the best gear concept you have ever used. Whether in wood, metal or, thanks to the switchable axial impact, in masonry: the TPC is extremely tough and, with its brushless EC-TEC motor, has enormous load capacity and endurance. Numerous attachments, combined with perfectly matched accessories, make the QUADRIVE an unsurpassed impact drill for a wide range of applications. And dangerous twisting of the wrist when the insert tool suddenly jams? Our intelligent KickbackStop minimises the risk of that happening. Try it out: the best impact drill Festool has ever built!
Voltage: 18 V | Capacity: 5.0 Ah | NOT FOR SALE OUTSIDE EUROPE
Not available at the moment
Art.-Nr: F-577660
4 Products
Technical Data
Battery voltage: 18 V
Gears: 4
Idling speed 1st/2nd gear: 0 - 500/0 - 800 rpm
Idle speed 3rd/4th gear: 0 - 2,350/0 - 3,600 rpm
Max. Impact speed 5,760 rpm
Drill diameter wood/steel: 70/13 mm
Drill diameter masonry (brick): 10 mm
Torque adjustment 1st/2nd gear: 2 - 20/2 - 20 Nm
Max. Torque wood/steel: 50/75 Nm
Drill chuck clamping range: 1.5 - 13 mm
Battery capacity: 4/5 Ah
Technology: Bluetooth
Weight: 1,3 kg
Drive type: Battery
Properties & Advantages
Powerful for screwing and drilling work with large diameters, fast for clean work progress with smaller diameters.
Maximum power: thanks to extremely powerful, brushless and therefore long-lasting EC-TEC motor.
Robust: indestructible 4-speed metal gearbox, additionally covered by the comprehensive Festool Service.
For even more application versatility: switchable axial impact for drilling in masonry.

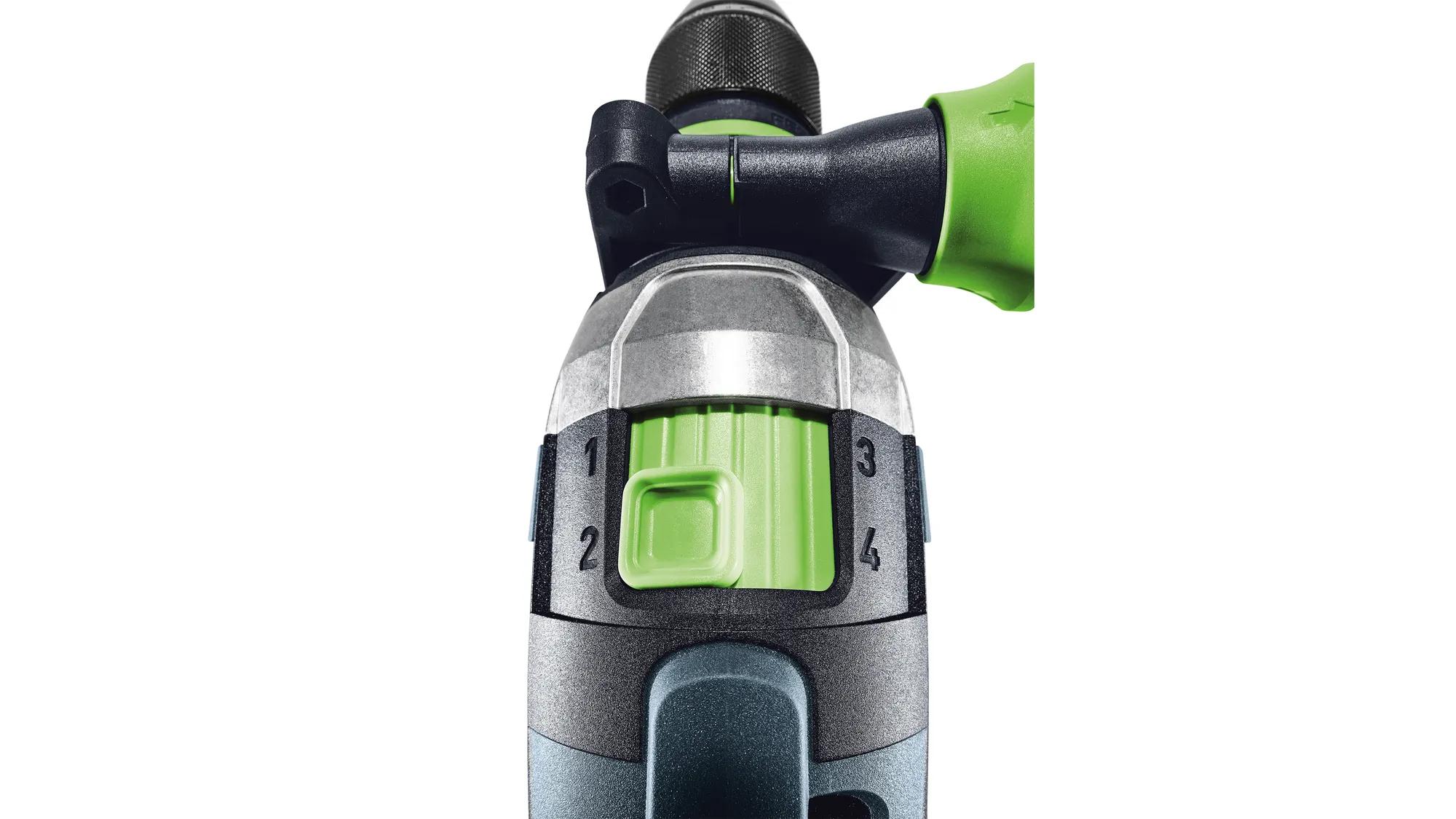

The QUADRIVE with 4 gears for every work situation: from screwing with 50 Nm torque in 1st gear to precise drilling with 3,600 rpm in 4th gear.

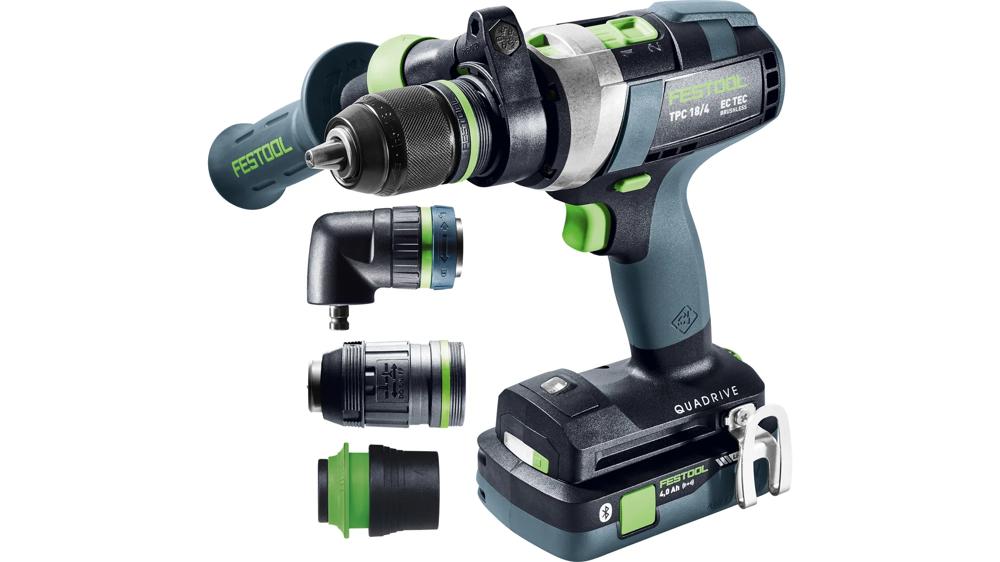

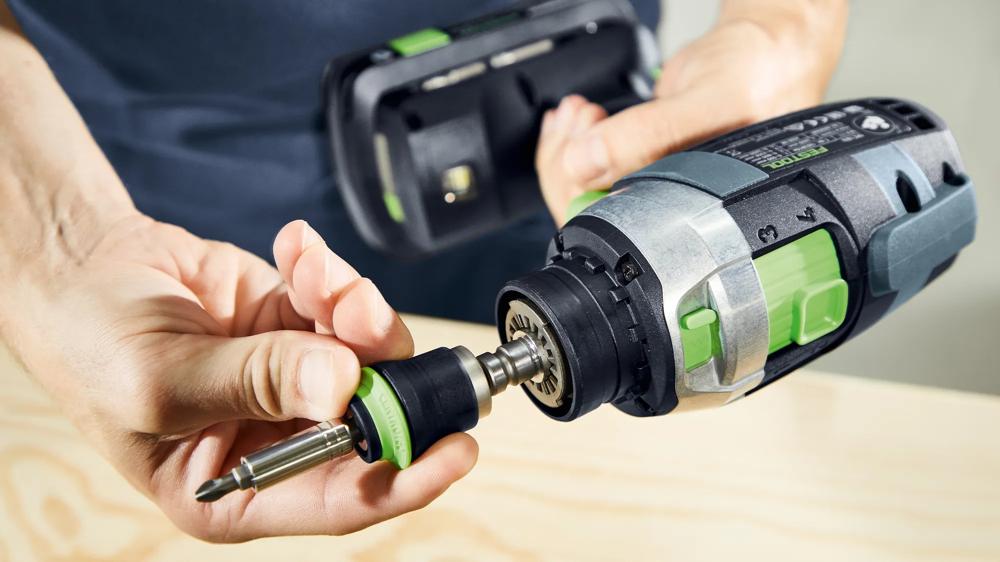

Versatile: thanks to the FastFix interface, quick and tool-free conversion to drilling, screwing, angle drilling and angle screwing.
The depth stop and eccentric attachment also enable depth-limited and near-edge screwing.
Flexible battery system: For applications with high power requirements, the 4.0 Ah Li-HighPower Compact battery pack provides the ideal combination of power, compactness and lightness. For even more power, the 5.0 Ah battery pack is the right choice for particularly heavy drilling and screwing applications. All-round protection: it goes without saying that the comprehensive Festool service also applies to the battery pack.
Convenient: optimum illumination of the working area thanks to switchable LED lighting - can also be controlled via the Work App.

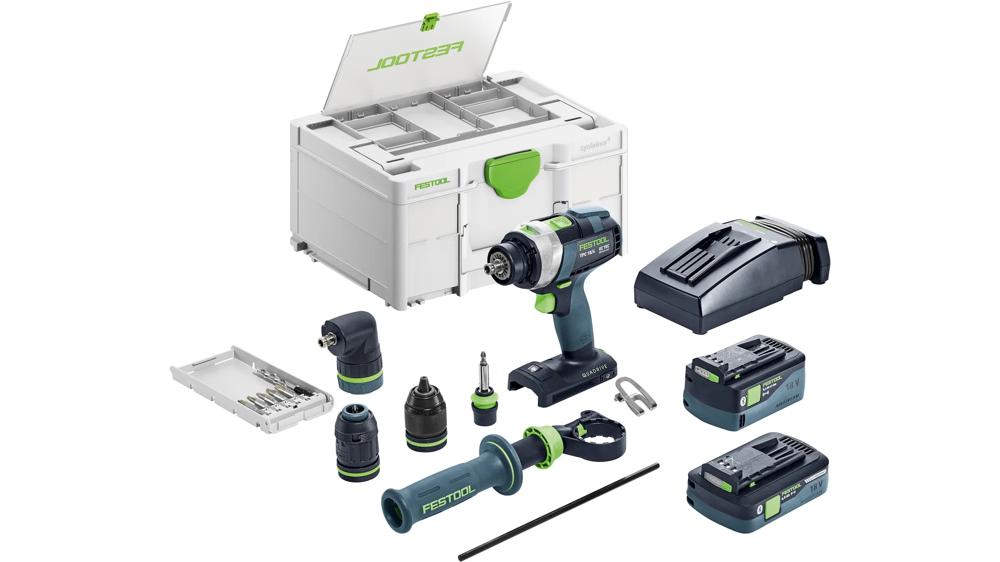

The high-quality BKS SYS3 D6 PZ TX 50 CE bit cassette is already included in the scope of delivery: Bit PZ 2 50 mm CE, Bit TX 20 50 mm CE, Bit TX 25 50 mm CE, Bit TX 30 50 mm CE, Bit TX 40 50 mm CE, Metal drill D6 HSS CE.
Mobile: The QUADRIVE comes in a lid compartment systainer - and can be perfectly integrated into bott vehicle equipment for easy transport from the workshop to the construction site.
For creating wooden substructures, frame constructions.
Suitable for assembling doors and windows.
Suitable for drilling and screwing work in wood, metal and plastic.
For screwing into wood up to 10x300 mm.
Suitable for drilling in wood up to 70 mm with Forstner bits.
Suitable for percussion drilling in brick or masonry.
