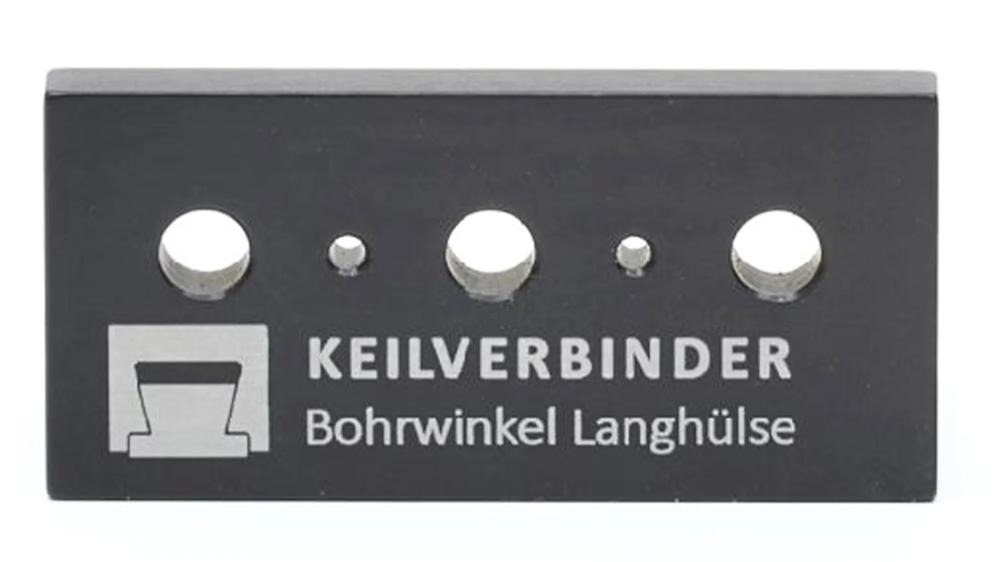

Keilverbinder Long Dovetail Connector Drilling Template -12mm

Keilverbinder Long Dovetail Connector Drilling Template

The drilling template from Keilverbinder

Enables precise drilling for each of the three variants of Keilverbinder long sleeves - for workpiece thickness 12 mm.

Similar products

bohrschablone-keilverbinder-keilverbinder-kv-b-002-15-01

Keilverbinder Long Dovetail Connector Drilling Template -15mm

Material thickness 15 mm | Precise positioning, marking and drilling | Sturdy aluminium | For all 3 variants

Shipping within 24 hours (working days)

24,90 €

incl. VAT

Art.-Nr: KV-B-002-15

bohrschablone-keilverbinder-keilverbinder-kv-b-002-19-01

Keilverbinder Long Dovetail Connector Drilling Template -19mm

Material thickness 19 mm | Precise positioning, marking and drilling | Sturdy aluminium | For all 3 variants

Shipping within 24 hours (working days)

24,90 €

incl. VAT

Art.-Nr: KV-B-002-19

2 Products

Technical Data

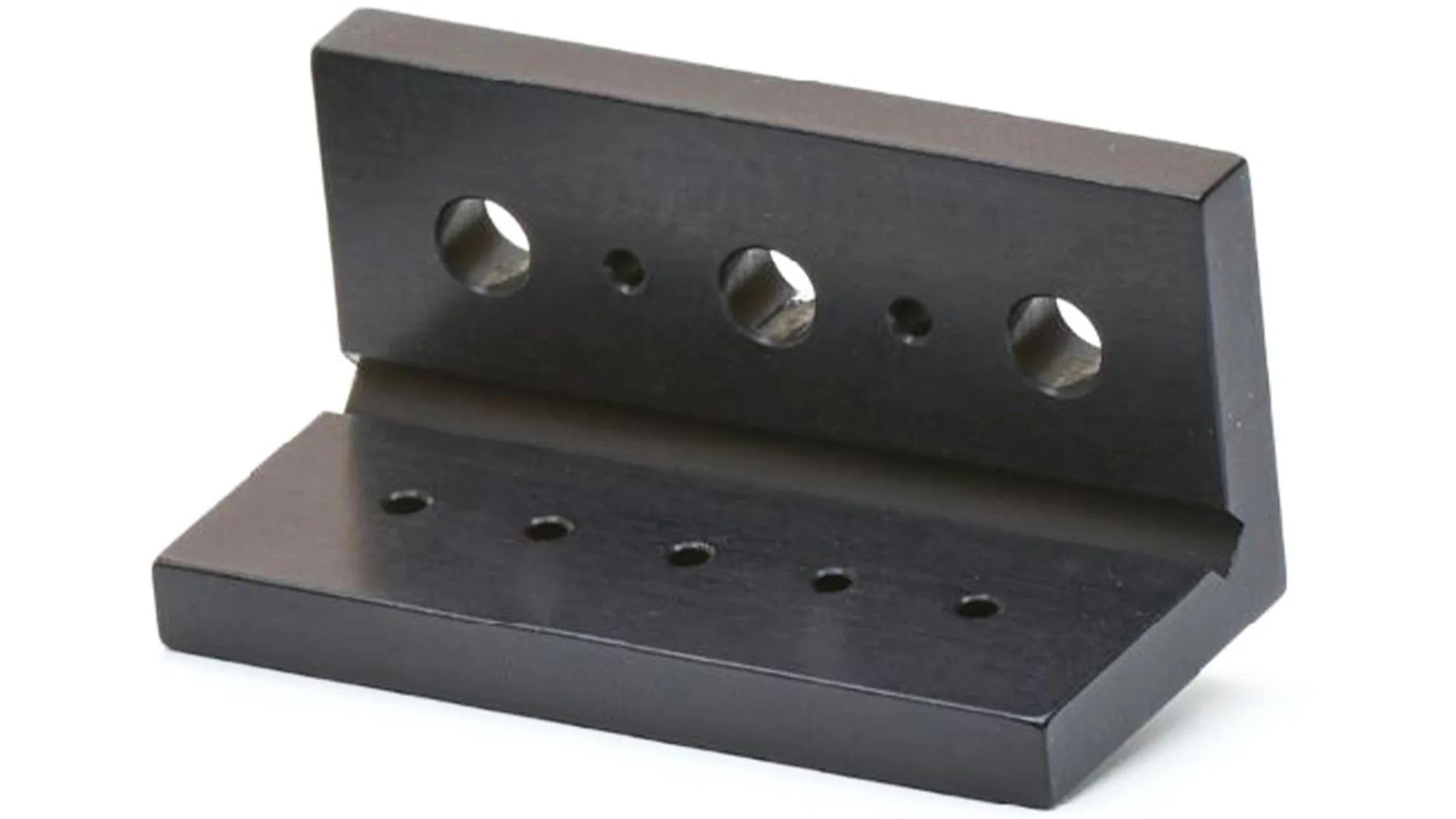

Dimensions (L x W x H): 50 x 17 x 17 mm
Metal thickness: 5 mm
Drill holes: 5x 2 mm | 5 - 2 - 5 - 2 - 5 mm
Workpiece thickness: 12 mm.

bohrschablone-keilverbinder-keilverbinder-kv-b-002-12-02

Properties & Advantages

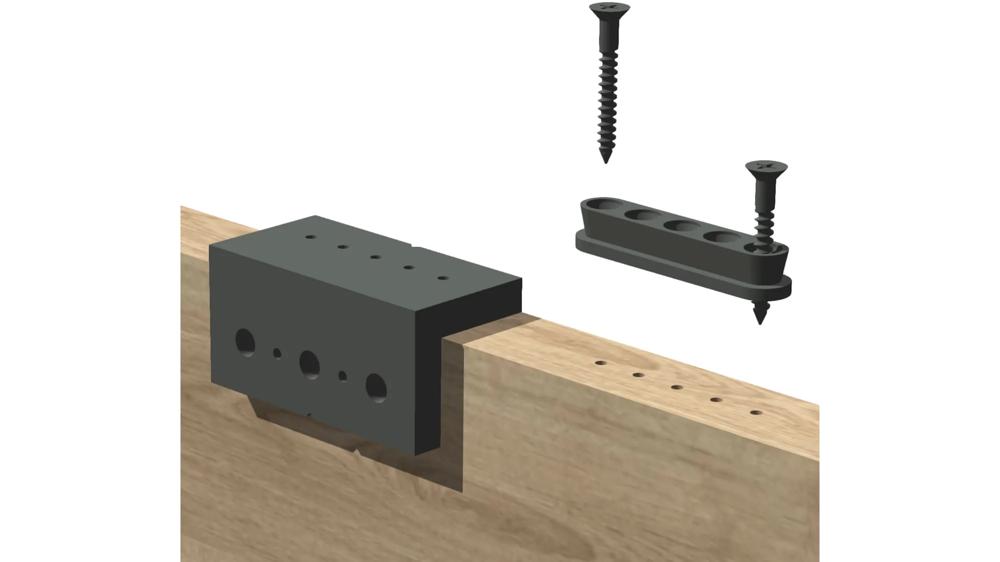

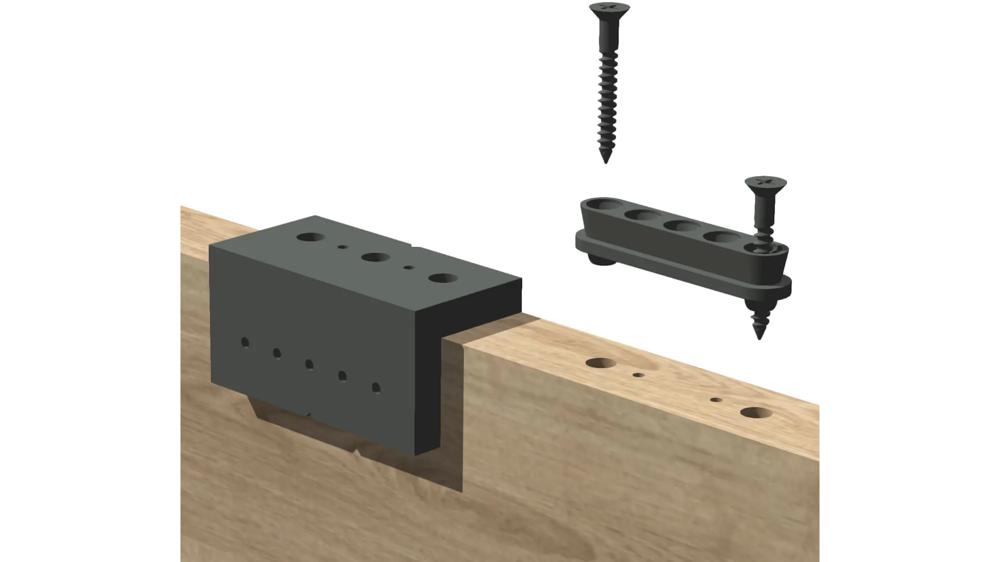

Precise and convenient positioning and drilling.
Thanks to the two grid holes, the template works for all 3 variants of long sleeves.
2 mm holes for screw fastening, 5 mm holes for centring pins.
A durable companion thanks to 5mm material thickness and high-quality aluminium.
Simple design and great benefits: Economical and convenient.
Made in Germany.
