Lamello Bisco P-10, 80 pieces

Bisco P-10, 80 pieces

Shipping within 24 hours (working days)

27,04 €

incl. VAT / excl. shipping costs

Brand:Lamello
Article no.:LA-145304
Weight:0.5kg

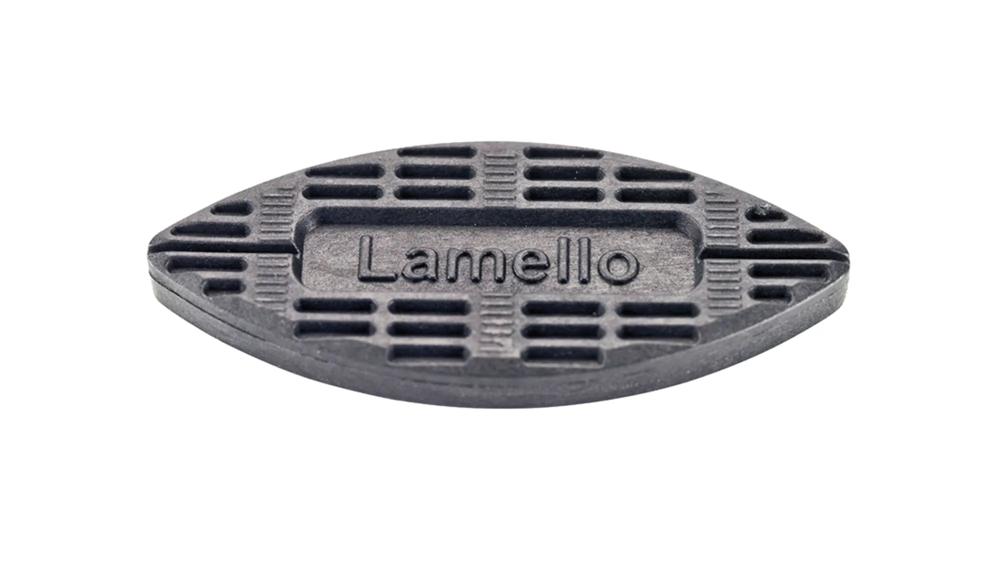

Lamello Bisco P-10, 80 pieces

Aligning element, suitable for the P-System groove

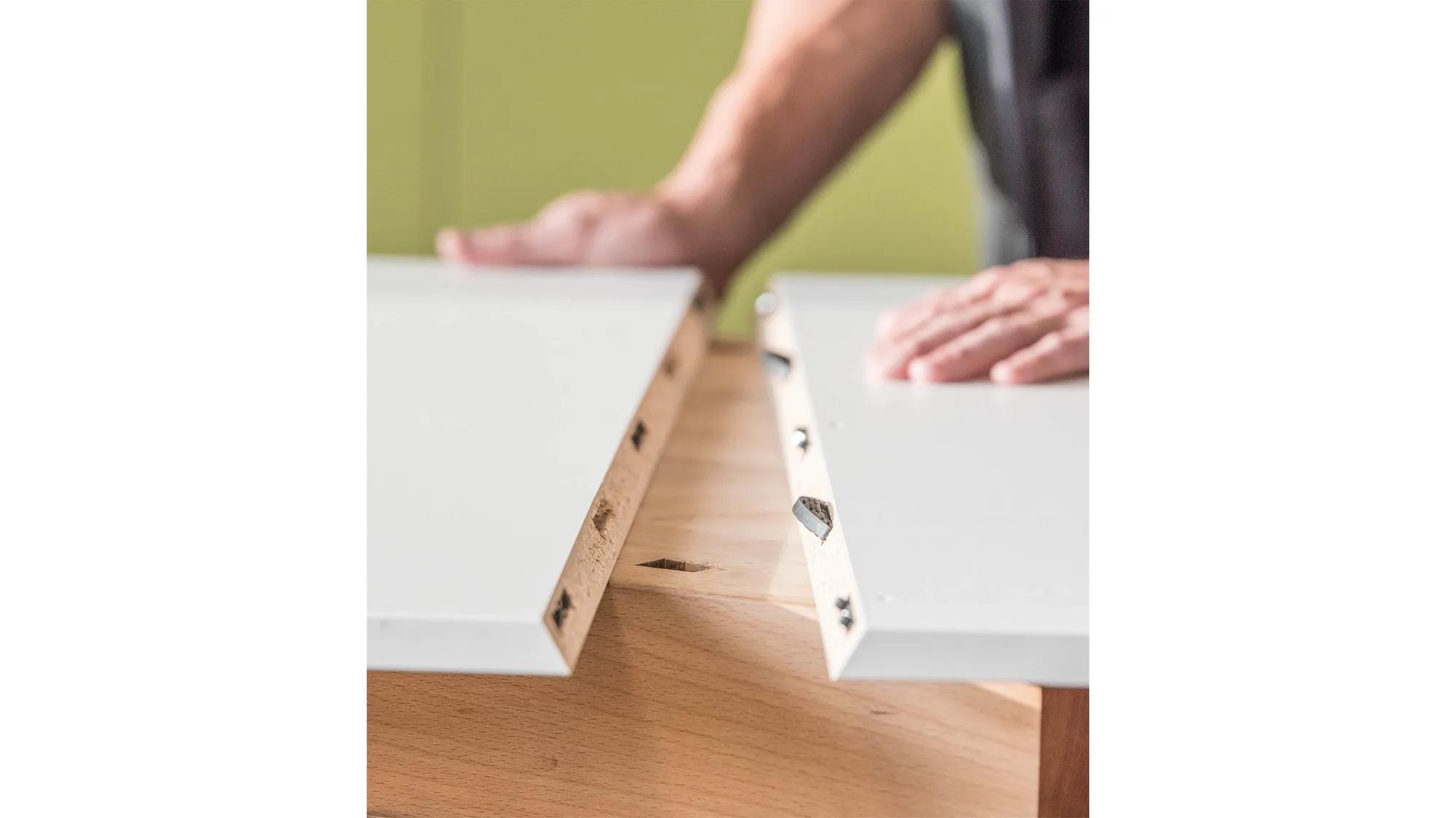

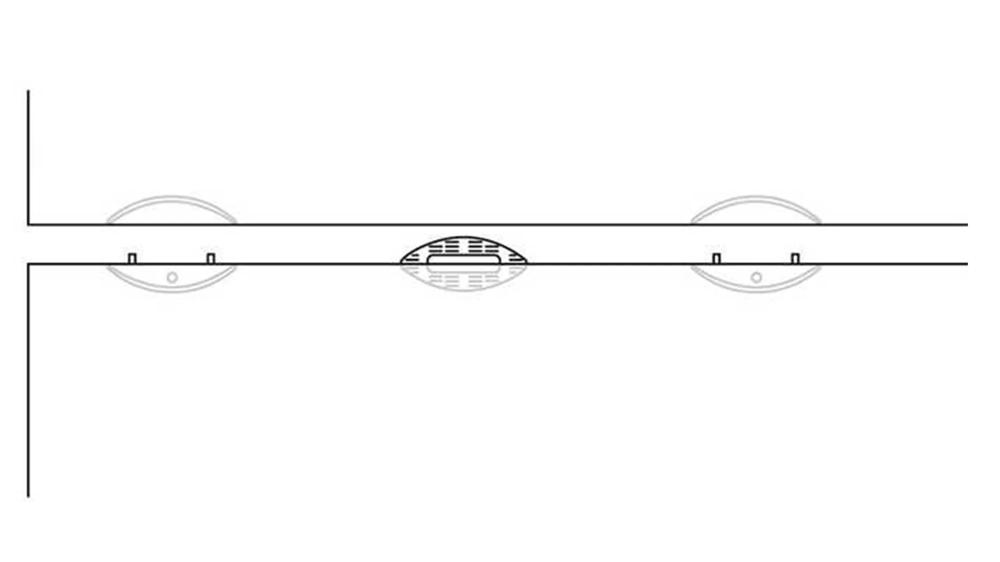

Bisco P is a plastic biscuit which fits into the 7 mm P-System groove and is held in the groove due to its surface structure. Bisco P is used in combination with Clamex or Tenso as a cost-effective alignment element and ensures flushness of the joint. The Bisco can also be used as a dry joint as a test before the work piece is permanently joined with Tenso P and adhesive. Bisco P-14 is used in combination with Clamex P-14 or Tenso P-14; and Bisco P-10 with the same connectors in size P-10.

Technical Data

Installation tolerance longitudinal - ± 2
Installation tolerance radial - ± 0
Minimum material thickness for surface cuts - 9
Minimum material thickness for edge cuts - 12
Minimum material thickness for centre panel - 17
Minimum material thickness for angle bisector - 15
Minimum workpiece width - 65
Self-clamping - No
Invisible - Yes
Detachable - No

Properties & Advantages

Flush alignment
Alternating application
Versatile
Lateral tolerance
Shallow depth
