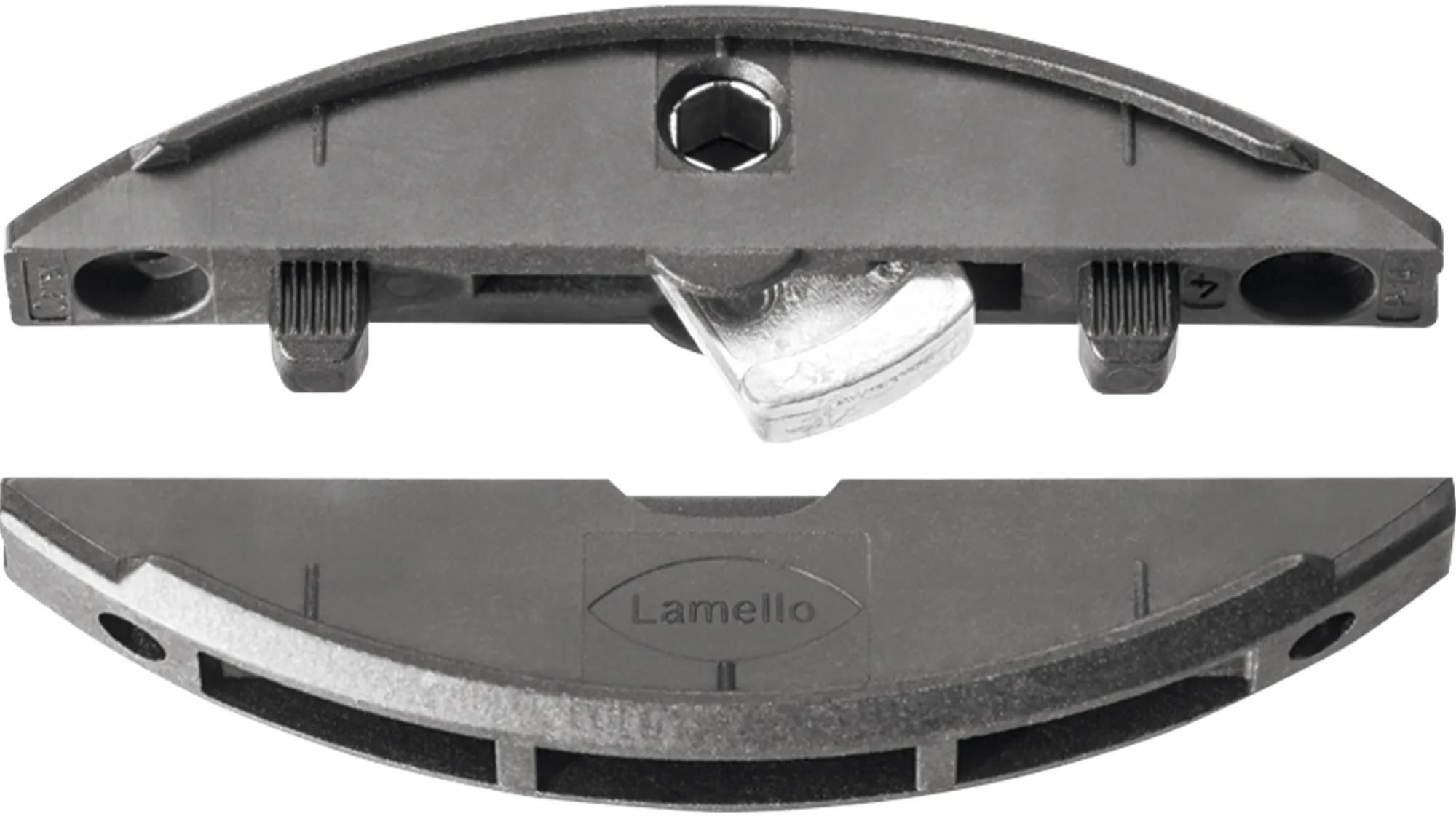

Clamex P-14 is a detachable connector and isanchored in the form-locking P-System groovewithin seconds.Through the minimalist 6 mm access hole,Clamex P-14 is firmly connected and disconnectedusing a lever.Clamex P-14 eliminates the need for glue,allows aesthetic joints at all angles and is idealfor permanently joined or detachable mitres.Clamex P-14 is used on mitre joints from18 mm material thickness and in butt jointsfrom 15 mm.
Technical Data
Installation tolerance longitudinal - ± 1
Installation tolerance radial - ± 1
Minimum material thickness for surface cuts - 15
Minimum material thickness for edge cuts - 12
Minimum material thickness for centre panel - 29
Minimum material thickness for angle bisector - 18
