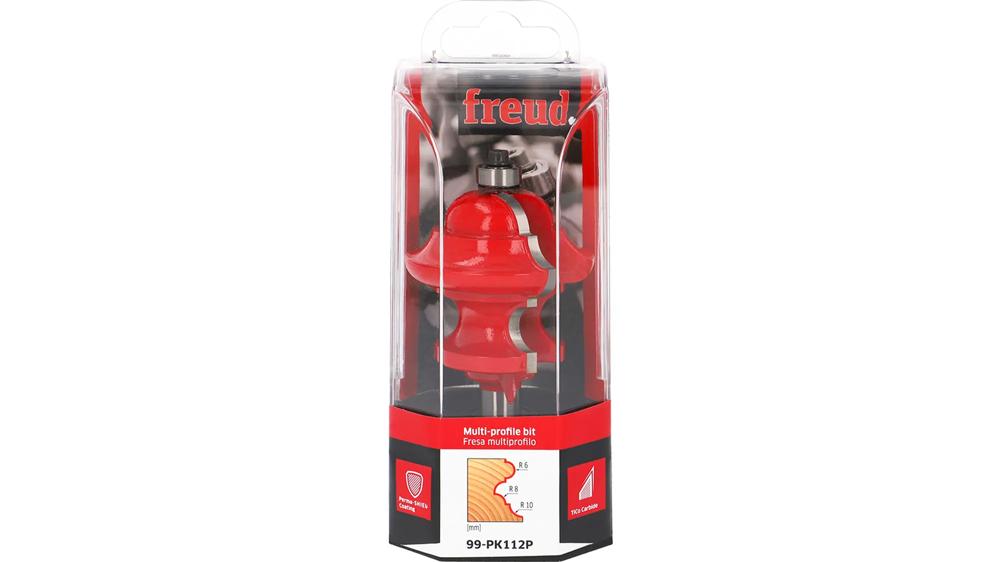

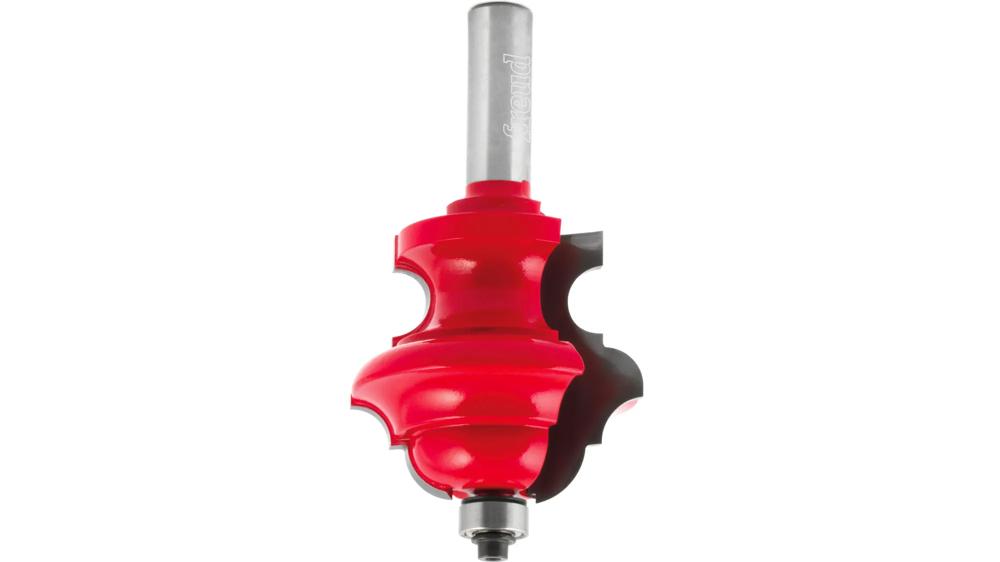

Multi-profile bit / bearing, D54.7, H102, h49, A12

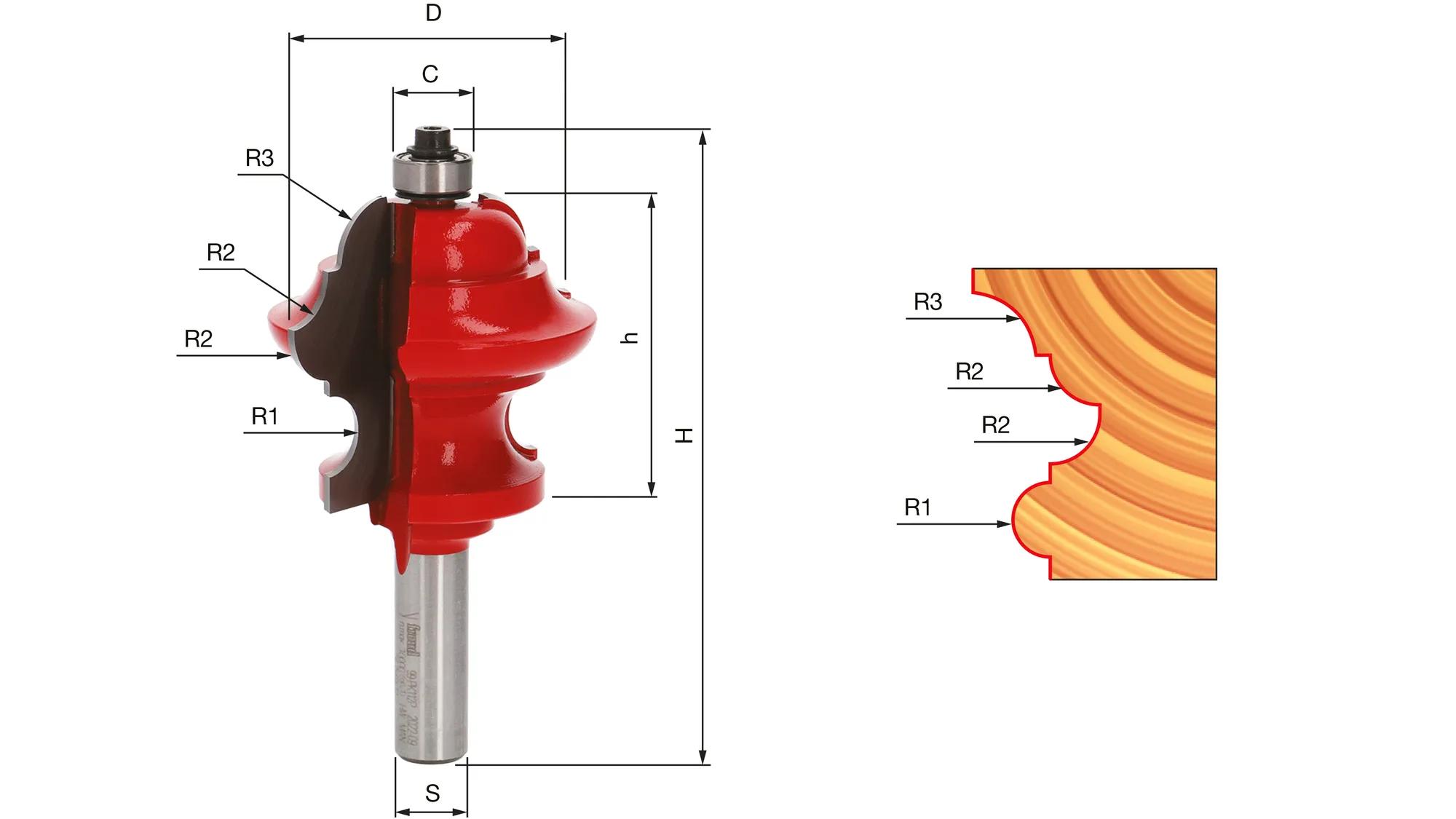

Technical Data
Diameter (D mm): 54,7
Cutting Length (h mm): 49
Overall Length (H mm): 102
Shank (A mm): 12
R1 Radius: 6
R2 Radius: 8
R3 Radius: 1-
Bearing (C mm): 12.7
Teeth: 2
Angle (°): -
Max RPM 1/min: 10000
Properties & Advantages
Applications: Produce an endless number of profile designs by varying the height and fence settings and making multiple passes.
Machines: Table routers.
Materials: Softwood, hardwood, plywood and wood based panels.
Bit Material - TiCo Carbide A specially formulated, highly compact Titanium Cobalt Carbide, engineered and manufactured by Freud. It provides a sharper edge and a flawless finish with a dramatically longer cutting life.
Perma-SHIELD Coating A non-stick coating formulation that withstands the toughest applications. It provides thermal insulation, protects from corrosion and eliminates resin build-up, reducing downtime for cleaning.
