Rabbeting Bit D:34,92mm R:12,7mm

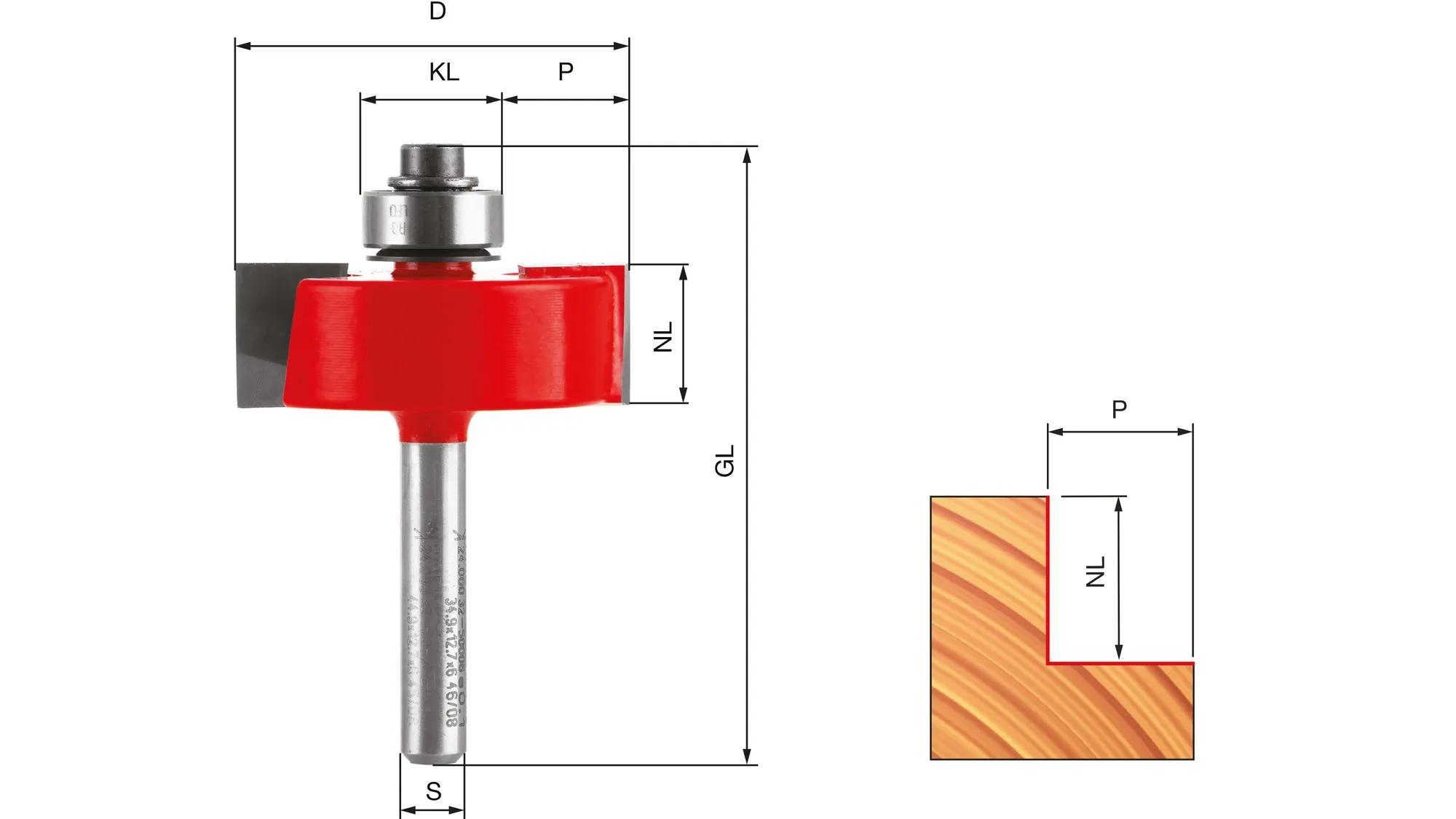

D: 35 mm | NL: 12,7 mm | Rebate depth T: 11 mm | GL: 54,7 mm | S: 8 mm | Z: 2

Not available at the moment

33,20 €

incl. VAT / excl. shipping costs

Brand:Freud
Article no.:FR-32-50008P
Weight:0.11kg

Freud Rabbeting Bit D: 34,92mm R:12,7mm

Rabbeting bit / bearing, D34.92, H54.7, h12.7, A8

Technical Data

Diameter (D mm): 34,92
Cutting Length (h mm): 12,7
Overall Length (H mm): 54,7
Shank (A mm): 8
Bearing (C mm): 12.7
Cut (P mm): 11.1
Teeth: 2
Angle (°): -
Max RPM 1/min: 16000

Properties & Advantages

Applications:
Use to make strong lap joints, cut recesses to let in the back panels of cabinets or create an interesting detail on built-up moulding.

Machines:
Hand-held routers and table routers.

Materials:
Softwood, hardwood, plywood and wood based panels.

Bit Material - TiCo Carbide
A specially formulated, highly compact Titanium Cobalt Carbide, engineered and manufactured by Freud.
It provides a sharper edge and a flawless finish with a dramatically longer cutting life.

Perma-SHIELD Coating
A non-stick coating formulation that withstands the toughest applications.
It provides thermal insulation, protects from corrosion and eliminates resin build-up, reducing downtime for cleaning.

Rabbeting Bit D:34,92mm R:12,7mm

D: 35 mm | NL: 12,7 mm | Rebate depth T: 11 mm | GL: 54,7 mm | S: 8 mm | Z: 2

Freud Rabbeting Bit D: 34,92mm R:12,7mm

Rabbeting bit / bearing, D34.92, H54.7, h12.7, A8
