Routing
Router Bits
"The Red Routers" by Freud
Freud rebate cutters
Rabbeting Bit with a set of 4 ball bearings D:35mm

falzfraeser-4teilig-kugellagersatz-d35-freud-fr-32-50208p-01

falzfraeser-4teilig-kugellagersatz-d35-freud-fr-32-50208p-02

falzfraeser-4teilig-kugellagersatz-d35-freud-fr-32-50208p-03

Rabbeting Bit with a set of 4 ball bearings D:35mm

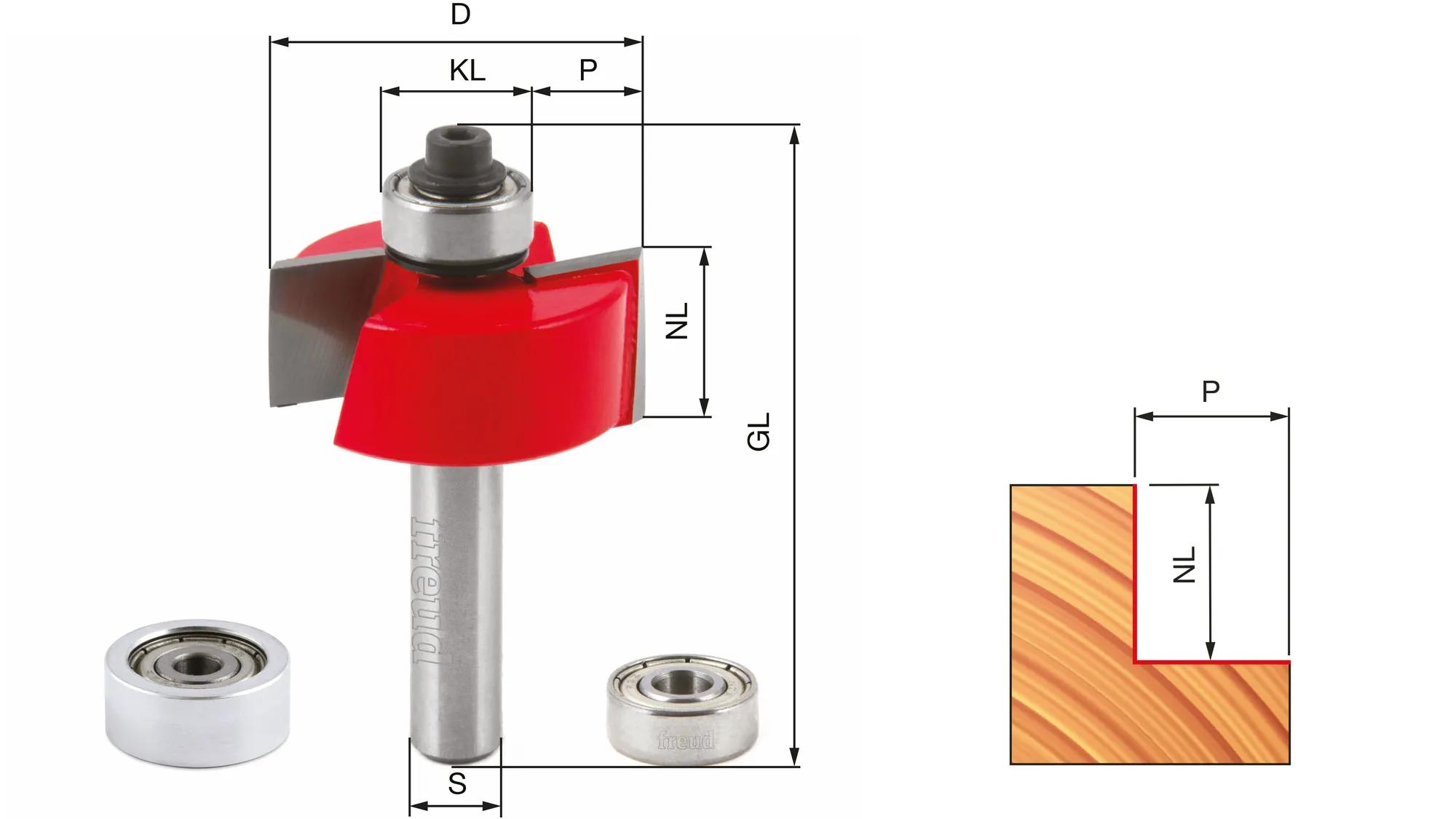

D: 35 mm | NL: 12,7 mm | Rebate depths T: 7,9 | 9,5 | 11,1 | 12,7 mm | GL: 54,4 mm | S: 8 mm

Not available at the moment

54,50 €

incl. VAT / excl. shipping costs

Brand:Freud
Article no.:FR-32-50208P
Weight:0.11kg

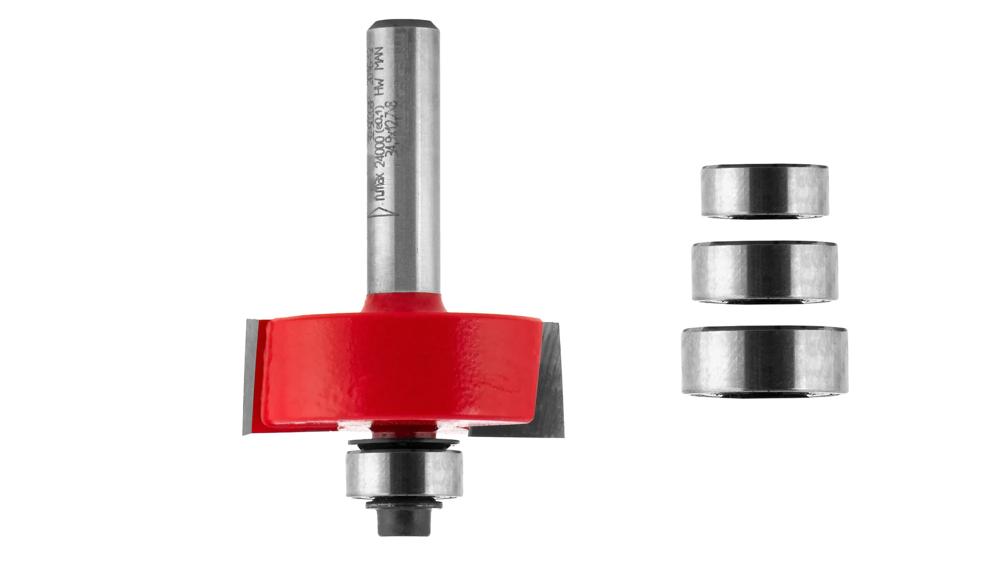

Freud Rabbeting Bit with a set of 4 ball bearings D: 35mm

Rabbeting bit / bearing, D35, H54.4, h12.7, A8

Alternative

Rebate Cutter D 34,9 mm

D: 34,9 mm l Rebate depths: 7,9 | 9,5 | 11,1 | 12,7 mm | NL: 12,7 mm l SL: 32 mm

Delivery time 2-3 days

69,95 €

incl. VAT

Art.-Nr: E-16690

1 Products

Technical Data

Diameter (D mm): 35
Cutting Length (h mm): 12,7
Overall Length (H mm): 54,4
Shank (A mm): 8
Bearing (C mm): 9.5-12.7-16-19
Cut (P mm): 12.75-11.15-9.5-8
Teeth: 2
Angle (°): -
Max RPM 1/min: 16000

Properties & Advantages

Applications:
Use to make strong lap joints, cut recesses to let in the back panels of cabinets or create an interesting detail on built-up moulding.

Machines:
Hand-held routers and table routers.

Materials:
Softwood, hardwood, plywood and wood based panels.

Bit Material - TiCo Carbide
A specially formulated, highly compact Titanium Cobalt Carbide, engineered and manufactured by Freud.
It provides a sharper edge and a flawless finish with a dramatically longer cutting life.

Perma-SHIELD Coating
A non-stick coating formulation that withstands the toughest applications.
It provides thermal insulation, protects from corrosion and eliminates resin build-up, reducing downtime for cleaning.
