Shaper Up-Spiral O-flute Router Bit D5 X 20mm

D: 5 mm | GL: 78 mm | SL: 20 mm | NL: 30 mm | Z: 2 | S: 8 mm

Delivery time 2-3 days
58,31 €
incl. VAT / excl. shipping costs
1
  • Brand:SHAPER TOOLS
  • Article no.:ST-SF1-8-5D
  • Weight:0.07kg

Shaper Up-Spiral O-flute Router Bit D5 X 20 mm

This roughing cutter offers enormous advantages in terms of machining time, cutter life and overall efficiency for all your routing work in deeper material.

It allows you to make single passes up to 20mm deep even in solid hardwood. The 8 mm shank and solid carbide composition provide stability and durability for deep routing passes in all woods and wood-based materials.

Technical Data

  • Total length: 78 mm
  • Shank diameter: 8 mm
  • cutter diameter: 5 mm
  • cutter length: 20 mm
  • Useful length: 30 mm
  • Type: Positive spiral flute, single flute
  • Material: Solid carbide

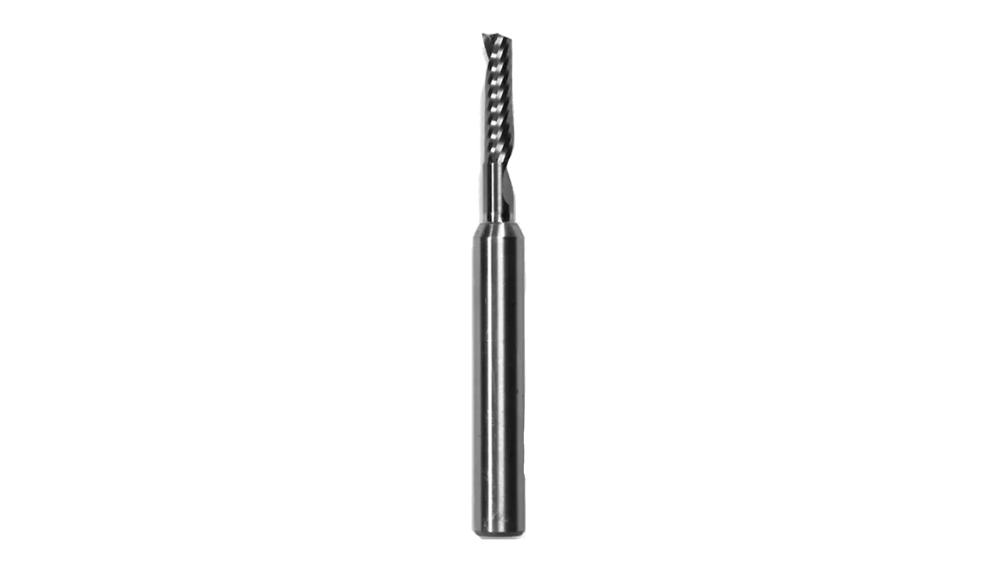

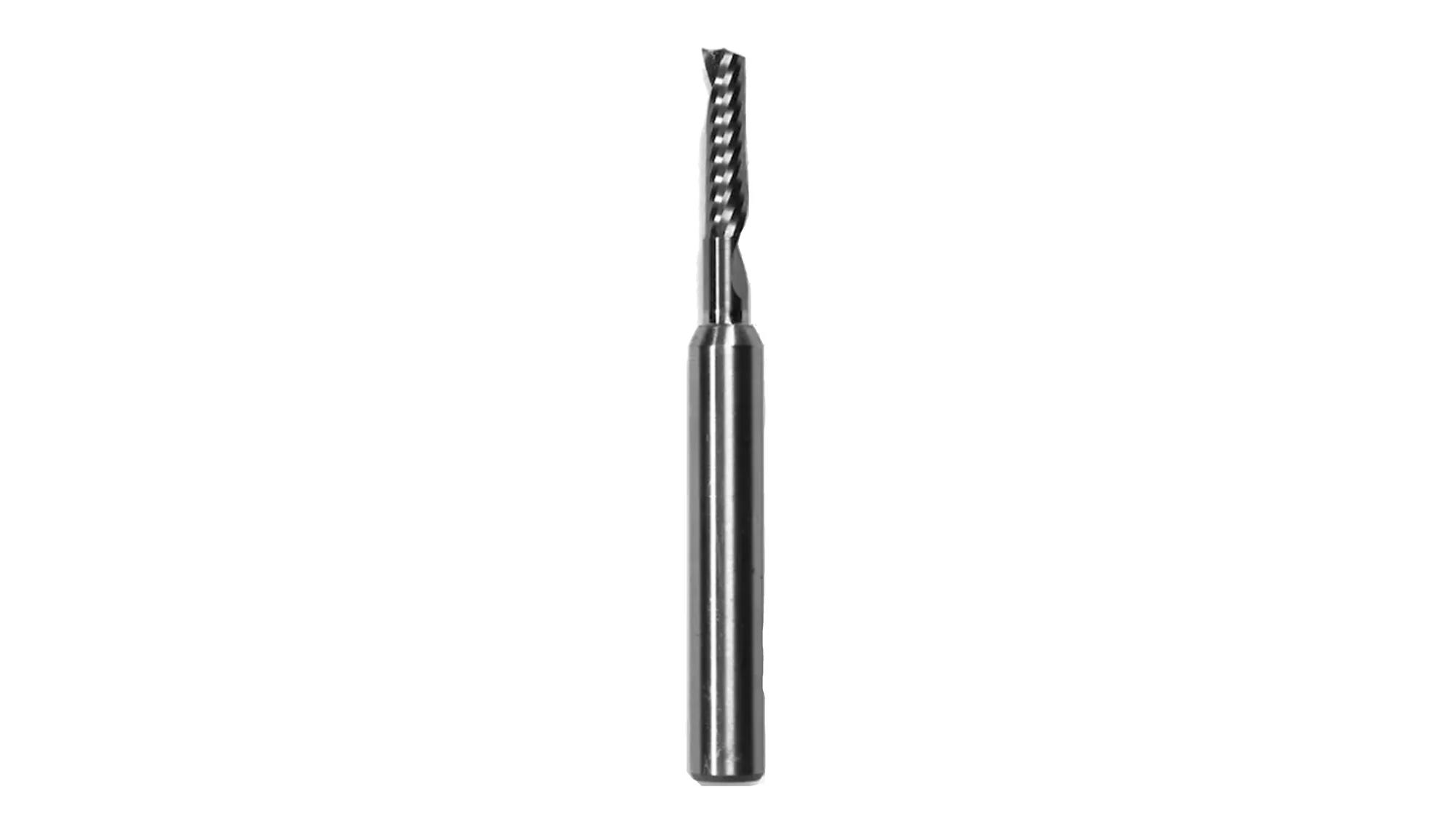

spiralnutfraeser-einschneidig-vhm-d5x20-shaper-tools-st-sf1-8-5d-01

Properties & Advantages

  • For 20 mm deep routing passes in solid wood.
  • The 8 mm shank provides extra stability.
  • Efficient routing of profiles.
