Tormek Drill Bit Sharpening Attachment

For drill diameters from 3 - 22 mm | Sharpens to a four-facet point

Delivery time 2-3 days

259,42 €

incl. VAT / excl. shipping costs

Brand:Tormek
Article no.:TM-DBS-22
Weight:3.35kg

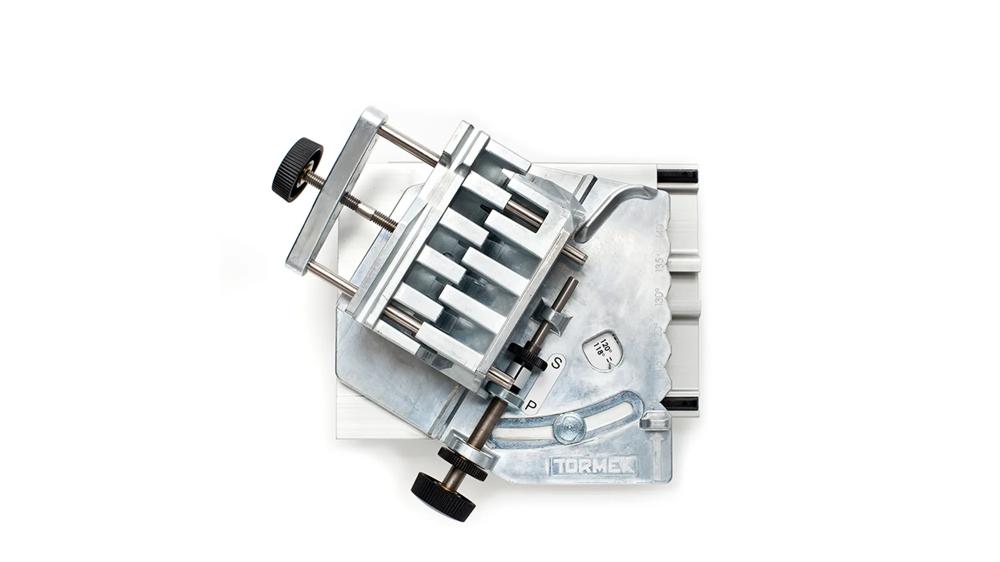

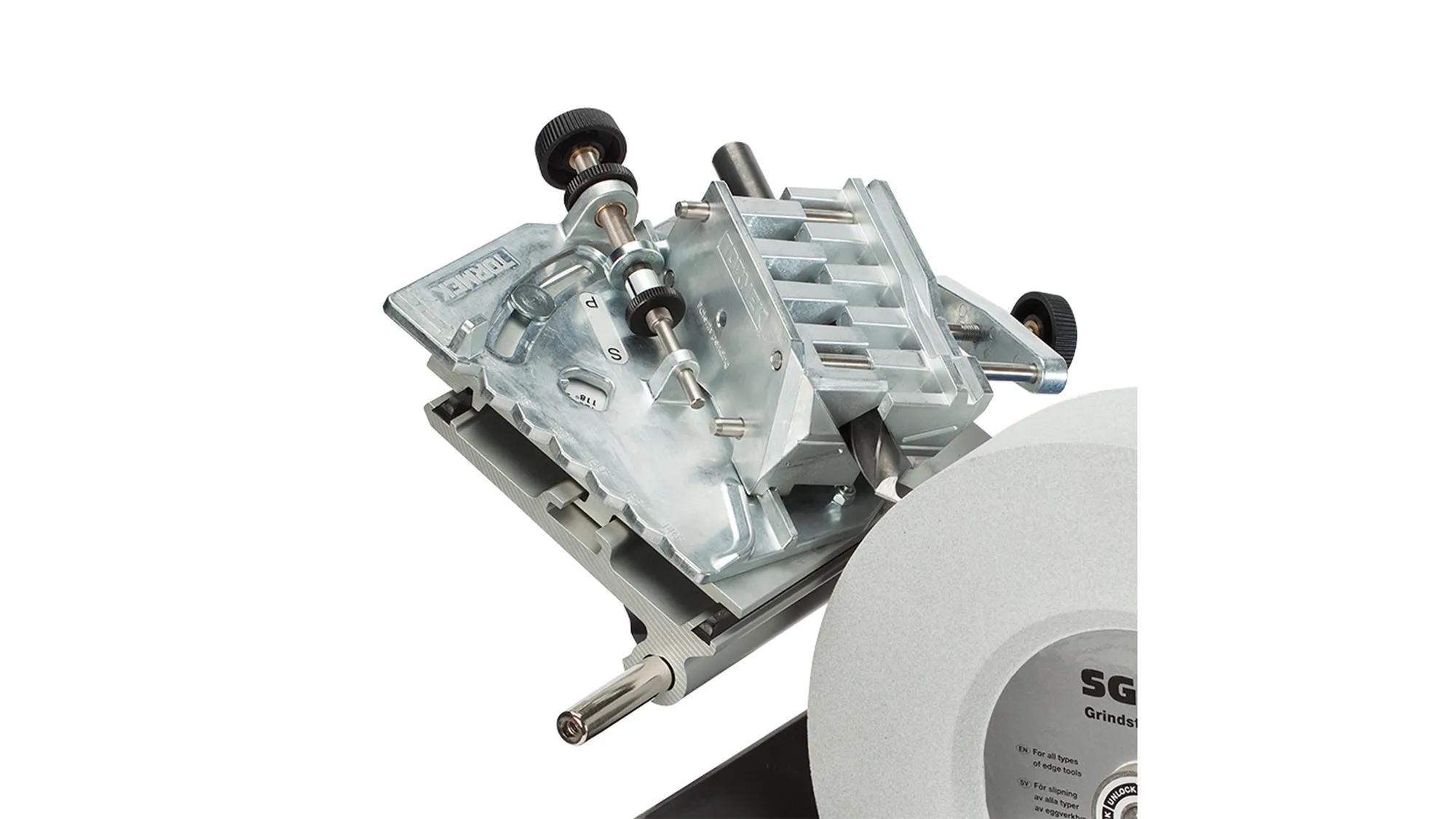

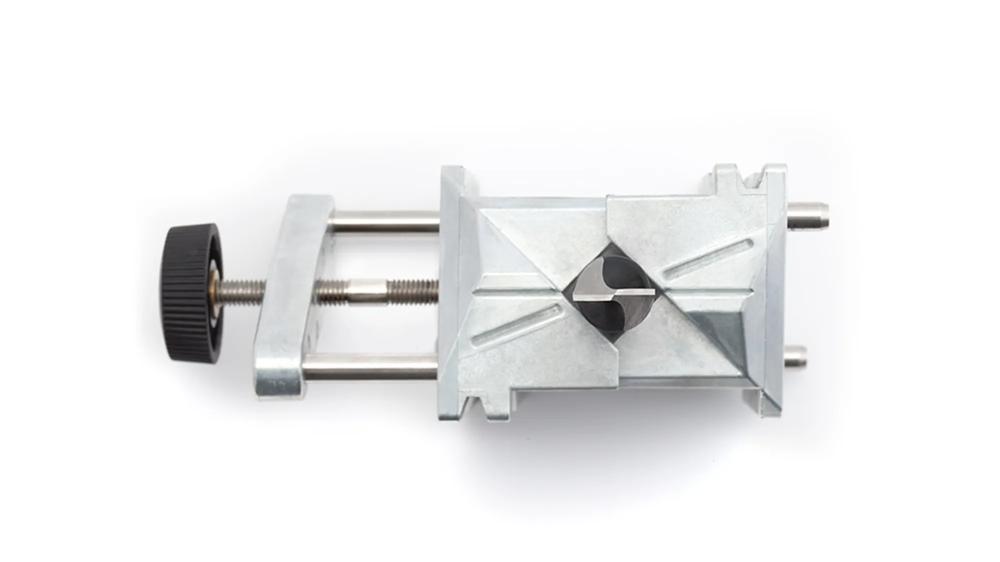

Tormek Drill Bit Sharpening Attachment

Setting the optimum centre and clearance angles depending on the drill bit size and material.

The DBS-22 Drill Bit Sharpening Attachment allows you to sharpen your drill bits from 3 mm (1/8") to 22 mm (7/8") in diameter with maximum precision and to give a four-facet point for best performance. The optimum tip and lip relief angle can be set for each drilling operation, taking into account the drill bit size and material. You can also sharpen broken bits back to the perfect shape.

Technical Data

Material: Precision die-cast zinc, stainless steel, black composite
Lubricant: PTFE

Properties & Advantages

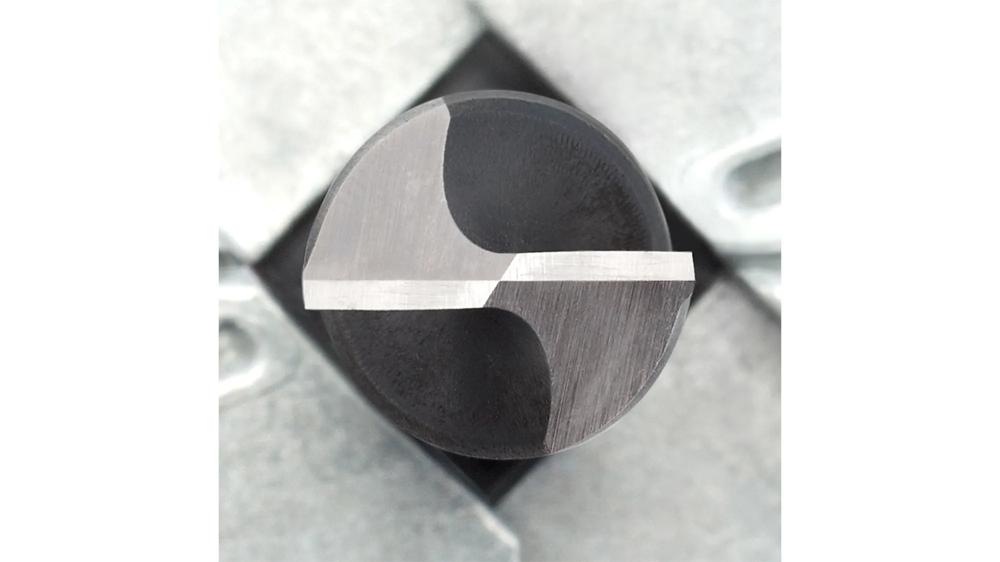

Sharpens a four-fibre point that drills efficiently and lasts more than four times longer than a conventional drill point.
The DBS-22 drill sharpening device also creates an acute angle on the cross cutting edge, so the tip does not move and significantly less drilling pressure is generated.
The precision-ground tip reduces heat development.
Constant cooling of the cutting edge during sharpening prevents overheating and the formation of microcracks.
A magnifying glass is included for small drill bits.
2-year guarantee.
