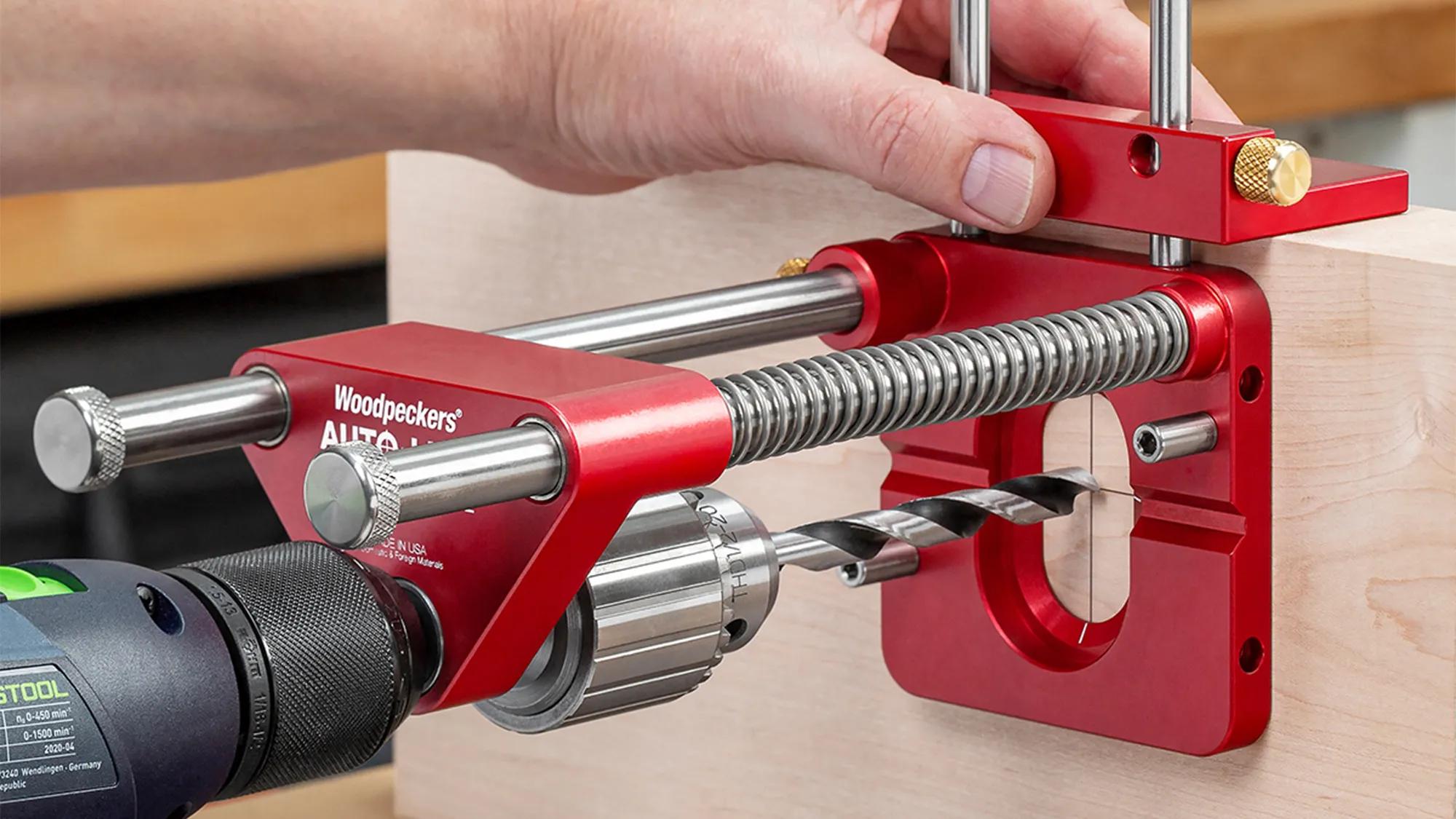

Woodpeckers Auto-Line Drill Guide

Highly flexible - Highly precise - Extremely versatile | Professional workmanship | Professional application | Professional results

Delivery time 2-3 days

439,00 €

incl. VAT / excl. shipping costs

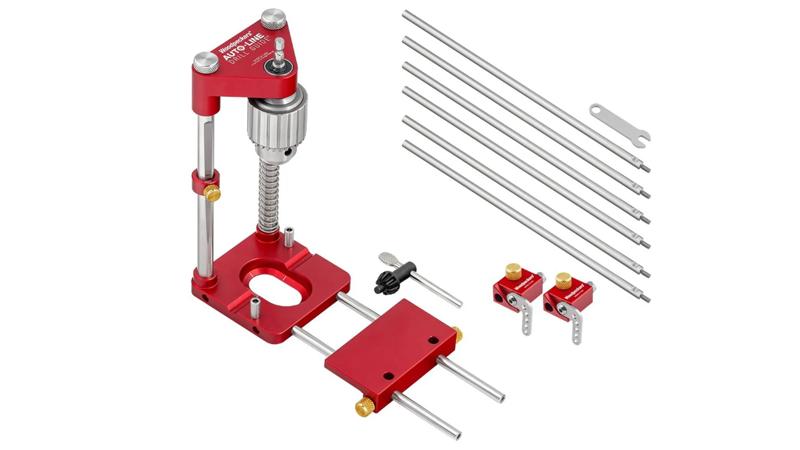

Highly flexible - Highly precise - Extremely versatile | Inc. 6 Extention Rods | 2 Flip Stops | Wrench

Delivery time 2-3 days

599,00 €

incl. VAT

Art.-Nr: W-ALDG-21-DEL

1 Products

High-quality Yukiwa-Seiko drill chuck (JP) with sealed ball bearings for easy, precise concentricity.
Teflon guided slide bearings for easy running of the drill chuck on the stainless steel columns
Return spring on one side prevents uncontrolled sinking of the drill chuck
Depth stop on second column with face-milled clamping fixture for firm seating
Laser-engraved crosshairs on the drill hole for easy, precise alignment
Milled V-groove for centred drilling in round materials
Centring pins for quick alignment for centred drilling (material width up to 79 mm)
Centring pins can be safely "parked" on the base plate, the required hexagonal key is concealed in the column cap
Rip fence adjustable from 0 - 177 mm and mountable from four sides
Drill chuck can be used in two positions:
Above the drill hole (up to Ø 19 mm)
On the back of the stainless steel columns (up to Ø 50 mm)
Rip fence can be used as an additional support, as a holder for horizontal use...
Different mounting methods of the fence result in further fence situations
Precisely manufactured in Strongsville, Ohio, USA

Extends the fence by 305 to 610 mm | Precisely manufactured | More reach | Extremely stable

Delivery time 2-3 days

67,01 €

incl. VAT

Art.-Nr: W-ALDG-EXT-21

Flip stop for drill guide | Folds away | Adjustable | Repeatable

Delivery time 2-3 days

42,46 €

incl. VAT

Art.-Nr: W-ALDG-21-FS

2 Products
