How does CNC Routing work?

CNC stands for Computerized Numerical Control and describes the computer-aided control of cutting machine tools. Using the example of a 3-axis CNC routing machine, we would like to explain briefly how CNC routing works. A router motor can be moved in all three spatial dimensions on three axes (X,Y,Z) that are perpendicular to each other. In the simplest case, the movement is carried out by stepper motors. An electronic control tells the individual stepper motors how far they should rotate, i.e. how far the router motor should move in the respective direction. By controlling several motors at the same time, it is possible,for example, to create almost perfect circular movements. So that the user doesn't have to do all this by hand, there are CAD/CAM programs which, for example, automatically create the appropriate routing paths from a computer-generated 3D object. These are then translated into the correct motor movements by the control unit.

For whom are CNC routing machines suitable?

Due to the almost infinite spectrum of possibilities, CNC milling machines are suitable for a wide range of disciplines:Model makers can use it to create and modify prototype parts quickly and efficiently (rapid prototyping)A wide variety of materials can be processed on CNC machinesAdvertising technicians can easily create customized displays, neon signs and bannersFor camper and caravan conversions and cabinet makers, molded parts can be quickly adapted to different vehicle models and customer requirements and produced on the CNC.Due to the fact that CNC routing machines don't require any supervision when operating it is possible to get on with other jobs at the same time , saving time and money. Even small series can be realized quickly without having to build up a corresponding production line first.

What can you do with a CNC routing machine?

The spectrum of possibilities of CNC milling is almost infinite. Starting with simple two-dimensional milling of panel material, through three-dimensional objects with overhangs and sloping or curved contours, to the complete machining of, for example, an engine block in a single operation, everything is possible. Thanks to countless tutorials and videos on the Internet, even beginners can quickly achieve impressive results.

What does CAD/CAM stand for?

CAD stands for Computer Aided Design and describes the computer-aided creation of 2D drawings and 3D objects. In CAD programs are generally the first step from the idea to the finished product. The results of CAD are e.g. sketches, drawings or 3D models which are then often used as a basis for CAM. CAM stands for Computer Aided Machining. This means e.g. the creation of paths for CNC routing. CAM programs determine how objects are routed out, which routing strategies are used and which router cutters are used. Here it is often decided between 2.5D and 3D. 2.5D is meant when two-dimensional contours are machined at different depths. It is called 3D when inclined or curved surfaces are also machined.

Which materials can be processed with CNC machines?

This basically depends on the stiffness of the overall system. The harder the material to be processed, the stiffer and more stable the roting machine must be. Aluminium and all types of wood are no problem on commercial routing machines. But also stainless steel, Corian and other composite materials can be processed with CNC machines.

CNC

Il modo moderno di lavorare il legno

Il termine CNC indica il controllo computerizzato delle macchine utensili da taglio. Che si tratti di progettare i propri pannelli pubblicitari, di trasformare un furgone in un camper o di produrre pezzi da incasso direttamente presso il cliente, le fresatrici CNC sono adatte a un'ampia gamma di applicazioni: Le fresatrici CNC sono adatte a un'ampia gamma di applicazioni. Nel nostro negozio non troverete solo fresatrici CNC a 3 assi mobili e complete, ma anche la fresatrice CNC a guida manuale di Shaper, nonché le Frese CNC adatte al vostro materiale e gli accessorigiusti per ilfissaggio dei vostri pezzi.

Nuovo

Kit spoiler Mekanika L

Adatto per: EVO (L); PRO (L) | piastra sacrificale con griglia di inserti filettati

n. art.: MEK-M01493

Tempi di consegna 12 giorni lavorativi

242,78 €

Fresa a spirale VHM D8 NL32 S8 Z3

D: 8 mm | NL: 32 mm | GL: 80 mm | S: 8 mm | Z: 3 | Elica destrorsa

n. art.: E-10078

Tempi di consegna 6 giorni lavorativi

93,64 €

Nuovo

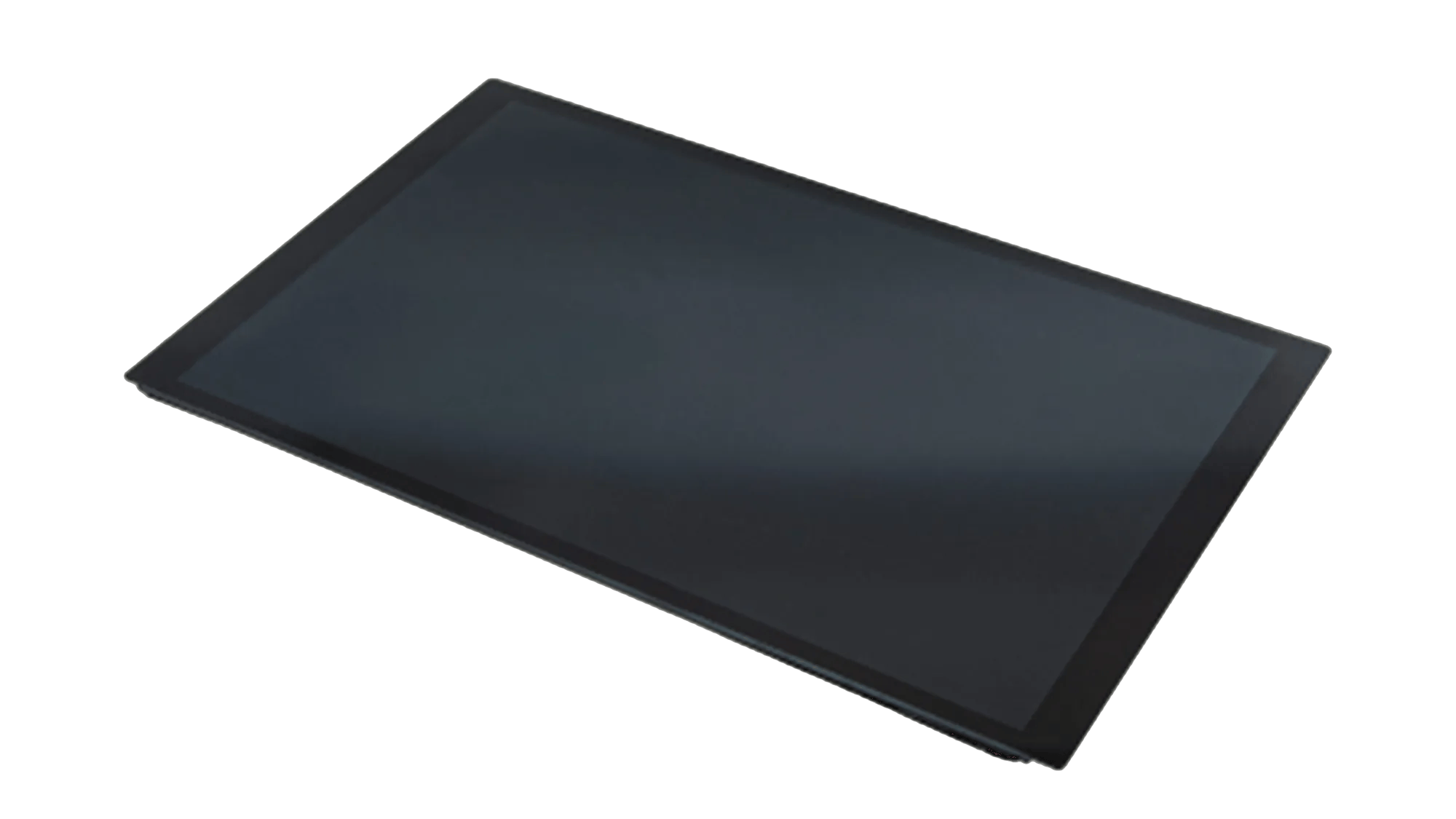

Replacement Touch Screen for XL SmartBench console

n. art.: YT-WP-CNCY-039

Tempi di consegna 31 giorni lavorativi

265,18 €

Nuovo

Fresa a spirale VHM D5 S6

D: 5 mm | NL: 17 mm | GL: 60 mm | S: 6 mm | Z: 2 | Elica destrorsa

n. art.: E-10065

Ordinabile presumibilmente dal 30.12.2026

59,28 €

Dettagli

exzenterschleifer-aufsatz-wpw-wp-sand982-01

Accessorio per levigatrice eccentrica per macchine CNC Ø 100 mm

D: 100 mm | S: 12 mm | Caratteristica unica: rettifica su macchina CNC

n. art.: WP-SAND982

In magazzino, consegna in 2-3 giorni lavorativi

306,54 €

Nuovo

Fresa a spirale VHM D4 S6

D: 4 mm | NL: 15 mm | GL: 60 mm | S: 6 mm | Z: 2 | Elica destrorsa

n. art.: E-10064

Tempi di consegna 6 giorni lavorativi

59,28 €
